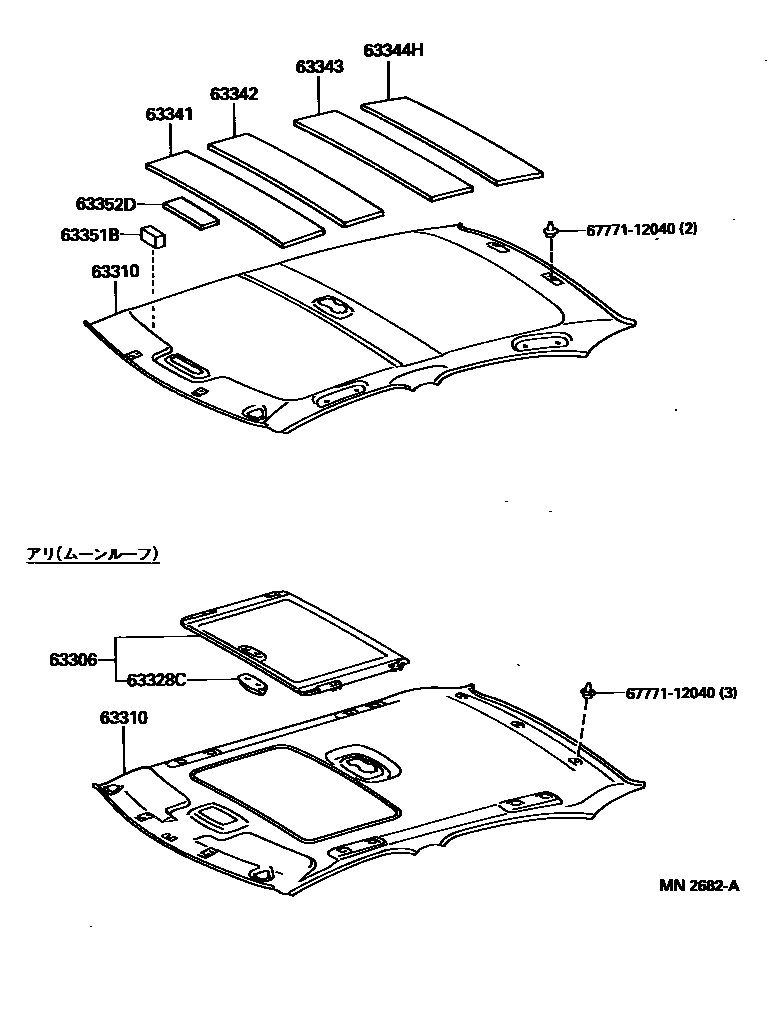

Toyota CAMRY 车顶内衬和消声垫 — Figure 6402
Toyota CAMRY EPC diagram 6402, 车顶内衬和消声垫, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63343-32070 |
| 63342 | No. 2 roof muffler pad | 63343-32070 |
| 63343 | No. 3 roof muffler pad | 63343-32070 |
| 63344H | No. 4 roof silencer mat | 63343-32070 |
| 63351B | roof lining pads | 63351-20040 |
| 63352D | No. 2 roof lining lining block | 63352-32010 |
