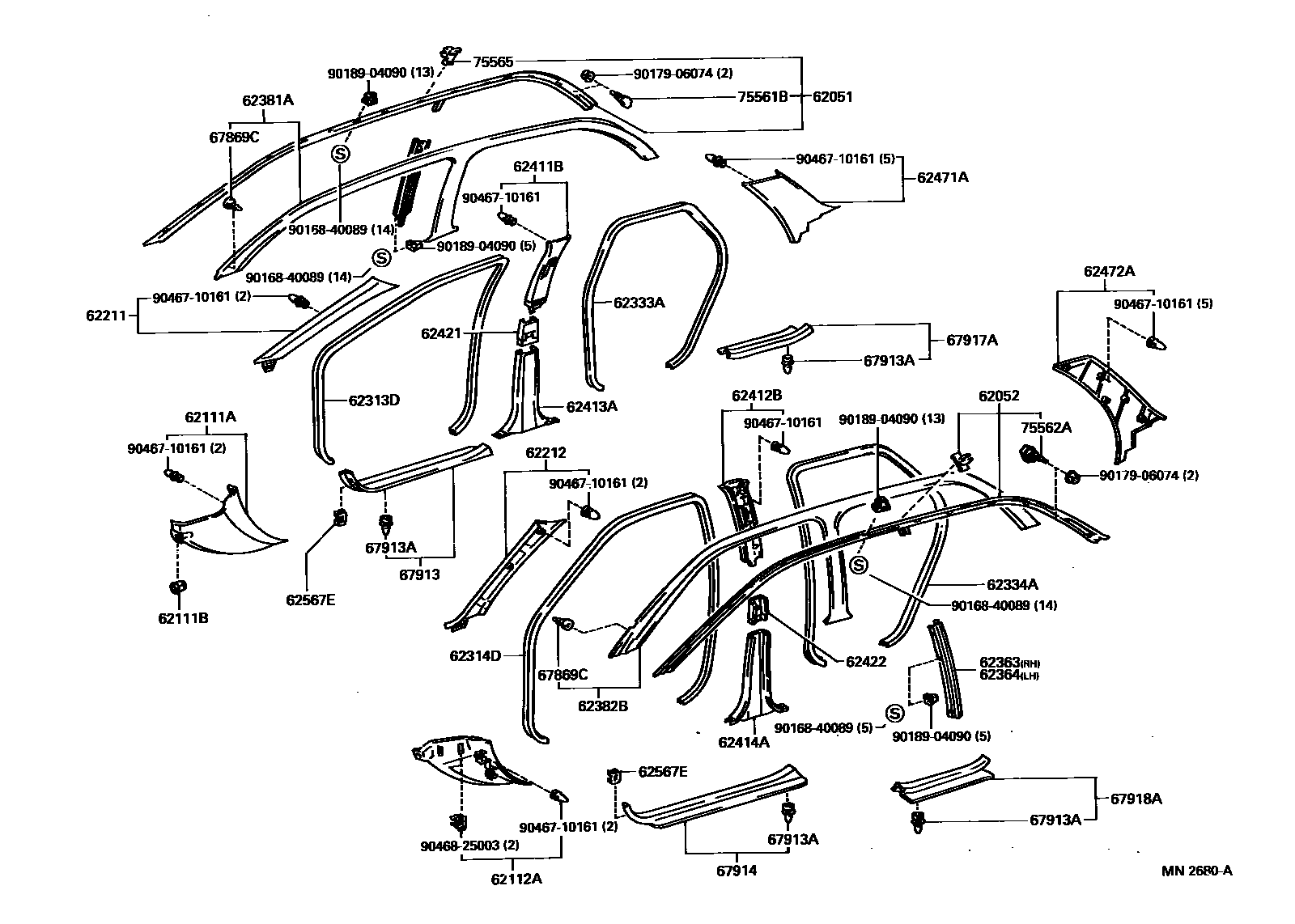

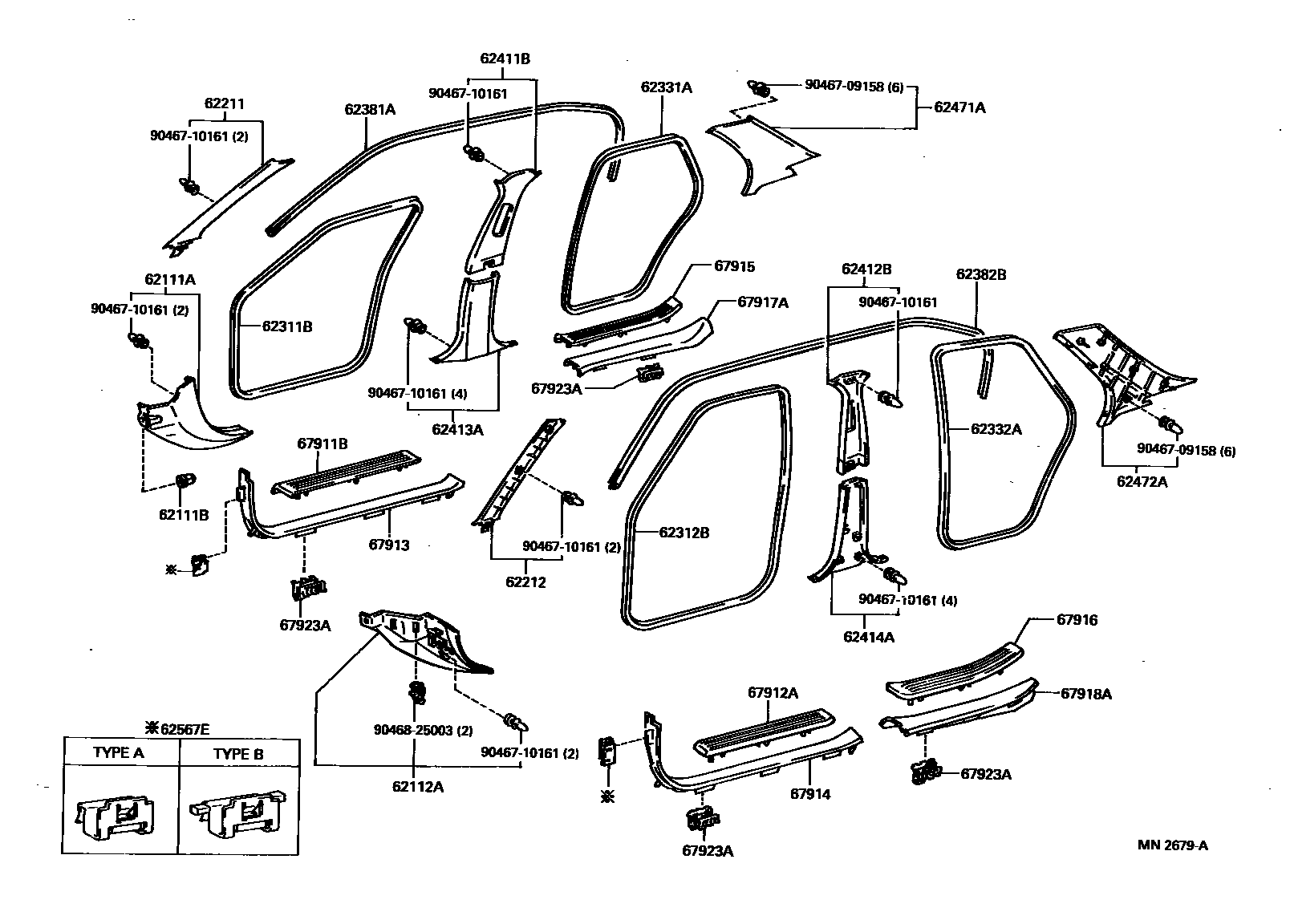

Toyota CAMRY 内饰板和车门防水胶条 — Figure 6401
Toyota CAMRY EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62051 | Right front roof side sealing strip fixing sub-assembly | 62051-32060 |
| 62052 | Left front roof side sealing strip fixing sub-assembly | 62052-32060 |
| 62311B | Right front door opening waterproof tape | 62311-32090 |
| 62312B | Left front door opening waterproof tape | 62312-32080 |
| 62331A | Right rear door opening waterproof tape | 62331-32040 |
| 62332A | Left rear door opening waterproof tape | 62332-32030 |
| 62363 | Right rear roof rail sealing strip fastener | 62363-32030 |
| 62364 | Left rear roof rail sealing strip fixing | 62364-32030 |
| 62381A | Roof right side rail seal strip | 62381-32060 · 62381-32061 · 62381-32070 · 62381-32080 |
| 62382B | Roof left side rail seal strip | 62382-32060 · 62382-32061 · 62382-32070 · 62382-32080 |
| 62567E | No. 2 door inner sill guard strip clip | 62567-12010 · 62567-32010 · 62567-32020 · 62567-33010 |
| 67869C | Roof rail sealing strip clip | 67869-30020 · 67869-32020 |
| 67911B | Right front door outer wear plate | 67911-32030 |
| 67912A | Left front door outer wear plate | 67911-32030 |
| 67913A | Clip (for wear plate) | 90467-10162 |
| 67915 | Right rear door outer wear plate | 67915-32030 |
| 67916 | Left rear door outer wear plate | 67916-32030 |
| 67923A | Car door No. 1 wear plate clip | 67923-32010 · 67923-32040 |
| 75561B | No. 1 roof drain channel side decorative strip clip | 75561-32020 |
| 75562A | No. 2 roof drain channel side decorative strip clip | 75562-32030 |
| 75565 | No. 1 roof side panel protector | 75565-32010 |
