Toyota CAMRY 行李箱门和行李箱锁 — Figure 6105

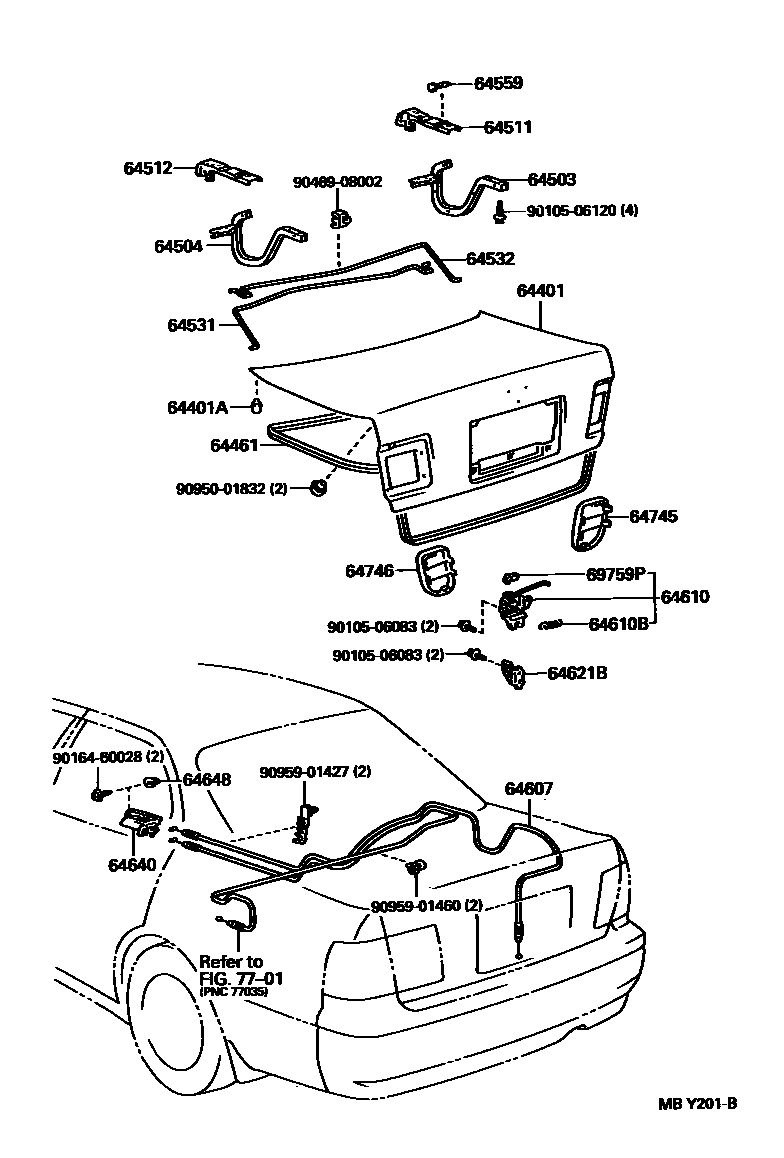

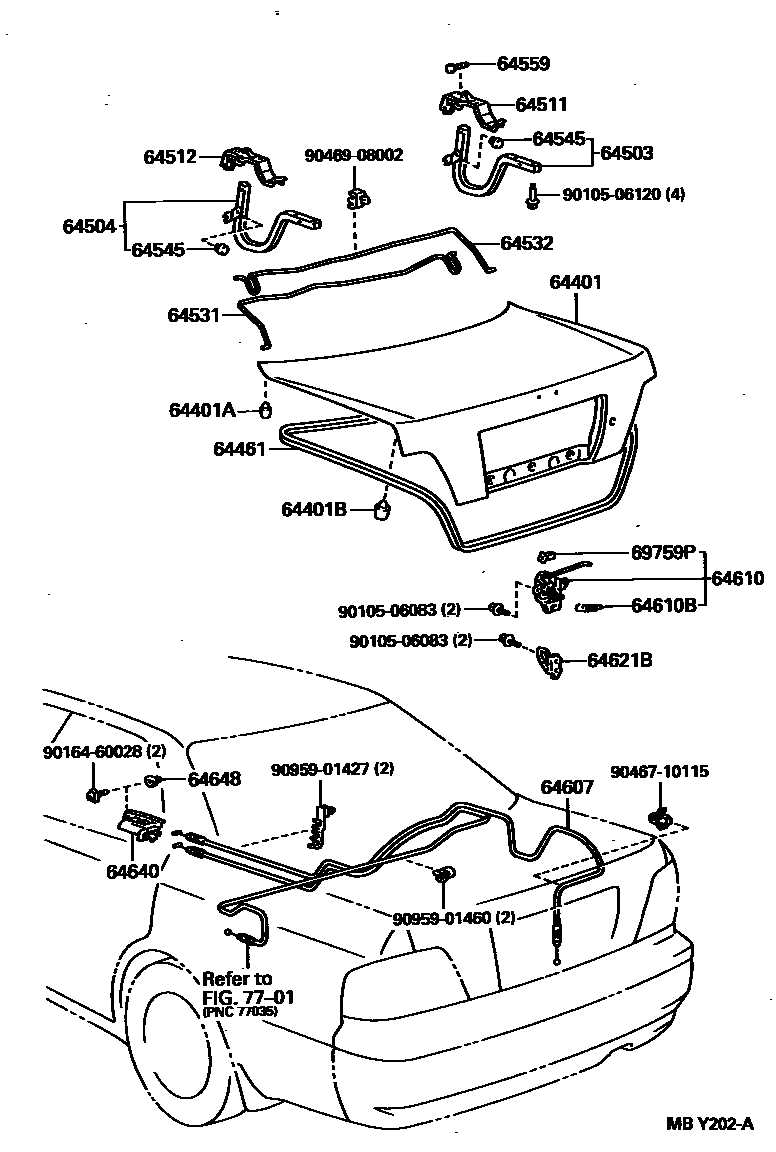

Toyota CAMRY EPC diagram 6105, 行李箱门和行李箱锁, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64401 | Trunk door panel sub-assembly | 64401-32690 · 64401-32691 · 64401-32700 · 64401-32701 · 64401-32710 · 64401-32720 |
| 64401A | Cushion pad (for luggage compartment door panel) | 90541-06054 · 90541-06059 |
| 64401B | Hole plug (for trunk door panel) | 90541-09043 |
| 64461 | Trunk door seal | 64461-32100 · 64461-32110 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-32040 · 64503-32041 · 64503-32050 · 64503-32051 |
| 64504 | Trunk door left hinge arm sub-assembly | 64504-32030 · 64504-32031 · 64504-32040 · 64504-32041 |
| 64511 | Trunk door right hinge bracket | 64511-32070 · 64511-32080 |
| 64512 | Trunk door left hinge bracket | 64512-32070 · 64512-32080 |
| 64531 | Trunk door right hinge torsion bar | 64531-32150 · 64531-32160 · 64531-32170 · 64531-32180 |
| 64532 | Trunk door left hinge torsion bar | 64532-32150 · 64532-32160 · 64532-32170 · 64532-32180 |
| 64545 | Trunk door hinge cushion | 90541-10144 |
| 64559 | Trunk door hinge pin | 64559-32020 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-32250 · 64607-32260 |
| 64610 | Trunk door lock assembly | 64610-32080 · 64610-32100 |
| 64610B | Tension spring (for trunk door lock) | 90506-06009 · 90506-06010 |
| 64621B | Trunk door latch | 64621-12060 |
| 64648 | Trunk door lock opener seal | 64648-32020 |
| 64745 | Right rear combination light access hole cover | 64745-32030 |
| 64746 | Left rear combination light access hole cover | 64746-32030 |
| 69759P | Door lock control link buckle | 69759-20110 |
