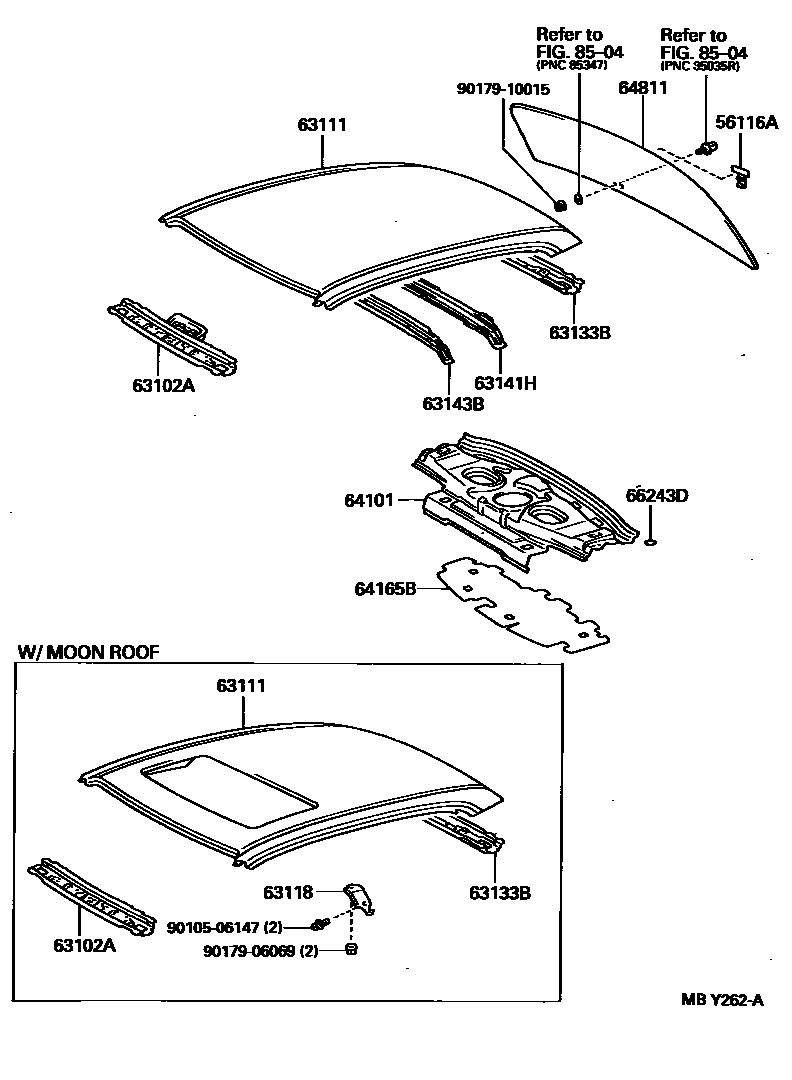

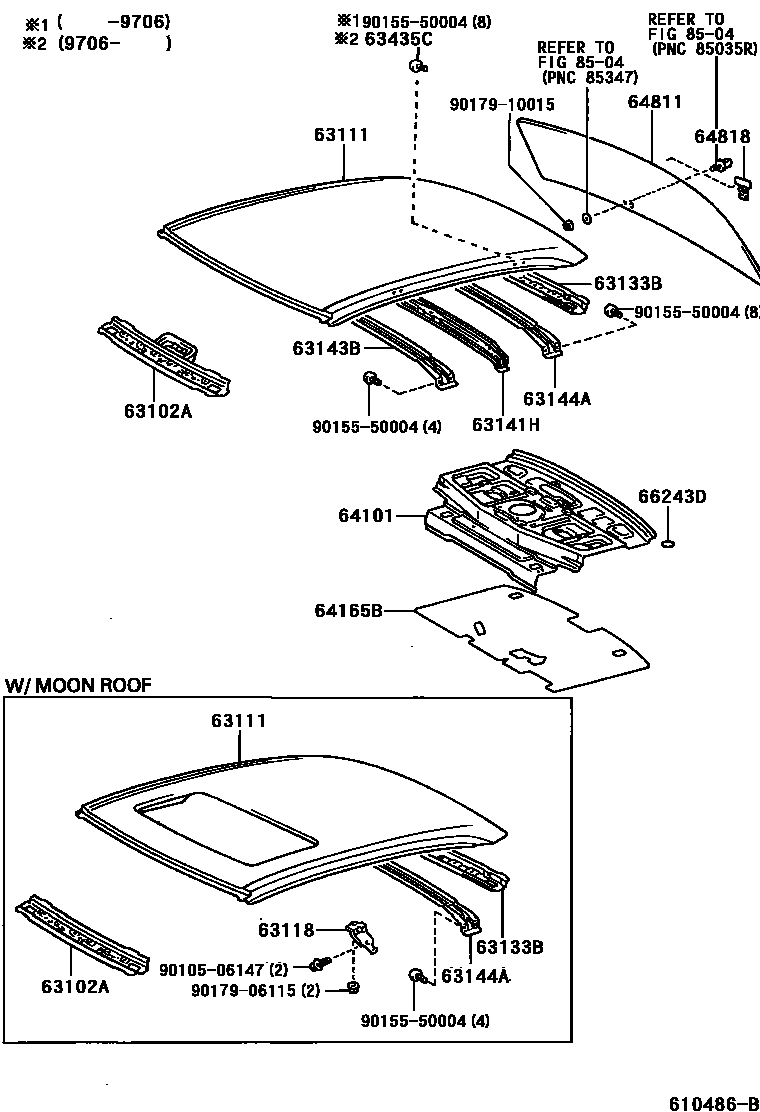

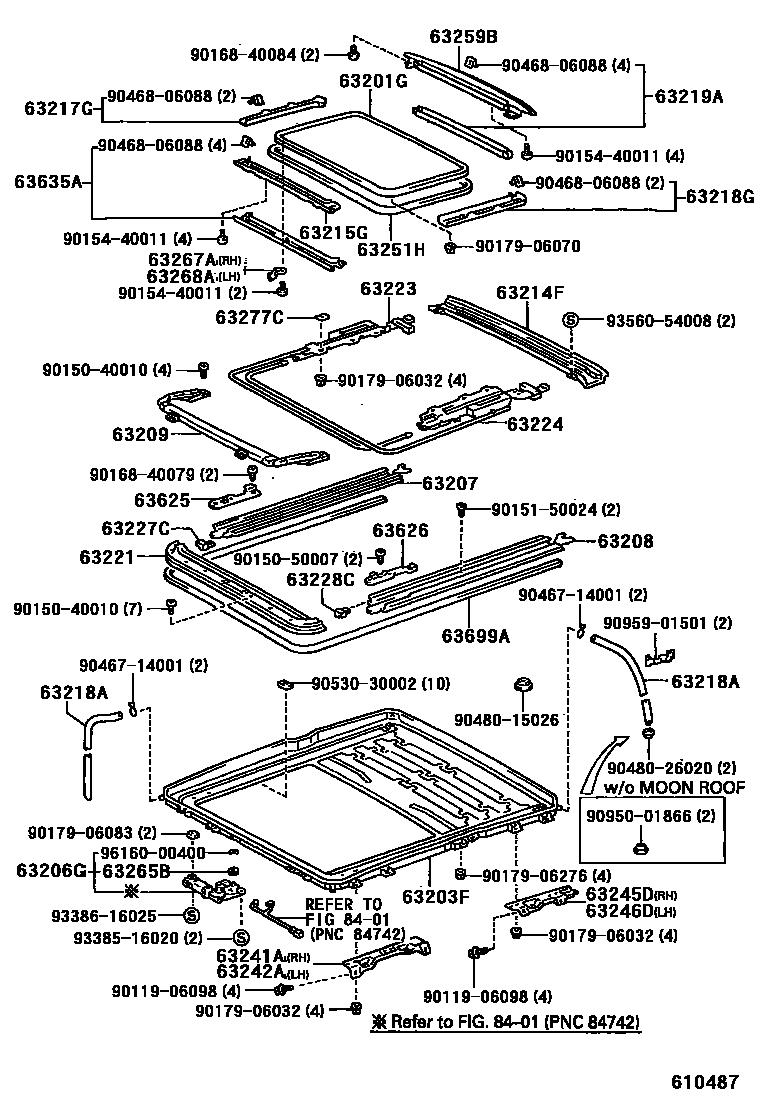

Toyota CAMRY 天窗板和背窗玻璃 — Figure 6104
Toyota CAMRY EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56116A | windshield spacer | 56115-32010 |
| 63102A | Windshield roof sub-assembly | 63102-32140 · 63102-32150 · 63102-32160 · 63102-32170 |
| 63111 | roof panel | 63111-32160 · 63111-32180 · 63111-32901 · 63111-32902 |
| 63118 | Right roof panel bracket | 63118-32010 · 63118-32020 |
| 63133B | back window frame | 63133-32060 · 63133-32070 |
| 63141H | Center roof panel reinforcement | 63141-32080 · 63141-32090 |
| 63143B | No. 3 roof panel reinforcement | 63143-32050 · 63143-32060 |
| 63144A | No. 4 roof panel reinforcement | 63144-32050 · 63144-32060 |
| 63201G | Sliding sunroof glass sub-assembly | 63204-32060 · 63204-32070 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-22070 |
| 63206G | Sliding sunroof driving gear sub-assembly | 63260-32023 |
| 63207 | Right sliding sunroof guide rail sub-assembly | 63207-22050 · 63207-22051 |
| 63208 | Left sliding sunroof guide rail sub-assembly | 63208-22050 · 63208-22051 |
| 63209 | Roof deflector sub-assembly | 63209-32040 |
| 63214F | Roof rear drain channel | 63214-32040 |
| 63215G | Front sunroof protective strip | 63215-32020 |
| 63218A | Hoses (for sliding or removable sunroof drainage) | 63249-32120 · 63249-32130 |
| 63221 | Sliding sunroof cable duct | 63221-22040 |
| 63223 | Right sliding sunroof transmission cable | 63223-22030 |
| 63224 | Left sliding sunroof transmission cable | 63224-22030 |
| 63227C | Right front sliding sunroof sunshade stop | 63227-20010 |
| 63228C | Left front sliding sunroof sunshade stop | 63228-20010 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-32030 · 63241-32040 |
| 63242A | Sliding sunroof frame left front mounting bracket | 63242-32030 · 63242-32040 |
| 63245D | Sliding sunroof frame right rear mounting bracket | 63245-32020 · 63245-32030 |
| 63246D | Sliding sunroof frame left rear mounting bracket | 63246-32020 · 63246-32030 |
| 63251H | Sliding skylight seal | 63251-32030 |
| 63259B | Sliding sunroof sealing strip holder | 63259-32040 |
| 63265B | Sliding sunroof driving gear | 63265-20010 |
| 63267A | Right sliding sunroof sealing strip protector | 63267-32020 |
| 63268A | Left sliding sunroof sealing strip protector | 63268-32020 |
| 63277C | Sliding skylight panel gasket | 63277-20030 · 63277-20050 |
| 63435C | Roof right storage rack No. 1 seal | 63435-12030 |
| 63625 | Right sliding sunroof guide block | 63625-33011 |
| 63626 | Left sliding sunroof guide block | 63626-33011 |
| 63699A | Sliding sunroof guide seals | 63699-32030 |
| 64101 | Upper back panel sub-assembly | 64101-32200 · 64101-32210 |
| 64165B | No. 1 upper back panel hole cover | 64165-32030 · 64165-32050 · 64165-32060 |
| 64811 | back window glass | 64811-32460 · 64811-32480 · 64811-32510 · 64811-32530 · 64811-32550 · 64811-32570 · 64811-32590 · 64811-32610 · 64811-32900 · 64811-32901 · 64811-32902 · 64811-32904 · 64811-32905 · 64811-32906 · 64811-32907 |
| 64818 | Back window glass spacer | 56115-32010 |
| 66243D | Rear body protection piece No. 1 | 66243-20010 |
