Toyota CAMRY 中央扶手箱和支架 — Figure 5806

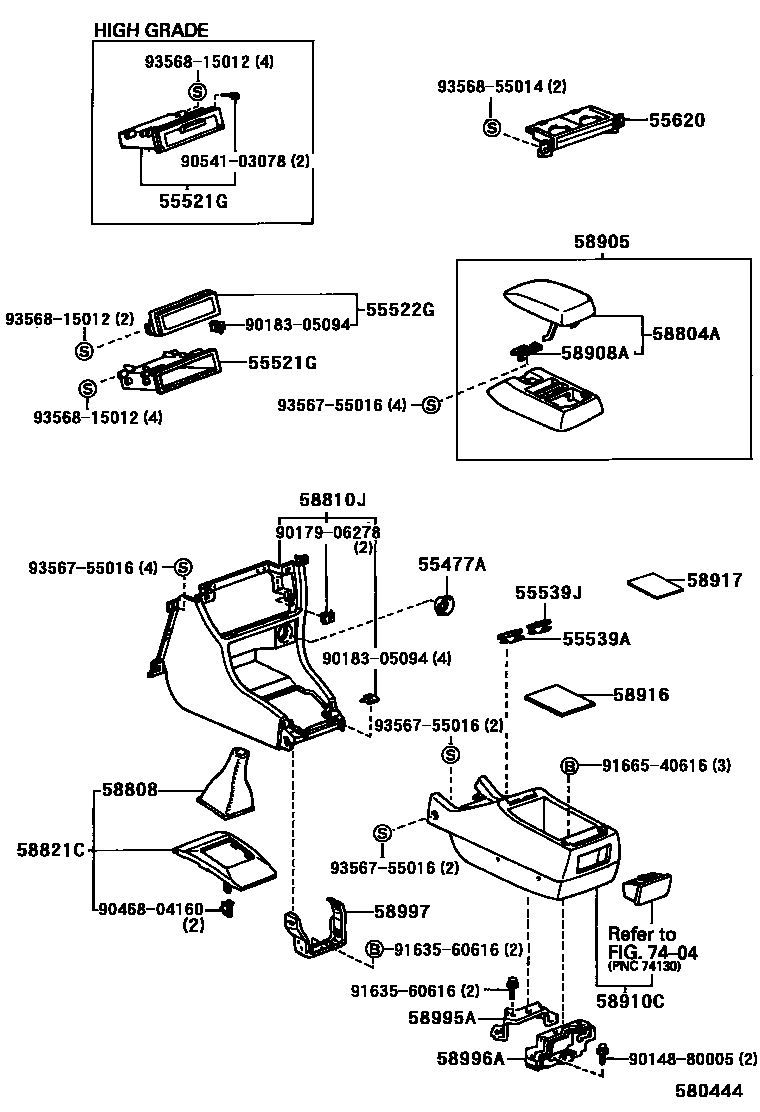

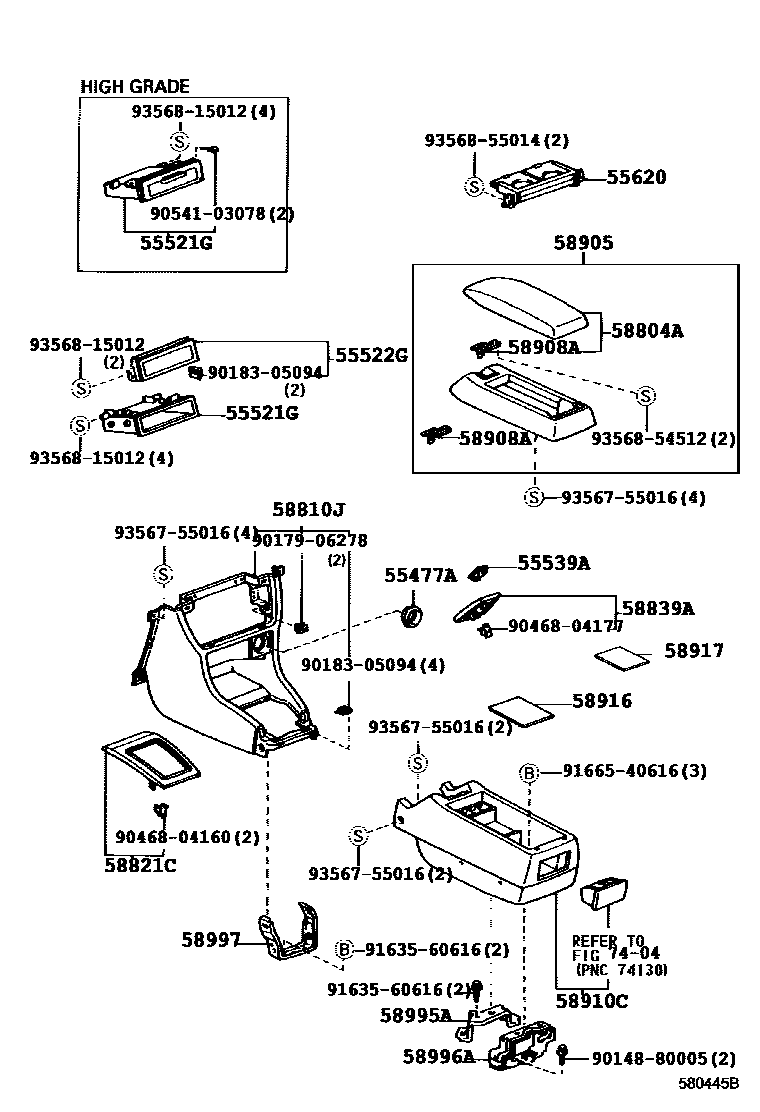

Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55477A | Cigarette lighter hole frame | 55477-32050 |
| 55521G | stereo system hole cover | 55520-20070 · 55521-16030 · 55521-32020 |
| 55522G | Radio tuner opening cover | 55522-20070 · 55522-32030 · 55522-33030 |
| 55620 | Dashboard cup holder assembly | 55620-32040 |
| 58821C | Armrest box upper panel | 58804-32260 |
| 58908A | Armrest box lid lock assembly | 58908-32040 · 58908-32050 |
| 58916 | Armrest box bottom pad | 58916-32110 · 58916-32130 · 58916-32140 |
| 58917 | Armrest box bottom pad No. 2 | 58917-32050 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-32040 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-32030 |
| 58997 | Armrest box No. 3 mounting bracket | 58997-32030 |
