Toyota CAMRY 前围板和挡风玻璃 — Figure 5503

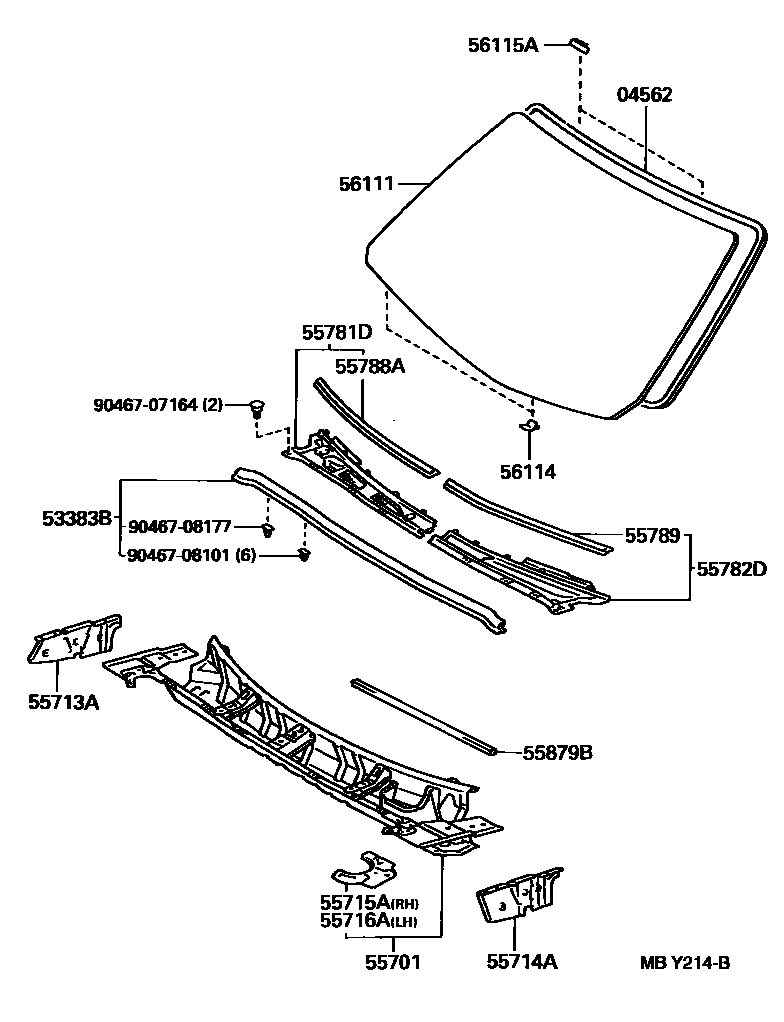

Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04562 | Windshield sealing strip assembly | 04562-12010 |
| 53383B | Engine cover to cowl upper cover seal | 53383-32040 |
| 55701 | Front apron sub-assembly | 55700-32360 · 55700-32370 |
| 55713A | Right front wall upper side panel | 55713-32040 |
| 55714A | Left front wall upper side panel | 55714-32040 |
| 55715A | From cowl upper cover to fender right stay | 55715-32040 |
| 55716A | From cowl upper cover to fender left stay | 55716-32040 |
| 55781D | Ventilation grille on right front apron | 55781-32080 · 55781-32090 |
| 55782D | Ventilation grille on left front apron | 55782-32070 · 55782-32080 |
| 55788A | Ventilation grille protector on front apron | 55788-32020 |
| 55789 | Seals from cowl upper cover to grille | 55789-32020 |
| 55879B | cowl vent seal | 55879-32040 |
| 56111 | windshield | 56111-32400 · 56111-32410 · 56111-32420 · 56111-32421 · 56111-32430 · 56111-32431 · 56111-32440 · 56111-32450 · 56111-32460 · 56111-32461 · 56111-32470 · 56111-32471 · 56111-32500 · 56111-32510 · 56111-32520 · 56111-32530 |
| 56114 | windshield stopper | 56114-22050 |
| 56115A | Windshield block No. 1 | 56115-32010 |
