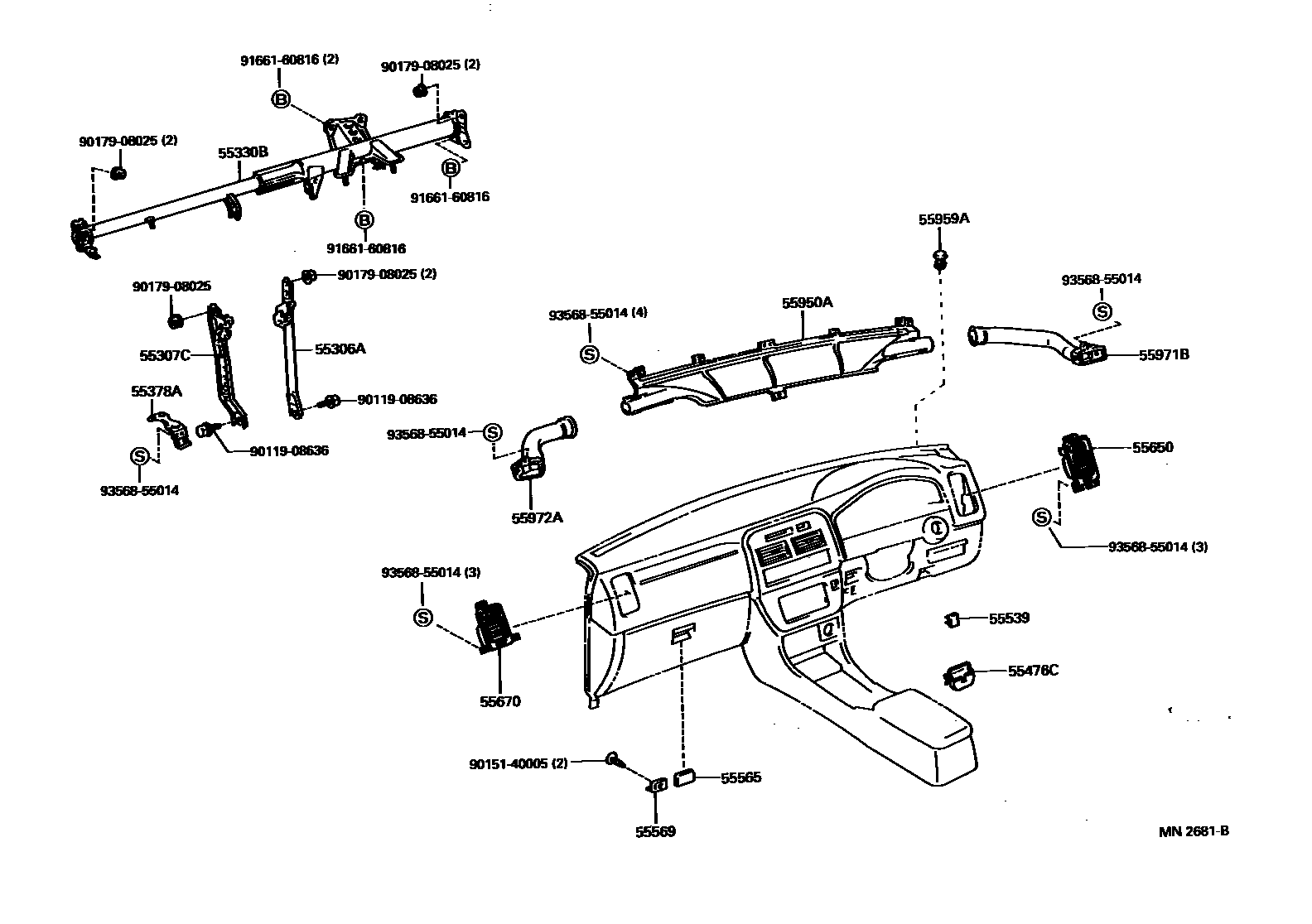

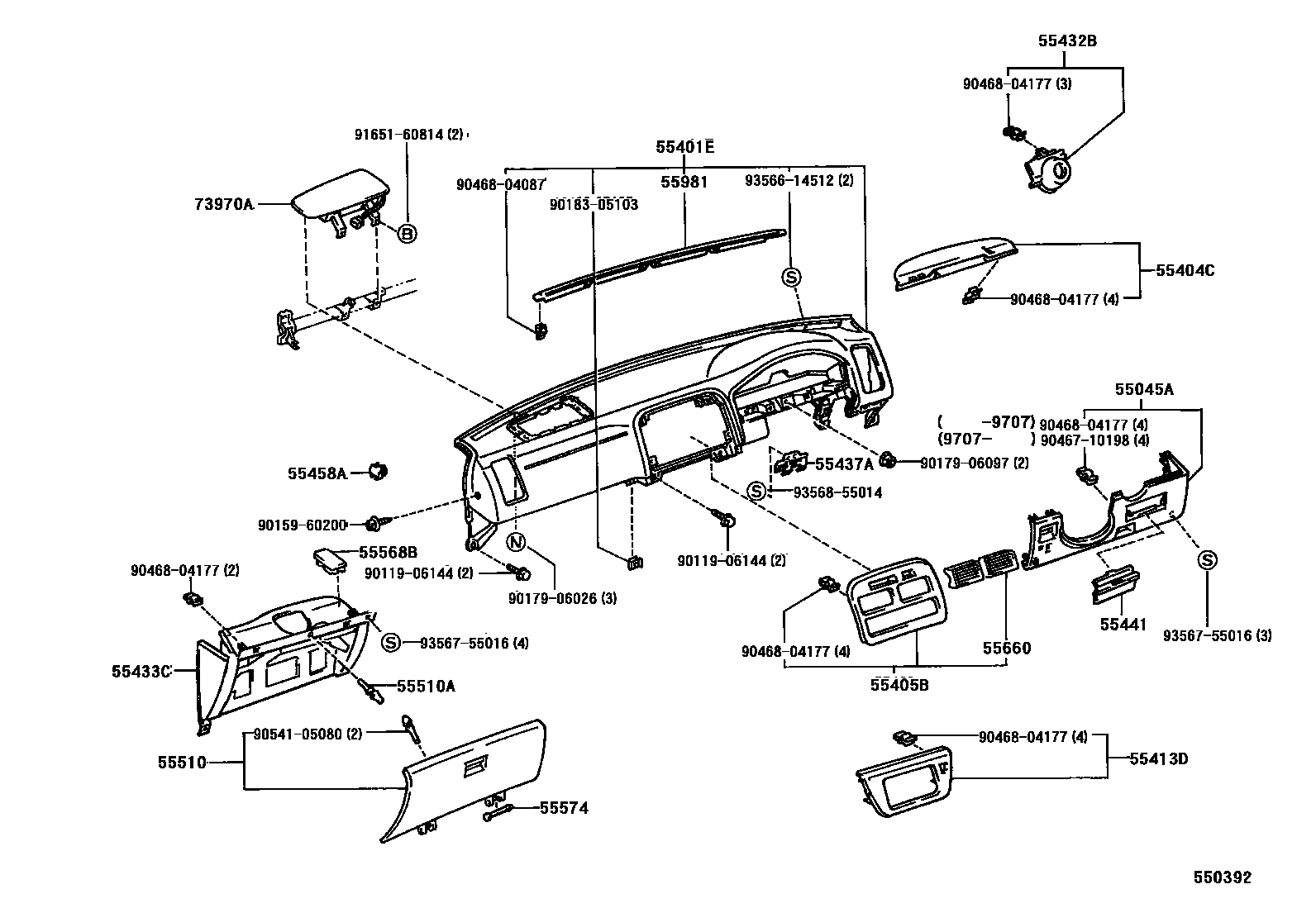

Toyota CAMRY 仪表板和手套箱 — Figure 5501
Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-32110 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-32080 |
| 55330B | Instrument panel reinforcement assembly | 55330-32100 · 55330-32110 |
| 55378A | Glovebox lid lock mounting bracket | 55308-32020 |
| 55404C | Instrument cluster No. 2 decorative panel sub-assembly | 55404-32110 · 55404-32120 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-32120 · 55405-32130 · 55405-32140 |
| 55413D | Center instrument cluster lower decorative panel | 55413-32020 · 55413-32030 · 55413-32040 · 55413-32050 · 55413-32060 |
| 55437A | Instrument panel No. 1 decorative panel fixings | 55437-32020 |
| 55510A | Cushion (for glovebox lid) | 90541-03015 |
| 55568B | Glove box cover decorative panel | 55568-24020 |
| 55574 | Glove box cover hinge shaft | 55574-10010 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-32110 · 55660-32120 |
| 55950A | Defroster nozzle assembly | 55950-32060 · 55950-32061 |
| 55971B | Side defroster No. 1 nozzle air duct | 55971-32020 |
| 55972A | Side defroster No. 2 nozzle air duct | 55972-32010 · 55972-32020 |
| 55981 | Defroster No. 1 nozzle decorative strip | 55981-32070 |
