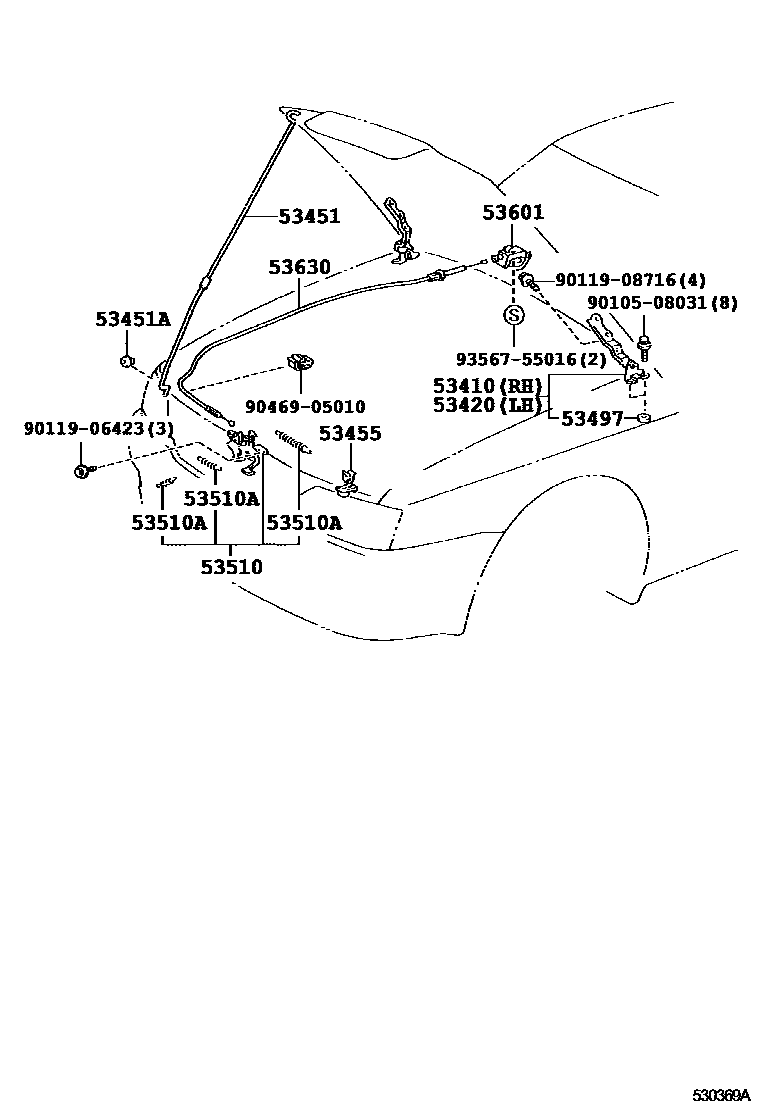

Toyota CAMRY 发动机盖锁和铰链 — Figure 5303
Toyota CAMRY EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-32080 · 53410-32081 |
| 53420 | Engine cover left hinge assembly | 53420-32080 · 53420-32081 |
| 53451 | Engine cover support rod | 53451-32060 · 53451-32061 |
| 53451A | Gasket (for engine cover support rod) | 90480-15024 |
| 53455 | Engine cover support rod clip | 53455-20030 |
| 53497 | No. 1 engine cover hinge gasket | 53497-12050 · 53497-20070 |
| 53510 | Engine cover lock assembly | 53510-32150 |
| 53510A | Tension spring (for hood lock) | 90506-09057 · 90506-12067 · 90506-20065 |
| 53630 | Engine hood lock control cable assembly | 53630-32110 |
