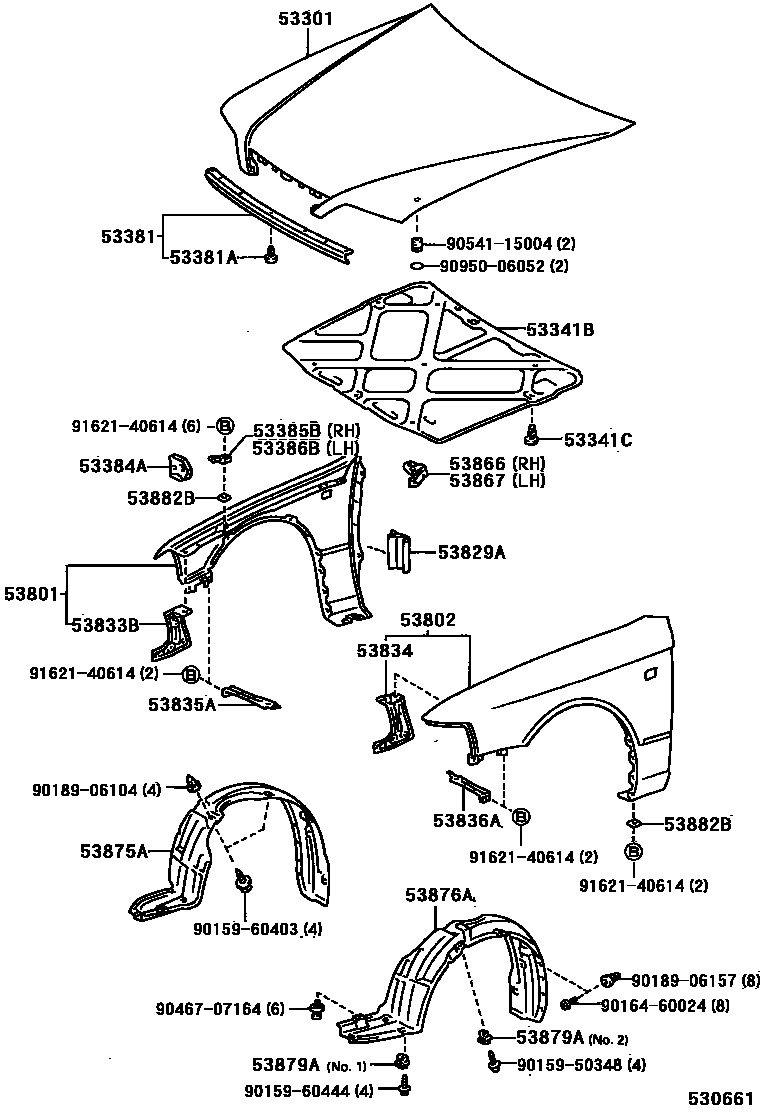

Toyota CAMRY 发动机盖和前翼子板 — Figure 5302
Toyota CAMRY EPC diagram 5302, 发动机盖和前翼子板, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-32150 · 53301-32160 |
| 53341B | engine cover gasket | 53341-32070 |
| 53341C | Clip (for engine cover gasket) | 90467-09006 |
| 53381 | Engine cover to radiator bracket seal | 53381-32050 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53384A | fender to engine cover buffer block | 53384-34010 |
| 53385B | Right side bracket (fender to engine cover bumper) | 53385-20020 |
| 53386B | Left side bracket (fender to engine cover bumper) | 53386-20020 |
| 53801 | Right front fender sub-assembly | 53801-32260 · 53801-32261 · 53801-32280 · 53801-32281 |
| 53802 | Left front fender sub-assembly | 53802-32250 · 53802-32251 · 53802-32270 · 53802-32271 |
| 53829A | Front fender lower protection parts | 53829-32010 |
| 53833B | Right front fender side panel | 53831-32050 · 53831-32060 |
| 53834 | Left front fender lower side panel | 53832-32050 · 53832-32060 |
| 53835A | Right front fender to fender stay | 53851-32030 |
| 53836A | Left front fender to fender stay | 53852-32030 |
| 53866 | Right front fender to cowl side seal | 53866-32060 |
| 53867 | Left front fender to cowl side seal | 53867-32060 |
| 53875A | Right front fender lining | 53875-32060 · 53875-32070 |
| 53876A | Left front fender lining | 53876-32060 · 53876-32070 |
| 53879A | Front fender lining fixing parts | 53879-14010 · 53879-16010 · 53879-20030 |
| 53882B | Right front fender seal | 53882-16030 |
