Toyota CAMRY 前保险杠及附件 — Figure 5201

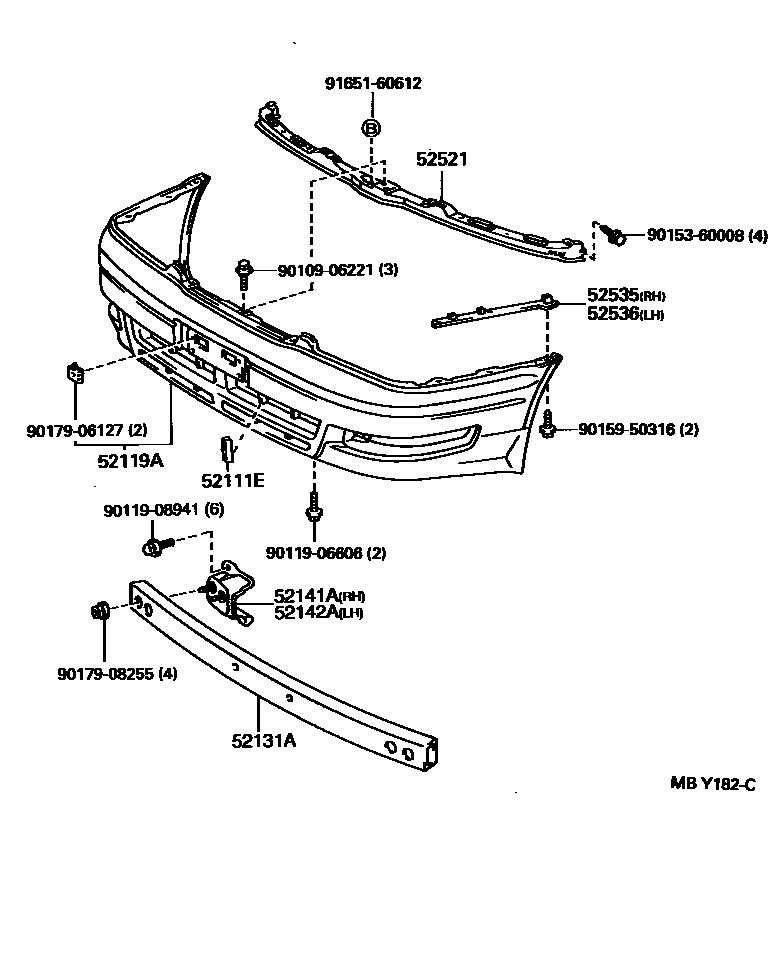

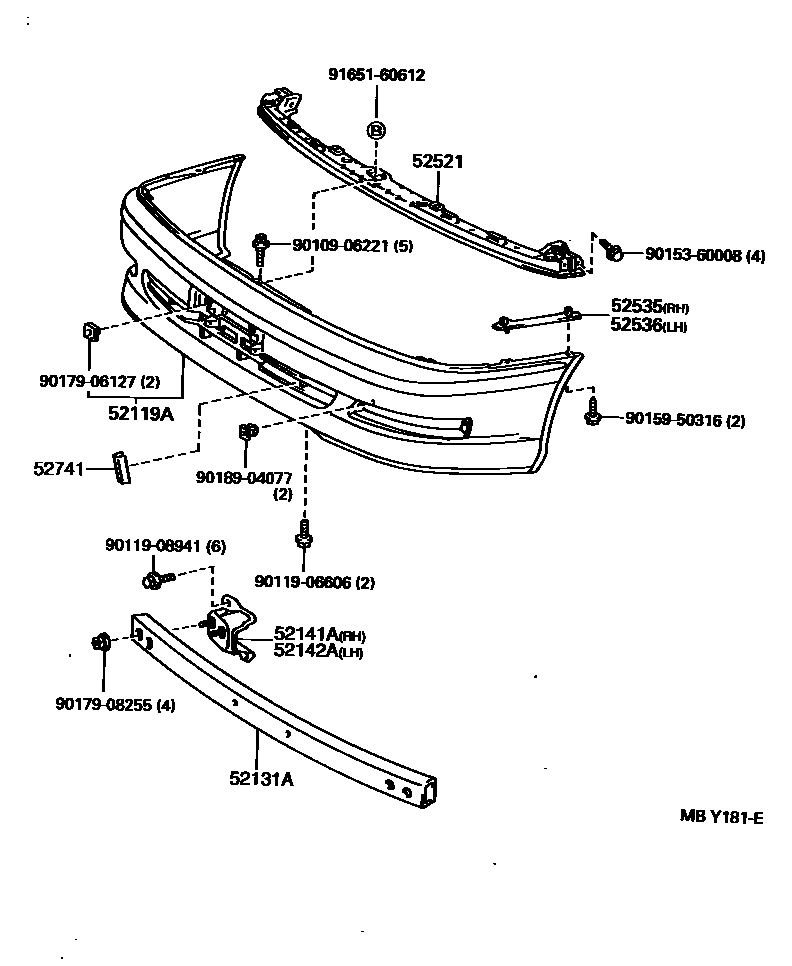

Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52111E | front bumper stay | 52111-32010 |
| 52131A | Front bumper reinforcement | 52131-32100 |
| 52141A | Front bumper right upper arm | 52141-32140 |
| 52142A | Front bumper left upper arm | 52142-32140 |
| 52521 | Front bumper upper center fixing bracket | 52521-32100 · 52521-32110 |
| 52535 | Front bumper right side fixing bracket | 52535-32090 · 52535-32100 |
| 52536 | Front bumper left fixed bracket | 52536-32080 · 52536-32090 |
| 52741 | Front bumper decorative part No. 1 | 52741-32010 |
