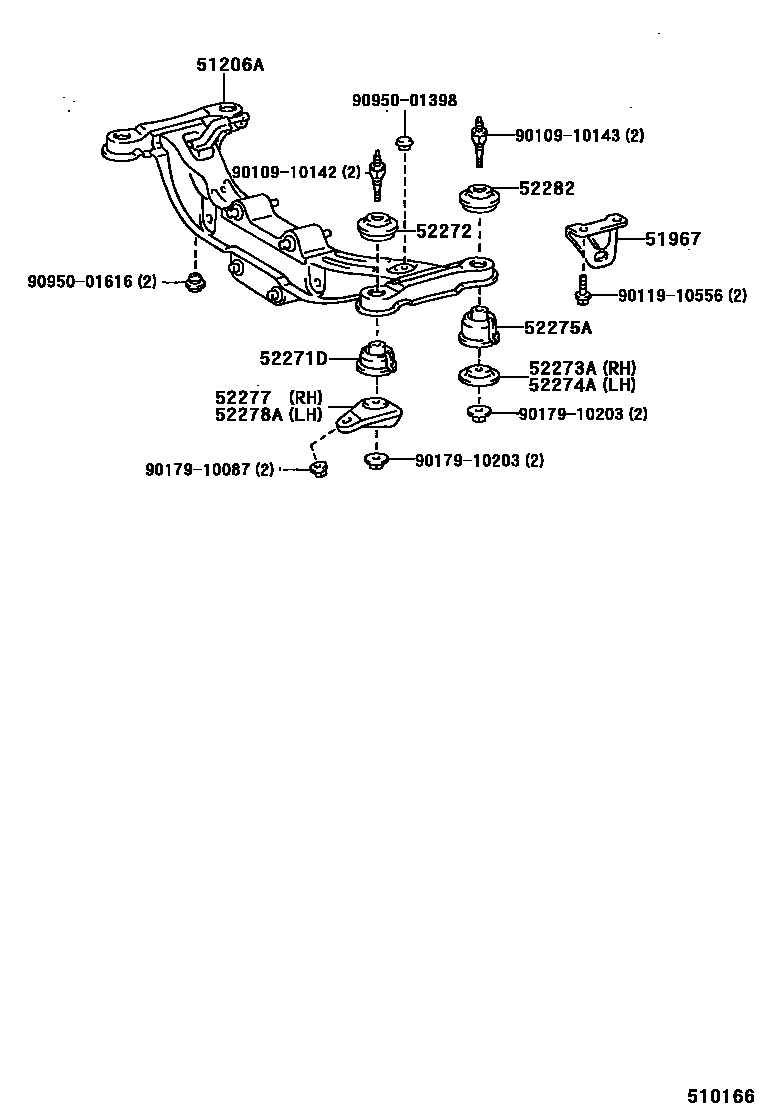

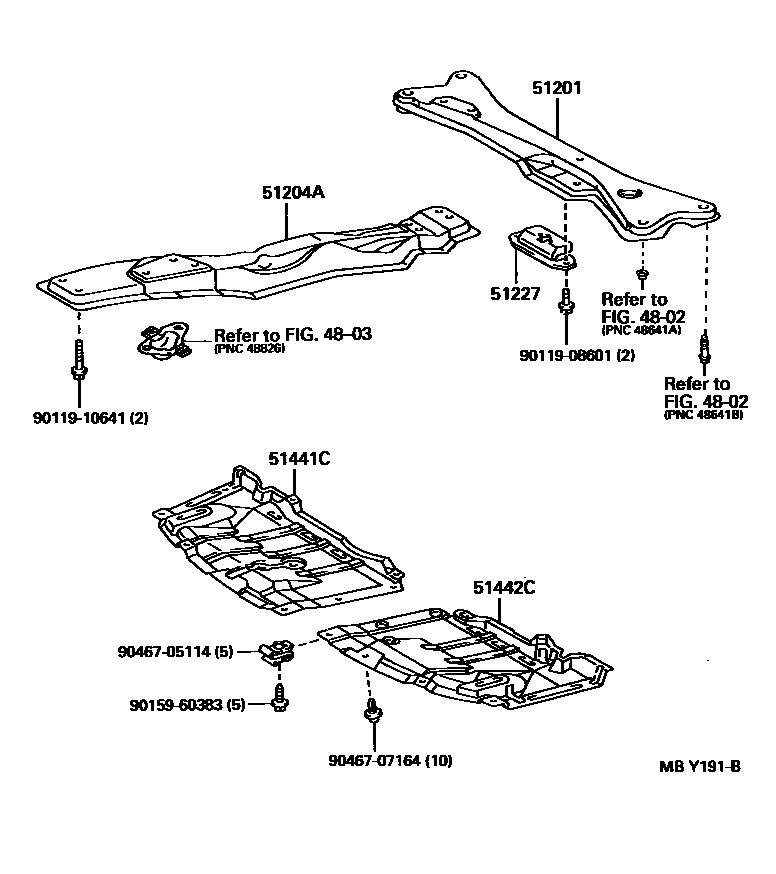

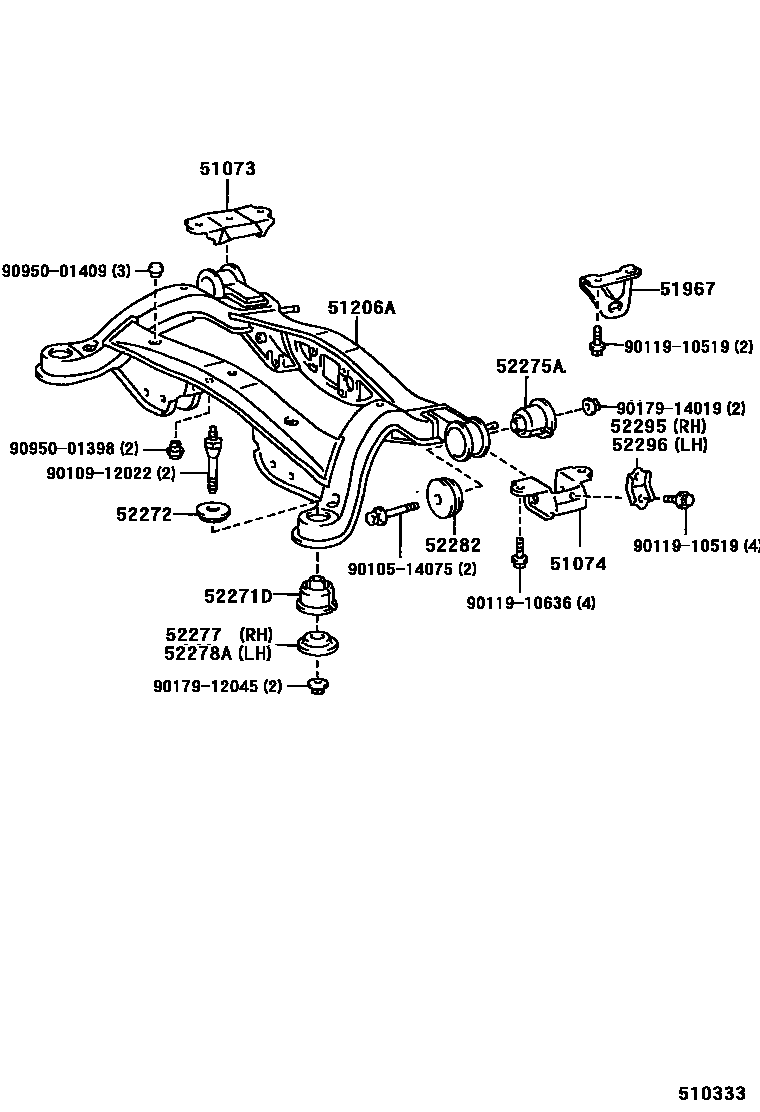

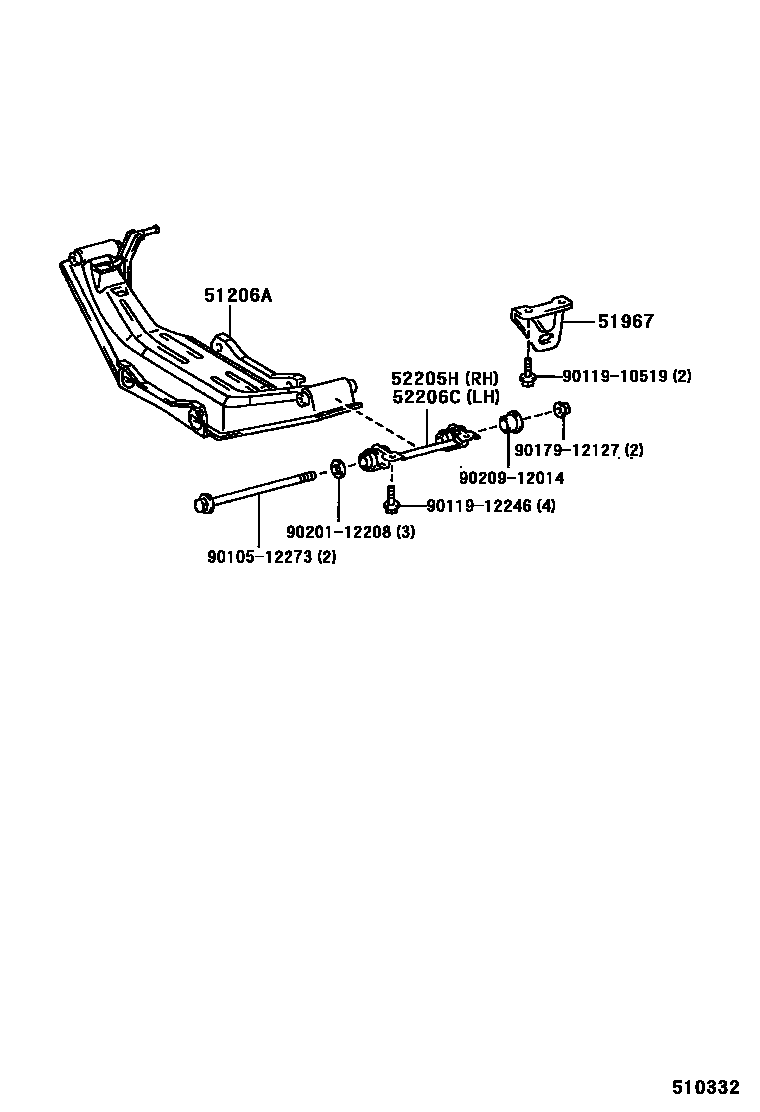

Toyota CAMRY 悬架横梁和发动机底罩 — Figure 5102
Toyota CAMRY EPC diagram 5102, 悬架横梁和发动机底罩, with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51073 | Right rear body No. 2 mounting bracket sub-assembly | 51073-32010 |
| 51074 | Left rear body No. 2 mounting bracket sub-assembly | 51074-32010 |
| 51201 | Front suspension cross member sub-assembly | 51201-32040 · 51201-32041 |
| 51204A | Engine center mount beam sub-assembly | 51204-32030 |
| 51206A | Rear suspension cross member sub-assembly | 51206-32020 · 51206-32050 · 51206-32060 |
| 51227 | Front suspension cross member shock absorber counterweight | 51227-32020 · 51227-32040 · 51227-32050 |
| 51441C | Engine right bottom cover | 51441-32060 |
| 51442C | Engine left bottom cover | 51442-32090 · 51442-32100 |
| 51967 | Rear transport hook | 51967-32060 |
| 52205H | Rear body right side fixed buffer pad sub-assembly | 52205-32010 |
| 52206C | Rear body left side fixed buffer pad sub-assembly | 52206-32010 |
| 52271D | Rear suspension cross member, front body fixed cushion | 52271-32010 · 52271-33010 |
| 52272 | Rear suspension cross member upper block | 52272-32010 · 52272-33010 |
| 52273A | Rear suspension cross member right lower stop | 52273-32010 |
| 52274A | Rear suspension cross member left lower stop | 52273-32010 |
| 52275A | Rear suspension cross member rear body fixed cushion | 52275-32011 · 52275-33010 |
| 52277 | Right rear suspension cross member lower block fixing piece | 52203-32010 · 52277-32010 |
| 52278A | Left rear suspension cross member lower block fixing piece | 52204-32010 · 52277-32010 |
| 52282 | Differential support beam upper stop | 52282-33010 |
| 52295 | Right rear suspension cross member bracket | 52295-32010 · 52295-32020 |
| 52296 | Left rear suspension cross member bracket | 52296-32010 · 52296-32020 |
