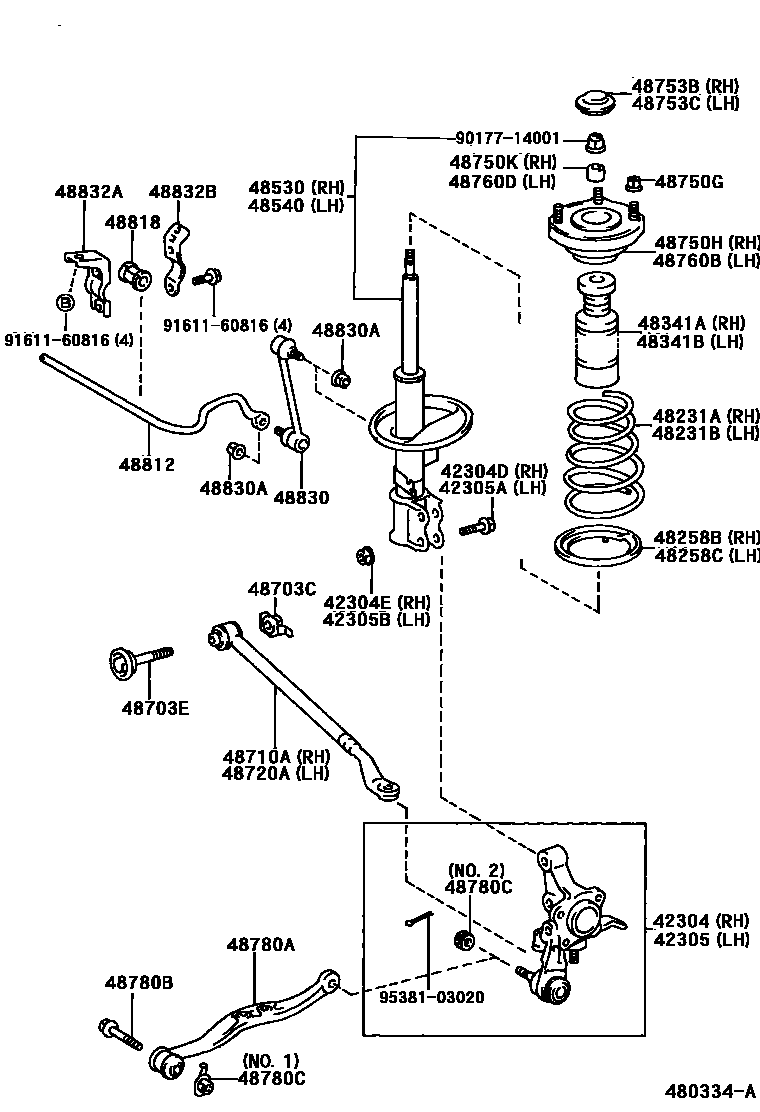

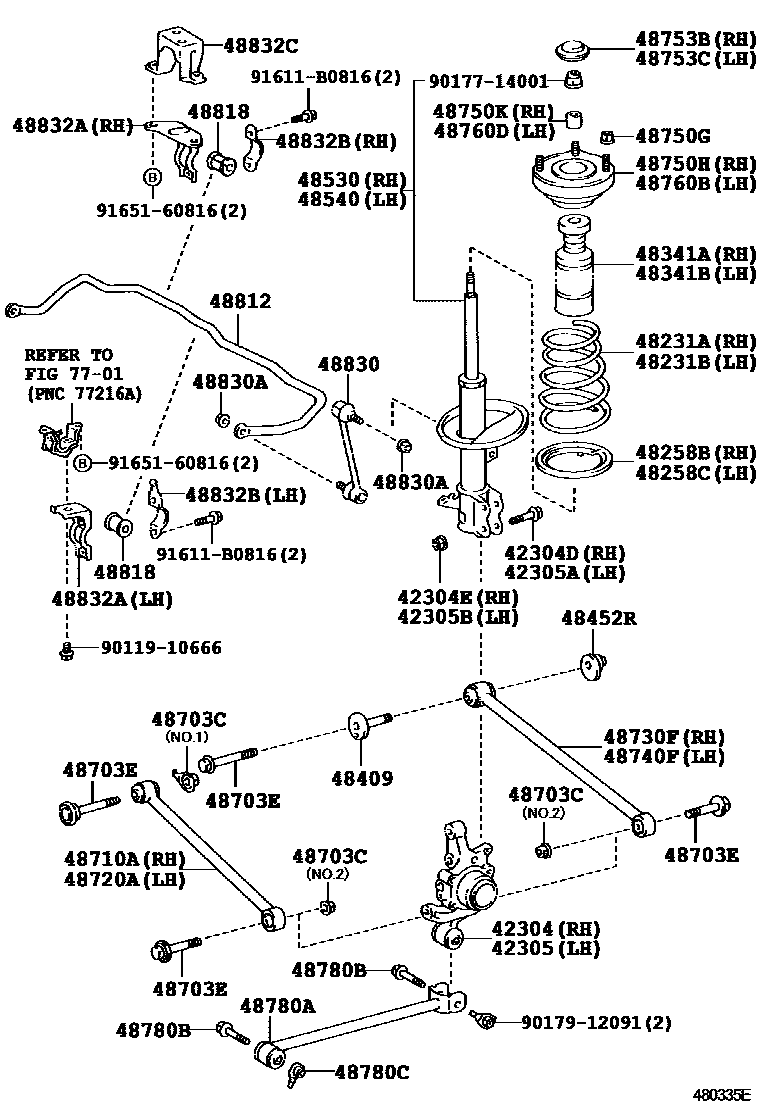

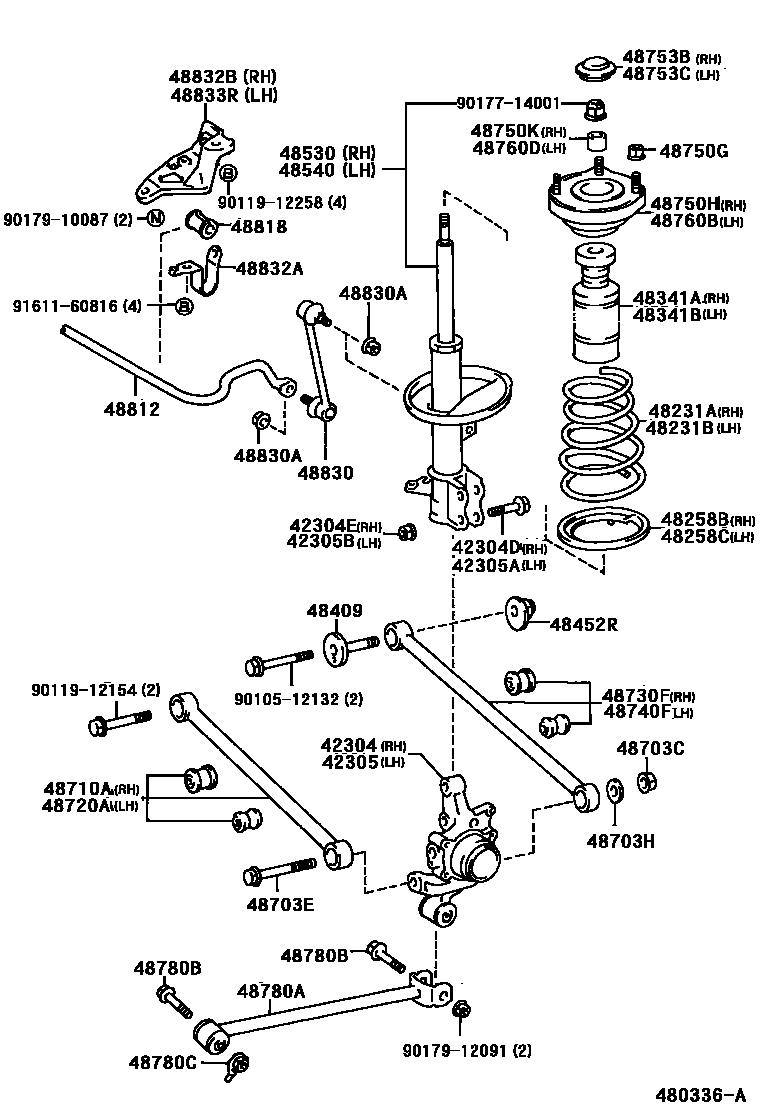

Toyota CAMRY Rear Spring & Shock Absorber — Figure 4804
Toyota CAMRY EPC diagram 4804, Rear Spring & Shock Absorber, with 3 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42304 | Rear axle right bracket sub-assembly | 42304-20060 · 42304-20070 · 42304-20090 · 42304-29025 · 42304-29045 · 42304-32060 · 42304-32070 · 42304-32080 |
| 42304D | Bolt (for rear axle right bracket) | 90105-15001 |
| 42304E | Nut (for rear axle right bracket) | 90179-15001 |
| 42305 | Rear axle left bracket sub-assembly | 42305-20060 · 42305-20070 · 42305-20090 · 42305-29025 · 42305-29045 · 42305-32060 · 42305-32070 · 42305-32080 |
| 42305A | Bolt (for left rear axle bracket) | 90105-15001 |
| 42305B | Nut (for left rear axle bracket) | 90179-15001 |
| 48231A | Right rear coil spring | 48231-3H081 · 48231-3H101 · 48231-3H111 · 48231-3H120 · 48231-3H130 · 48231-3H210 · 48231-3H220 |
| 48231B | Left rear coil spring | 48231-3H081 · 48231-3H101 · 48231-3H111 · 48231-3H120 · 48231-3H130 · 48231-3H210 · 48231-3H220 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-32020 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-32020 |
| 48341A | No. 1 right rear spring buffer block | 48341-32090 |
| 48341B | No. 1 left rear spring buffer block | 48341-32090 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-32020 · 48409-32030 |
| 48452R | No. 2 rear suspension toe adjustment piece | 48452-32020 · 48452-32030 |
| 48530 | Right rear shock absorber assembly | 48530-39165 · 48530-39175 · 48530-39185 · 48530-39195 · 48530-39405 |
| 48540 | Left rear shock absorber assembly | 48540-39115 · 48540-39125 · 48540-39135 · 48540-39145 · 48540-39285 |
| 48703C | Nut (for rear suspension arm) | 90179-12100 · 90179-14019 |
| 48703E | Bolts (for rear suspension arms) | 90119-12126 · 90901-19001 · 90901-19002 · 90901-19003 · 90901-19004 · 90901-19046 |
| 48703H | Washer No. 1 (for rear suspension arm) | 90201-14017 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-32060 · 48710-32070 · 48710-32080 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-32060 · 48710-32070 · 48710-32080 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-32080 · 48730-32090 |
| 48740F | Left rear suspension No. 2 arm assembly | 48730-32080 · 48730-32090 |
| 48750G | Nut (for rear suspension mount) | 90179-08122 |
| 48750H | Right rear suspension support assembly | 48750-32150 |
| 48750K | Collar (for rear mount to right rear shock absorber) | 90387-15027 |
| 48753B | Right rear suspension support cover No. 1 | 48753-20040 |
| 48753C | Left rear suspension support cover No. 1 | 48753-20040 |
| 48760B | Left rear suspension support assembly | 48760-32150 |
| 48760D | Collar (for rear mount to left rear shock absorber) | 90387-15027 |
| 48780A | Rear support rod assembly | 48780-12010 · 48780-20070 · 48780-32060 |
| 48780B | Bolts (for support rods) | 90119-12131 |
| 48780C | Nut (for support rod) | 90171-12008 · 90179-12063 · 90179-12091 |
| 48812 | rear stabilizer bar | 48812-32270 · 48812-32430 · 48812-32440 · 48812-32460 |
| 48818 | Rear stabilizer bar bushing | 48818-32060 · 48818-32080 · 48818-32090 · 48818-32100 · 48818-32120 |
| 48830 | Rear stabilizer link assembly | 48830-32040 · 48830-33010 |
| 48830A | Nut (for rear stabilizer link) | 90179-10054 · 90179-10183 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-32030 · 48832-32050 · 48832-32070 · 48832-32100 |
| 48832B | Rear stabilizer bar bracket No. 2 | 48832-32040 · 48832-32060 · 48832-32080 · 48832-32110 |
| 48832C | Rear stabilizer bar No. 3 bracket | 48832-32090 |
| 48833R | Left rear stabilizer bar bracket No. 1 | 48833-32110 |
