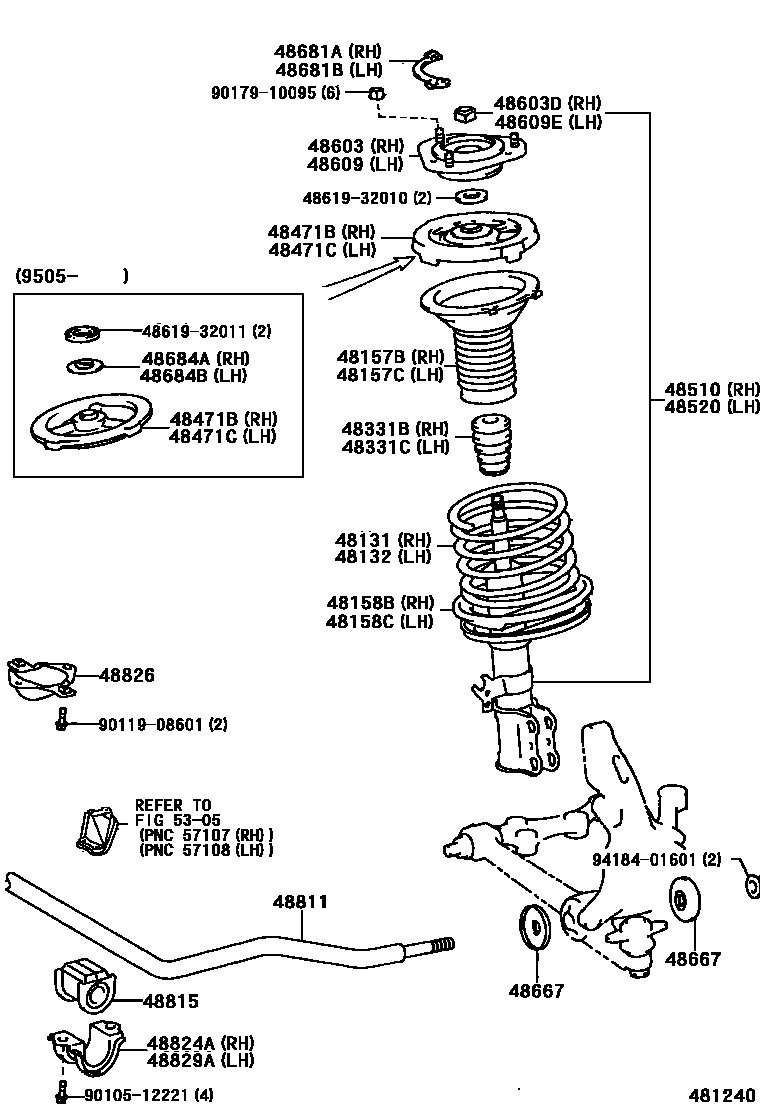

Toyota CAMRY Front Spring & Shock Absorber — Figure 4803
Toyota CAMRY EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-3H321 · 48131-3H330 · 48131-3H340 · 48131-3H380 · 48131-3H401 · 48131-3H441 · 48131-3H460 · 48131-3H470 · 48131-3H491 · 48131-3H500 · 48131-3H511 · 48131-3H531 · 48131-3H550 · 48131-3H560 · 48131-3H580 · 48131-3H590 · 48131-3H610 |
| 48132 | Left front coil spring | 48131-3H321 · 48131-3H330 · 48131-3H340 · 48131-3H380 · 48131-3H401 · 48131-3H441 · 48131-3H460 · 48131-3H470 · 48131-3H491 · 48131-3H500 · 48131-3H511 · 48131-3H531 · 48131-3H550 · 48131-3H560 · 48131-3H580 · 48131-3H590 · 48131-3H610 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-32040 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-32040 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-32030 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-32030 |
| 48331B | Right front spring buffer block | 48331-32090 |
| 48331C | Left front spring buffer block | 48331-32090 |
| 48471B | Front coil spring upper right seat | 48471-32040 · 48471-32041 |
| 48471C | Front coil spring upper left seat | 48471-32040 · 48471-32041 |
| 48510 | Right front shock absorber assembly | 48510-39225 · 48510-39235 · 48510-39245 · 48510-39595 |
| 48520 | Left front shock absorber assembly | 48520-39045 · 48520-39055 · 48520-39065 · 48520-39245 |
| 48603 | Right front suspension bearing sub-assembly | 48609-32140 · 48609-32150 |
| 48603D | Nut (for front mount to right front shock absorber) | 90179-14015 |
| 48609 | Left front suspension bearing sub-assembly | 48609-32140 · 48609-32150 |
| 48609E | Nut (for front mount to left front shock absorber) | 90179-14015 |
| 48667 | Support rod retaining ring | 48667-32020 |
| 48681A | Right front suspension mount pad | 48681-32050 |
| 48681B | Left front suspension mount pad | 48682-32020 |
| 48684A | Right front suspension support dust cover | 48684-32030 |
| 48684B | Left front suspension support dust cover | 48684-32030 |
| 48811 | front stabilizer bar | 48811-32260 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-32090 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-32040 |
| 48826 | Front stabilizer bar protector | 48826-32020 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-32040 |
