Toyota CAMRY 前桥控制臂和转向节 — Figure 4802

Toyota CAMRY EPC diagram 4802, 前桥控制臂和转向节, with 1 images and 18 PNC and OE references.

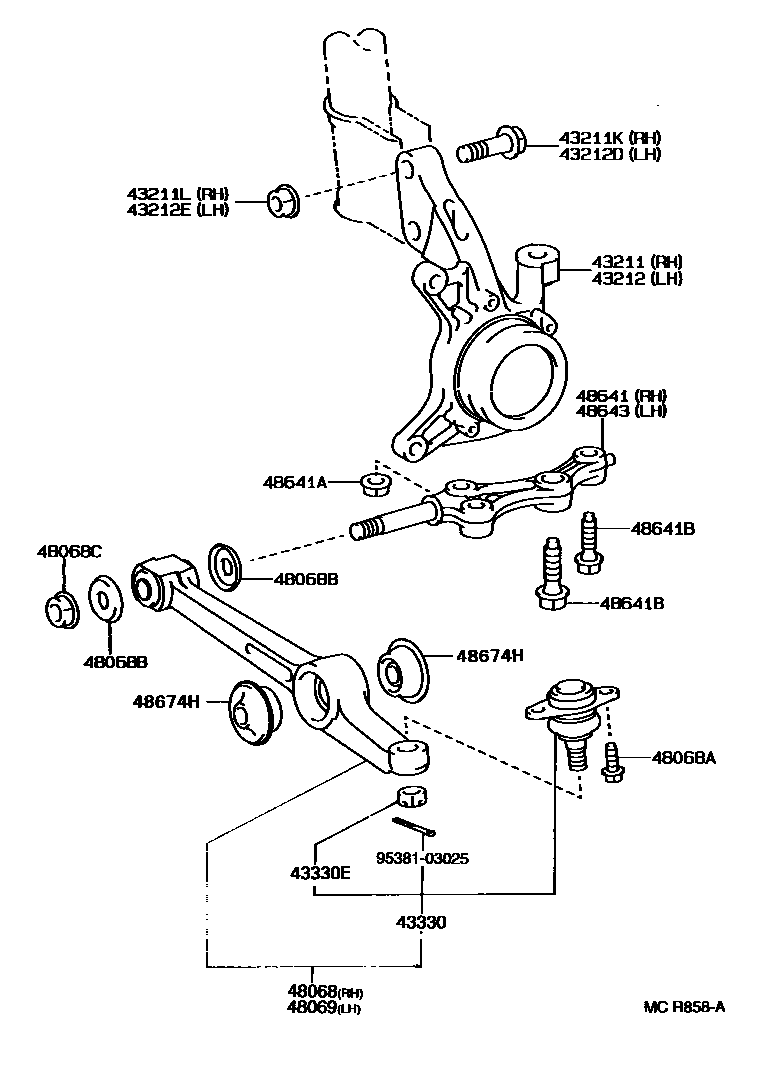

Toyota CAMRY 前桥控制臂和转向节 EPC diagram — MCR858A
前桥控制臂和转向节 — MCR858A (199406 – 999999)

PNC and OE references

PNCPart nameOE numbers
43211Right steering knuckle43211-32080 · 43211-32090 · 43211-32091 · 43211-32100 · 43211-32110 · 43211-32111
43211KBolt (for right steering knuckle)90105-17001
43211LNut (for right steering knuckle)90179-17001
43212left steering knuckle43212-32080 · 43212-32090 · 43212-32091 · 43212-32100 · 43212-32110 · 43212-32111
43212DBolt (for left steering knuckle)90105-17001
43212ENut (for left steering knuckle)90179-17001
43330Front lower ball joint assembly43330-39345
43330ECastle nut (used to secure the front lower ball joint)90171-14002
48068Right front suspension No. 1 lower arm sub-assembly48620-32060
48068ABolt (for front suspension lower arm)90105-12142
48068BCrash pad retainer (for front suspension lower arm)90948-02088 · 90948-02103
48068CNut (for front suspension lower arm)90179-16004
48069Left front suspension No. 1 lower arm sub-assembly48640-32060
48641Right lower arm shaft48641-32020 · 48641-32030
48641ANut (for suspension lower arm shaft)90179-14043 · 90179-14068
48641BBolt (for suspension lower arm shaft)90105-14076 · 90105-14079
48643left lower arm axis48643-32020 · 48643-32030
48674HSupport rod cushion48674-32110
