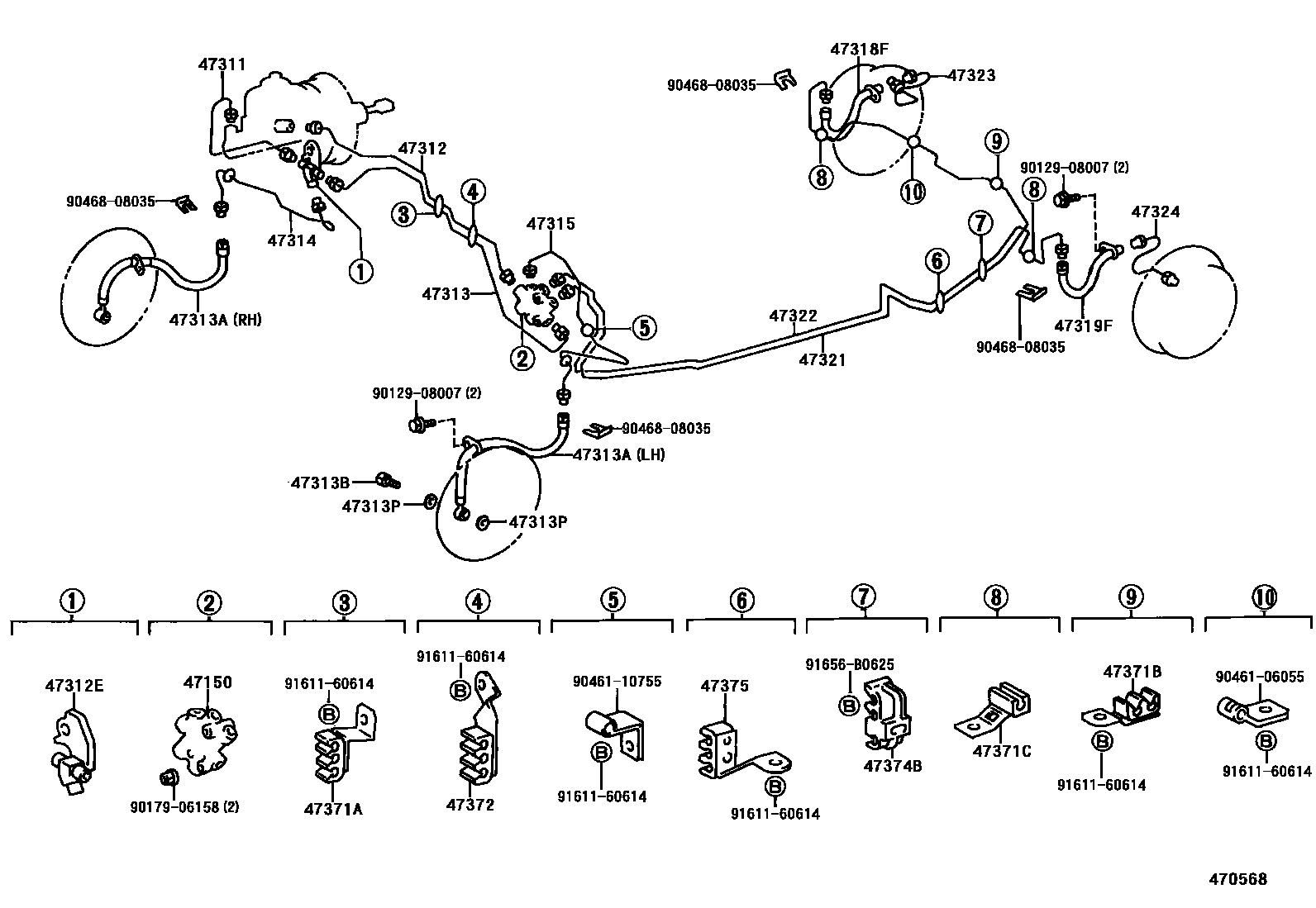

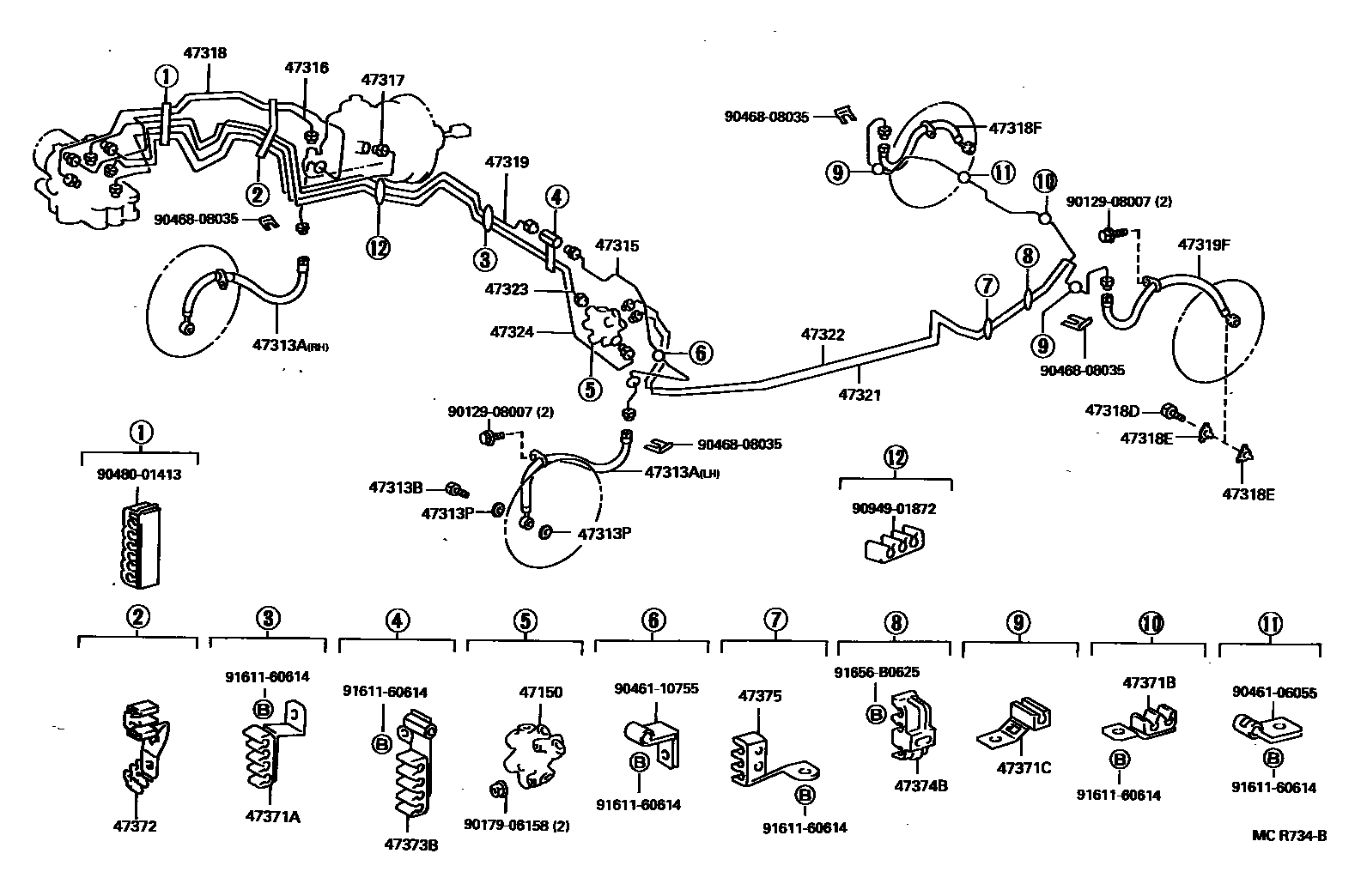

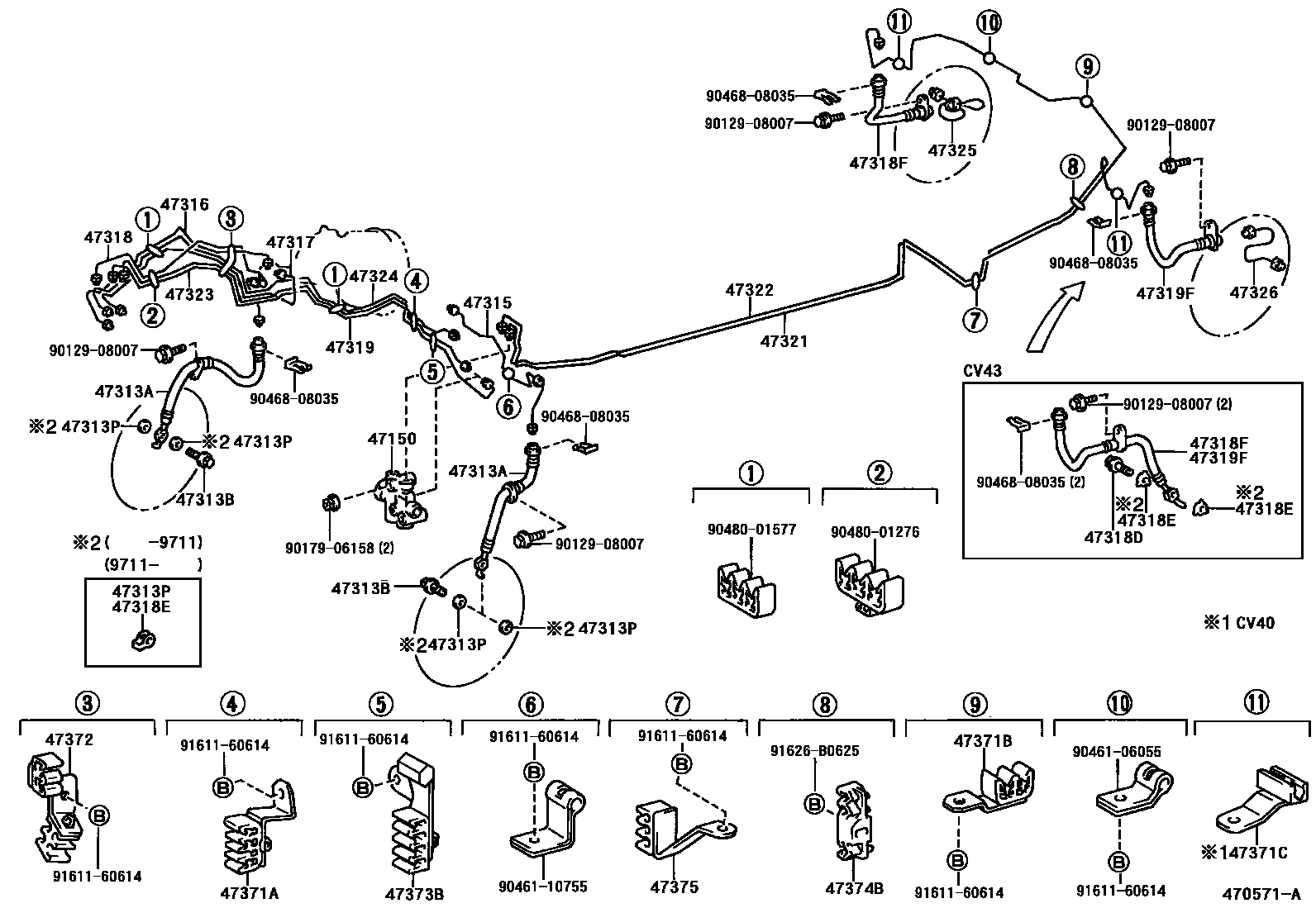

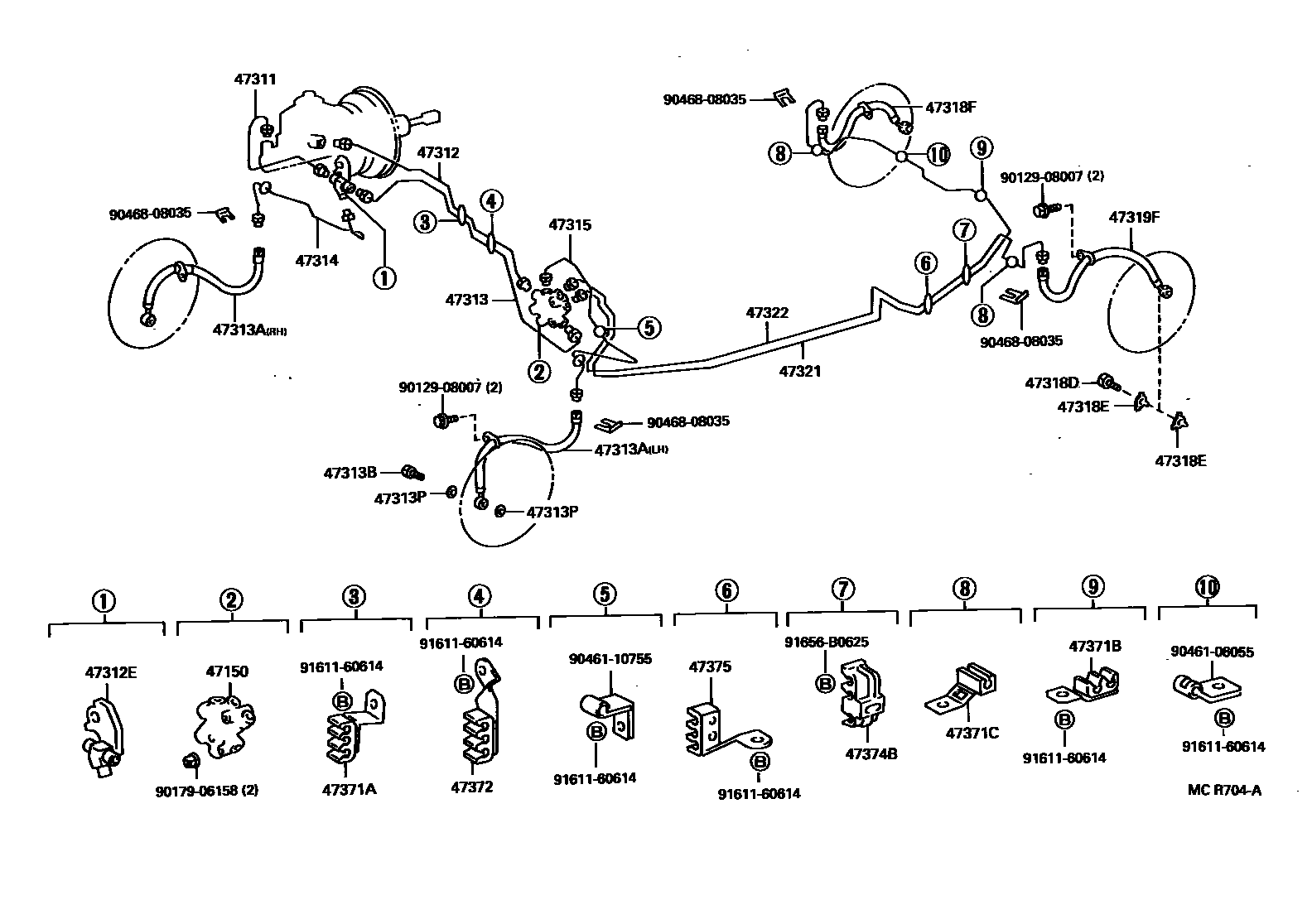

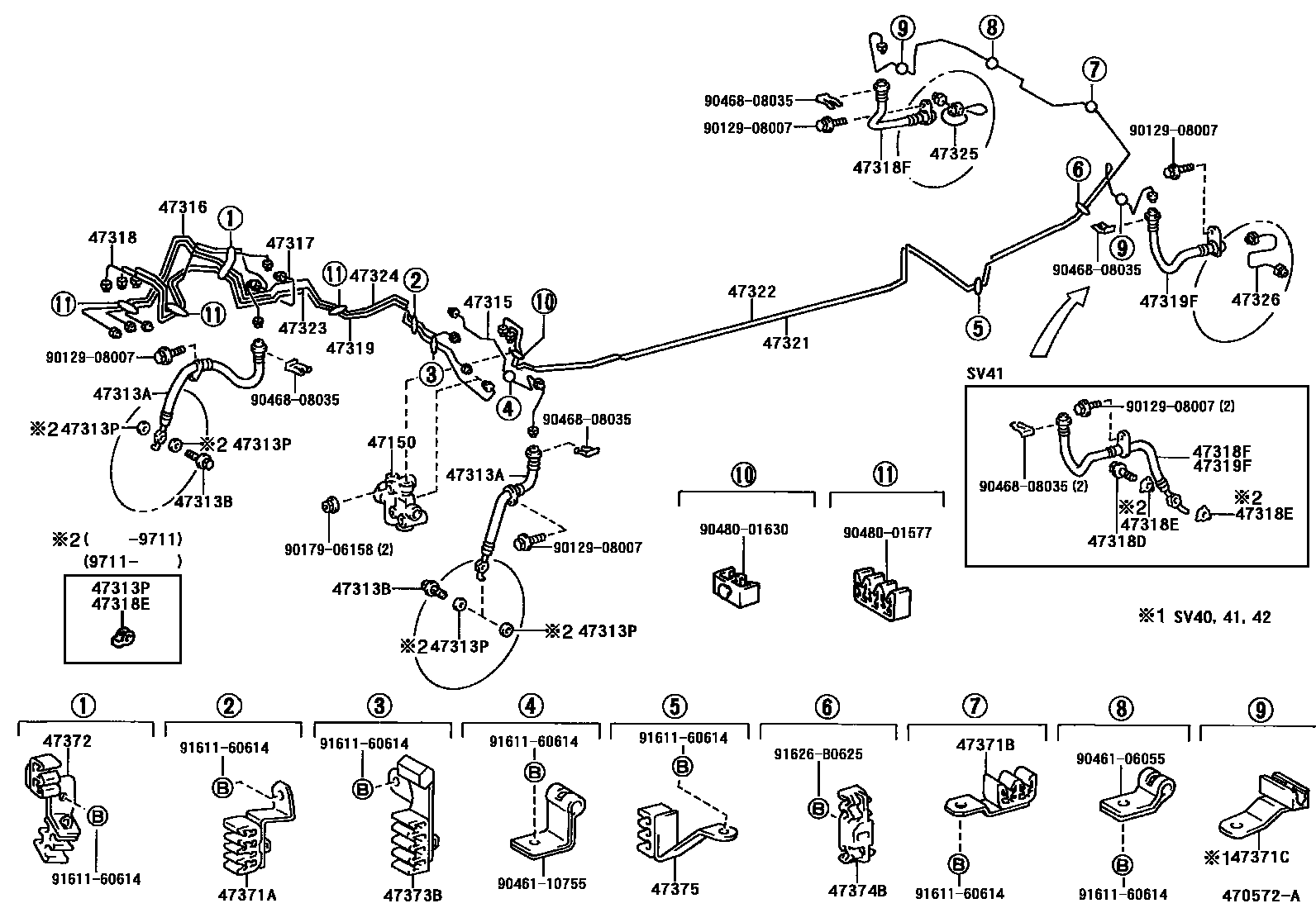

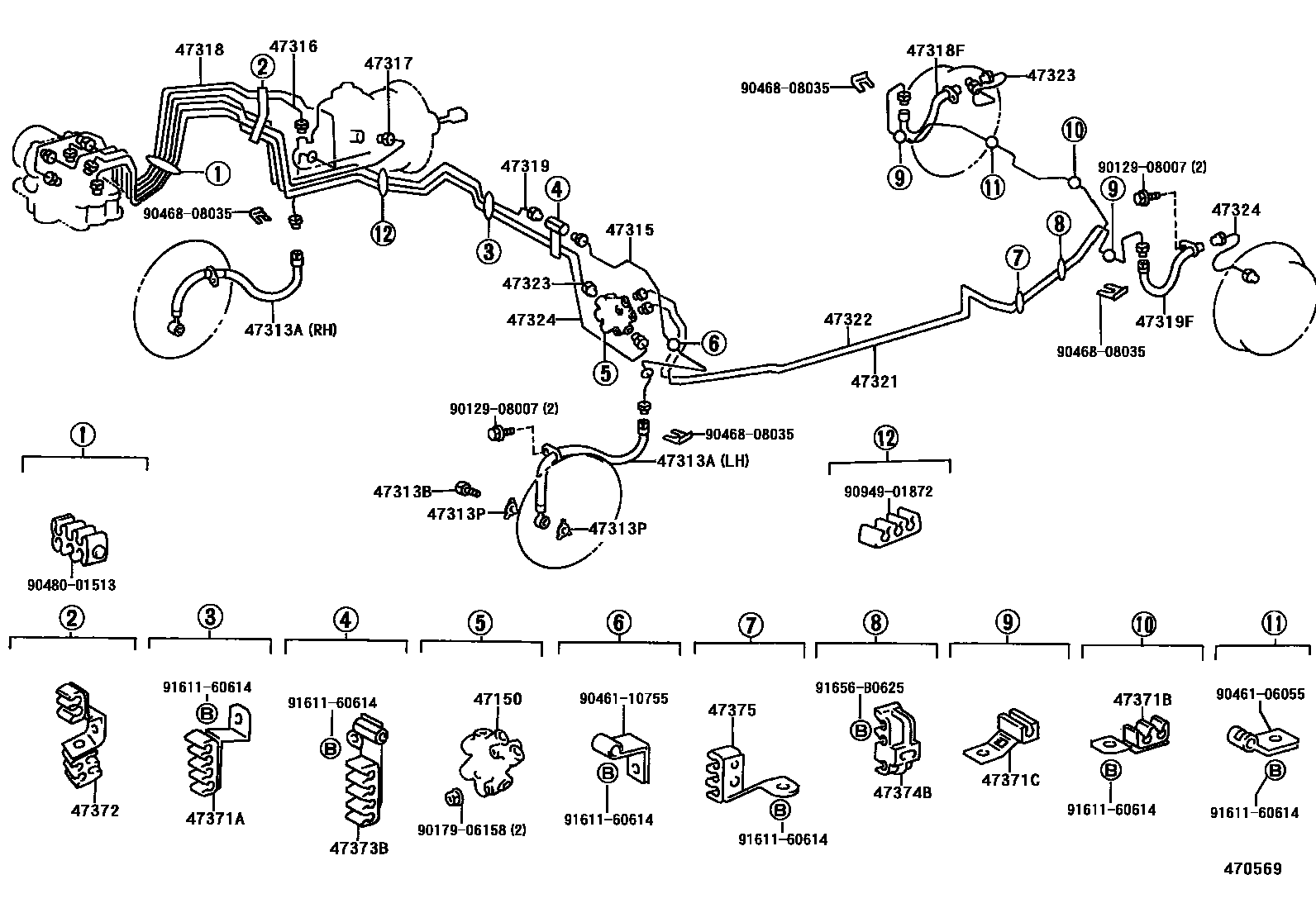

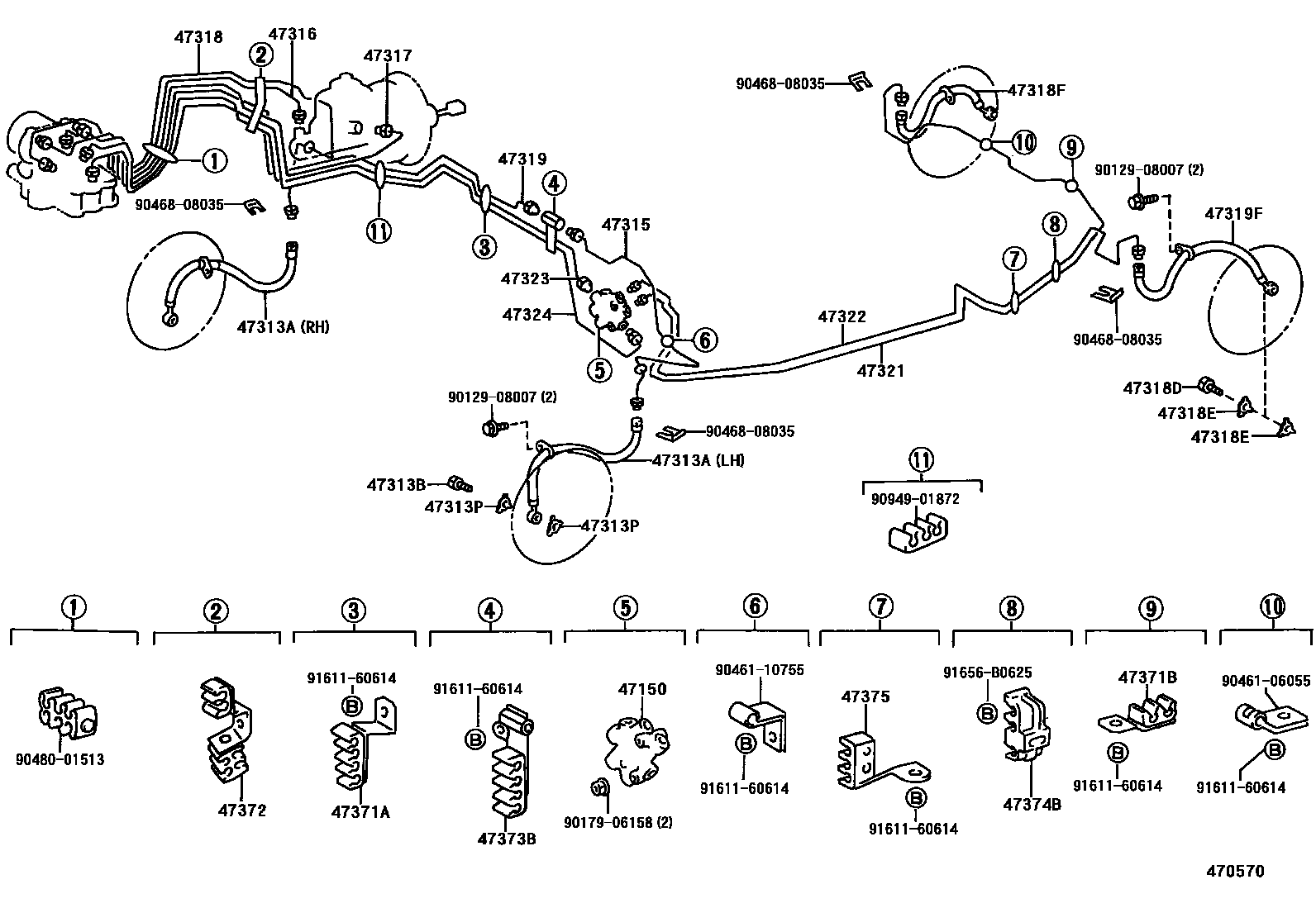

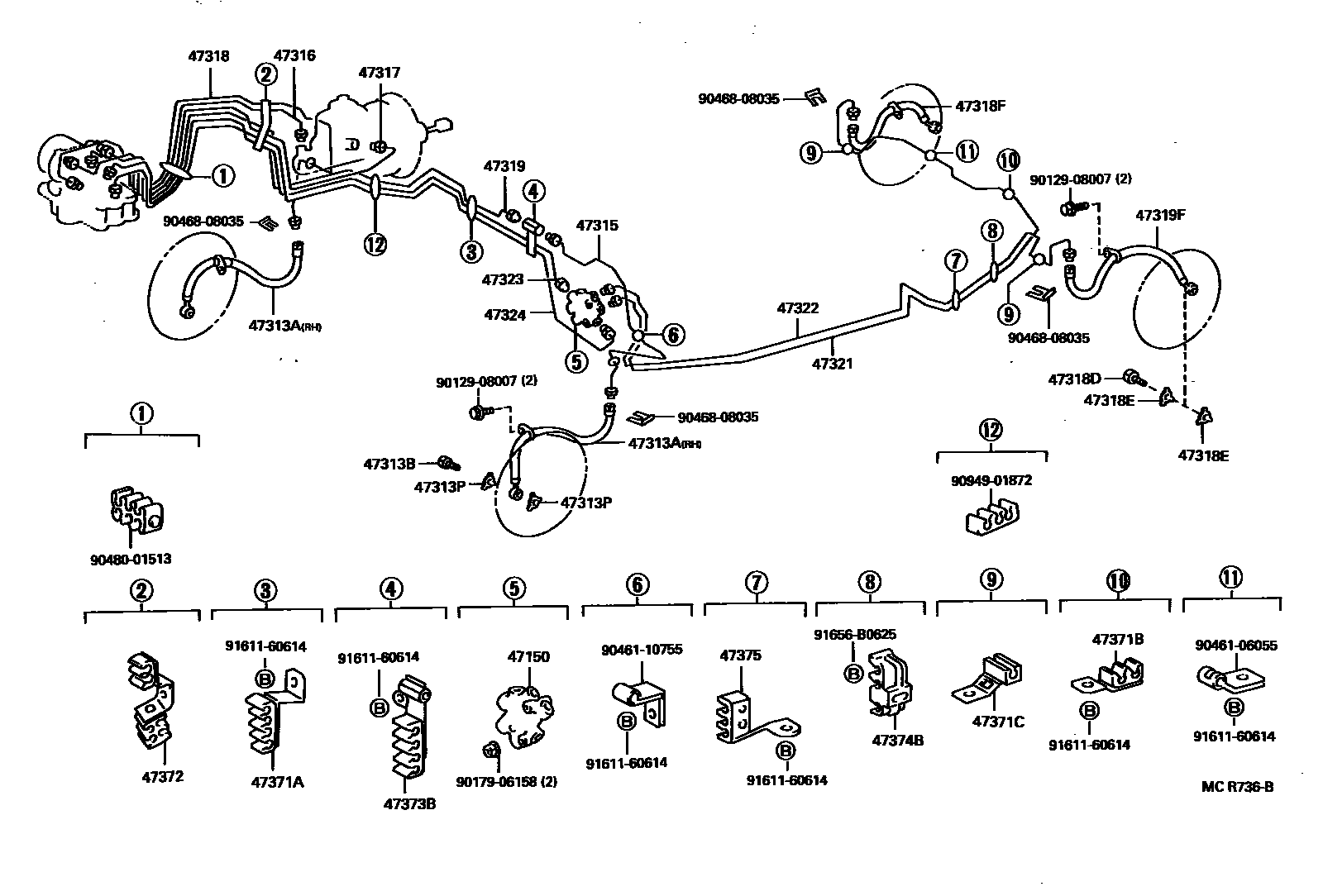

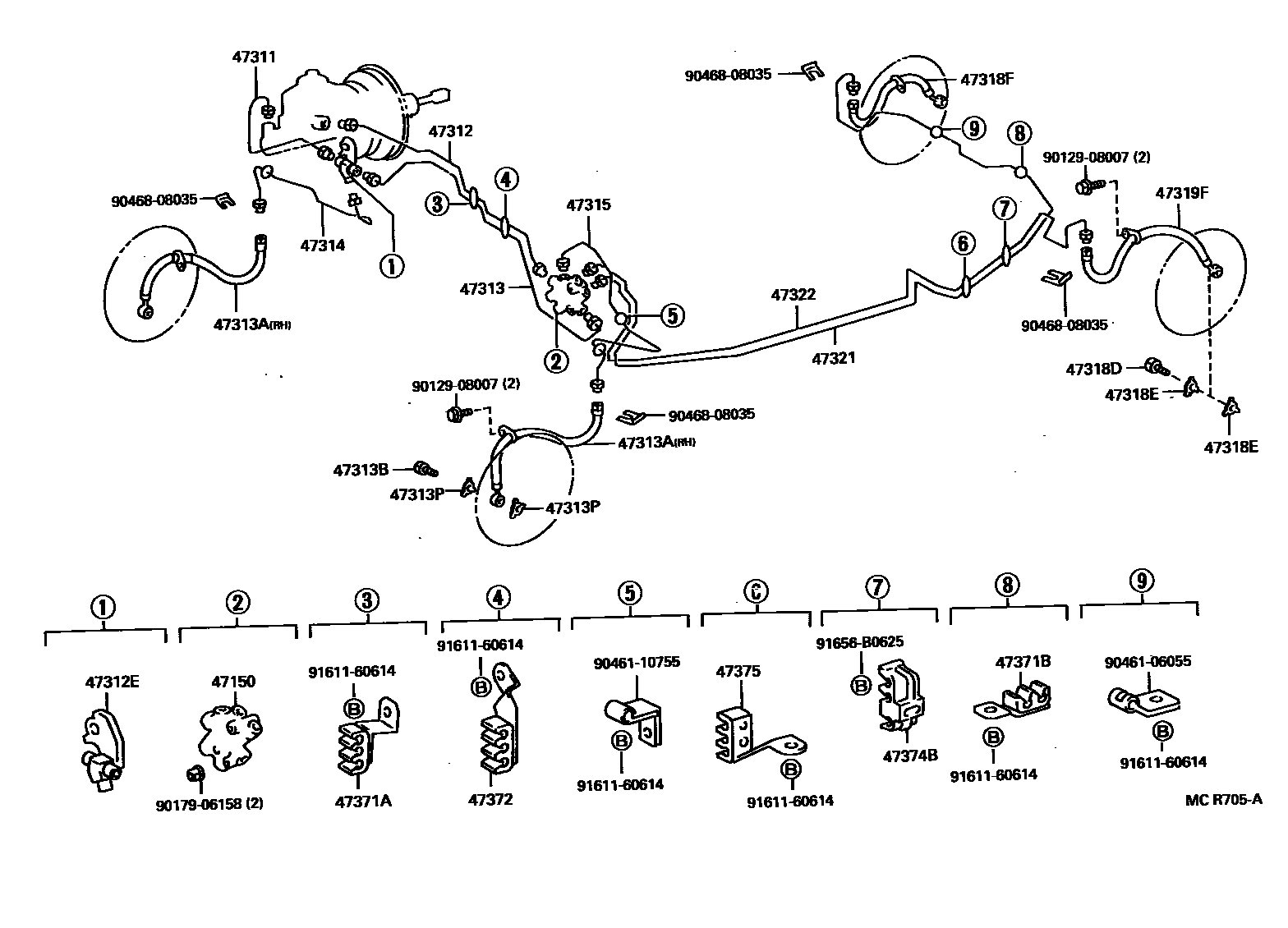

Toyota CAMRY 制动配管和卡箍 — Figure 4708
Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 12 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

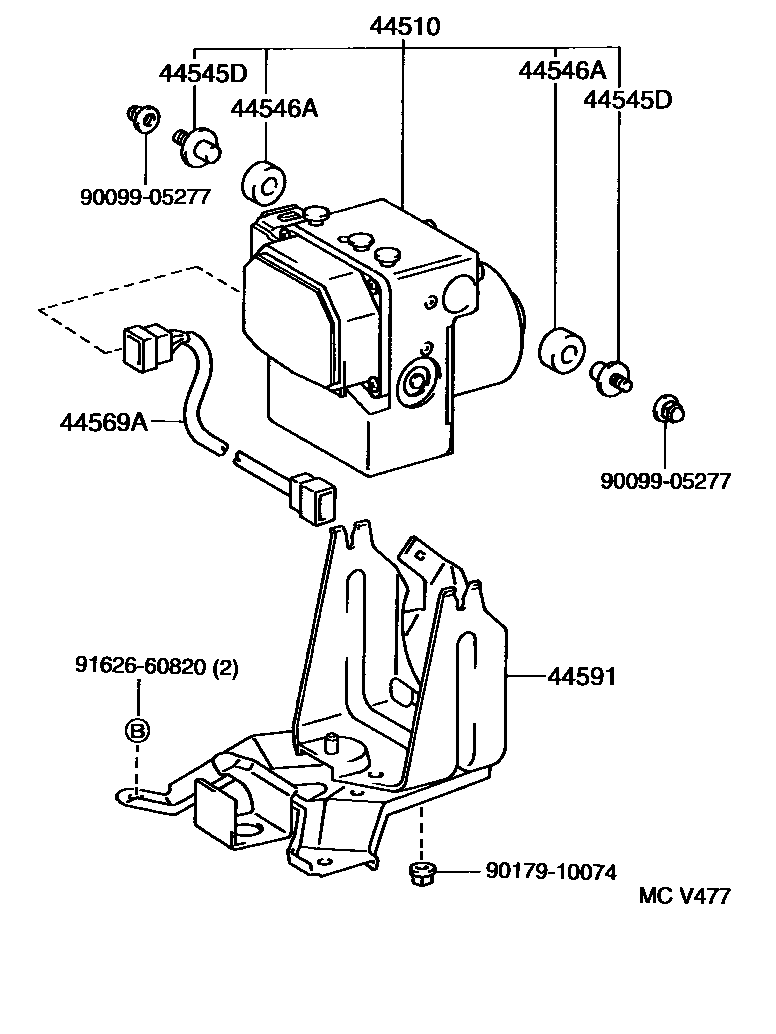

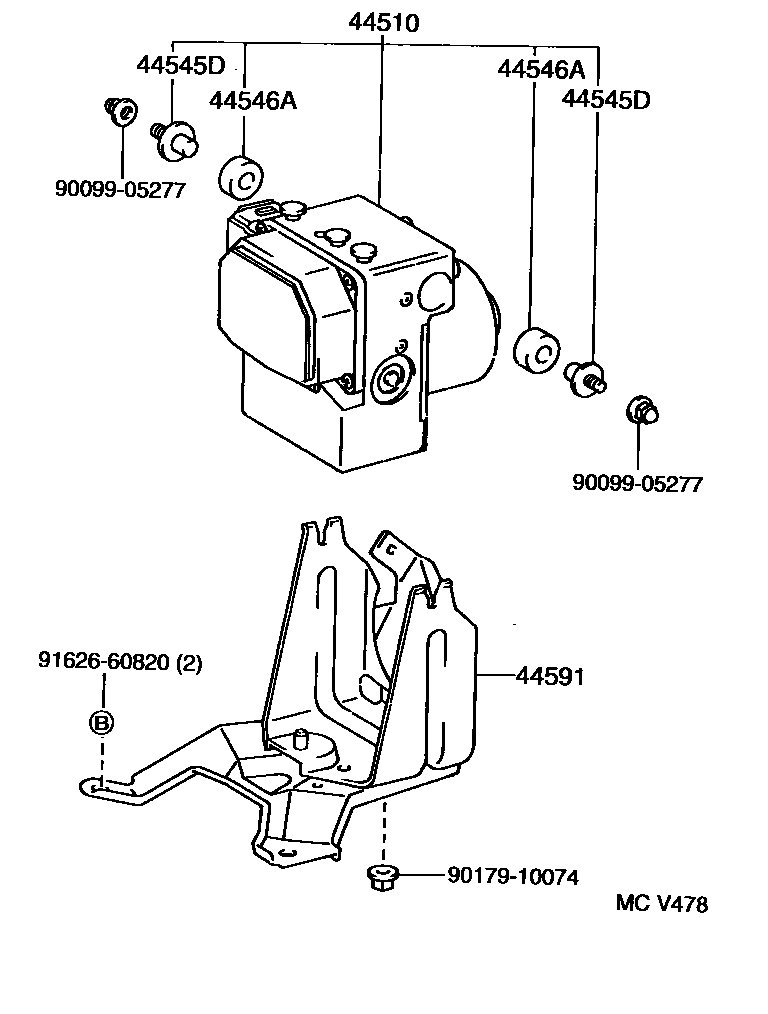

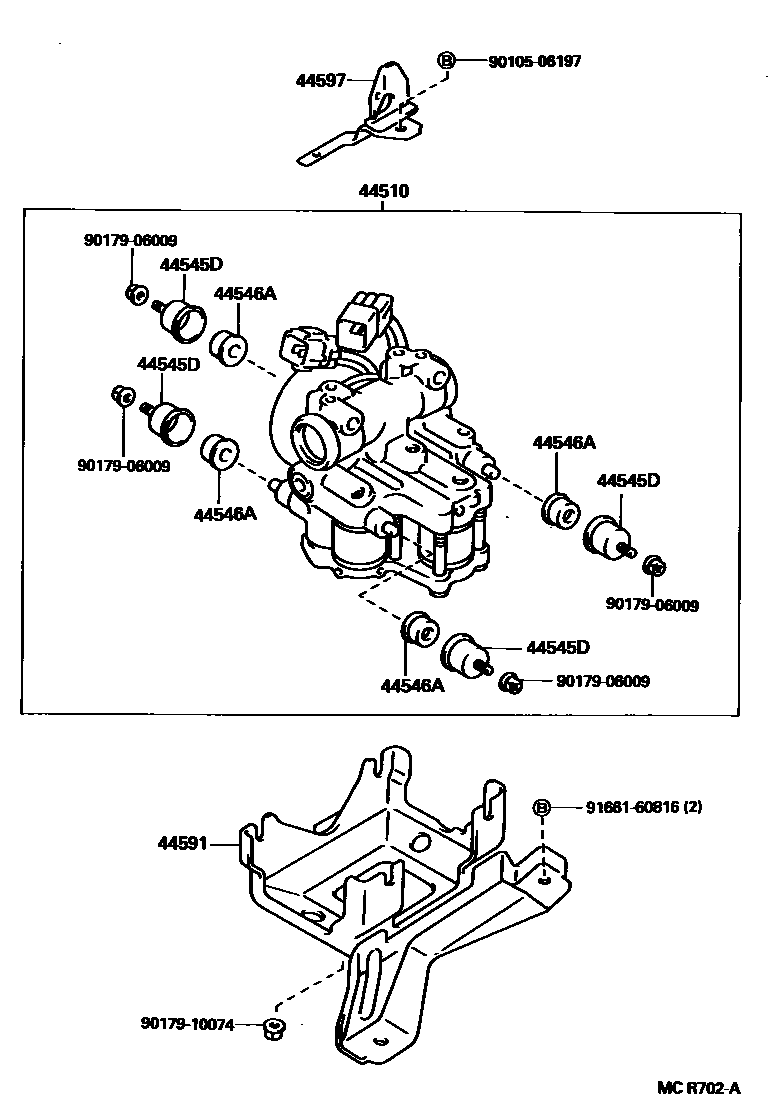

| 44510 | brake actuator assembly | 44050-33020 · 44510-32050 · 44510-32060 · 44510-33070 |
| 44545D | Brake actuator bolt mount | 44545-33010 · 44545-42020 |
| 44546A | Brake actuator bolt cushion | 44546-33010 · 44546-42020 |
| 44569A | Brake actuator wiring harness | 44580-32010 |
| 44591 | No. 1 brake actuator bracket | 44590-32010 · 44590-32020 · 44590-32030 · 44590-32040 |
| 44597 | No. 1 brake actuator connector clip | 44597-32020 |
| 47150 | Proportional valve assembly | 47150-12110 · 47150-16040 · 47150-20250 · 47150-20270 · 47150-20340 · 47150-20420 |
| 47311 | No. 1 front brake pipe | 47311-32100 |
| 47312 | No. 2 front brake pipe | 47312-32170 · 47312-32180 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90904-13013 |
| 47313 | No. 3 front brake pipe | 47313-32170 · 47313-32180 |
| 47313A | No. 1 front flexible hose | 90947-02792 · 90947-02793 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 · 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50020 · 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-32170 · 47314-32180 |
| 47315 | No. 5 front brake pipe | 47315-32140 · 47315-32150 · 47315-32170 |
| 47316 | No. 6 front brake pipe | 47316-32060 · 47316-32070 · 47316-32080 · 47316-32090 · 47316-32140 · 47316-32150 · 47316-32160 |
| 47317 | No. 7 front brake pipe | 47317-32060 · 47317-32070 · 47317-32080 · 47317-32090 · 47317-32140 · 47317-32150 · 47317-32160 |
| 47318 | No. 8 front brake pipe | 47318-32050 · 47318-32060 · 47318-32140 · 47318-32150 · 47318-32151 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10015 · 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-30010 · 47389-50020 |
| 47318F | Right rear flexible hose | 90947-02701 · 90947-02703 · 90947-02705 · 90947-02794 |
| 47319 | No. 9 front brake pipe | 47319-32060 · 47319-32070 · 47319-32140 · 47319-32150 |
| 47319F | Left rear flexible hose | 90947-02702 · 90947-02704 · 90947-02706 · 90947-02795 |
| 47321 | No. 1 rear brake pipe | 47321-32150 |
| 47322 | No. 2 rear brake pipe | 47322-32140 |
| 47323 | No. 3 rear brake pipe | 47323-32110 · 47323-32120 · 47323-32140 · 47323-32150 · 47323-32160 |
| 47324 | No. 4 rear brake pipe | 47324-32120 · 47324-32130 · 47324-32140 · 47324-32150 · 47324-32160 |
| 47325 | No. 5 rear brake pipe | 47323-32160 |
| 47326 | No. 6 rear brake pipe | 47324-32160 |
| 47371A | No. 1 brake pipe clamp | 47371-32080 · 47371-32090 |
| 47371B | No. 6 brake pipe clamp | 47371-32180 |
| 47371C | No. 7 brake pipe clamp | 47371-32190 |
| 47372 | No. 2 brake pipe clamp | 47371-32150 · 47371-32200 · 47371-32210 |
| 47373B | No. 3 brake pipe clamp | 47371-32160 |
| 47374B | No. 4 brake pipe clamp | 47371-20380 |
| 47375 | No. 5 brake pipe clamp | 47371-32170 |
