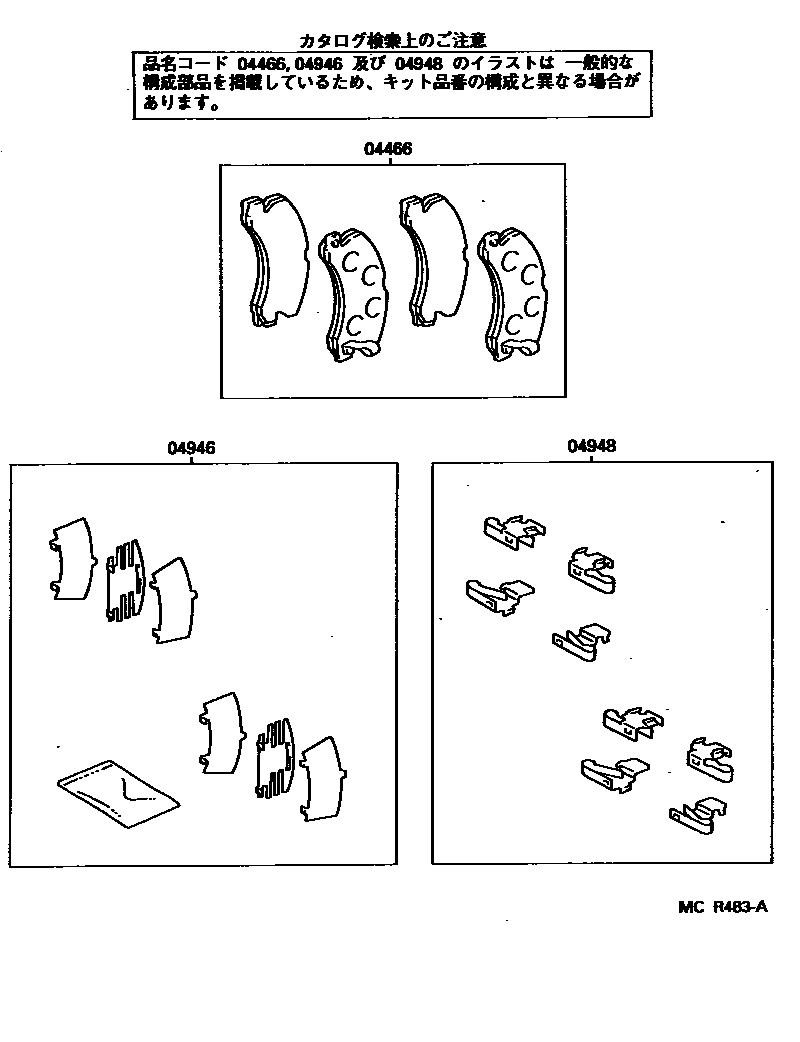

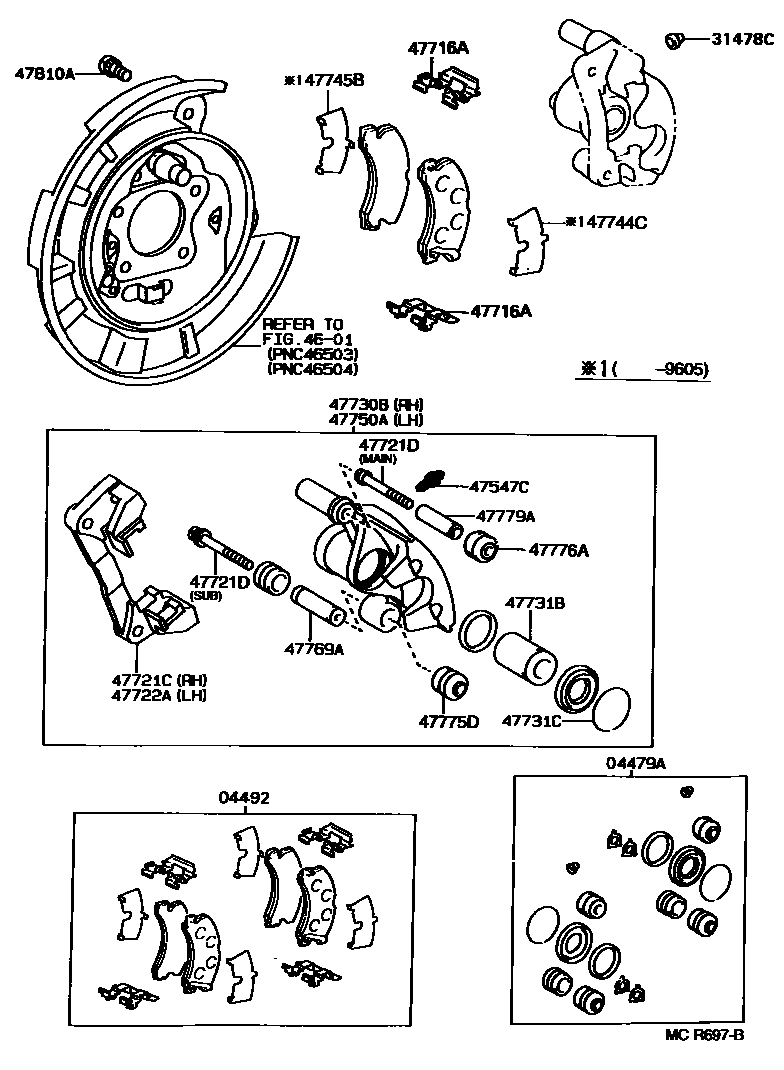

Toyota CAMRY 后盘式制动器卡钳和防尘罩 — Figure 4707
Toyota CAMRY EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-20020 · 04466-32020 |
| 04479A | Rear disc brake cylinder assembly | 04479-20090 · 04479-20180 · 04479-32090 · 04479-32100 |
| 04492 | Rear disc brake pad assembly | 04492-20140 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-12020 |
| 04948 | Rear disc brake mounting assembly | 04948-12020 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-30010 |
| 47547C | Bleed plug (for rear disc brake) | 47547-20010 |
| 47716A | Pad support plate No. 1 (for rear disc brake) | 47716-12020 |
| 47721C | Right rear disc brake cylinder retainer | 47721-20430 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90109-08098 · 90119-08431 |
| 47722A | Left rear disc brake cylinder retainer | 47721-20430 |
| 47730B | Right rear disc brake cylinder assembly | 47730-20420 · 47730-20540 |
| 47731B | rear disc brake piston | 47731-20110 · 47731-20210 |
| 47731C | retaining ring (for rear disc brake piston) | 90522-45001 |
| 47744C | No. 1 silencer gasket (for rear disc brake) | 47744-20170 |
| 47745B | No. 2 silencer gasket (for rear disc brake) | 47744-12080 |
| 47750A | Left rear disc brake cylinder assembly | 47750-20420 · 47750-20540 |
| 47769A | No. 1 brake cylinder sliding sleeve (for rear disc brake) | 47769-28010 |
| 47775D | Bushing boot (for rear disc brake) | 47775-14010 |
| 47776A | Kingpin dust boot (for rear disc brake) | 47776-12010 · 47776-12020 |
| 47779A | No. 2 brake cylinder sliding sleeve (for rear disc brake) | 47779-12010 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90119-10379 · 90119-10445 |
