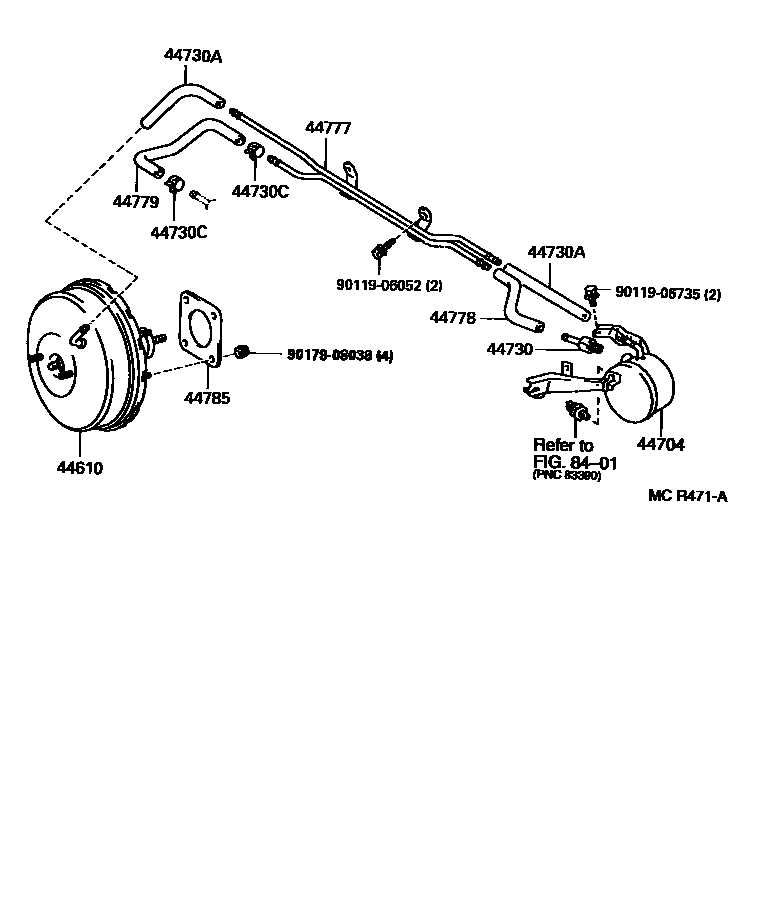

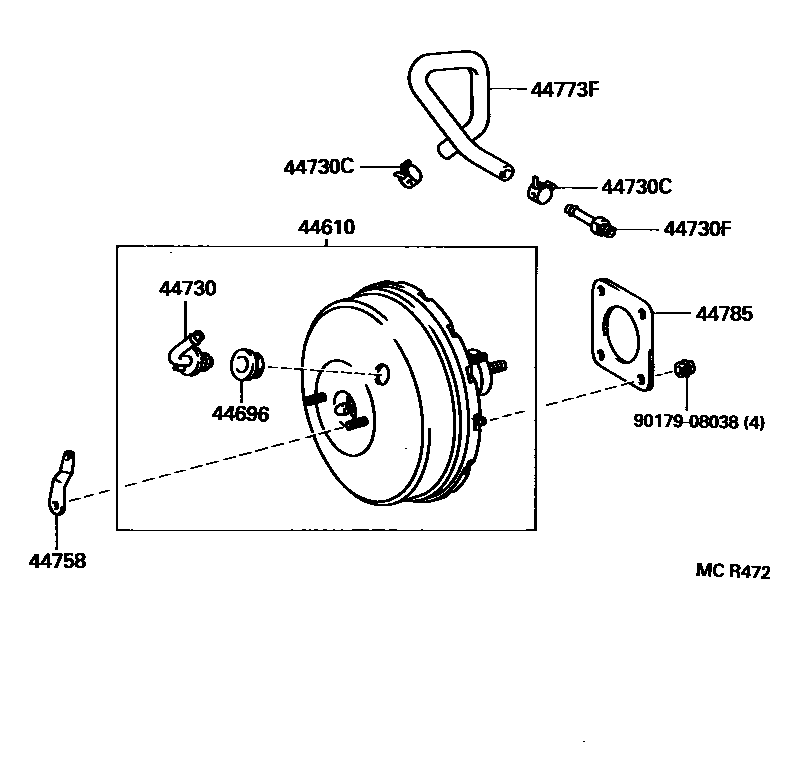

Toyota CAMRY 制动助力器和真空管 — Figure 4703
Toyota CAMRY EPC diagram 4703, 制动助力器和真空管, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-32520 · 44610-32540 · 44610-32550 · 44610-32560 · 44610-32570 · 44610-32580 · 44610-32590 · 44610-32600 |
| 44696 | One-way valve seal | 90480-24015 · 90480-24439 |
| 44704 | Vacuum liquid tank sub-assembly | 44704-32060 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-14050 · 44730-28010 · 44730-60050 |
| 44730A | No. 1 vacuum hose | 95446-09180 |
| 44730C | Clip (for vacuum hose) | 90467-16002 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51319 |
| 44758 | Vacuum check valve bracket | 44758-32070 · 44758-32080 |
| 44773F | Hoses (connector to check valve) | 44773-32190 · 44773-32200 |
| 44777 | No. 1 Vacuum Hose Connector | 44777-32010 |
| 44778 | Hoses (connector to check valve) | 44778-32040 |
| 44779 | Hoses (fittings to connectors) | 44779-32010 · 44779-32020 |
| 44785 | brake booster pad | 44785-32010 |
