Toyota CAMRY 后转向连接部件(4WS) — Figure 4506

Toyota CAMRY EPC diagram 4506, 后转向连接部件(4WS), with 1 images and 7 PNC and OE references.

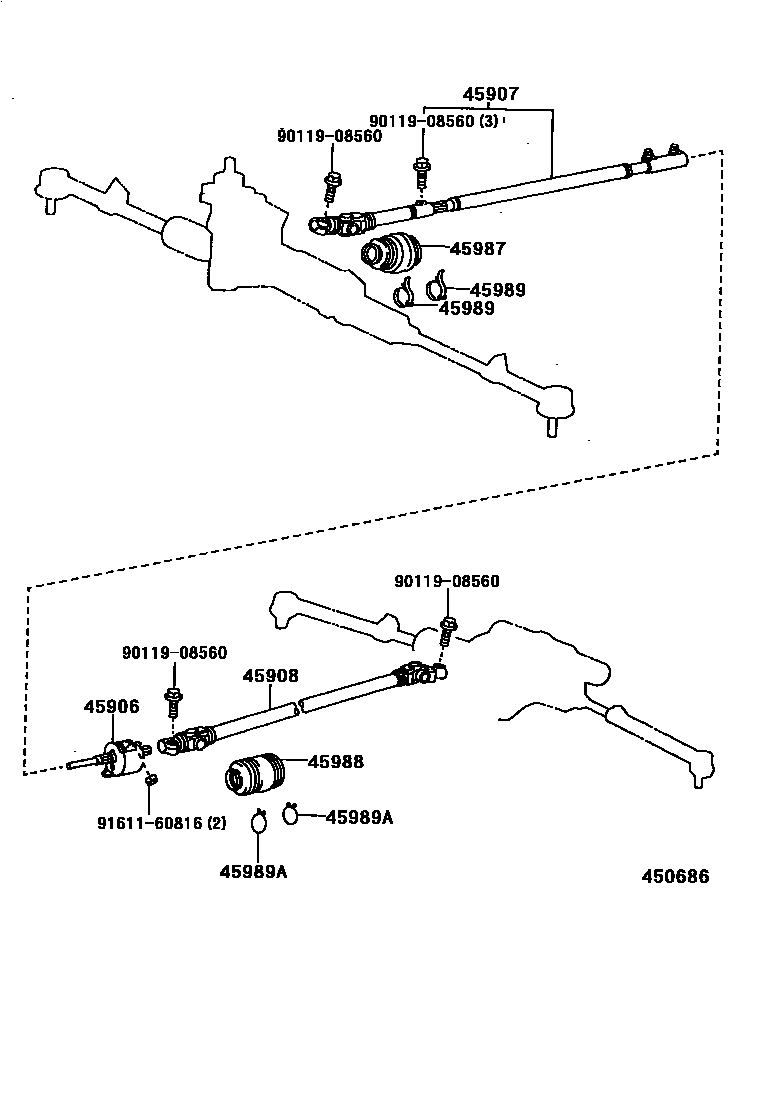

Toyota CAMRY 后转向连接部件(4WS) EPC diagram — 450686
后转向连接部件(4WS) — 450686 (199406 – 999999)

PNC and OE references

PNCPart nameOE numbers
45906Rear steering connecting shaft bearing sub-assembly45906-32010
45907No. 1 rear steering gear connecting shaft sub-assembly45907-32010
45908No. 2 rear steering gear connecting shaft sub-assembly45908-32020
45987No. 1 rear steering connecting shaft dust cover45987-32010
45988No. 2 rear steering connecting shaft dust cover45988-20010
45989No. 1 rear steering connecting shaft dust cover clip90949-01558
45989ANo. 2 rear steering connection shaft dust cover clip45989-20010
