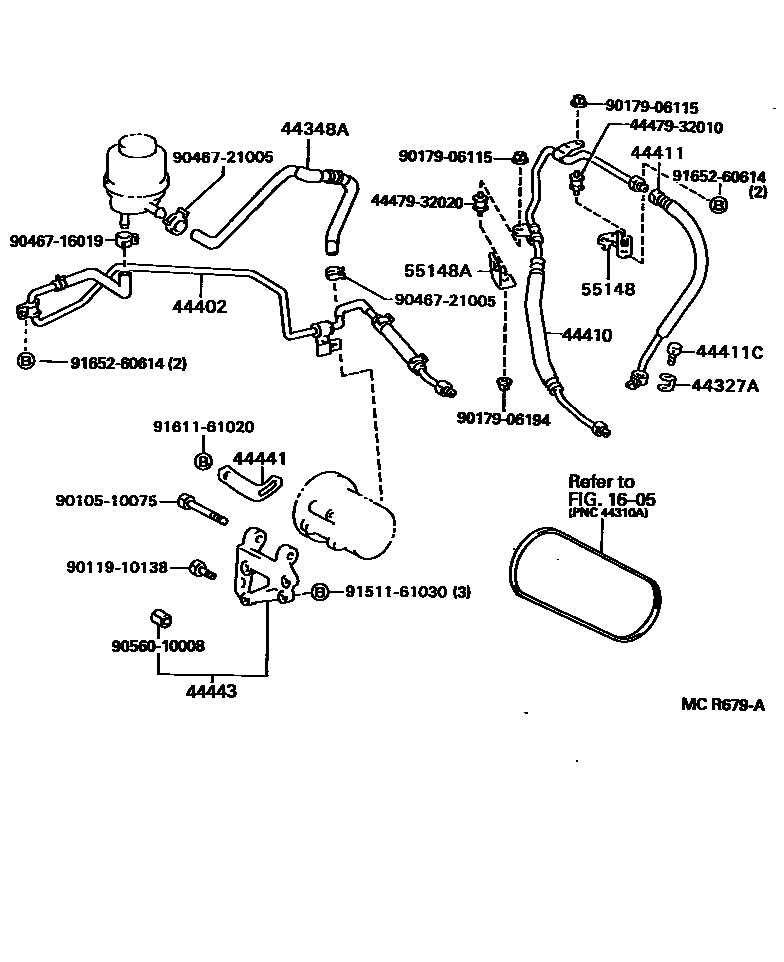

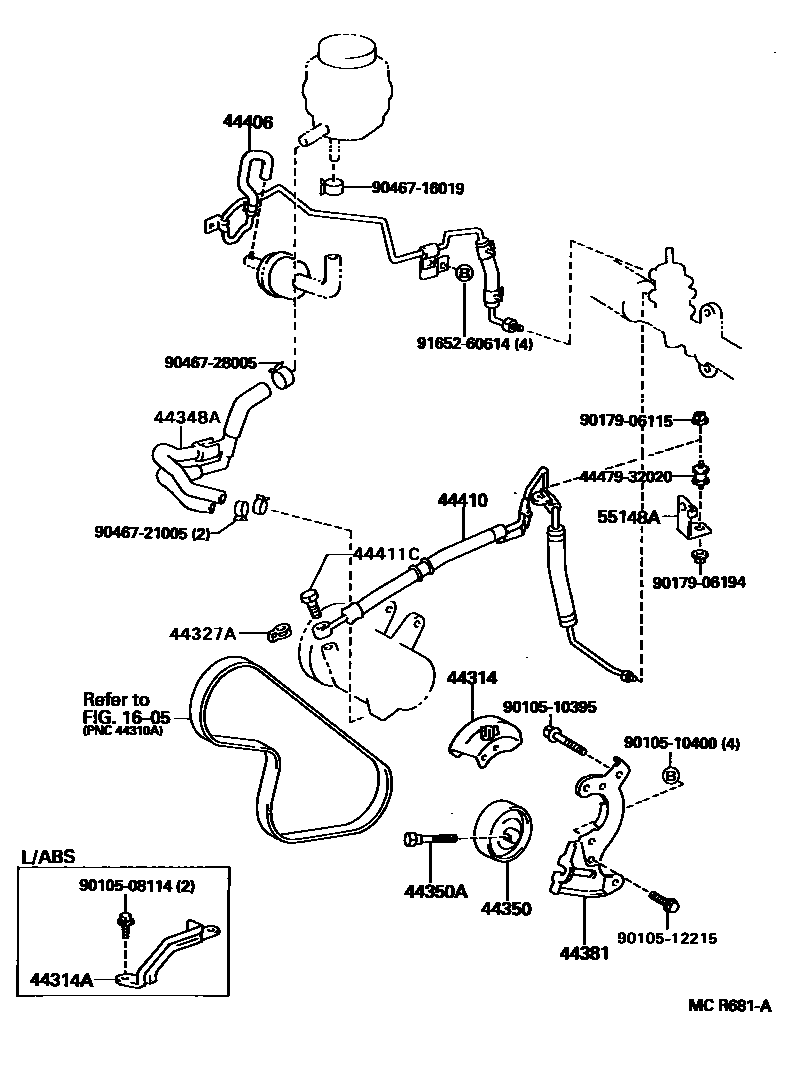

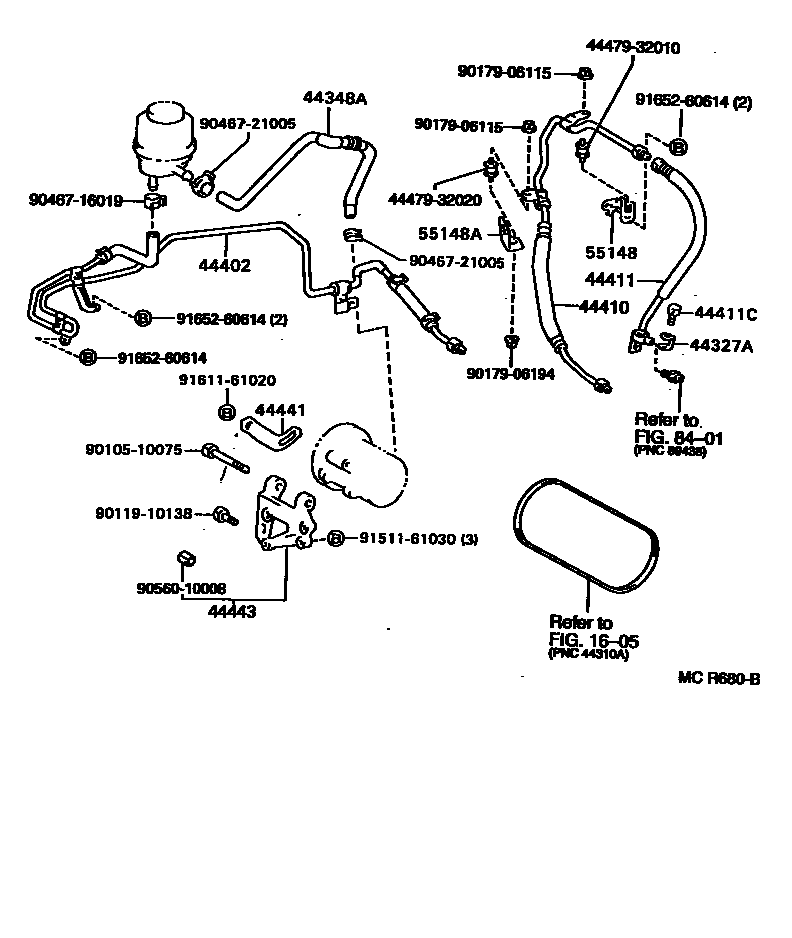

Toyota CAMRY 动力转向配管 — Figure 4503
Toyota CAMRY EPC diagram 4503, 动力转向配管, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44314 | pulley cover | 44314-32030 |
| 44314A | No. 2 pulley cover | 44314-32020 |
| 44327A | No. 1 pressure hole gasket | 44327-12010 |
| 44348A | No. 1 hose (tank to pump) | 44348-32230 · 44348-32240 · 44348-32241 |
| 44350 | Power steering idler assembly | 44350-32030 |
| 44350A | Bolt (for power steering idler pulley) | 90109-08245 |
| 44381 | Power steering idler bracket | 44381-32030 |
| 44402 | No. 1 power steering oil cooler sub-assembly | 44402-32240 · 44402-32250 · 44402-32251 · 44402-32260 · 44402-32270 · 44402-32271 |
| 44406 | Oil return pipe sub-assembly | 44406-32290 |
| 44410 | Pressure supply pipe assembly | 44410-32510 · 44410-32511 · 44410-32520 · 44410-32530 · 44410-32531 |
| 44411 | pressure supply hose | 44411-32190 · 44411-32210 · 44411-32221 |
| 44411C | Connector bolt (for pressure supply hose) | 90401-16008 |
| 44441 | Pump front bracket | 44441-32010 |
| 44443 | pump bracket | 44443-32070 |
| 55148 | No. 1 power steering tube bracket | 55148-32050 · 55148-32051 |
| 55148A | No. 2 power steering tube bracket | 55148-32040 |
