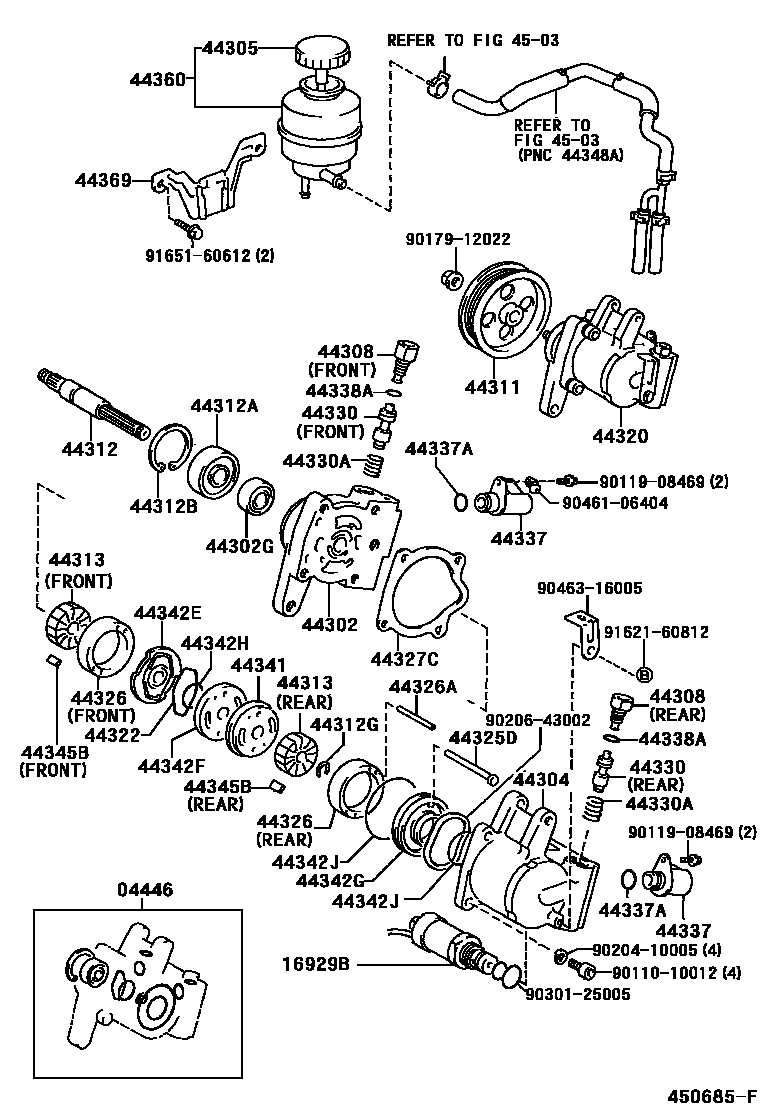

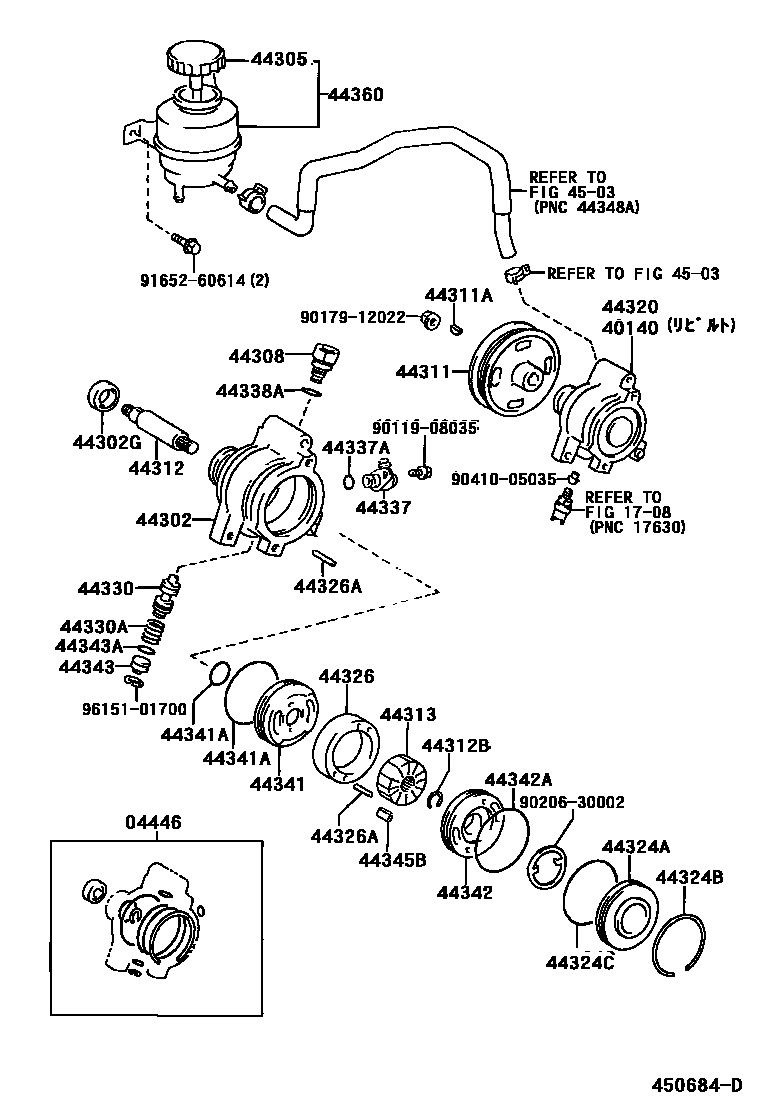

Toyota CAMRY 叶片泵和储油罐(动力转向) — Figure 4502
Toyota CAMRY EPC diagram 4502, 叶片泵和储油罐(动力转向), with 2 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-32021 · 04446-32022 · 04446-32031 · 04446-32032 · 04446-32040 |
| 16929B | Hydraulic motor control valve | 16929-64020 |
| 40140 | Refurbished vane pump assembly | 40140-32251 · 40140-32390 · 40140-32400 |
| 44302 | Front vane pump housing sub-assembly | 44302-20030 · 44302-32091 |
| 44302G | No. 2 oil seal (for vane pump housing) | 90311-17007 · 90311-18007 |
| 44304 | Vane pump rear housing sub-assembly | 44304-32030 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-28020 |
| 44308 | Pressure hole connector sub-assembly | 44308-20060 · 44308-22050 · 44308-32060 · 44308-32130 |
| 44311 | vane pump pulley | 44311-32020 · 44311-32070 · 44311-32091 |
| 44311A | Vane pump pulley key | 90280-05008 |
| 44312 | vane pump shaft | 44312-12030 · 44312-32030 · 44312-32040 |
| 44312A | Bearings (for vane pump shafts) | 90363-17011 |
| 44312B | No. 1 snap ring (for vane pump shaft) | 90520-10003 · 90520-15001 |
| 44312G | No. 2 snap ring (for vane pump shaft bearing) | 90521-51003 |
| 44313 | vane pump rotor | 44313-22040 · 44313-22050 · 44313-22060 · 44313-22070 · 44313-22080 · 44313-26060 · 44313-26070 · 44313-26080 · 44313-26090 · 44313-26100 · 44313-32020 · 44313-32030 · 44313-32040 · 44313-32050 |
| 44320 | Vane pump assembly | 44320-32251 · 44320-32390 · 44320-32400 · 44320-32410 |
| 44322 | Vane pump end cover sealing ring | 44322-32010 |
| 44324A | Pump back shell | 44324-12031 |
| 44324B | Hole snap ring (for pump rear housing) | 90521-62002 |
| 44324C | O-ring (for pump rear housing) | 90301-52001 · 90301-53006 |
| 44325D | Ring pin (for vane pump cam ring) | 90253-04001 |
| 44326 | Cam ring (for vane pumps) | 44325-30100 · 44325-30110 · 44325-30120 · 44325-30130 · 44325-30140 · 44325-32110 · 44325-32120 · 44325-32130 · 44325-32140 · 44325-32290 · 44325-32300 · 44325-32310 · 44325-32320 · 44325-32330 |
| 44326A | Direct sales (for vane pump cam rings) | 90250-04047 · 90250-04049 · 90250-04083 |
| 44327C | Vane pump casing gasket | 44327-32010 |
| 44330 | Flow control valve assembly | 44330-16071 · 44330-16081 · 44330-16091 · 44330-16101 · 44330-16111 · 44330-16121 · 44330-20010 · 44330-20020 · 44330-20030 · 44330-20040 · 44330-20050 · 44330-20060 · 44330-20190 · 44330-20200 · 44330-20210 · 44330-20220 · 44330-20230 · 44330-20240 · 44330-32550 · 44330-32560 · 44330-32570 · 44330-32580 · 44330-32590 · 44330-32600 · 44330-32730 · 44330-32740 · 44330-32750 · 44330-32760 · 44330-32770 · 44330-32780 |
| 44330A | Compression spring (for flow control valve) | 90501-12103 |
| 44337 | Power steering suction port connector | 44337-12030 · 44337-32080 · 44337-32090 |
| 44337A | O-ring (for power steering oil suction port) | 90301-11010 · 90301-11016 · 90301-12003 · 96711-19016 |
| 44338A | O-ring (for pressure port connector) | 90301-19003 · 90301-19013 |
| 44341 | Vane pump front cover | 44341-20010 · 44341-32010 · 44341-32021 |
| 44341A | O-ring (for vane pump front cover) | 90301-25001 · 90301-25008 · 90301-52001 · 90301-53004 |
| 44342 | Vane pump rear end cover | 44342-20010 · 44342-32010 |
| 44342A | O-ring (for vane pump rear end cover) | 90301-52001 · 90301-53004 |
| 44342E | No. 1 vane pump rear end cover | 44342-32021 |
| 44342F | No. 2 vane pump rear end cover | 44342-32030 |
| 44342G | No. 3 vane pump rear end cover | 44342-32041 |
| 44342H | O-ring (for No. 1 vane pump rear end cover) | 90301-15008 |
| 44342J | O-ring (for No. 2 vane pump rear end cover) | 90301-36007 · 90301-56003 |
| 44343 | Flow control spring seat | 44343-12010 |
| 44343A | O-ring (for flow control spring seat) | 90301-13012 · 96711-19014 |
| 44345B | vane pump disc | 44345-12010 · 44345-12020 · 44345-12030 · 44345-12040 · 44345-12050 · 44345-26010 · 44345-26020 · 44345-26030 · 44345-32060 · 44345-32070 · 44345-32080 · 44345-32090 · 44345-60010 · 44345-60020 · 44345-60030 |
| 44360 | Vane pump oil storage tank assembly | 44030-32030 · 44360-32090 |
| 44369 | No. 1 oil storage tank bracket | 44369-32050 |
