Toyota CAMRY Steering Column & Shaft — Figure 4501

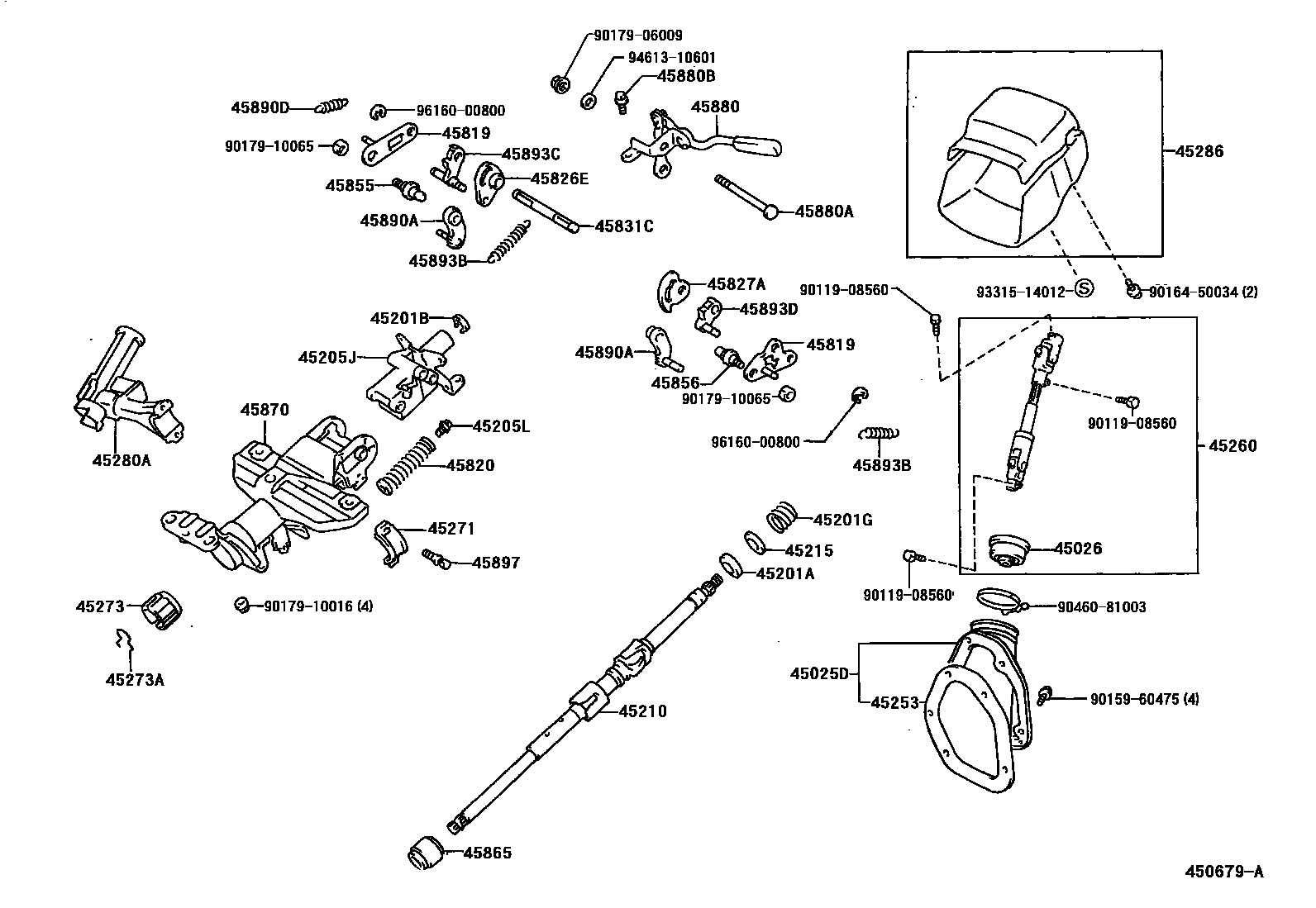

Toyota CAMRY EPC diagram 4501, Steering Column & Shaft, with 1 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-32140 |
| 45026 | No. 2 steering column hole cover sub-assembly | 45026-20091 |
| 45201A | Bearings (for steering spindle) | 90363-18005 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 |
| 45201G | Compression spring (for steering spindle) | 90501-40017 |
| 45205J | Steering column upper tube sub-assembly | 45205-32120 · 45205-32170 |
| 45205L | Screw (for steering column tube) | 90168-55002 |
| 45210 | Steering spindle assembly | 45210-32190 |
| 45215 | Spindle bearing thrust collar | 45215-12010 |
| 45253 | Steering column hole cover | 45253-32080 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-32120 |
| 45271 | Clamp on steering column | 45271-12060 |
| 45273 | Steering spindle bushing | 45273-20011 |
| 45273A | Hole snap ring (for steering spindle bushing) | 90521-01006 |
| 45280A | Steering column upper bracket assembly | 45280-32180 |
| 45819 | Tilt adjustment lever retaining ring | 45819-22060 |
| 45820 | Tilt-adjustable steering bracket spring assembly | 45820-12020 |
| 45826E | Steering tilt adjustment lever (for tilt adjustment) | 45826-22050 |
| 45827A | Steering tilt adjustment lever | 45827-22030 |
| 45831C | Tilt adjustment lever lock shaft | 45831-22020 |
| 45855 | No. 1 tilt-adjustable steering column bolt | 45856-22010 |
| 45856 | No. 2 tilt-adjustable steering column bolt | 45856-22010 |
| 45865 | Steering spindle collar | 45865-20010 |
| 45870 | Steering column tube assembly | 45870-32150 |
| 45880 | Steering tilt adjustment lever assembly | 45880-20020 |
| 45880A | Bolt (for steering tilt adjustment lever) | 90109-06162 |
| 45880B | Screw (for steering tilt adjustment lever) | 90163-50001 |
| 45890A | Tilt-adjustable steering pawl assembly | 45890-20110 · 45890-22090 |
| 45890D | Tension spring (for tilt-adjustable steering pawl assembly) | 90507-07003 |
| 45893B | Tension spring (for tilt-adjustable steering pawl stop) | 90507-08010 · 90507-10019 |
| 45893C | Right steering pawl block | 45893-24010 · 45893-24020 · 45893-24030 · 45893-24040 · 45893-24050 · 45893-24060 · 45893-24070 |
| 45893D | Left steering pawl block | 45893-20260 · 45893-20270 · 45893-20280 · 45893-20290 · 45893-20300 · 45893-20310 · 45893-20320 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
