Toyota CAMRY Front Drive Shaft — Figure 4302

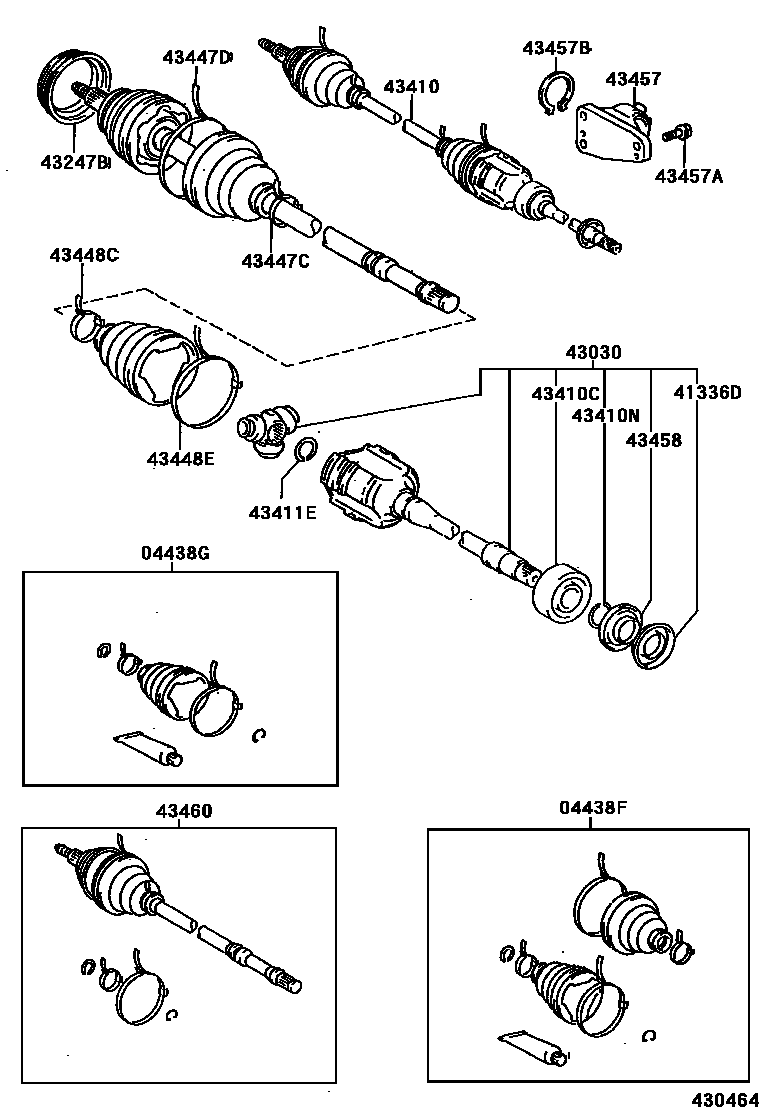

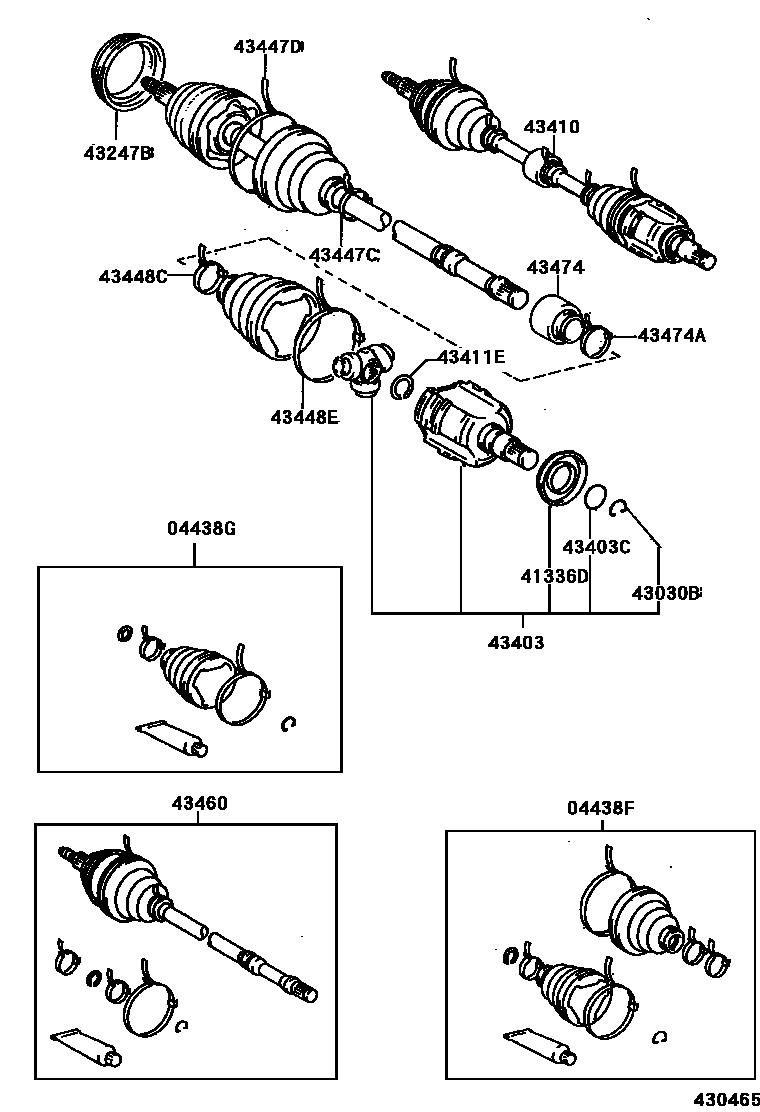

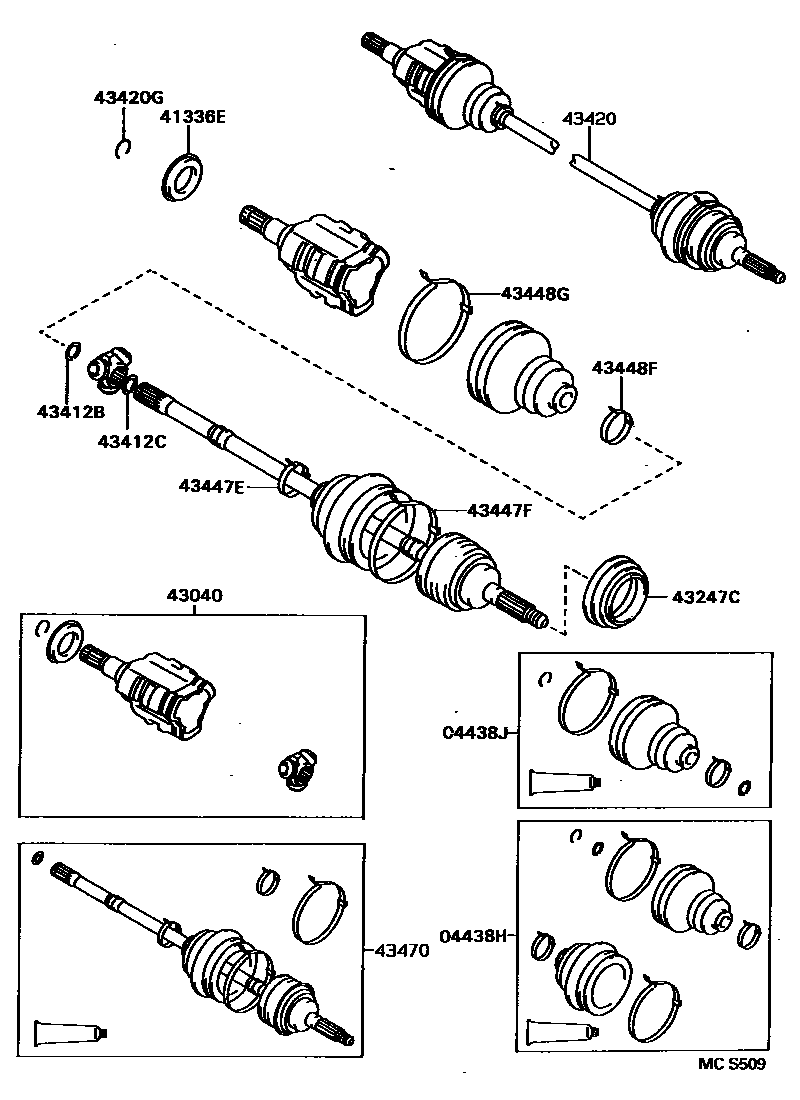

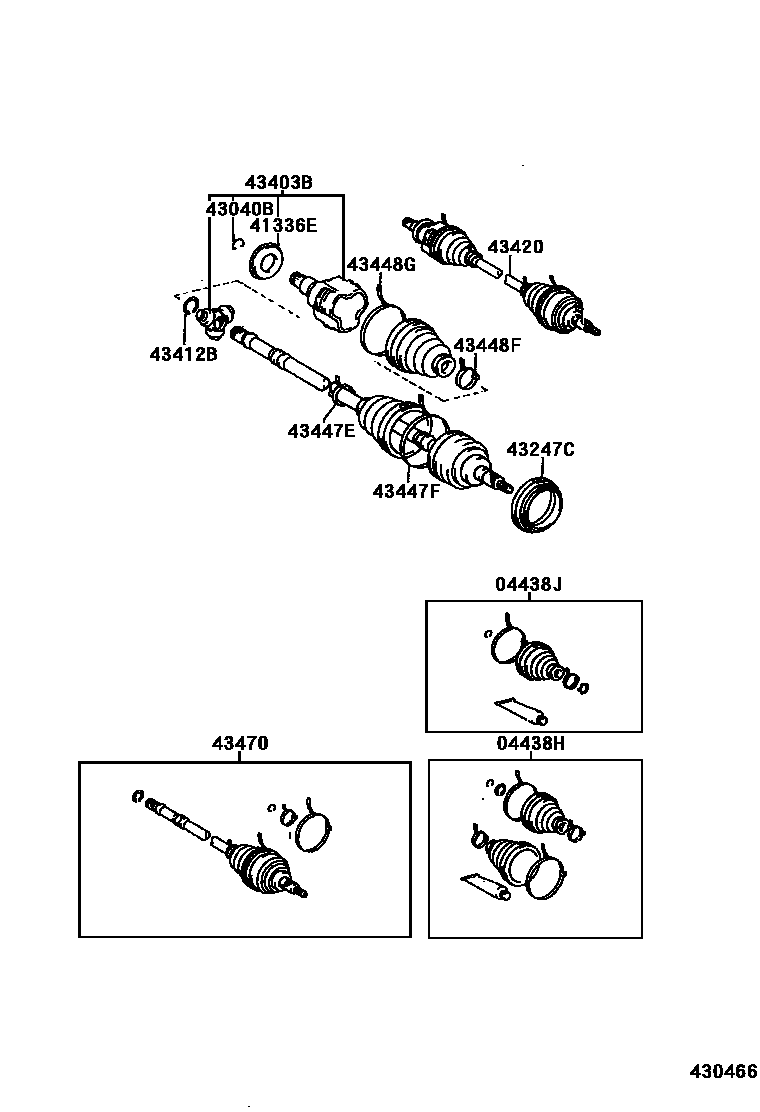

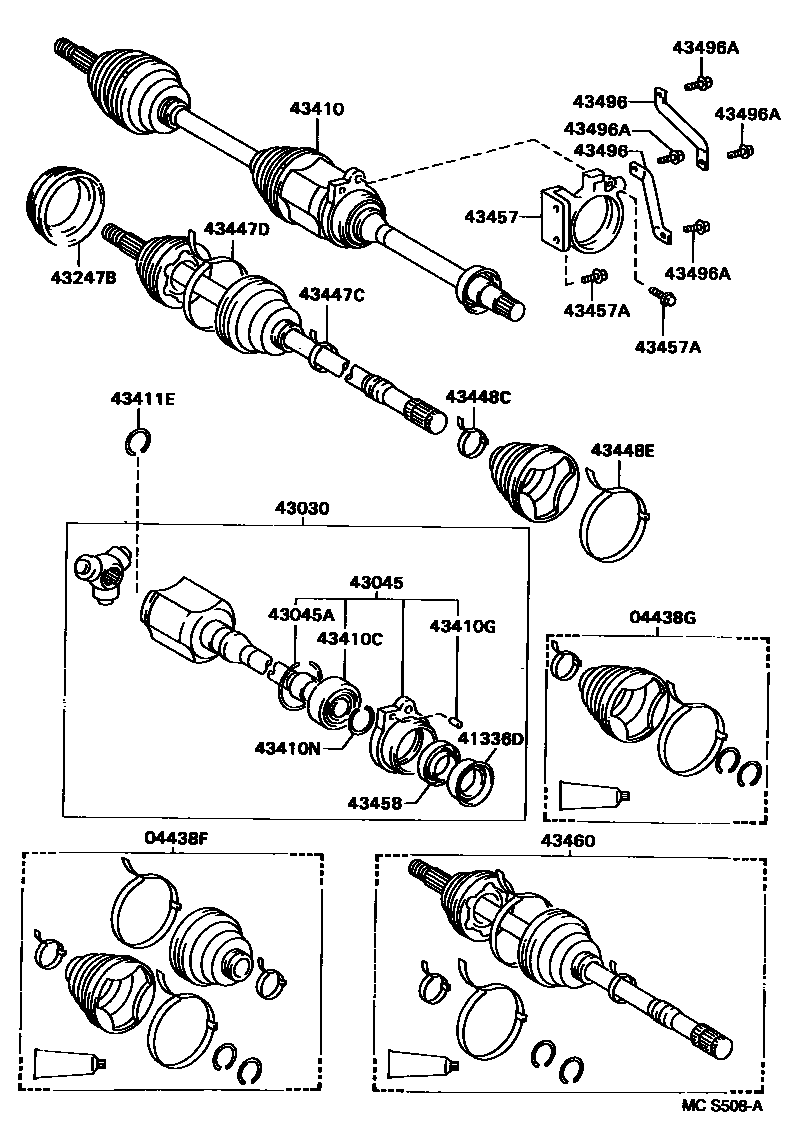

Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 5 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04438-12300 · 04438-12301 · 04438-20070 · 04438-20110 · 04438-20131 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-12410 · 04438-20060 · 04438-20121 · 04438-20330 · 04438-32161 · 04438-32230 · 04438-32231 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04438-12270 · 04438-12290 · 04438-12301 · 04438-20070 · 04438-20131 · 04438-32171 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-12260 · 04438-12420 · 04438-20060 · 04438-20121 · 04438-20330 · 04438-32161 · 04438-32230 · 04438-32231 |
| 41336D | Right front driveshaft dust cover | 41336-20011 · 41336-20040 |
| 41336E | Left front driveshaft dust cover | 41336-12040 · 41336-32020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-20030 · 43030-32040 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 90521-26004 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-20010 · 43040-20020 |
| 43040B | Hole snap ring (for left front drive shaft inboard universal joint) | 90521-26004 |
| 43045 | Drive shaft bearing shell sub-assembly | 43045-20010 |
| 43045A | Snap ring (for drive shaft bearing housing sub-assembly) | 96153-00680 |
| 43247B | No. 2 right front wheel bearing dust cover | 43247-12010 · 43247-33010 |
| 43247C | No. 2 left front wheel bearing dust cover | 43247-12010 · 43247-33010 |
| 43403 | Right front axle inner universal joint assembly | 43403-12050 |
| 43403B | Left front axle inner universal joint assembly | 43403-12060 |
| 43403C | O-ring (for front drive shaft inboard universal joint) | 90301-26006 |
| 43410 | Right front driveshaft assembly | 43410-12400 · 43410-12410 · 43410-12411 · 43410-20221 · 43410-20231 · 43410-20232 · 43410-32150 · 43410-32151 · 43410-32152 · 43410-32181 |
| 43410C | Bearings (for front driveshaft) | 90363-36001 · 90369-36001 |
| 43410G | Direct sales (for front driveshaft) | 90250-06003 |
| 43410N | Hole snap ring (for right front driveshaft) | 90520-33008 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 90520-22005 · 90520-26048 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 90520-22005 · 90520-26048 |
| 43412C | Outer shaft snap ring (for left front axle inner drive shaft) | 90520-25037 |
| 43420 | Left front drive shaft assembly | 43420-20171 · 43420-20181 · 43420-20182 · 43420-20191 · 43420-20201 · 43420-20202 · 43420-32121 · 43420-32161 · 43420-32162 |
| 43420G | Hole snap ring (for left front driveshaft) | 90521-27005 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-16040 · 42345-16060 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-16040 · 42345-16060 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-16040 · 42345-16090 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-16040 · 42345-16090 |
| 43457 | drive shaft bearing bracket | 43457-20030 · 43457-32060 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-10285 · 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-75002 |
| 43458 | Front drive shaft dust cover | 43458-20011 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-19307 · 43470-19306 · 43470-19307 · 43470-19308 · 43470-29136 · 43470-29146 · 43470-29148 · 43470-29150 · 43470-29156 · 43470-29166 · 43470-39087 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-19306 · 43470-19307 · 43470-19308 · 43470-29136 · 43470-29146 · 43470-29148 · 43470-29150 · 43470-29156 · 43470-29166 · 43470-39087 |
| 43474 | drive shaft damper | 43474-12030 |
| 43474A | Clamp (for securing driveshaft damper) | 90949-01696 |
| 43496 | No. 1 front drive shaft bearing bracket stay | 43496-20010 · 43496-20030 |
| 43496A | Bolt (for driveshaft bearing bracket stay) | 90105-10263 |
