Toyota CAMRY 车轮和车轮盖 — Figure 4103
Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

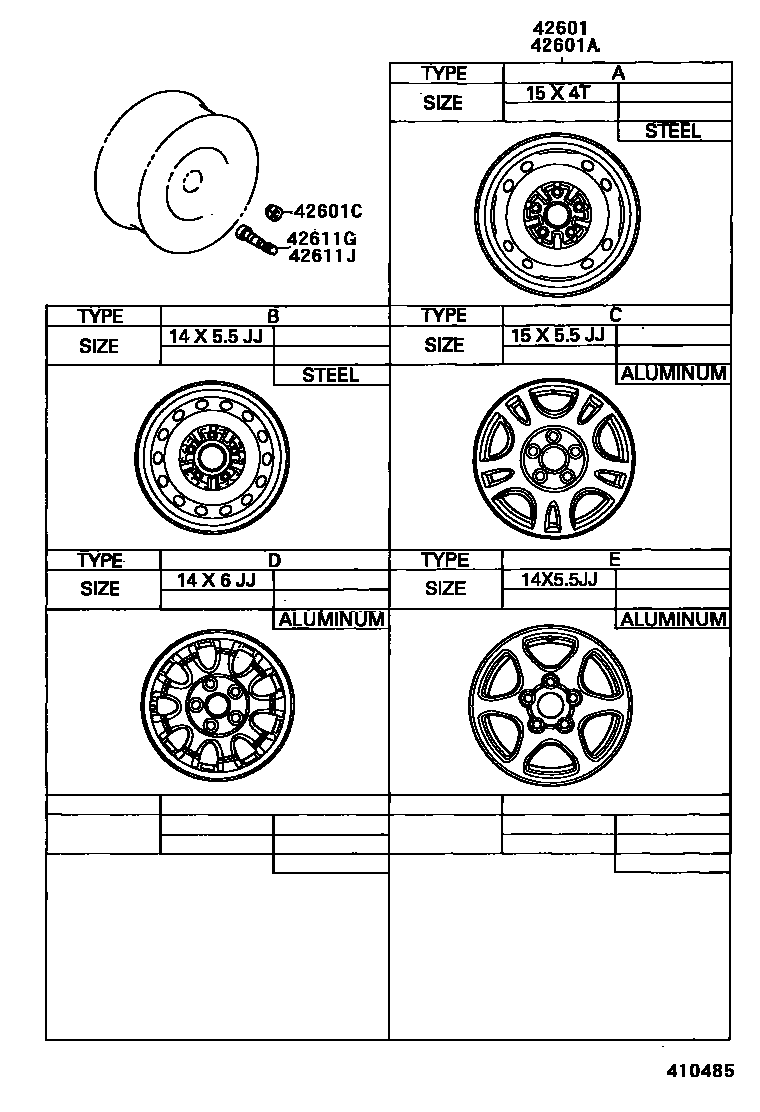

| 42601 | spoke wheel | 42611-32300 · 42611-32320 · 42611-33140 |
| 42601A | Spoke wheel (for spare tire) | 42611-17130 · 42611-32300 · 42611-32320 · 42611-33140 · 42611-33170 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01058 · 90942-01062 |

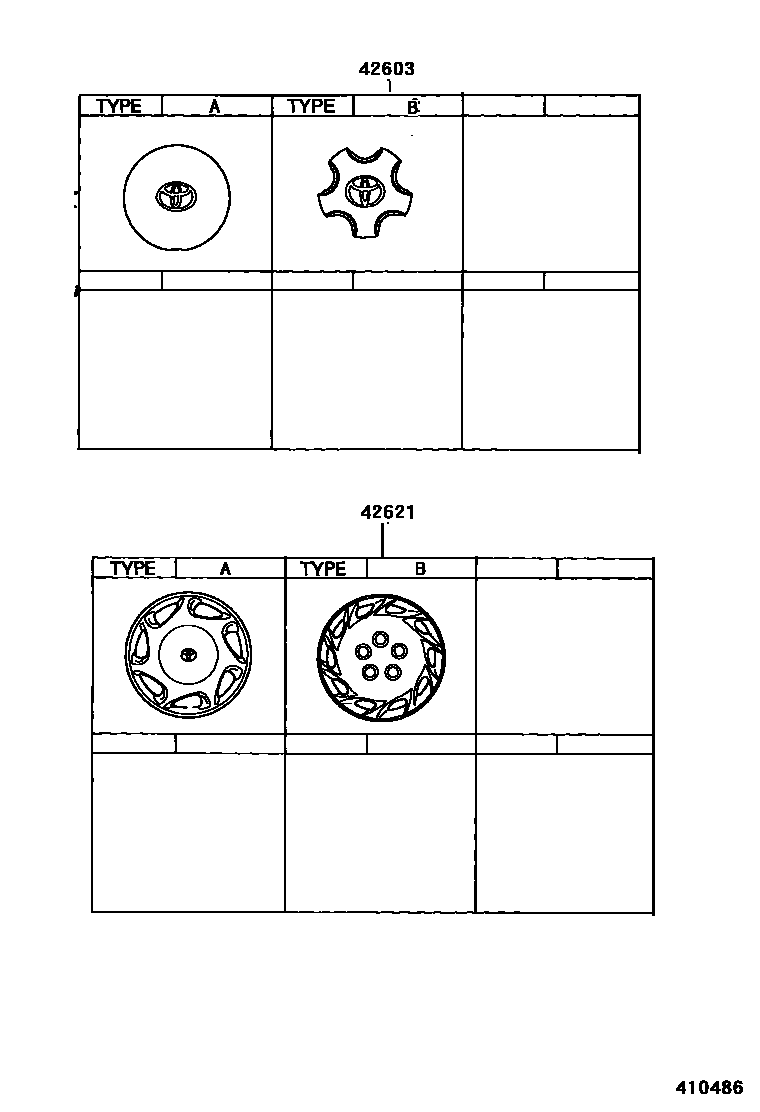

| 42603 | Wheel hub decorative parts sub-assembly | 42603-32160 · 42603-32190 · 42603-33060 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42621-32160 · 42621-32170 |
