Toyota CAMRY 后桥半轴和后桥轮毂 — Figure 4102

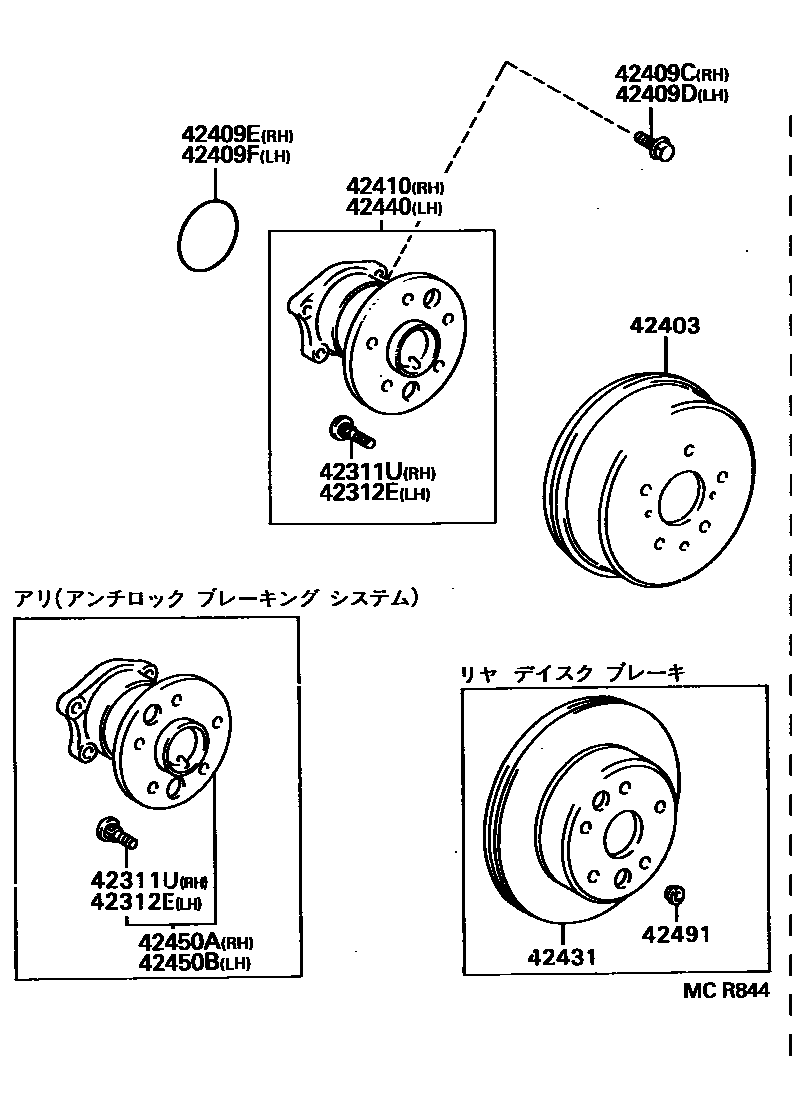

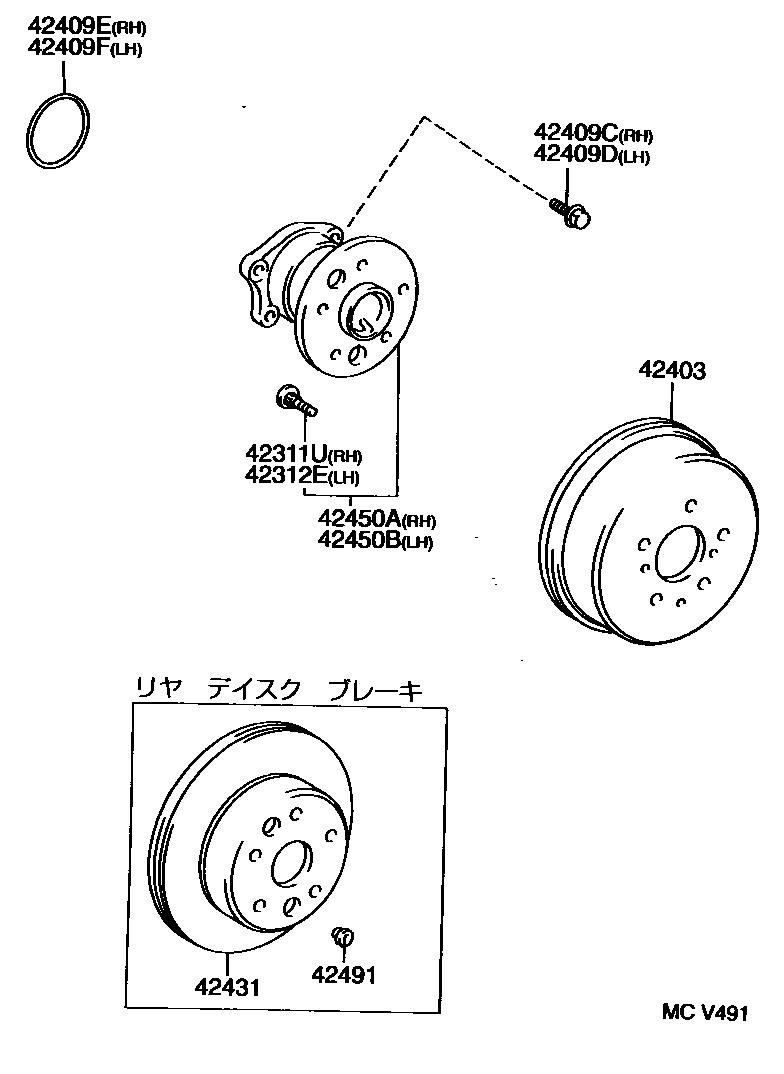

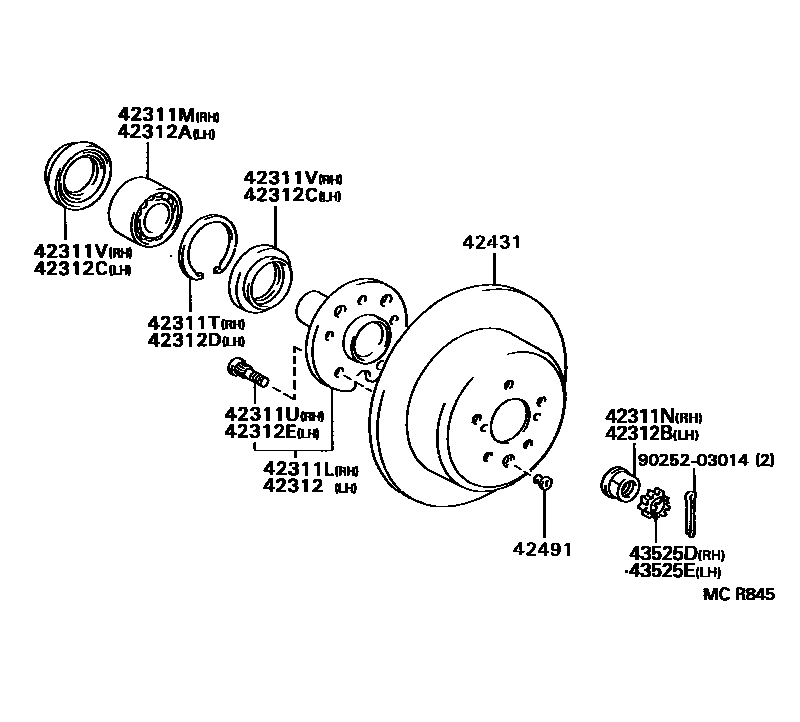

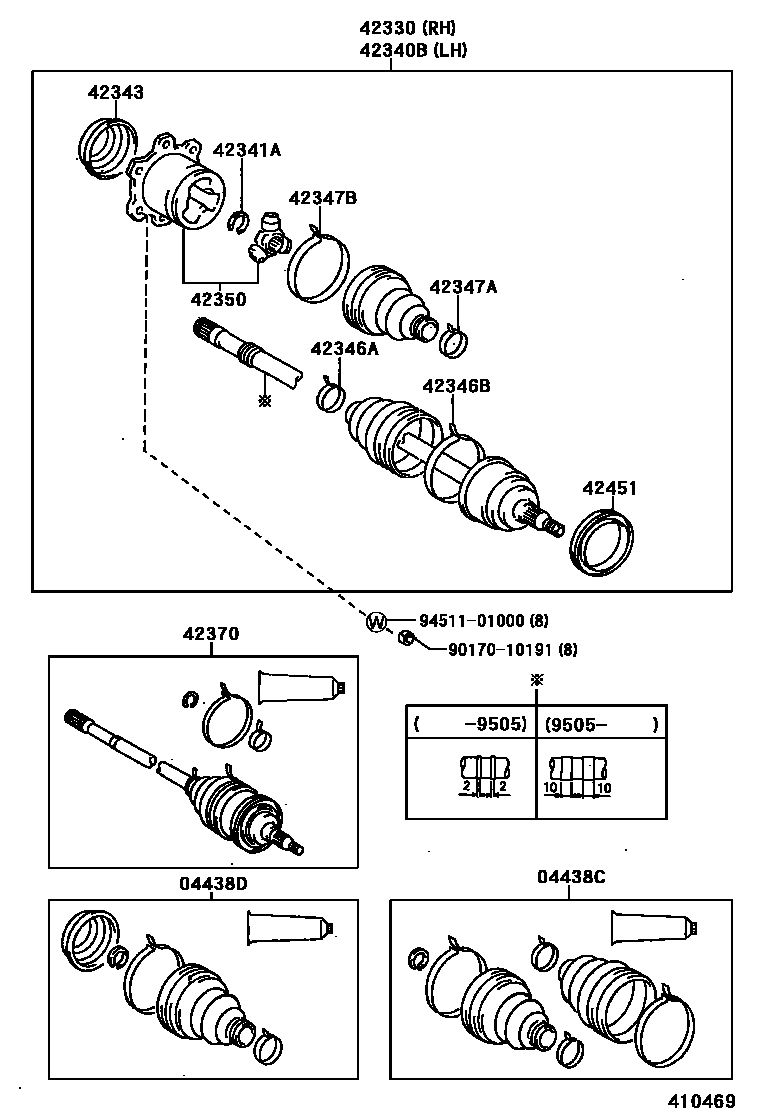

Toyota CAMRY EPC diagram 4102, 后桥半轴和后桥轮毂, with 4 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438C | Rear drive shaft dust boot assembly | 04437-32010 · 04438-20290 |
| 04438D | Rear drive shaft inner universal joint dust boot assembly | 04437-14020 · 04438-20240 |
| 42311L | Rear axle right half shaft | 42301-32060 |
| 42311M | Bearing (for rear axle right half shaft) | 90369-38003 · 90369-38019 |
| 42311N | Nut (for rear axle right half shaft) | 90178-22001 · 90179-22020 |
| 42311T | Snap ring (for rear axle right half shaft) | 90521-79002 |
| 42311U | Hub bolt (for rear axle right) | 90942-02047 · 90942-02070 |
| 42311V | Oil seal (for rear axle right half shaft) | 90311-52005 · 90311-56007 · 90311-56015 · 90311-56031 |
| 42312 | Rear axle left half shaft | 42301-32060 |
| 42312A | Bearing (for rear axle left half shaft) | 90369-38003 · 90369-38019 |
| 42312B | Nut (for rear axle left half shaft) | 90178-22001 · 90179-22020 |
| 42312C | Oil seal (for rear axle left half shaft) | 90311-52005 · 90311-56007 · 90311-56015 · 90311-56031 |
| 42312D | Snap ring (for rear axle left half shaft) | 90521-79002 |
| 42312E | Hub bolt (for left rear axle) | 90942-02047 · 90942-02070 |
| 42330 | Rear axle right drive shaft assembly | 42340-20080 · 42340-20090 · 42340-32031 · 42340-32041 · 42340-32070 · 42340-32080 · 42340-32081 |
| 42340B | Rear axle left drive shaft assembly | 42340-20080 · 42340-20090 · 42340-32031 · 42340-32041 · 42340-32070 · 42340-32080 · 42340-32081 |
| 42341A | Snap ring (for rear driveshaft) | 90520-23024 |
| 42343 | Outer universal joint end cover | 42343-14010 |
| 42346B | Clamp No. 2 (for the universal joint dust cover on the outside of the rear drive shaft) | 42345-16020 · 42345-16040 |
| 42347B | Clamp No. 2 (for the universal joint dust cover on the inside of the rear drive shaft) | 42345-14020 |
| 42350 | Rear drive shaft outer universal joint assembly | 42350-14010 |
| 42370 | Rear drive shaft outer universal joint assembly | 42370-29315 · 42370-29325 · 42370-39036 · 42370-39046 · 42370-39095 · 42370-39105 · 42370-39106 |
| 42403 | Rear brake drum sub-assembly | 42431-32080 |
| 42409C | Bolt (for rear axle right bearing) | 90105-10124 |
| 42409D | Bolt (for rear axle left bearing) | 90105-10124 |
| 42409E | O-ring (for rear axle right bearing) | 90301-63003 |
| 42409F | O-ring (for rear axle left bearing) | 90301-63003 |
| 42410 | Rear axle right hub and bearing assembly | 42410-32080 · 42410-32090 |
| 42431 | rear brake disc | 42431-32090 · 42431-32100 |
| 42440 | Rear axle left wheel hub and bearing assembly | 42410-32080 · 42410-32090 |
| 42450A | Rear axle right hub and bearing assembly | 42450-32020 |
| 42450B | Rear axle left wheel hub and bearing assembly | 42450-32020 |
| 42451 | No. 1 rear wheel bearing dust cover | 42451-32010 · 43247-12010 |
| 42491 | Brake shoe adjustment hole plug (for parking brake) | 47491-22020 |
| 43525D | Right rear wheel adjustment lock cover | 43525-20040 |
| 43525E | Left rear wheel adjustment lock cover | 43525-20040 |
