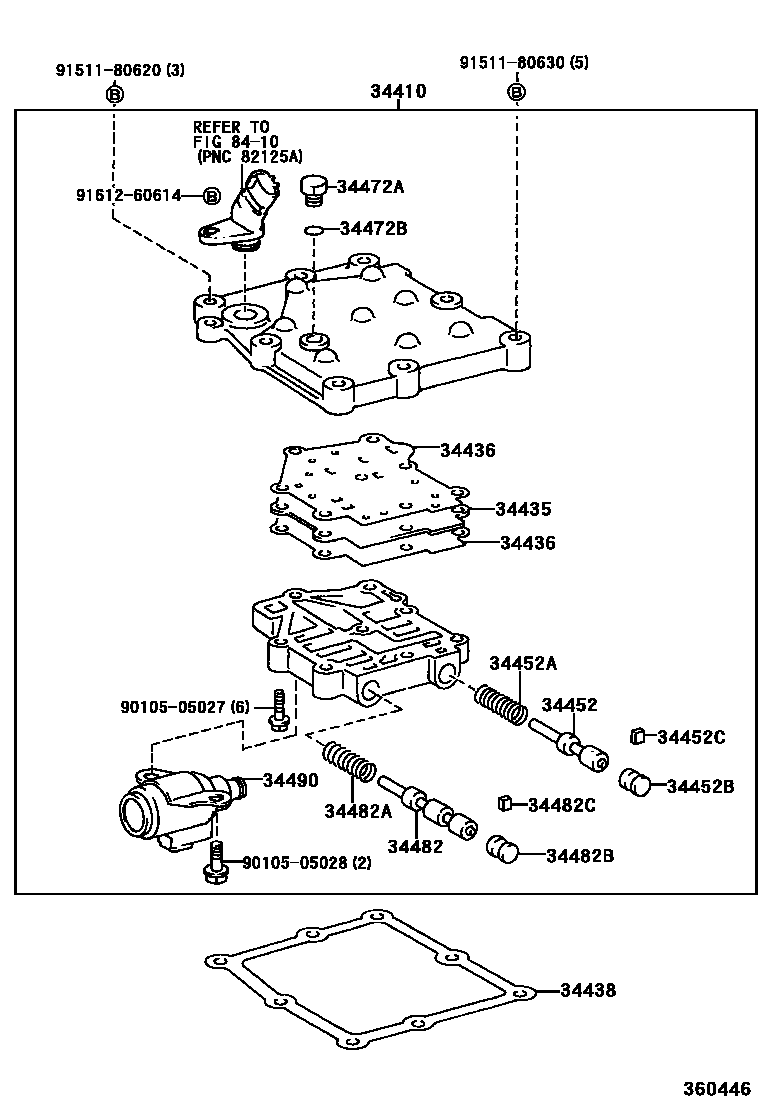

Toyota CAMRY 分动器阀体和阀杆 — Figure 3615
Toyota CAMRY EPC diagram 3615, 分动器阀体和阀杆, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34410 | Transfer case control valve body assembly | 34410-20010 · 34410-32030 |
| 34435 | Transfer case lower valve body plate | 34435-20010 |
| 34436 | No. 1 transfer case lower valve body gasket | 34436-20010 |
| 34438 | Transfer case valve body gasket | 34438-20010 |
| 34452 | Transfer case direct gear clutch regulator valve | 34452-20010 |
| 34452A | Spring (for transfer case direct clutch regulator valve) | 90501-11070 |
| 34452B | Plunger (for transfer case direct clutch regulator valve) | 90339-04028 |
| 34452C | Straight key (for transfer case direct clutch regulator valve) | 90282-03005 |
| 34472A | Screw plug (for transfer case valve body cover) | 90341-08001 |
| 34472B | O-ring (for transfer case valve body cover screw plug) | 90301-06196 |
| 34482 | Center differential clutch control valve | 34482-20010 |
| 34482A | Spring (for center differential control valve) | 90501-05038 |
| 34482B | Seat (for center differential clutch control valve plunger) | 90339-04028 |
| 34482C | Key (for center differential clutch control valve) | 90282-03005 |
| 34490 | Transfer case control solenoid valve assembly | 34490-20010 |
