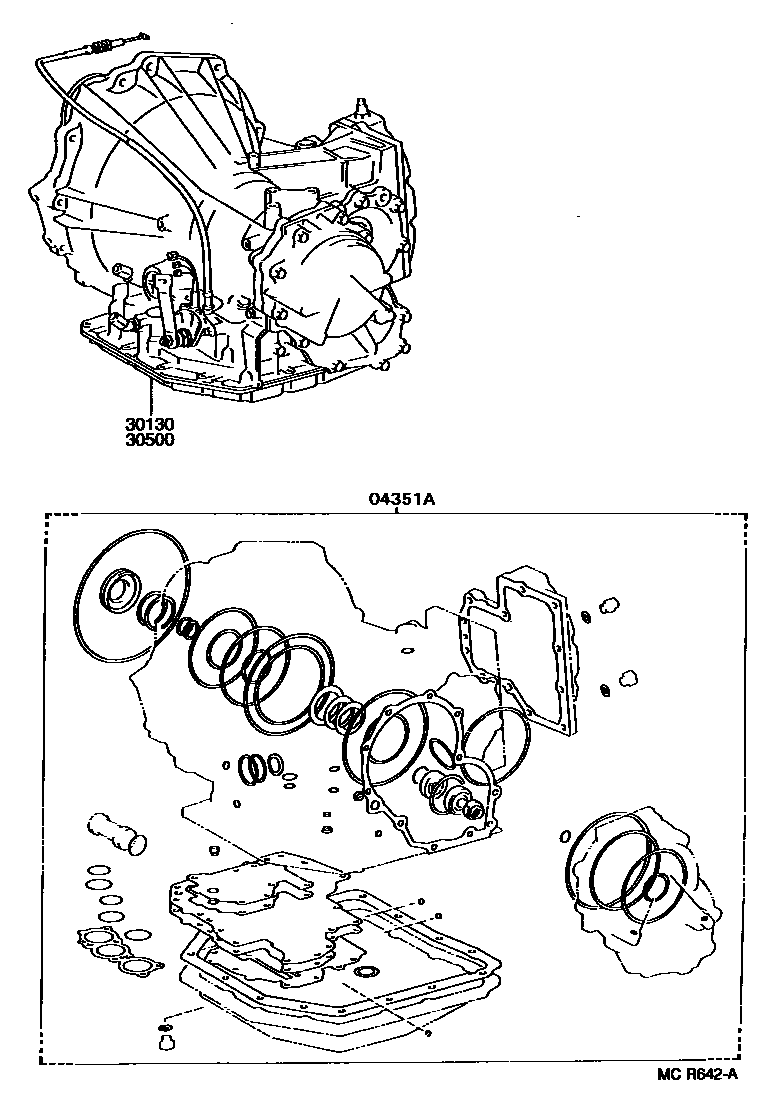

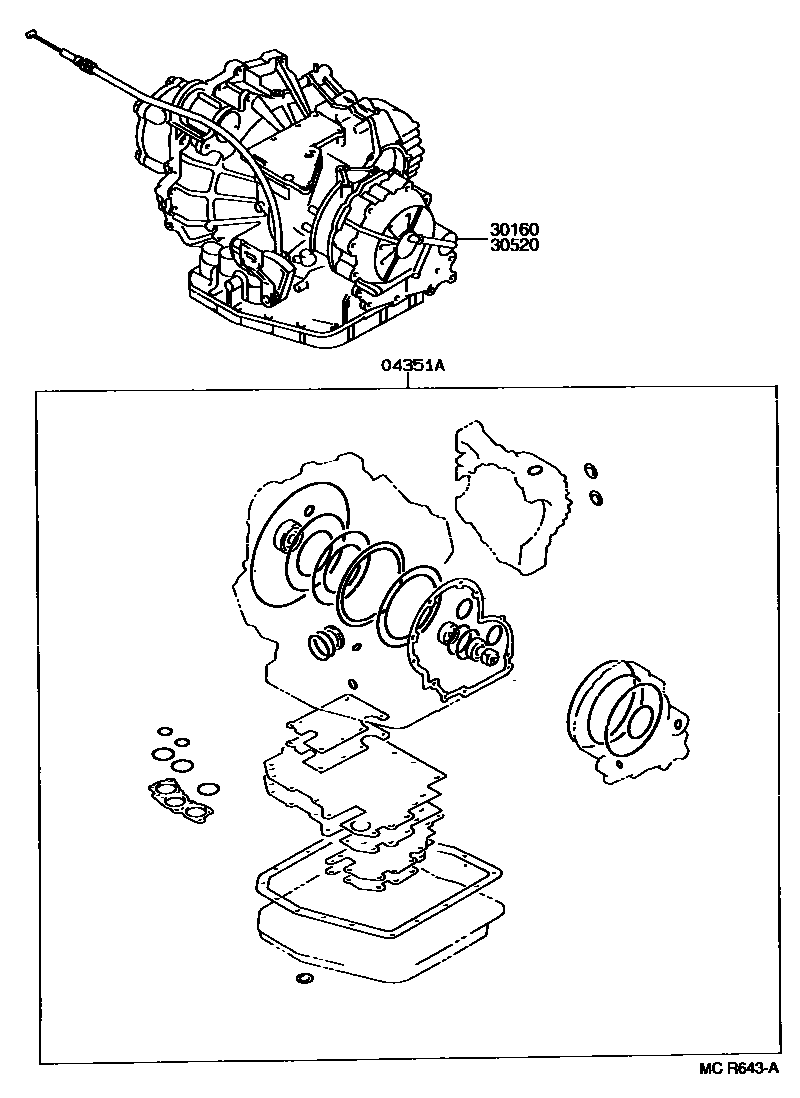

Toyota CAMRY 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota CAMRY EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-20080 · 04351-20090 · 04351-42010 |
| 30130 | Refurbished transmission axle assembly | 30130-32660 · 30130-32670 · 30130-32690 · 30130-32700 · 30130-32710 |
| 30160 | Refurbished automatic transaxle assembly with transfer case | 30160-32040 · 30160-32041 · 30160-32042 · 30160-32050 · 30160-32060 |
| 30500 | Automatic transmission axle assembly | 30500-32660 · 30500-32670 · 30500-32690 · 30500-32700 · 30500-32710 |
| 30520 | Automatic transmission axle assembly with transfer case | 30520-32040 · 30520-32041 · 30520-32042 · 30520-32050 · 30520-32060 |
