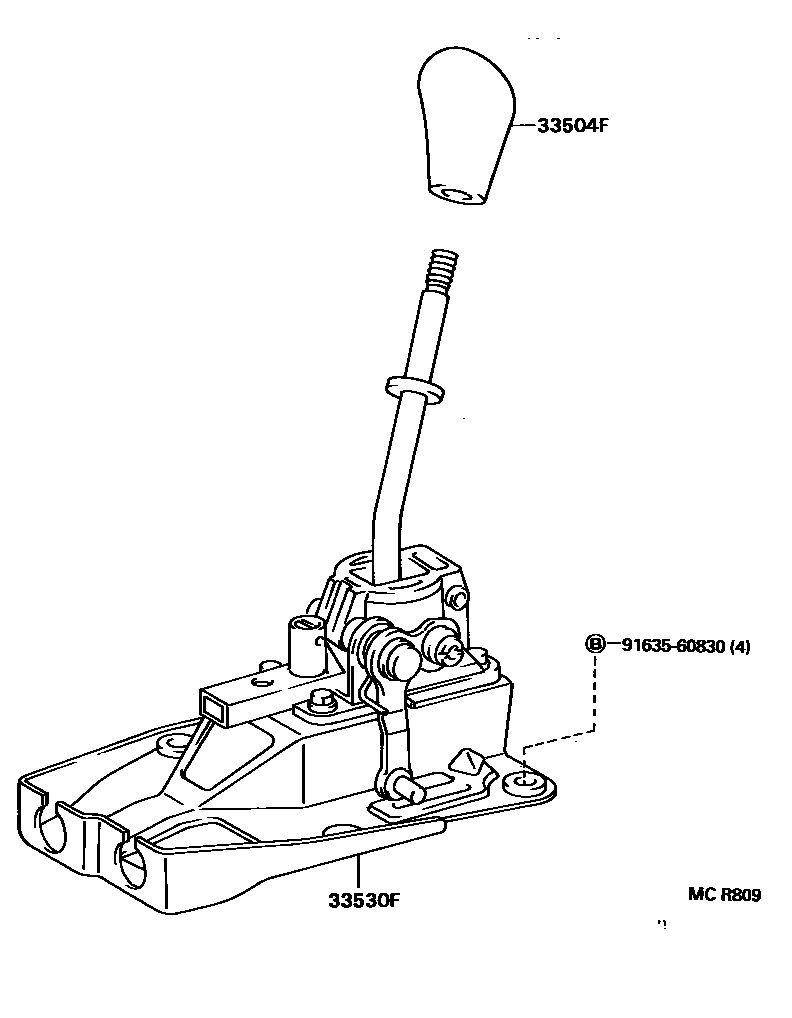

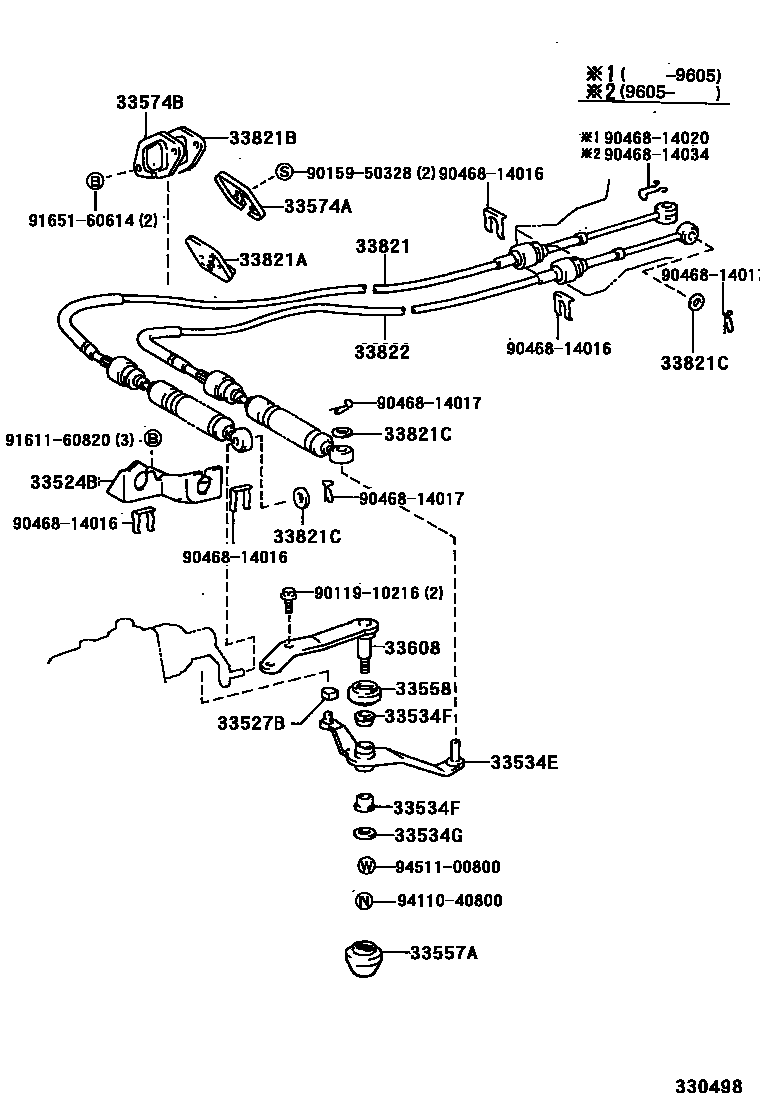

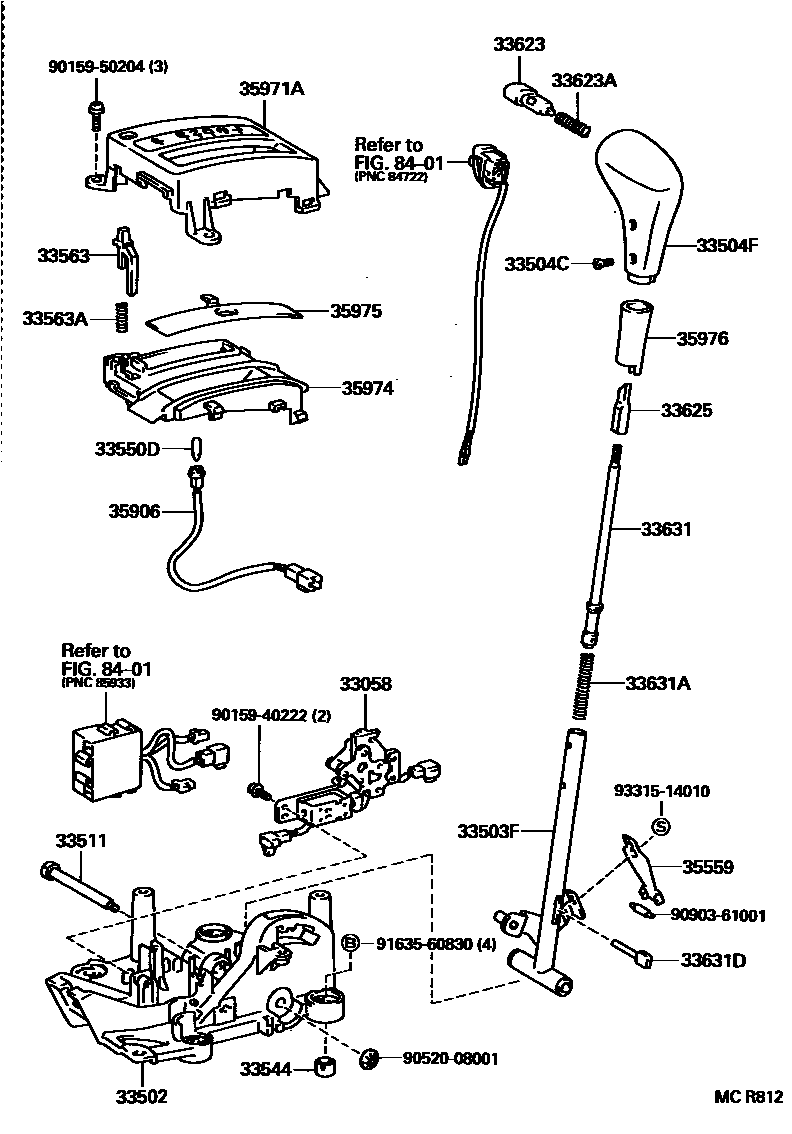

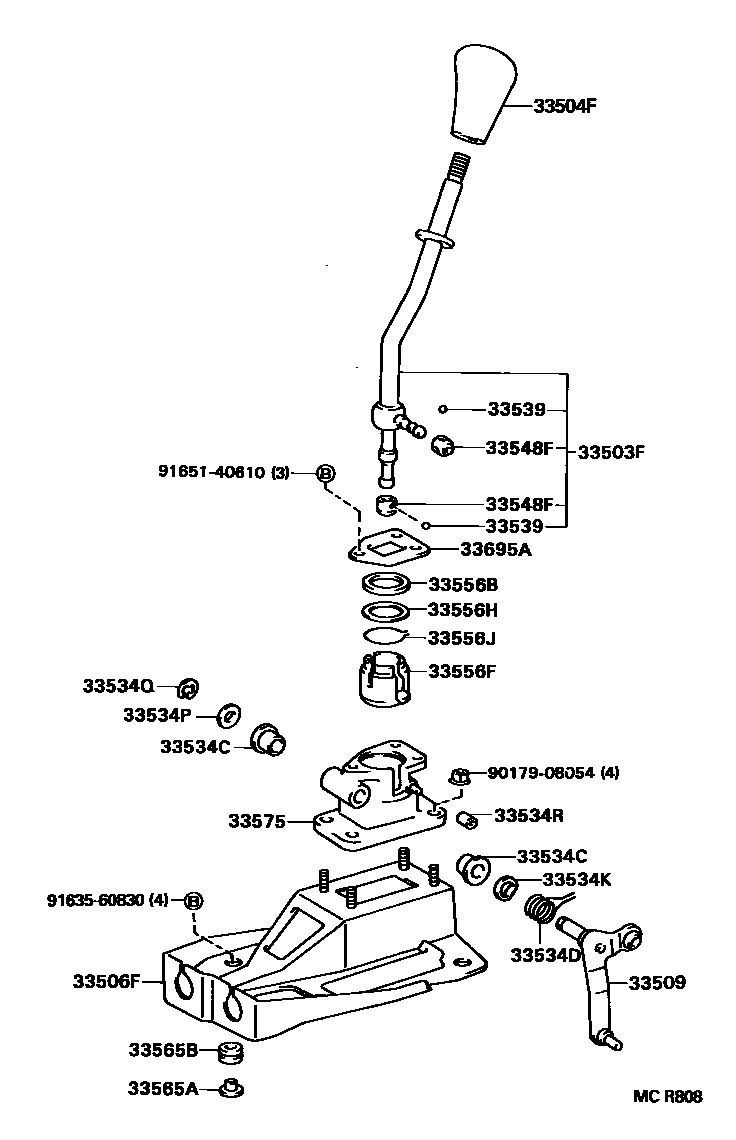

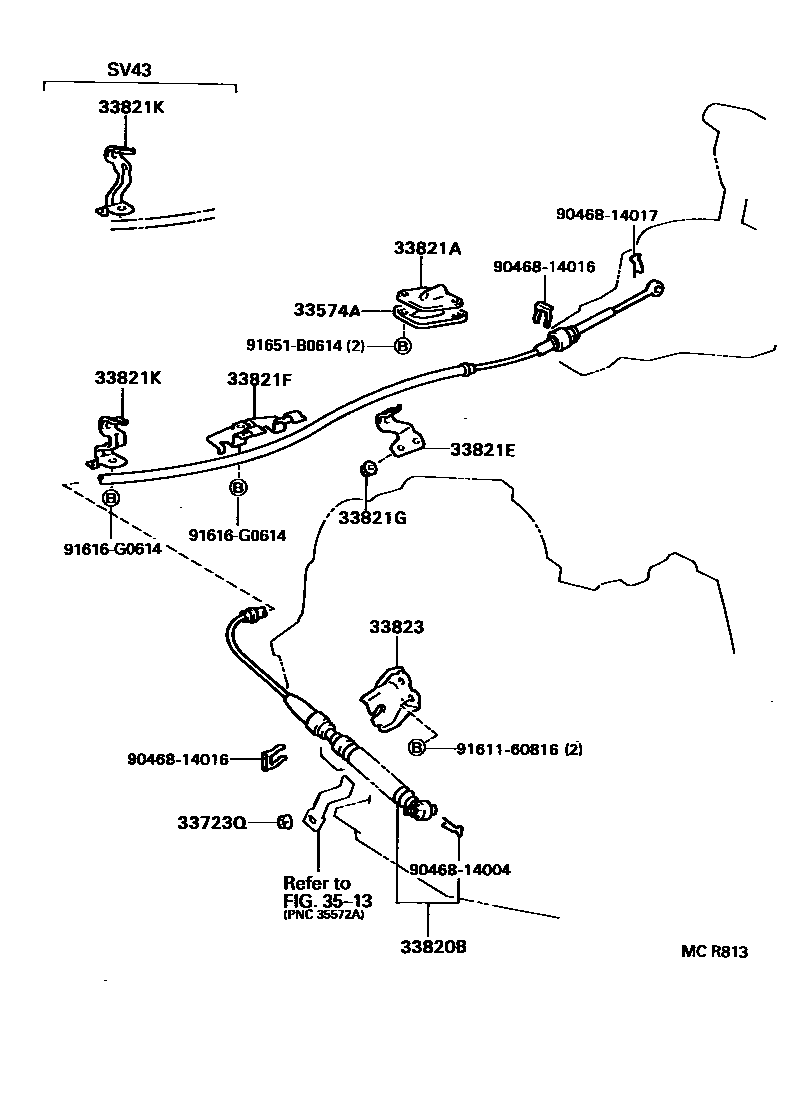

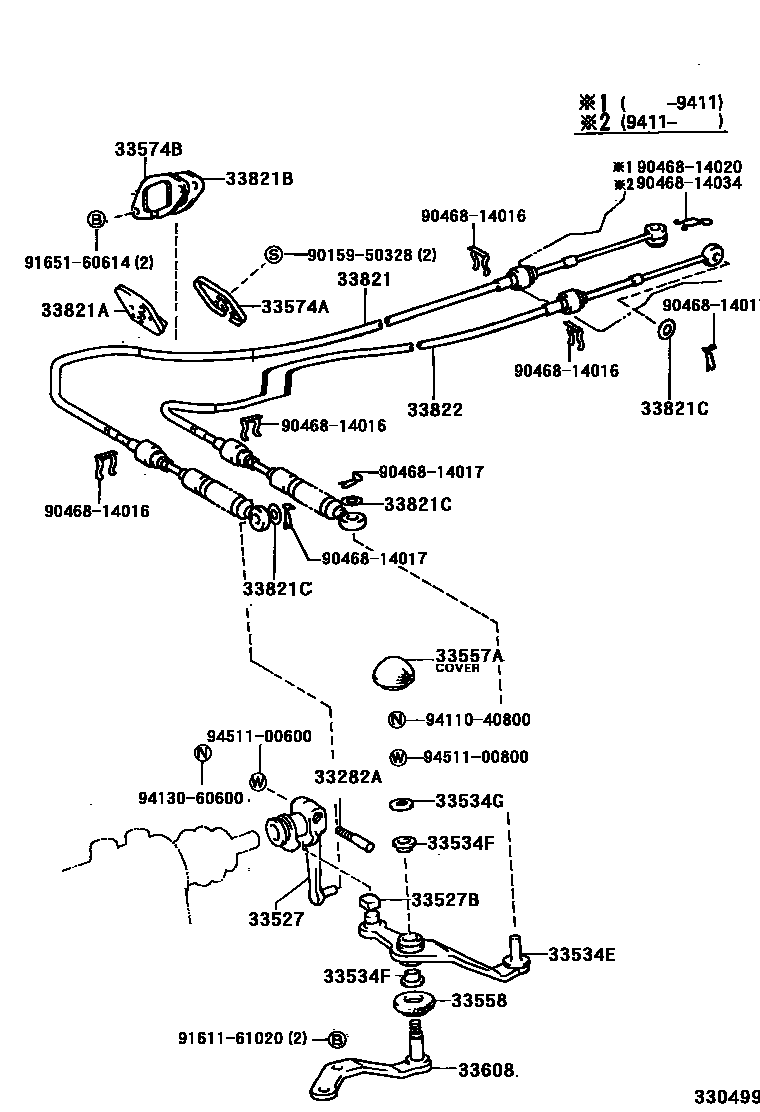

Toyota CAMRY Shift Lever & Retainer — Figure 3312
Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 6 images and 62 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33058 | Shift lock solenoid valve bracket sub-assembly | 33058-32030 |
| 33282A | Shift lever lock pin (for shift lever) | 33282-35010 |
| 33502 | Shift lever base plate sub-assembly | 33521-32090 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33055-32130 · 33055-32150 · 33503-32190 |
| 33504C | Screw (for securing shift lever knob) | 90159-40238 · 90159-40244 |
| 33506F | Shift control lever stopper sub-assembly (for floor shift) | 33506-32070 |
| 33509 | No. 1 gear selection right-angle lever sub-assembly | 33509-12080 |
| 33511 | Control shaft (for floor shifting) | 33511-12100 · 33511-32070 |
| 33524B | Control cable bracket | 33524-20010 |
| 33527 | Gear shift lever (for floor shift) | 33527-32010 |
| 33527B | Bushing (for shift control lever) | 33557-33010 |
| 33530F | Shift lever assembly (for floor shift) | 33530-32220 · 33530-32221 |
| 33534C | Bushing (for No. 1 gear selector right-angle lever) | 90386-12034 |
| 33534D | Torsion spring (for No. 1 gear selector right-angle lever) | 90508-20084 |
| 33534E | No. 2 gear selection right-angle lever | 33534-12091 · 33534-33010 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33534K | Wave washer (for No. 1 gear selection right-angle lever) | 90206-12003 |
| 33534P | Flat washer (for No. 1 gear selector right-angle lever) | 90201-12052 |
| 33534Q | E-ring (for No. 1 gear selection right-angle lever) | 96160-00900 |
| 33534R | Cushion pad (for No. 1 gear selector right-angle lever) | 90540-06029 |
| 33539 | Gear shifter anti-vibration cushion | 33539-12010 |
| 33544 | Shift lever insert No. 1 | 33544-33010 |
| 33548F | Shift lever bushing No. 1 (for floor shift) | 33548-12040 |
| 33550D | position indicator light bulb | 90981-11018 |
| 33556B | Bushing (for transmission shift lever ball seat) | 90389-37001 |
| 33556F | Transmission shift lever ball seat | 33556-20040 |
| 33556H | Spacer (for transmission shift lever ball seat) | 90564-37009 · 90564-37010 · 90564-37011 · 90564-37012 · 90564-37013 · 90564-37014 · 90564-37015 · 90564-37016 · 90564-37017 · 90564-37018 · 90564-37019 · 90564-37020 · 90564-37021 |
| 33556J | Shaft snap ring (for transmission shift lever ball seat) | 90520-36018 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 · 33558-32010 |
| 33563 | Shift lock release button | 33563-32040 |
| 33563A | Compression spring (for shift lock release button) | 90501-06063 |
| 33565A | Bushing No. 1 (for shift lever cover) | 90389-08092 |
| 33565B | Bushing No. 2 (for shift lever cover) | 90385-09008 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-32150 · 33574-32181 |
| 33574B | No. 2 shift cable seal | 33574-32160 |
| 33575 | Shift lever stop (for floor shift) | 33575-20362 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-12031 · 33608-33010 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07037 |
| 33625 | Shift lever handle sleeve | 33625-12020 |
| 33631 | Locking lever | 33631-32060 |
| 33631A | Compression spring (for locking lever) | 90501-07074 |
| 33631D | Grooved pin (for locking lever) | 90245-04010 · 90256-04008 |
| 33695A | shift lever ball cover | 33695-32010 |
| 33723Q | Nut (for connecting rod swivel joint) | 90179-08054 |
| 33820B | Transmission control cable assembly | 33820-32310 · 33820-32380 |
| 33821 | Transmission shift control cable (for floor-mounted shifting) | 33821-32310 · 33821-32311 · 33821-32350 · 33821-32351 |
| 33821A | No. 1 retaining ring (for transmission control cable) | 90480-01572 · 90480-01579 · 90480-01673 |
| 33821B | No. 2 retaining ring (for transmission control cable) | 90480-01584 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08077 · 90201-10042 |
| 33821E | Clamp No. 1 (for transmission control cable) | 90949-01682 · 90949-01A73 |
| 33821F | Clamp No. 2 (for transmission control cable) | 90949-01680 · 90949-01A71 |
| 33821G | Nut (for transmission control cable) | 90179-06009 |
| 33821K | Clamp No. 3 (for transmission control cable) | 90949-01681 · 90949-01737 · 90949-01A46 · 90949-01A72 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33822-32210 · 33822-32230 |
| 33823 | No. 1 transmission control cable bracket | 33823-32031 |
| 35559 | Manual locking spring | 35559-12040 · 35559-32040 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-32040 |
| 35971A | Position indicator light upper shell | 35971-32100 |
| 35974 | Position indicator light lower shell | 35974-32080 |
| 35975 | Slide cover (for position indicator light) | 35975-32140 |
