Toyota CAMRY 离合器壳和变速器壳(MTM) — Figure 3302

Toyota CAMRY EPC diagram 3302, 离合器壳和变速器壳(MTM), with 2 images and 25 PNC and OE references.

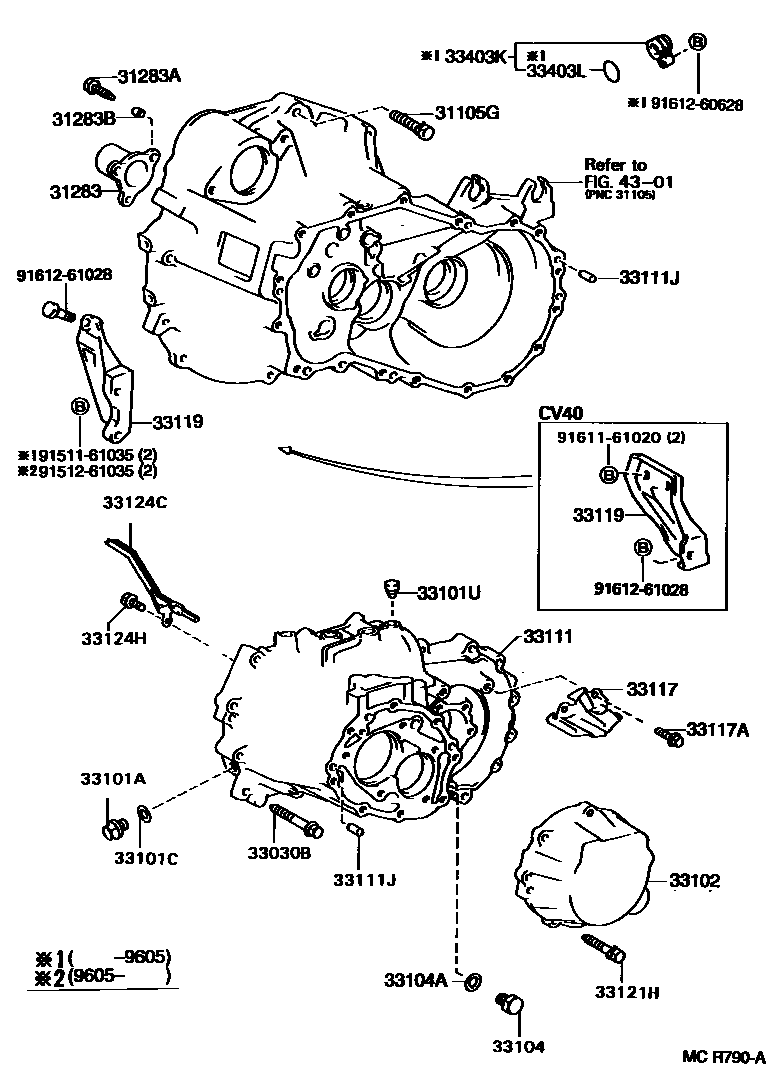

Toyota CAMRY 离合器壳和变速器壳(MTM) EPC diagram — MCR790A
离合器壳和变速器壳(MTM) — MCR790A (199406 – 999999)

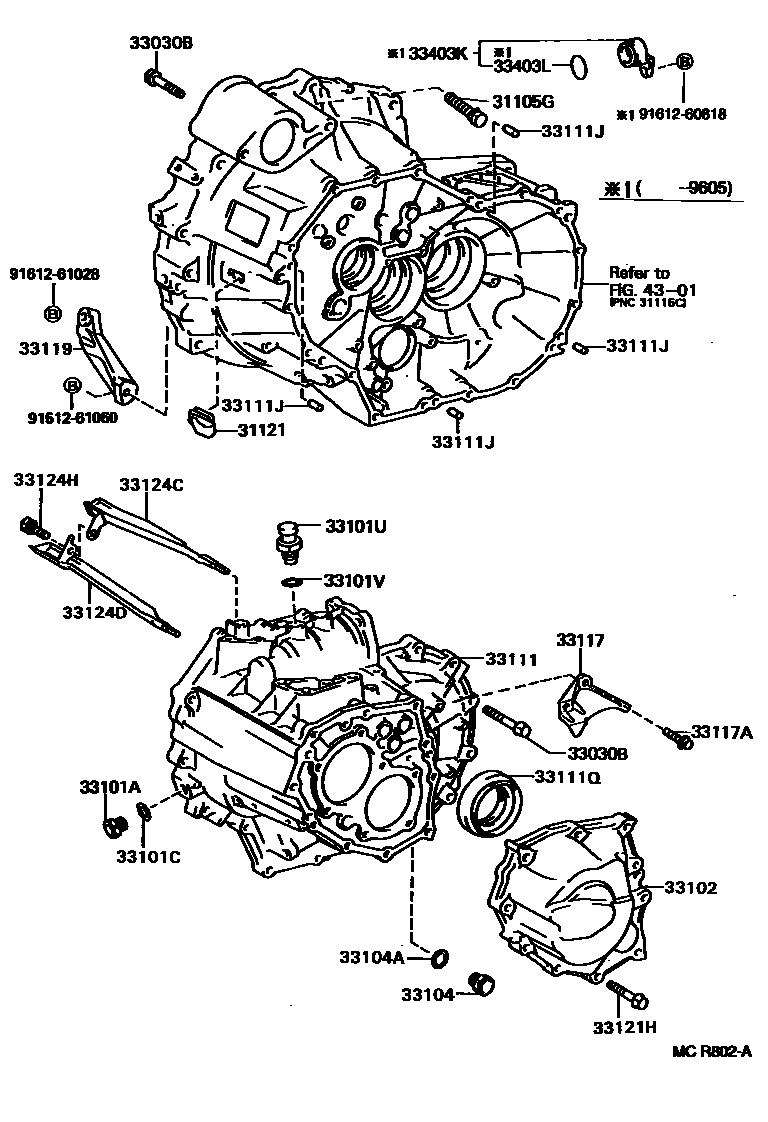

Toyota CAMRY 离合器壳和变速器壳(MTM) EPC diagram — MCR802A
离合器壳和变速器壳(MTM) — MCR802A (199406 – 999999)

PNC and OE references

PNCPart nameOE numbers
31105GBolts (for securing transaxle housing and engine)90105-08040 · 90105-10077 · 90119-12168 · 91651-41022
31121No. 1 clutch housing cover31121-20010
31283Clutch release bearing hub retaining ring31283-32010
31283ABolt (for clutch release bearing hub retaining ring)90105-06023
31283BRing pin (for clutch release bearing hub retaining ring)90253-08002
33030BBolts (for securing transaxle housing and gearbox)90105-08042 · 90105-08126
33101AScrew plug (for manual transmission oil filler port)90341-18006 · 90341-18033
33101CGasket (for manual transmission filler plug)90430-18008
33101UBreather plug (for manual transmission)90930-03111 · 90930-03133 · 90930-03148
33101VGasket (for manual transmission breather plug)90430-18008
33102Manual transmission cover sub-assembly33102-12041 · 33102-33020
33104Drain plug sub-assembly (MTM)90341-18006
33104ADrain plug gasket (MTM)90430-18008
33111Manual transmission housing33101-12170 · 33111-32030 · 33111-33030 · 33111-33031
33111JDirect sales (for manual transmission)90250-08054
33111QOil seal (for gearbox)90311-44003
33117manual transmission protector33117-20020 · 33117-32011
33117ABolts (for manual transmission guard)90105-08040
33119Left reinforcement plate (MTM)33119-20090 · 33119-32010 · 33119-32020
33121HBolt with washer (for gearbox cover)90105-08273 · 90119-08630
33124CNo. 1 oil collecting pipe (MTM)33124-12030 · 33124-33010
33124DNo. 2 oil collecting pipe (MTM)33124-12041
33124HBolt (for oil collection pipe)90119-08648 · 91651-60618
33403KSpeedometer driven gear hole cover sub-assembly33403-20230 · 33403-20240
33403LO-ring96711-24018 · 96711-24030
