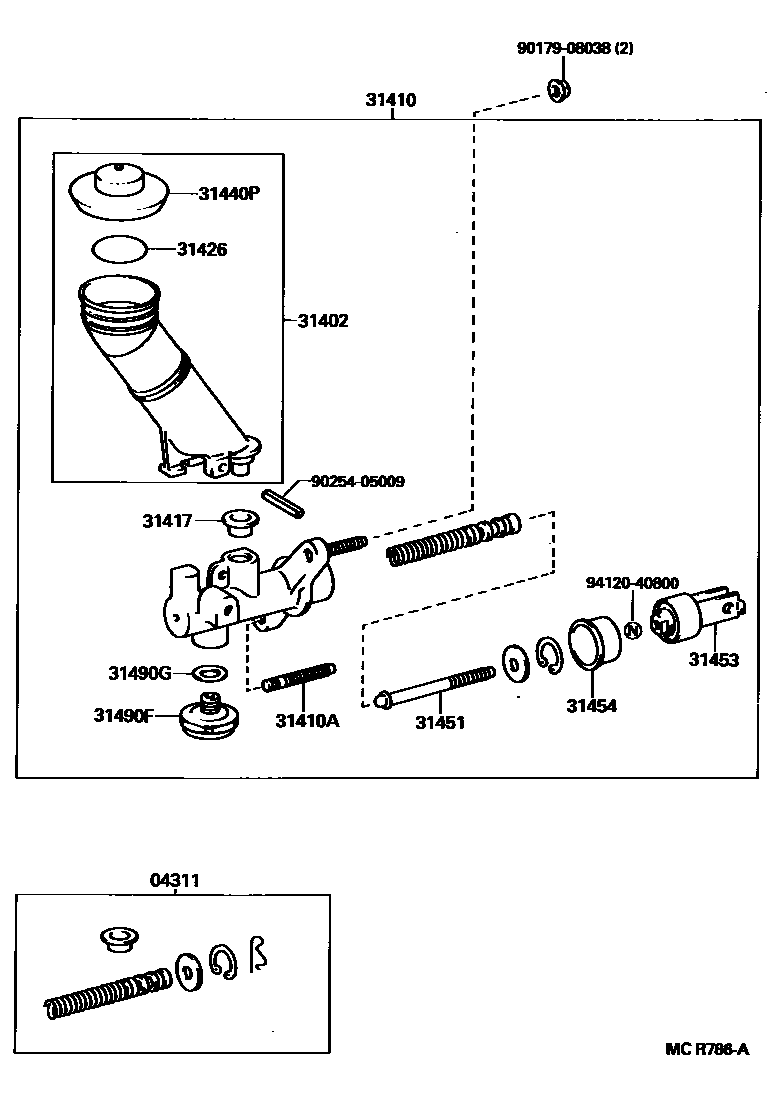

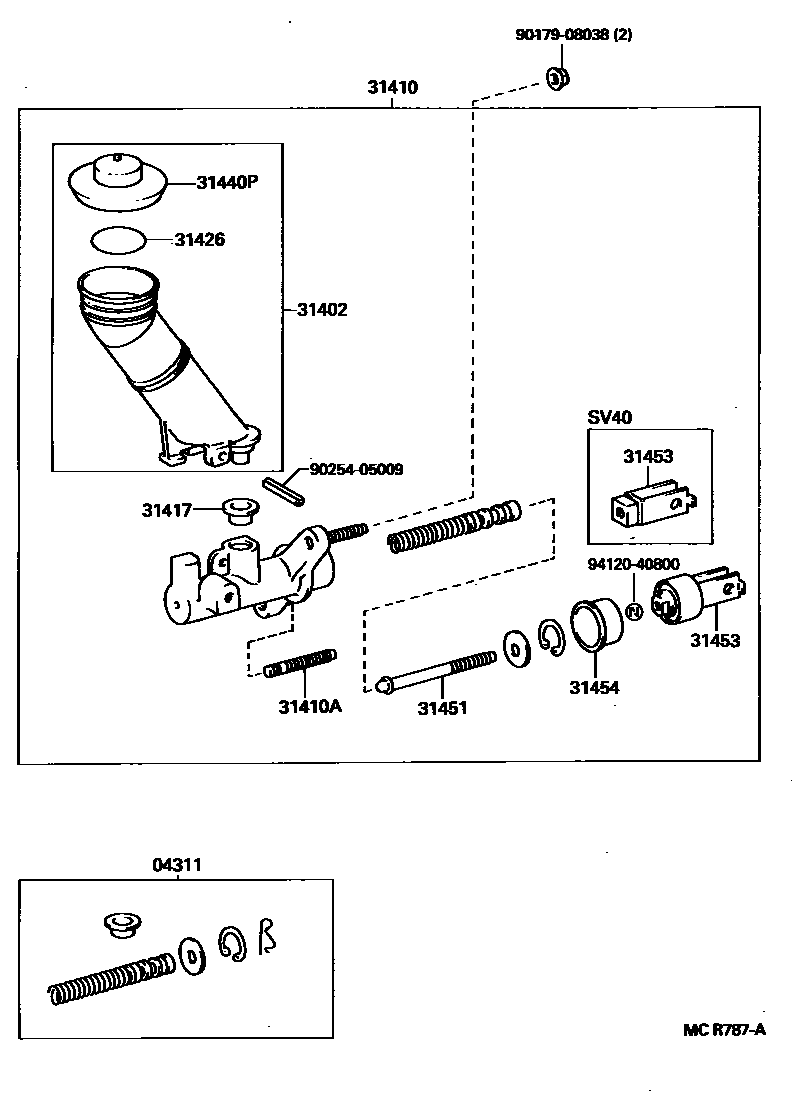

Toyota CAMRY 离合器总泵 — Figure 3103
Toyota CAMRY EPC diagram 3103, 离合器总泵, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04311 | Clutch master cylinder assembly | 04311-12110 |
| 31402 | Clutch master cylinder fluid reservoir sub-assembly | 31402-20080 · 31402-20090 · 31402-20120 |
| 31410 | Clutch master cylinder assembly | 31410-32140 · 31410-32150 · 31410-32160 |
| 31410A | Bolt (for securing clutch master cylinder) | 90116-08357 |
| 31417 | Clutch reservoir retaining ring | 31417-35010 |
| 31426 | Clutch master cylinder reservoir float | 31426-22020 |
| 31440P | Clutch master cylinder fluid reservoir filler cap assembly | 47230-20040 |
| 31451 | Clutch master cylinder push rod | 31451-30200 · 31451-32080 |
| 31453 | Clutch master cylinder push rod U-shaped clamp | 31404-28020 · 31453-35010 |
| 31454 | Clutch master cylinder dust boot | 31454-16010 |
| 31490F | Master pump accumulator assembly | 31490-12010 |
| 31490G | Gasket (for clutch master cylinder accumulator) | 90430-16005 |
