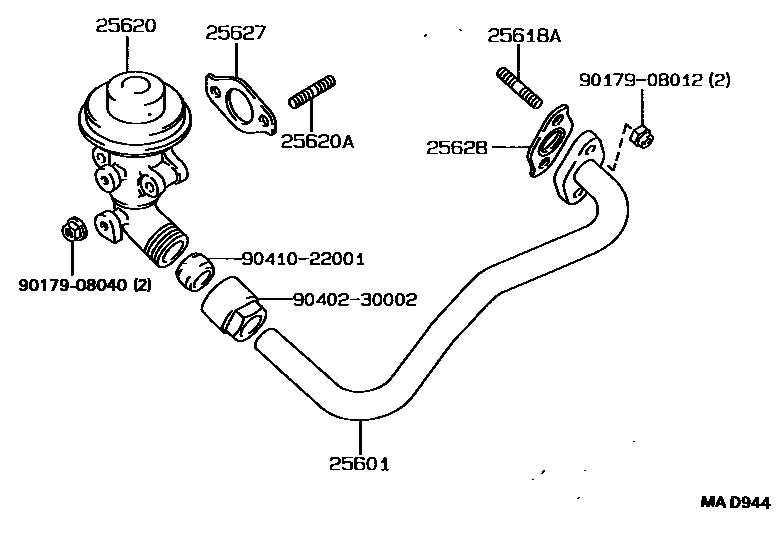

Toyota CAMRY 废气再循环系统 — Figure 2501
Toyota CAMRY EPC diagram 2501, 废气再循环系统, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-64030 · 25601-64031 |
| 25618A | Stud bolts (for EGR air inlet) | 92122-60822 |
| 25620 | EGR valve assembly | 25620-64130 |
| 25620A | Stud bolts (for EGR valve) | 90116-08198 |
| 25627 | EGR valve gasket | 25627-64030 |
| 25628 | EGR air intake gasket | 25628-64030 |
