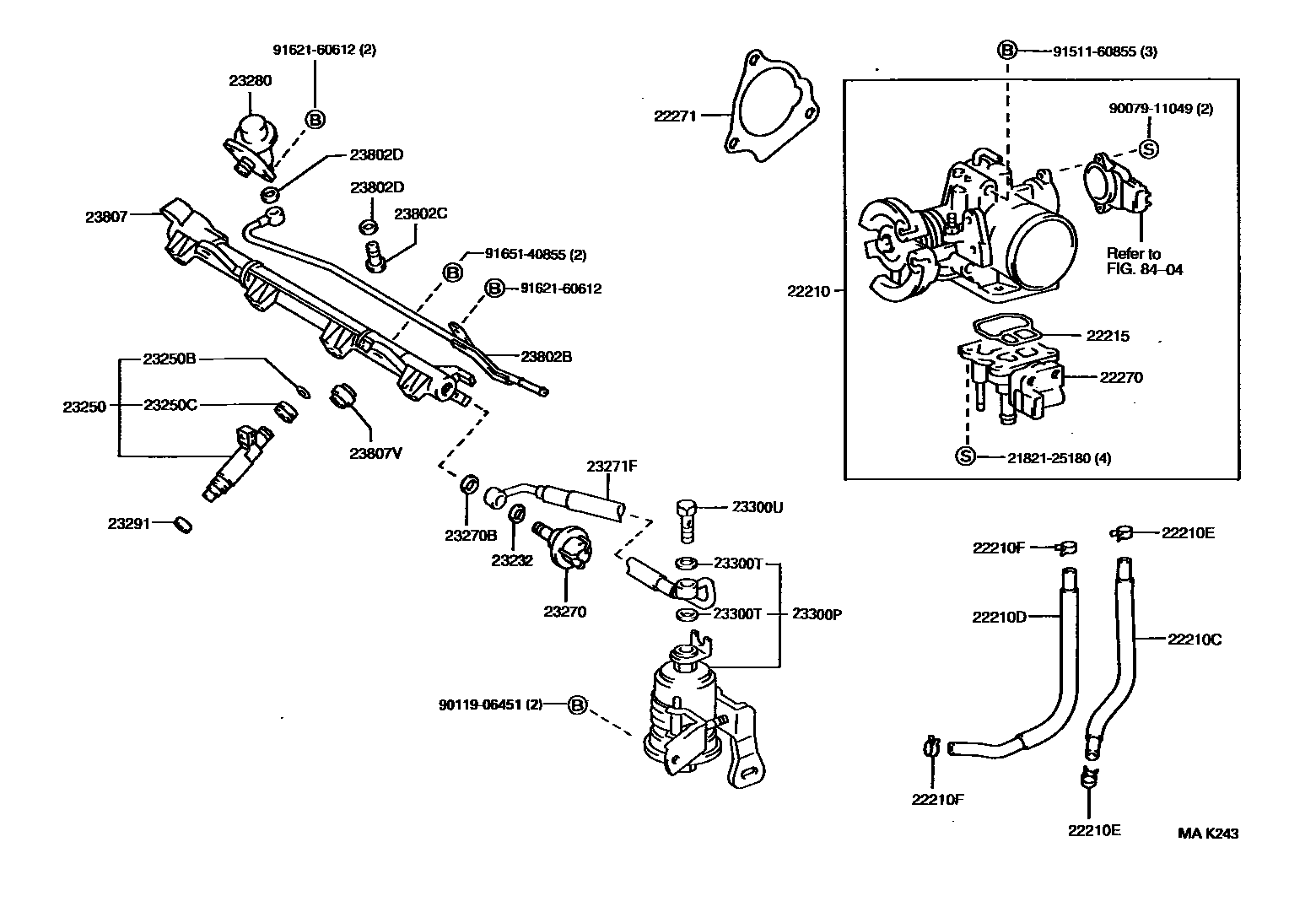

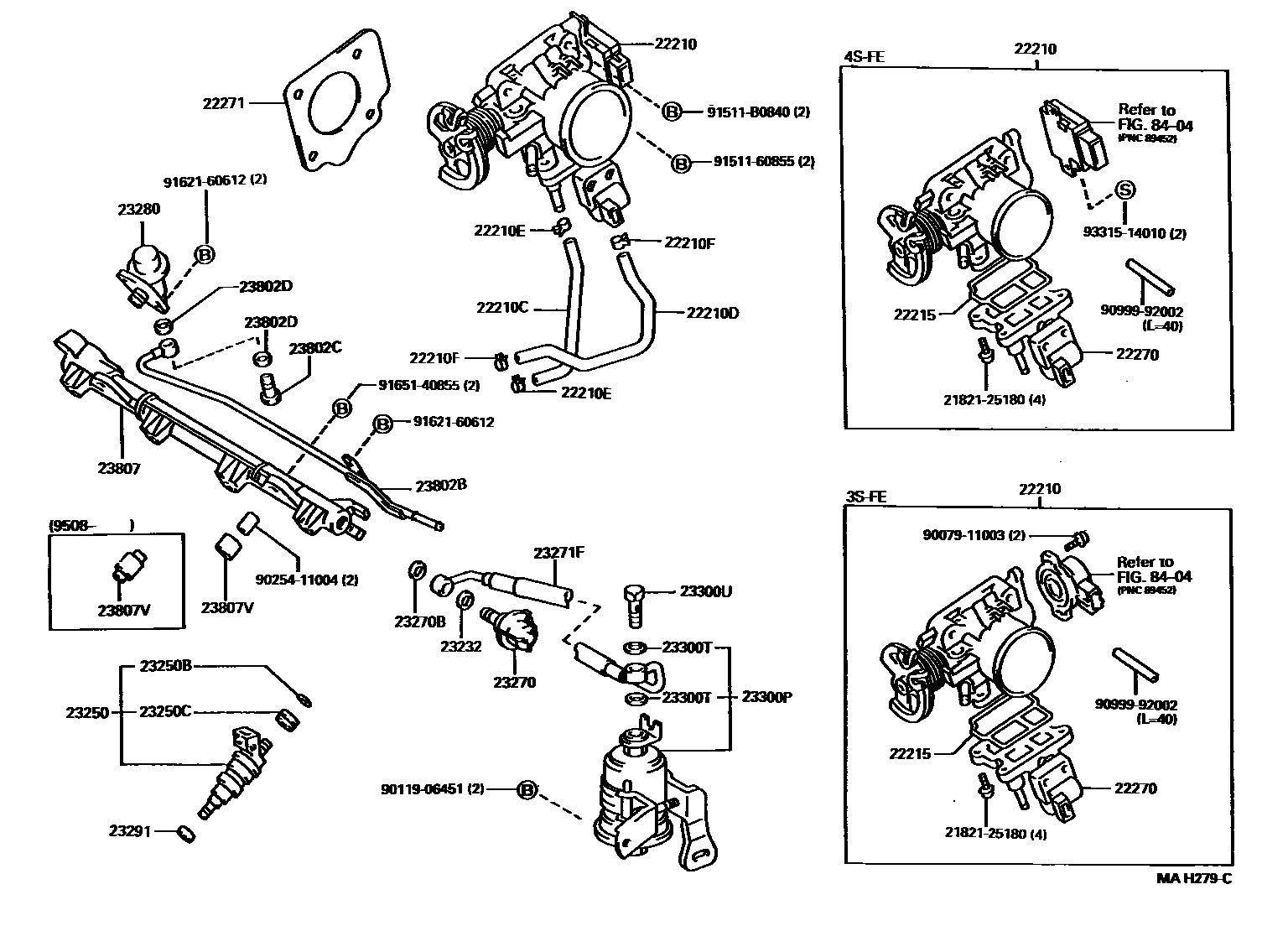

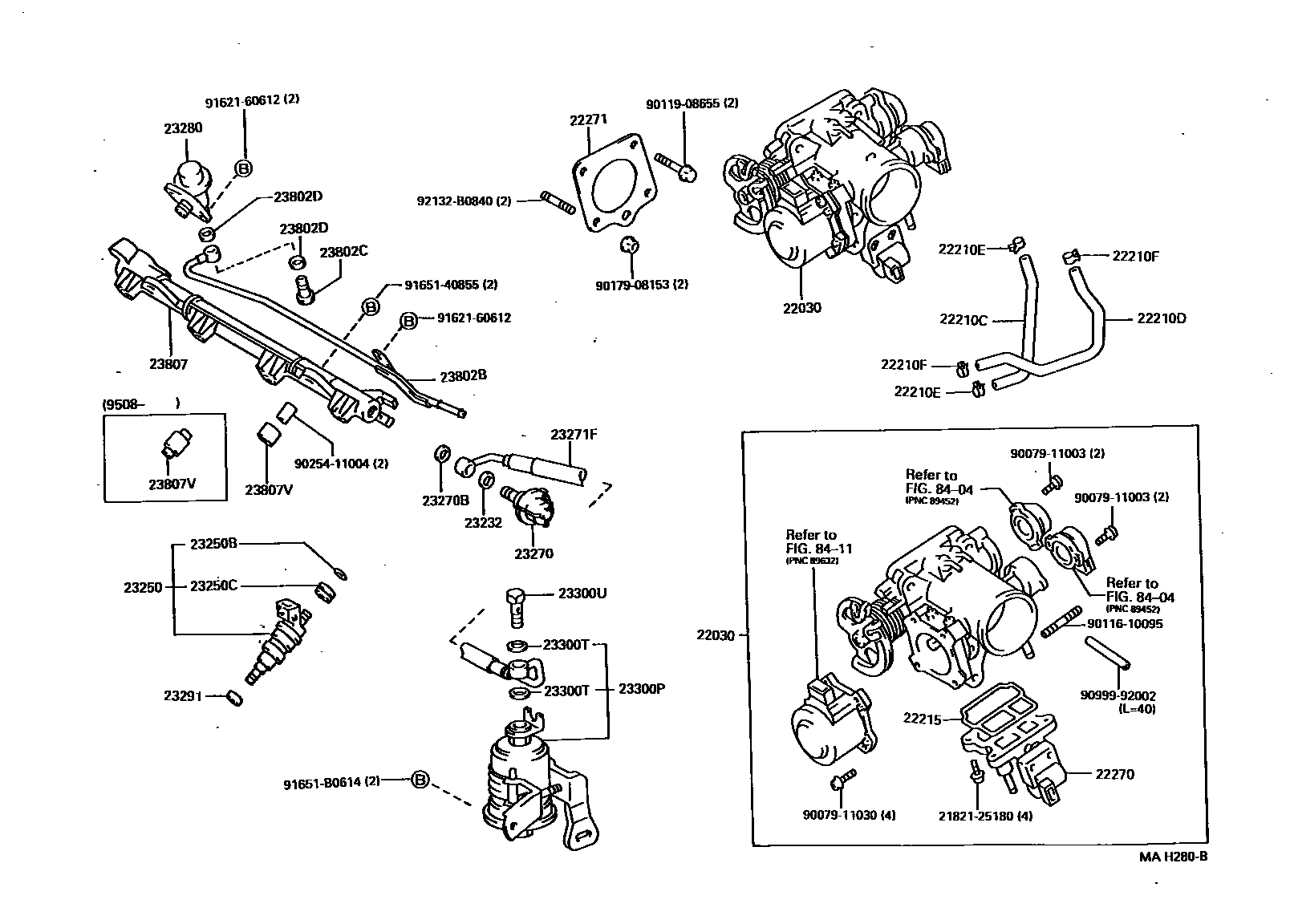

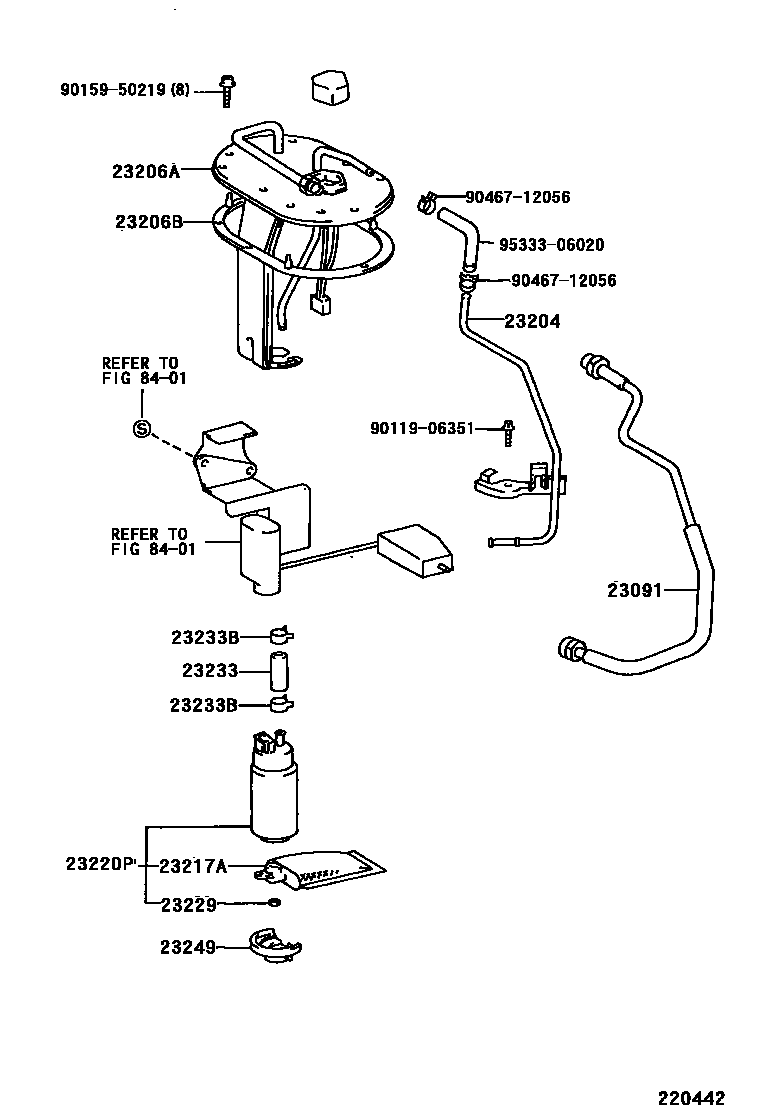

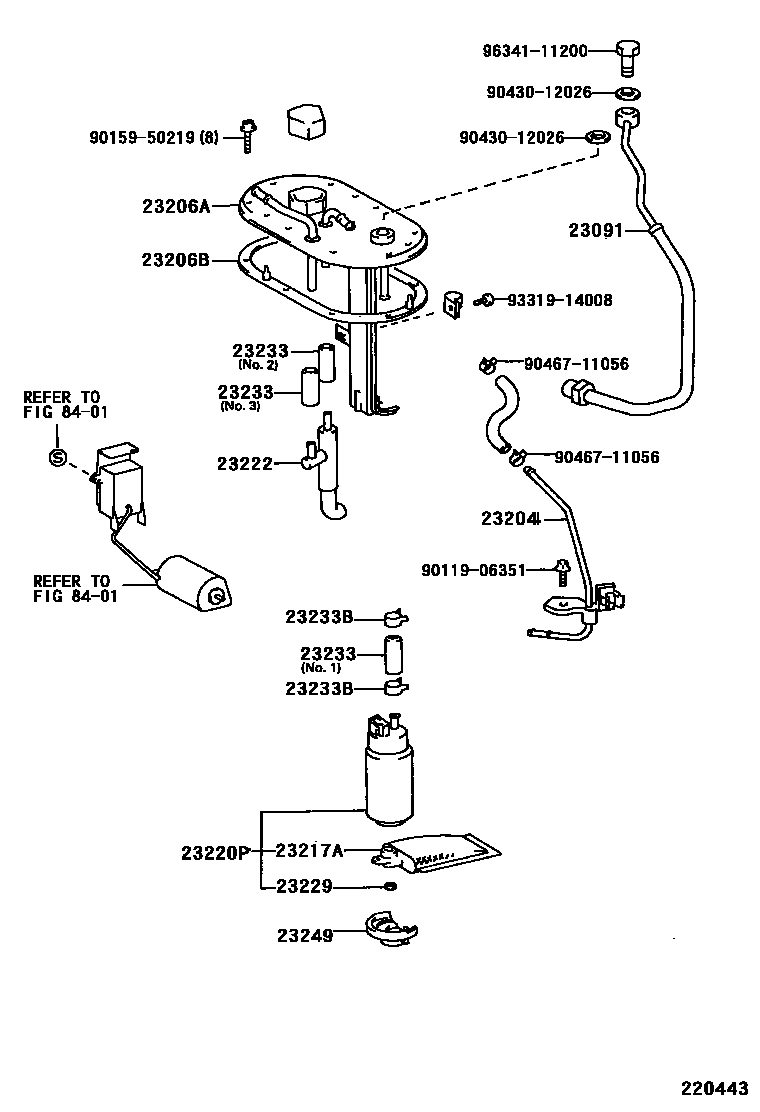

Toyota CAMRY 燃油喷射系统 — Figure 2211
Toyota CAMRY EPC diagram 2211, 燃油喷射系统, with 5 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Electronic throttle body assembly | 22030-74040 |
| 22210 | Throttle body assembly | 22210-74800 · 22210-74890 · 22210-7A100 · 22210-7A110 · 22210-7A560 |
| 22210C | HOSE, WATER BY-PASS, NO.1 | 16282-74050 · 16282-74080 · 16283-74010 · 16283-74050 |
| 22210D | HOSE, WATER BY-PASS, NO.2 | 16282-74080 · 16282-74100 · 16283-74010 |
| 22210E | Hose clamp or clip (for water bypass hose No. 1) | 90467-13050 |
| 22210F | Hose clamp or clip (for No. 2 water bypass hose) | 90467-13050 |
| 22215 | Throttle body cover gasket | 22215-74400 |
| 22270 | Idle speed control valve assembly (for throttle body) | 22270-74140 · 22270-74150 · 22270-74240 · 22270-74250 · 22270-74260 · 22270-74270 |
| 22271 | Throttle body gasket | 22271-74022 · 22271-74070 |
| 23091 | Fuel pump pipe sub-assembly | 23091-74181 · 23091-74190 |
| 23204 | Fuel pump return pipe sub-assembly | 23204-74622 · 23204-74630 |
| 23206A | fuel pump bracket | 23206-74621 · 23206-74690 |
| 23206B | fuel pump bracket gasket | 77169-60010 |
| 23217A | fuel pump filter | 23217-74021 |
| 23220P | fuel pump assembly | 23220-74020 |
| 23222 | fuel return nozzle | 23222-74010 |
| 23229 | Clip (for fuel pump filter) | 23229-16010 |
| 23232 | Gasket (for fuel pump hose) | 23232-41081 · 23279-74010 |
| 23233 | fuel pump hose | 23239-11010 · 23239-74630 · 23239-74640 |
| 23233B | Clamp (for fuel pump hose) | 90467-12067 |
| 23249 | Rubber gasket (for fuel pump) | 23249-74610 |
| 23250 | Fuel injector assembly | 23209-74040 · 23209-74130 · 23209-74170 |
| 23250B | O-ring (for fuel injector) | 90301-07001 |
| 23250C | Gasket (for injector) | 90480-13005 |
| 23270 | Fuel pressure pulsation damper assembly | 23207-46010 |
| 23270B | Gasket (for pulsation damper hose) | 23232-41081 · 23279-74010 |
| 23271F | fuel hose | 23271-74480 |
| 23280 | Fuel pressure regulator assembly | 23280-74151 |
| 23291 | Injector vibration isolation pad | 23291-41010 |
| 23300P | Fuel filter (for EFI) | 23300-79295 |
| 23300T | Gasket (for fuel filter) | 90430-12026 |
| 23300U | Connector bolt (for fuel filter) | 90401-12097 · 96341-11200 |
| 23802B | No. 2 fuel pipe sub-assembly | 23802-74070 |
| 23802C | Connector bolt (for No. 2 fuel pipe) | 90401-08004 |
| 23802D | Gasket (for No. 2 fuel line) | 90430-08014 |
| 23807 | Oil pipe sub-assembly | 23814-74110 |
| 23807V | No. 1 spacer (for oil pipe) | 90560-11020 · 90561-08053 |
