Toyota CAMRY 起动机 — Figure 1904

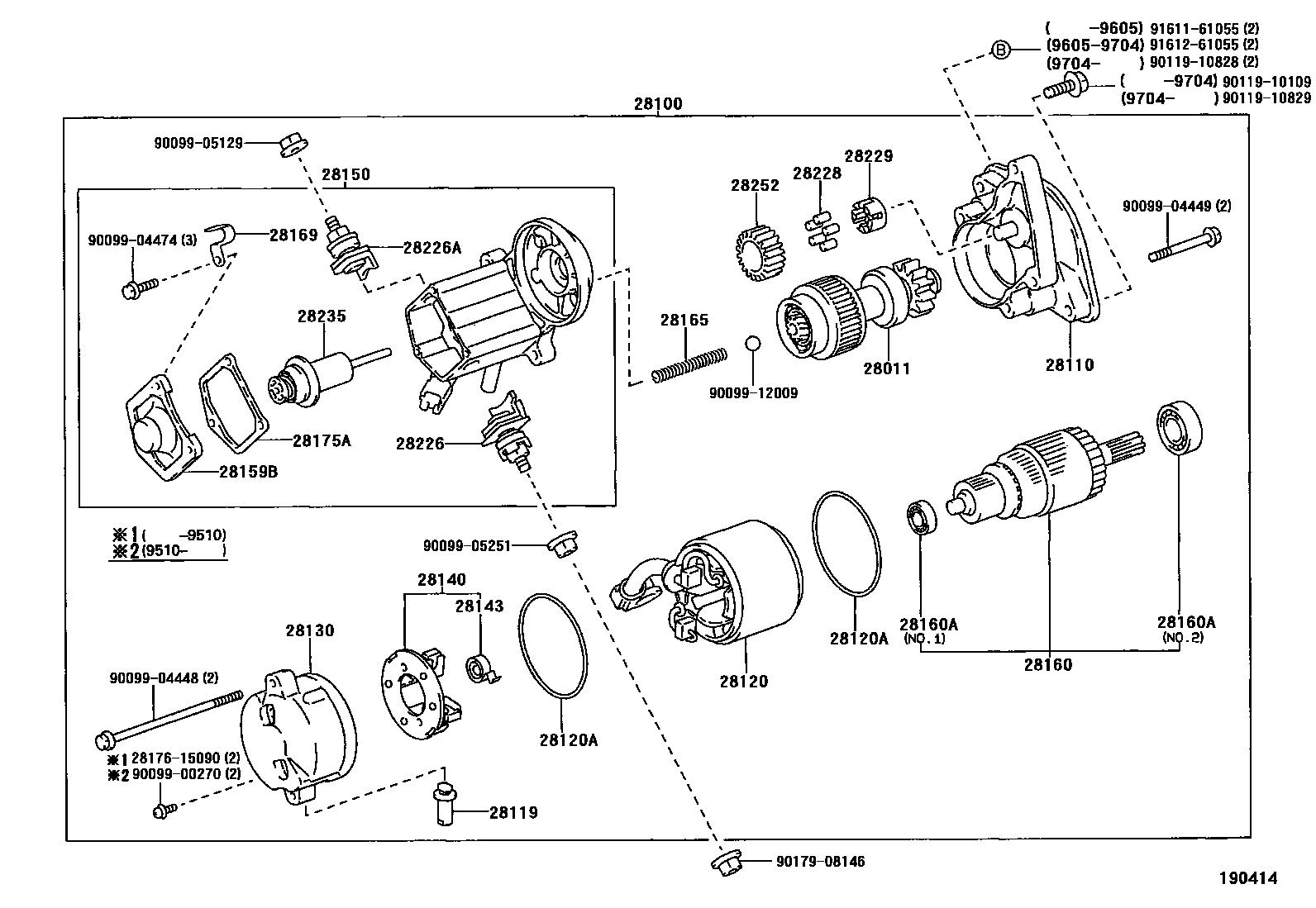

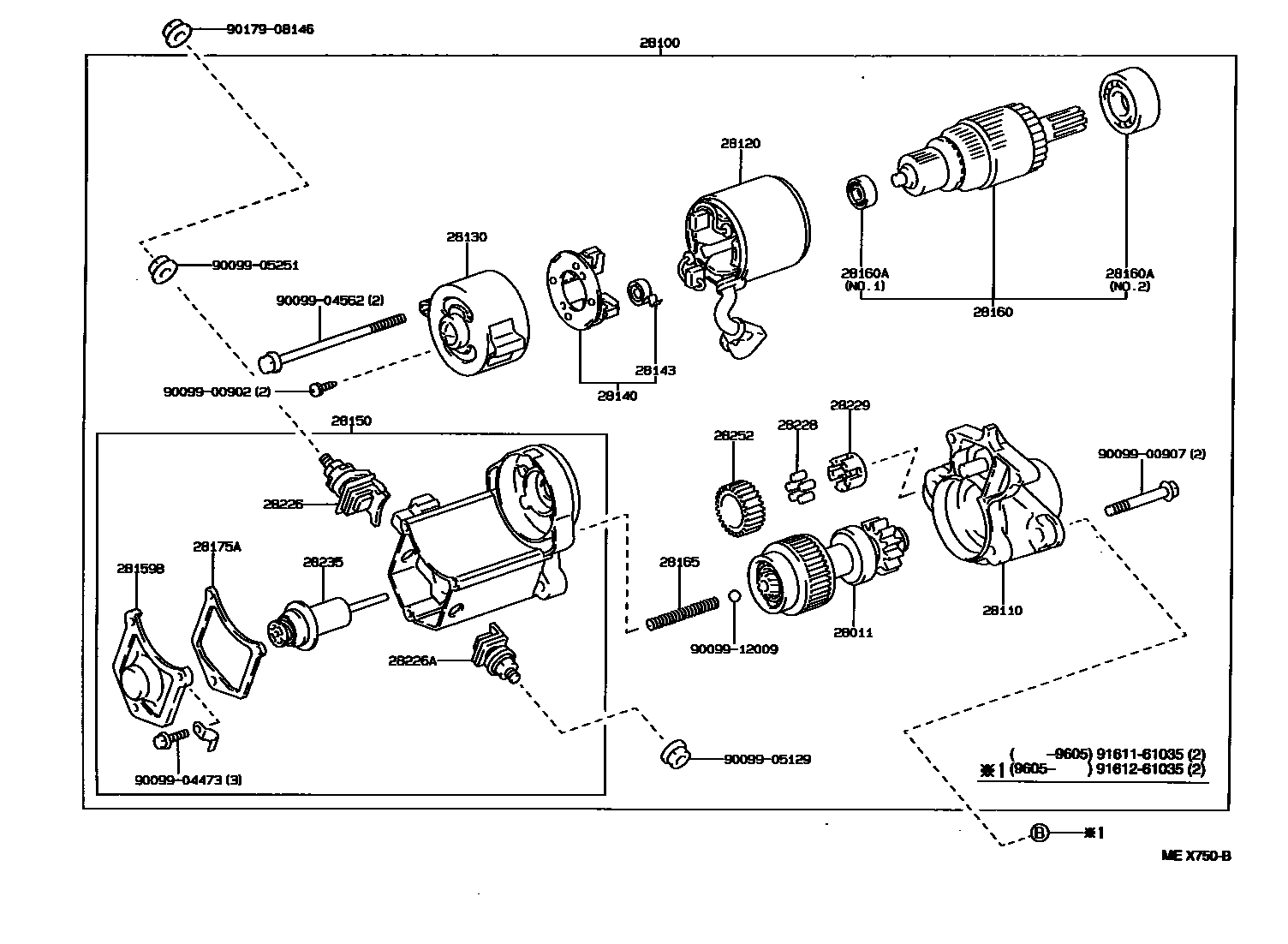

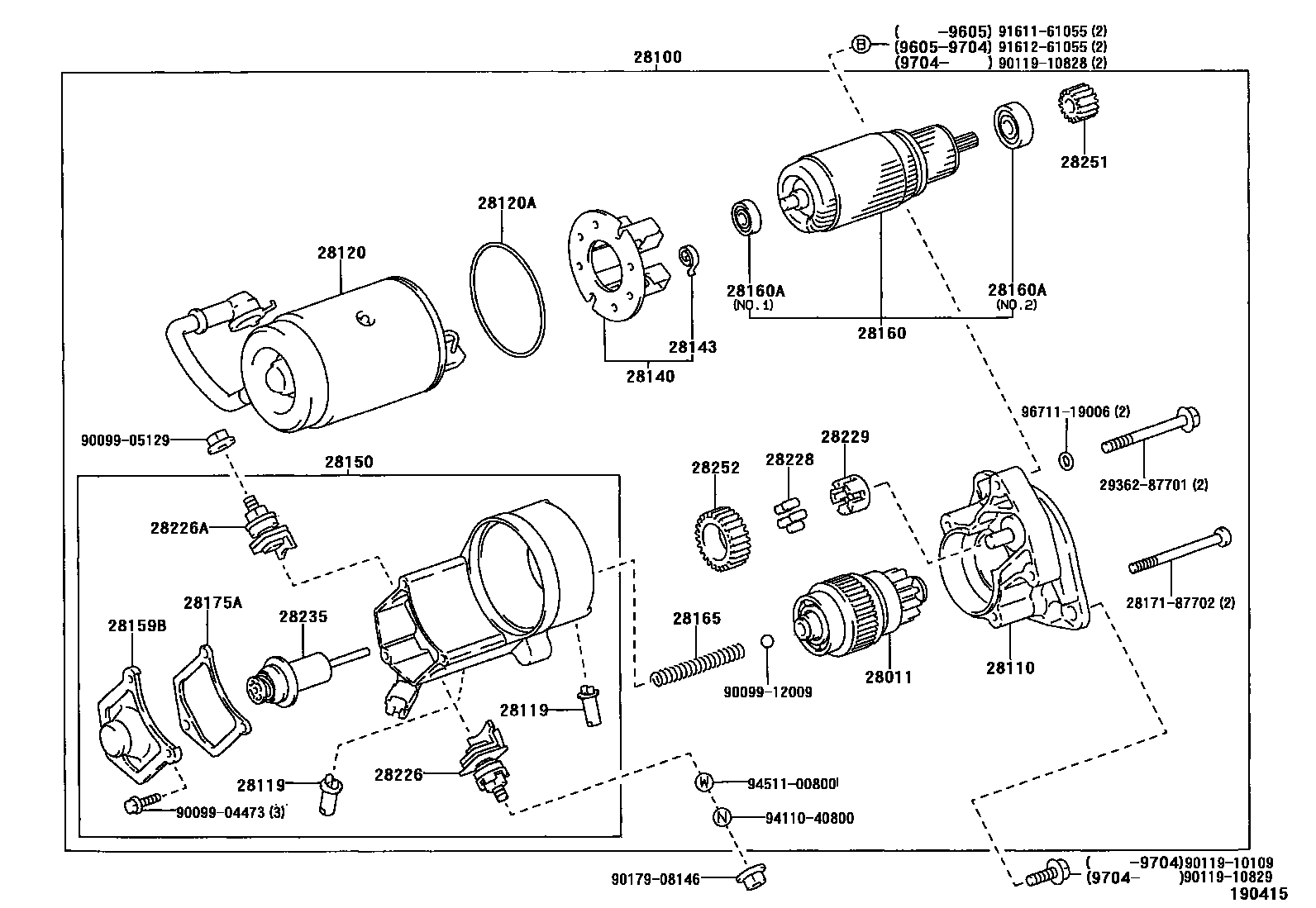

Toyota CAMRY EPC diagram 1904, 起动机, with 3 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-64010 · 28011-64130 · 28011-74060 |
| 28100 | Starter assembly | 28100-64300 · 28100-64310 · 28100-74200 |
| 28110 | Starter drive end housing assembly | 28110-64170 · 28110-74110 · 28115-64040 |
| 28119 | Starter end frame cover | 28199-46080 · 28199-74110 |
| 28120 | Starter yoke assembly | 28120-26071 · 28120-55050 · 28120-64040 · 28120-64130 |
| 28120A | O-ring (for starter yoke) | 90099-14064 · 90099-64040 |
| 28130 | Starter commutator end frame assembly | 28130-64130 · 28130-74110 |
| 28140 | Starter brush holder assembly | 28140-64040 · 28140-64130 · 28140-74010 |
| 28143 | starter brush spring | 90099-17112 · 90099-17115 |
| 28150 | Starter electromagnetic switch assembly | 28150-64300 · 28150-64310 · 28150-64341 · 28150-74200 |
| 28159B | Electromagnetic switch cover | 28159-10040 · 28159-55050 |
| 28160 | Starter armature assembly | 28160-26071 · 28160-64041 · 28160-74070 |
| 28160A | starter armature bearing | 28253-45020 · 28253-54070 · 90099-10113 · 90099-10143 · 90099-10196 · 90099-10197 |
| 28165 | Starter solenoid switch return spring | 28165-26040 · 28165-74010 · 28165-76070 |
| 28169 | Starter motor lead clamp | 28169-10040 · 28169-55050 |
| 28175A | Electromagnetic switch cover gasket | 28175-10040 · 28175-55050 |
| 28226 | battery terminal starter assembly | 28226-55050 · 28226-70040 · 28226-76100 |
| 28226A | Motor terminal starter assembly | 28226-72010 · 28226-74070 |
| 28228 | Starter idler clutch roller | 28228-26040 |
| 28229 | Starter idler gear fixing | 28229-26040 · 28229-74070 |
| 28235 | Electromagnetic switch core | 28235-35080 · 28235-55050 · 28235-74060 |
| 28251 | Starter drive pinion | 28251-54070 |
| 28252 | starter idler gear | 28254-54070 · 28254-64040 · 28254-64130 |
