Toyota CAMRY 分电器 — Figure 1902

Toyota CAMRY EPC diagram 1902, 分电器, with 2 images and 11 PNC and OE references.

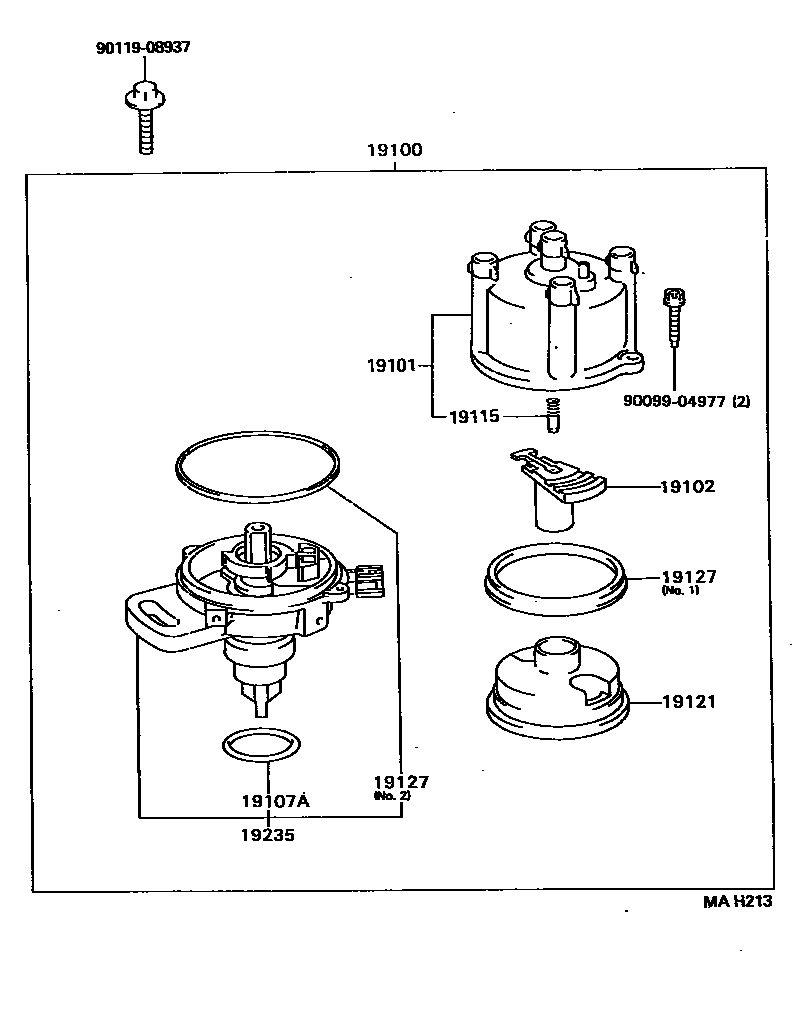

Toyota CAMRY 分电器 EPC diagram — MAH213
分电器 — MAH213 (199406 – 199605)

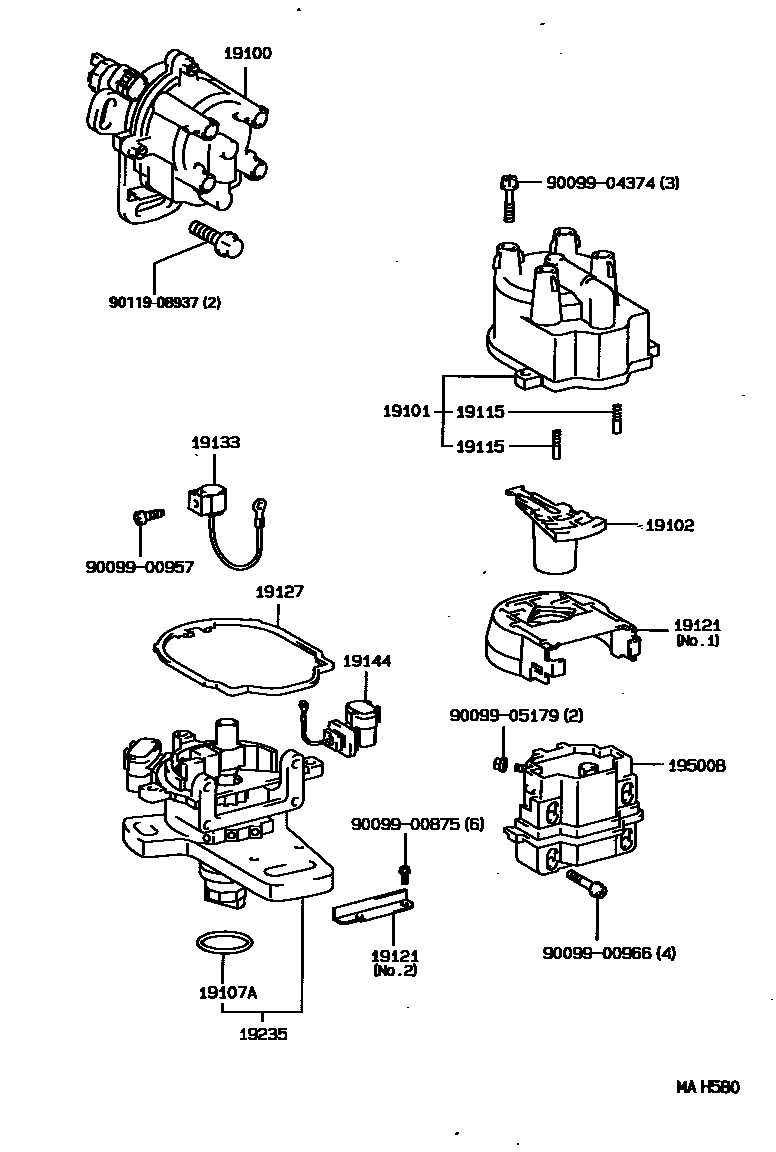

Toyota CAMRY 分电器 EPC diagram — MAH580
分电器 — MAH580 (199406 – 199605)

PNC and OE references

PNCPart nameOE numbers
19100Distributor assembly19050-74060 · 19100-74081
19101Distributor cover sub-assembly19101-74150 · 19101-74180
19102Distributor flame head sub-assembly19102-11031
19107ADistributor housing O-ring90099-14091 · 90099-14127
19115Distributor cover center piece19115-63010 · 19115-88280
19121dust cover19121-11080 · 19121-74010 · 19121-74040
19127Dust seal19127-74010 · 19127-74040 · 19127-74050
19133Distributor capacitor19133-16240
19144Distributor breaker lead19144-74100
19235Distributor housing19235-74160 · 19235-74220
19500BIgnition coil assembly90919-02163
