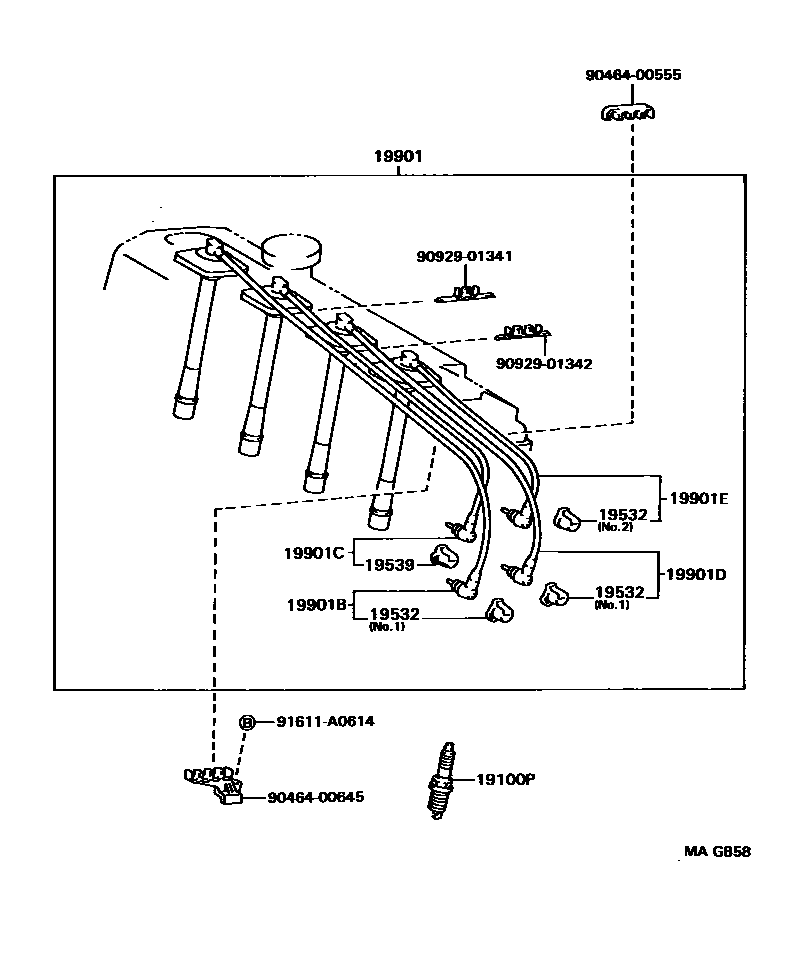

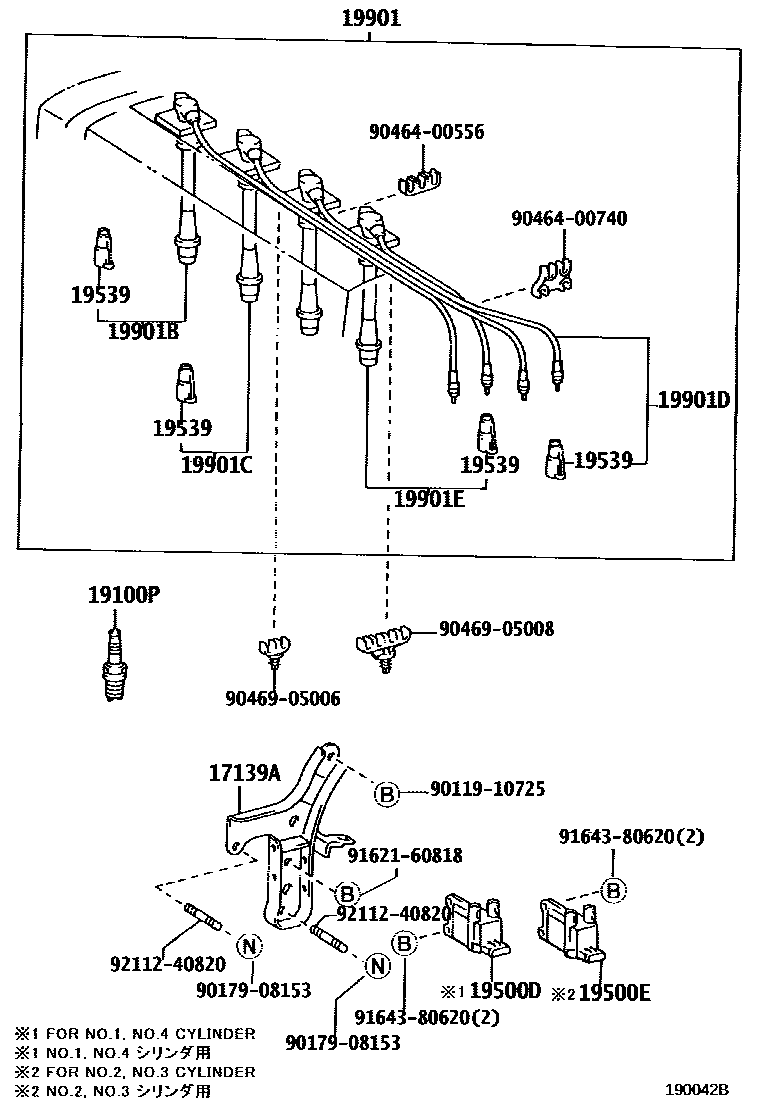

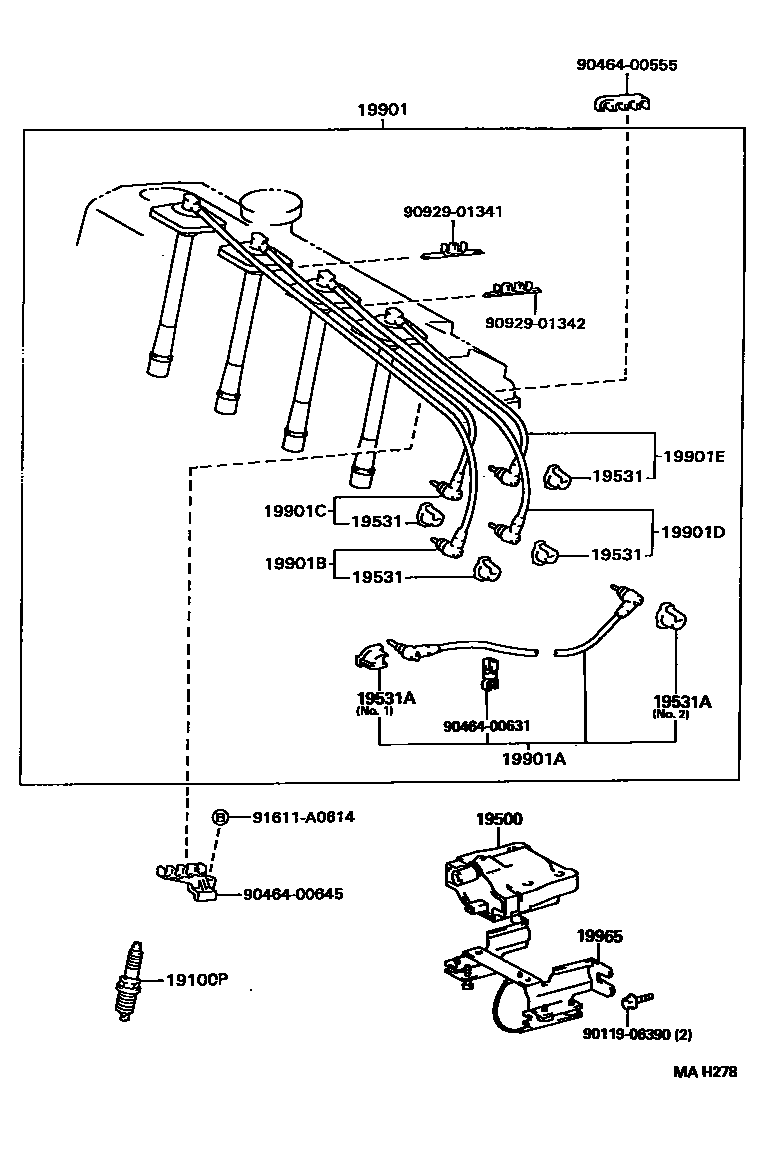

Toyota CAMRY 点火线圈和火花塞 — Figure 1901
Toyota CAMRY EPC diagram 1901, 点火线圈和火花塞, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17139A | No. 1 manifold stay | 17139-74180 |
| 19100P | spark plug | 90919-01184 · 90919-01198 |
| 19500 | Ignition coil assembly | 90919-02197 |
| 19500D | No. 1 ignition coil | 90919-02217 |
| 19500E | No. 2 ignition coil | 90919-02218 |
| 19531 | No. 1 damping wire fixing piece | 19531-74010 |
| 19531A | No. 3 damping wire fixing piece | 19531-46010 · 19531-74010 |
| 19532 | No. 2 damping wire fixing piece | 19532-46010 · 19532-50010 · 19539-74030 |
| 19539 | No. 4 damping wire fixing piece | 19539-62020 · 19539-74040 · 19539-74050 |
| 19850 | Glow plug assembly | 19850-67020 · 19850-67030 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19871 | Glow plug connector No. 1 | 19871-64023 · 19871-64024 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-21586 · 90919-22369 · 90919-22370 · 90919-22386 |
| 19901A | coil damping line | 19590-74260 |
| 19901B | No. 1 spark plug damper wire | 90919-15400 · 90919-15403 · 90919-15406 · 90919-15409 · 90919-15466 |
| 19901C | No. 2 spark plug damper wire | 90919-15401 · 90919-15404 · 90919-15408 · 90919-15411 · 90919-15465 |
| 19901D | No. 3 spark plug damper wire | 90919-15402 · 90919-15405 · 90919-15407 · 90919-15410 · 90919-15464 |
| 19901E | No. 4 spark plug damper wire | 90919-15259 · 90919-15261 · 90919-15349 · 90919-15463 |
| 19965 | No. 1 ignition coil band | 90919-03120 |
