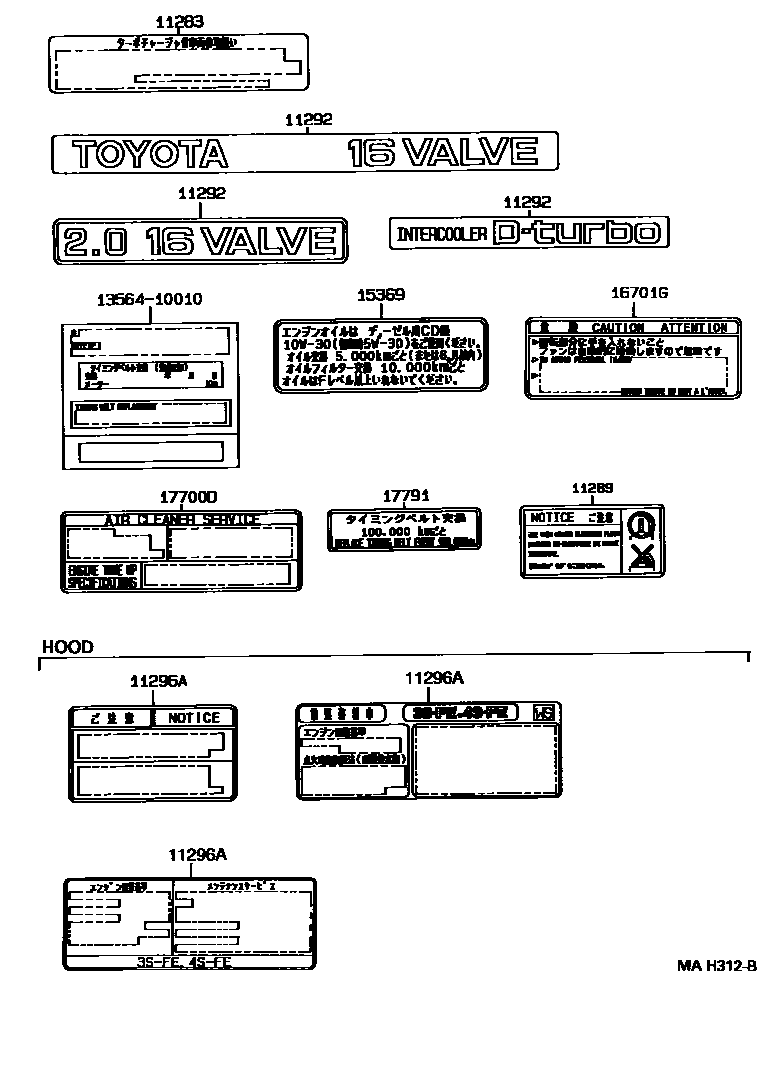

Toyota CAMRY 警示铭牌和名称铭牌(发动机) — Figure 1709
Toyota CAMRY EPC diagram 1709, 警示铭牌和名称铭牌(发动机), with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11283 | Turbocharger warning plate | 11294-64040 · 11294-64070 |
| 11289 | Spark plug warning nameplate | 11289-62020 |
| 11292 | Engine No. 2 name plate | 11292-64060 · 11292-74101 · 11292-74130 |
| 11296A | Engine maintenance information label | 11296-64010 · 11296-74160 · 11296-74161 · 11296-74170 |
| 15369 | Engine oil warning plate | 15369-54010 · 15369-64010 |
| 16701G | warning label | 88723-12100 · 88723-20081 |
| 17700D | Engine warning plate | 11296-55020 · 11296-64020 |
| 17791 | Maintenance information label | 17791-55010 · 17791-74040 |
