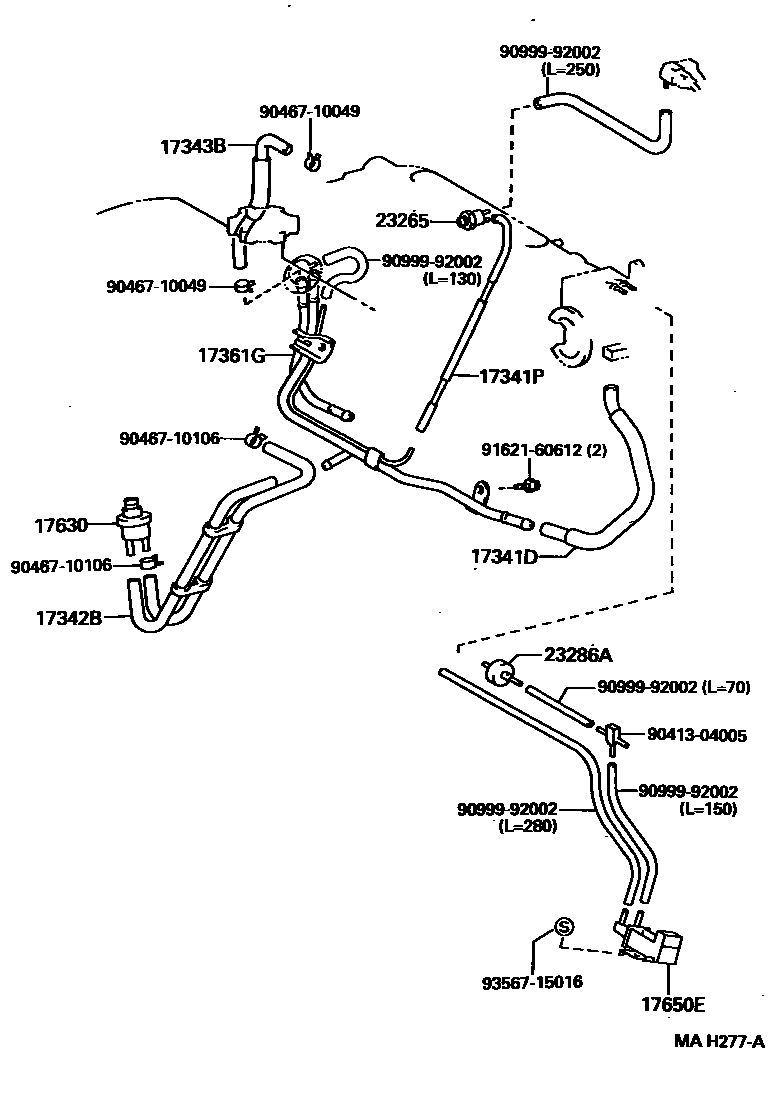

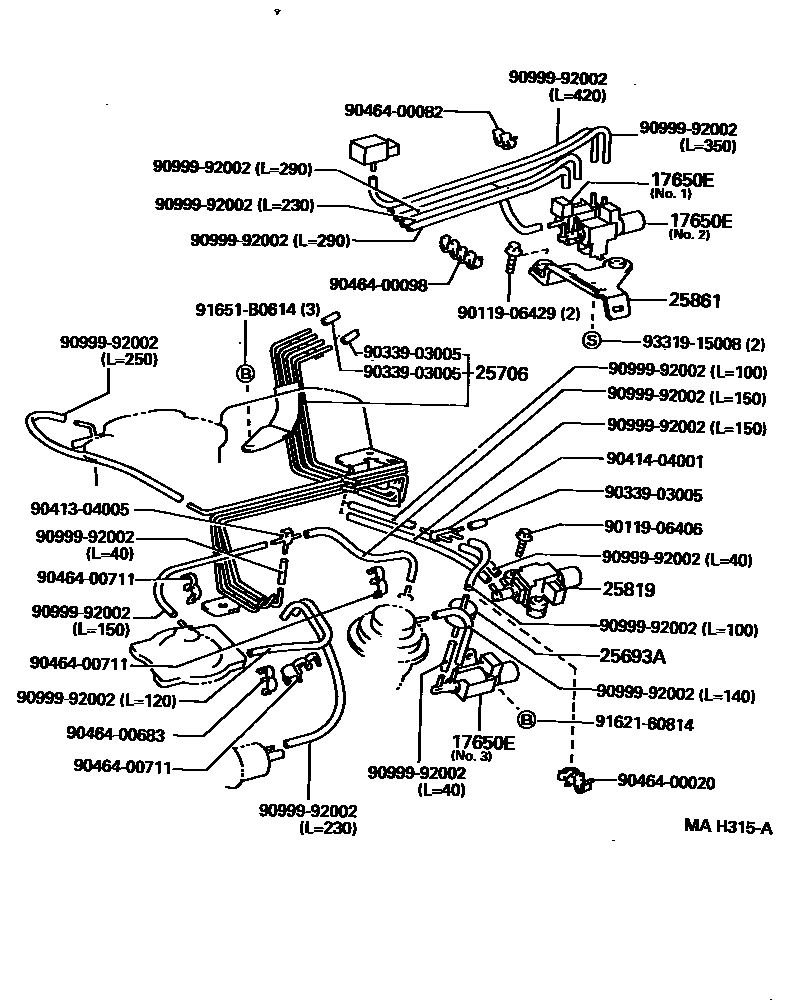

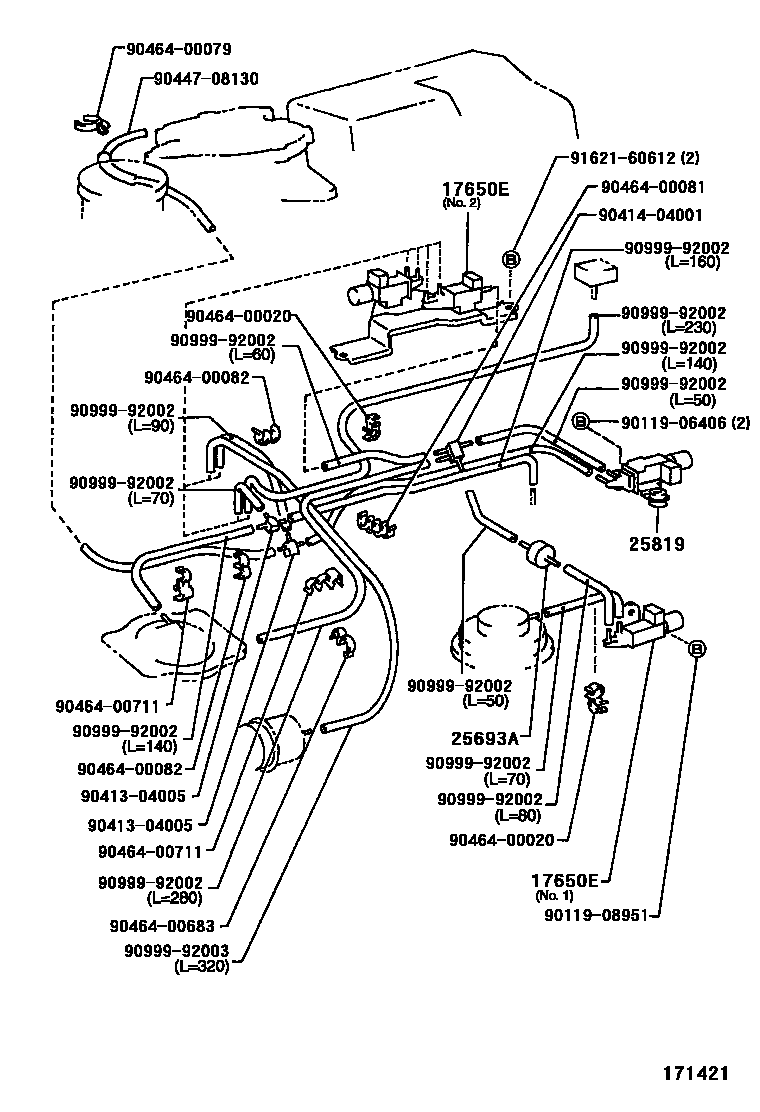

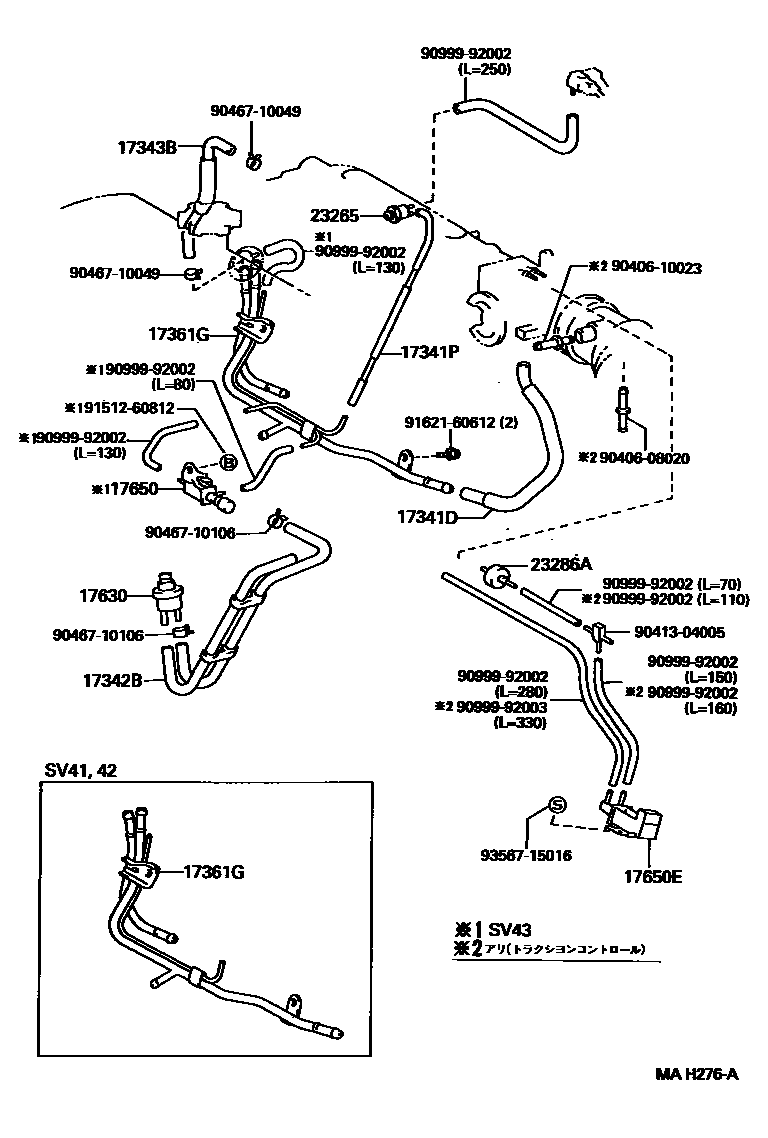

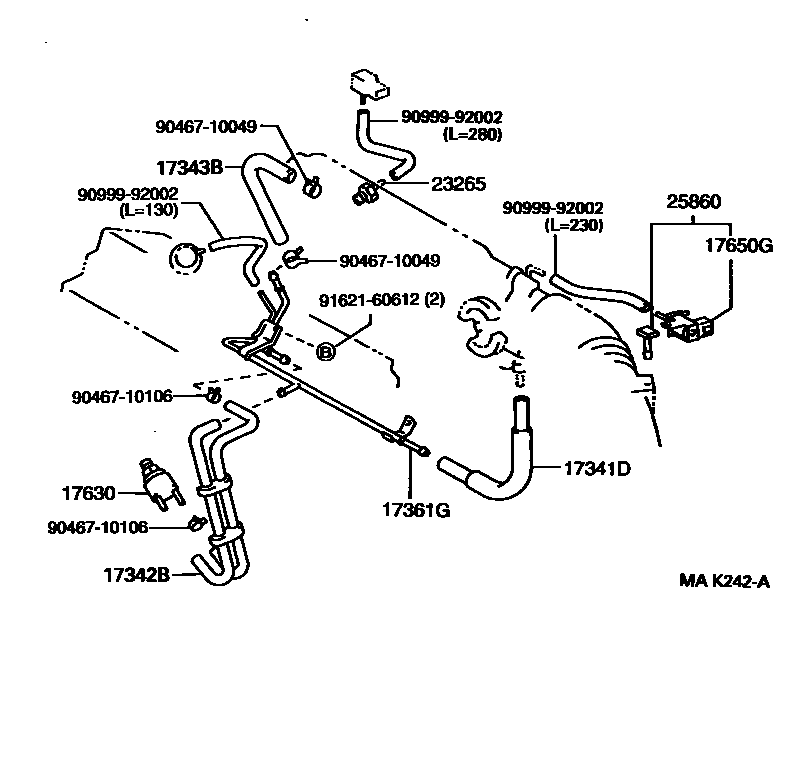

Toyota CAMRY vacuum tube — Figure 1708
Toyota CAMRY EPC diagram 1708, vacuum tube, with 6 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341D | No. 1 hose (for idle boost) | 17341-74340 · 17341-74520 |
| 17341P | air hose | 17341-74430 |
| 17342B | No. 2 hose (for idle boost) | 17343-74100 |
| 17343B | No. 3 hose (for idle speed boost) | 17343-74141 · 17343-74160 |
| 17361G | Air pipe (for idle boost) | 17361-74110 · 17361-74150 · 17361-74180 |
| 17630 | Air control valve assembly | 17630-70020 |
| 17650 | Vacuum switch valve assembly | 90910-12100 |
| 17650E | Vacuum switch valve | 25860-64150 · 25860-64160 · 90910-12059 · 90910-12089 · 90910-12120 · 90910-12154 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12170 |
| 23265 | No. 1 gas filter | 90917-11022 · 90917-11023 · 90917-11037 |
| 23286A | No. 2 one-way valve | 90917-10080 |
| 25693A | EGR vacuum regulator shock absorber | 25693-64010 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-64080 |
| 25819 | Vacuum regulating valve assembly | 25819-64070 · 25819-64080 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-16200 |
| 25861 | Vacuum switch valve bracket | 25861-64040 |
