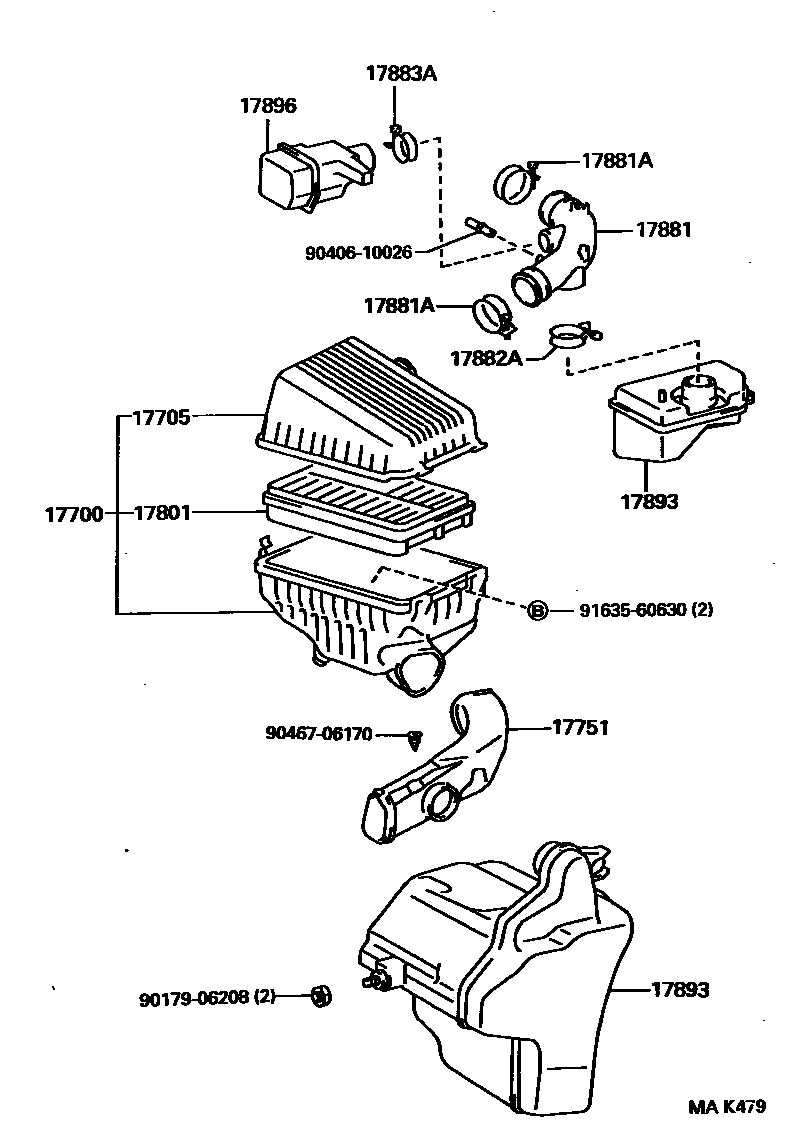

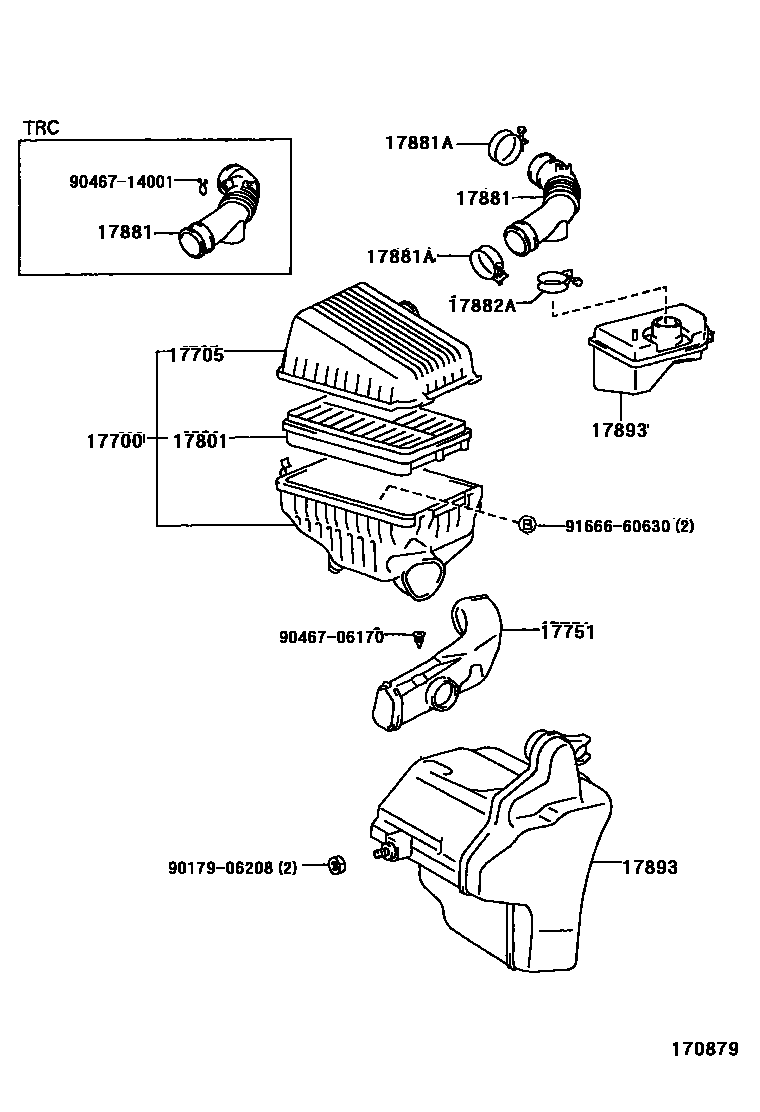

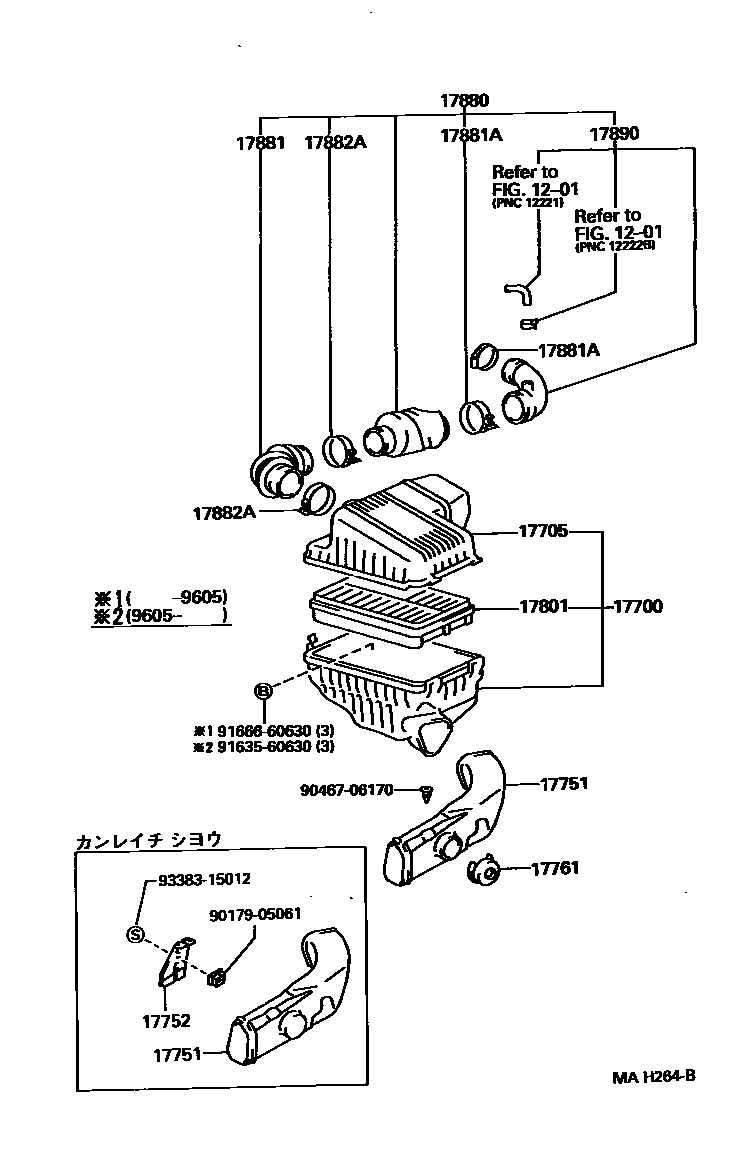

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17700 | air filter assembly | 17700-64330 · 17700-74550 |
| 17705 | Air filter cover sub-assembly | 17705-64220 · 17705-74390 |
| 17751 | No. 1 air filter air inlet | 17751-64040 · 17751-74050 |
| 17752 | No. 2 air filter air inlet | 17752-64010 |
| 17761 | air filter air inlet cover | 17761-64010 |
| 17801 | Air filter element sub-assembly | 17801-64060 · 17801-74020 |
| 17880 | Air cleaner hose assembly | 17880-64290 |
| 17881 | No. 1 air cleaner hose | 17881-64280 · 17881-74610 · 17881-74620 · 17881-74770 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-57002 · 90460-73001 · 96111-10710 · 96111-10730 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10630 · 96111-10730 |
| 17883A | Clamp (for No. 3 air cleaner hose) | 96111-10560 |
| 17890 | No. 2 air cleaner hose assembly | 17890-64050 |
| 17893 | Intake resonator | 17893-74340 · 17893-74350 |
| 17896 | No. 3 intake resonator | 17896-74020 |
