Toyota CAMRY Exhaust Pipe — Figure 1702

Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 5 images and 28 PNC and OE references.

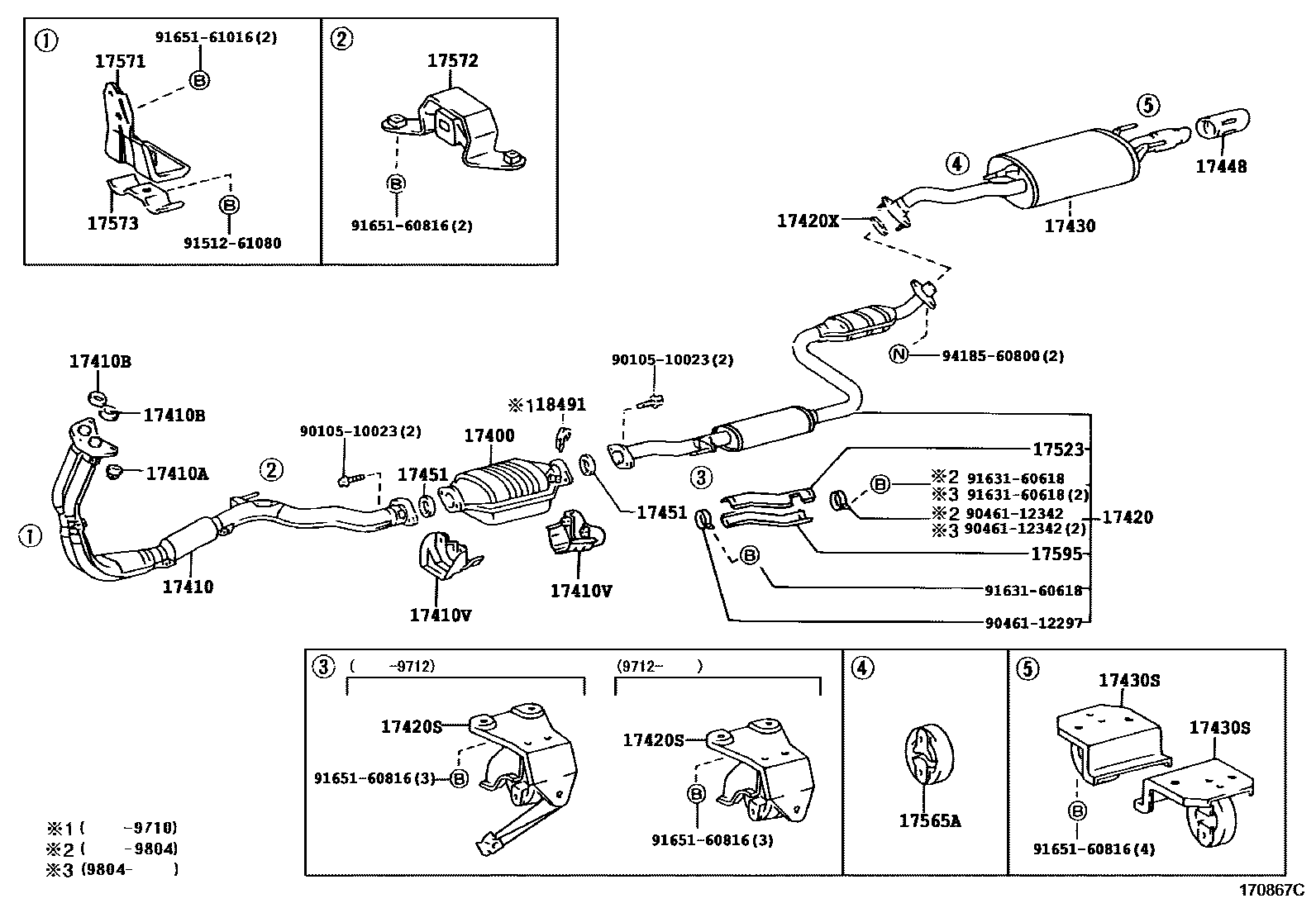

Toyota CAMRY Exhaust Pipe EPC diagram — 170867C — Exhaust Pipe — 170867C (199406 – 999999)

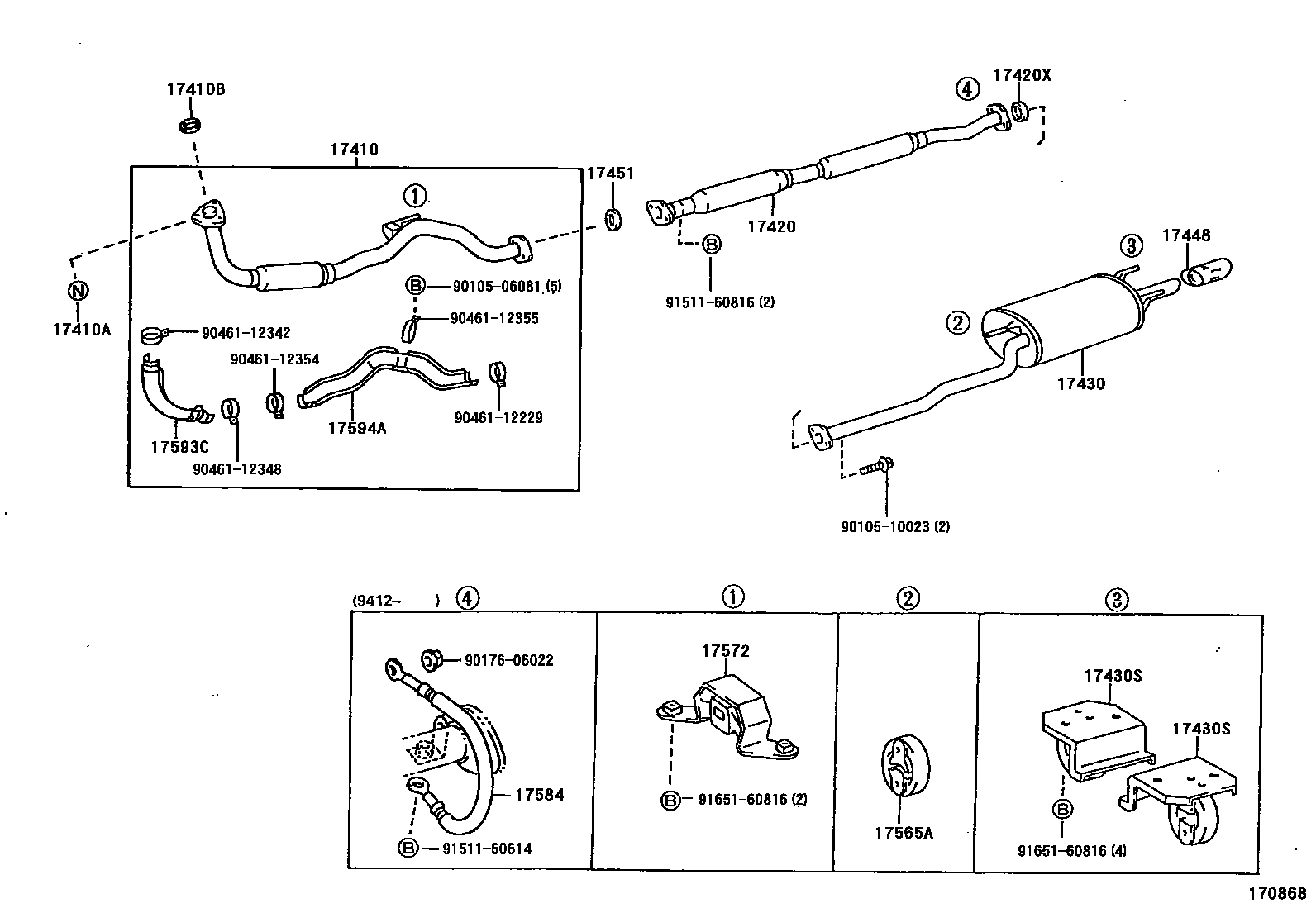

Toyota CAMRY Exhaust Pipe EPC diagram — 170868 — Exhaust Pipe — 170868 (199406 – 999999)

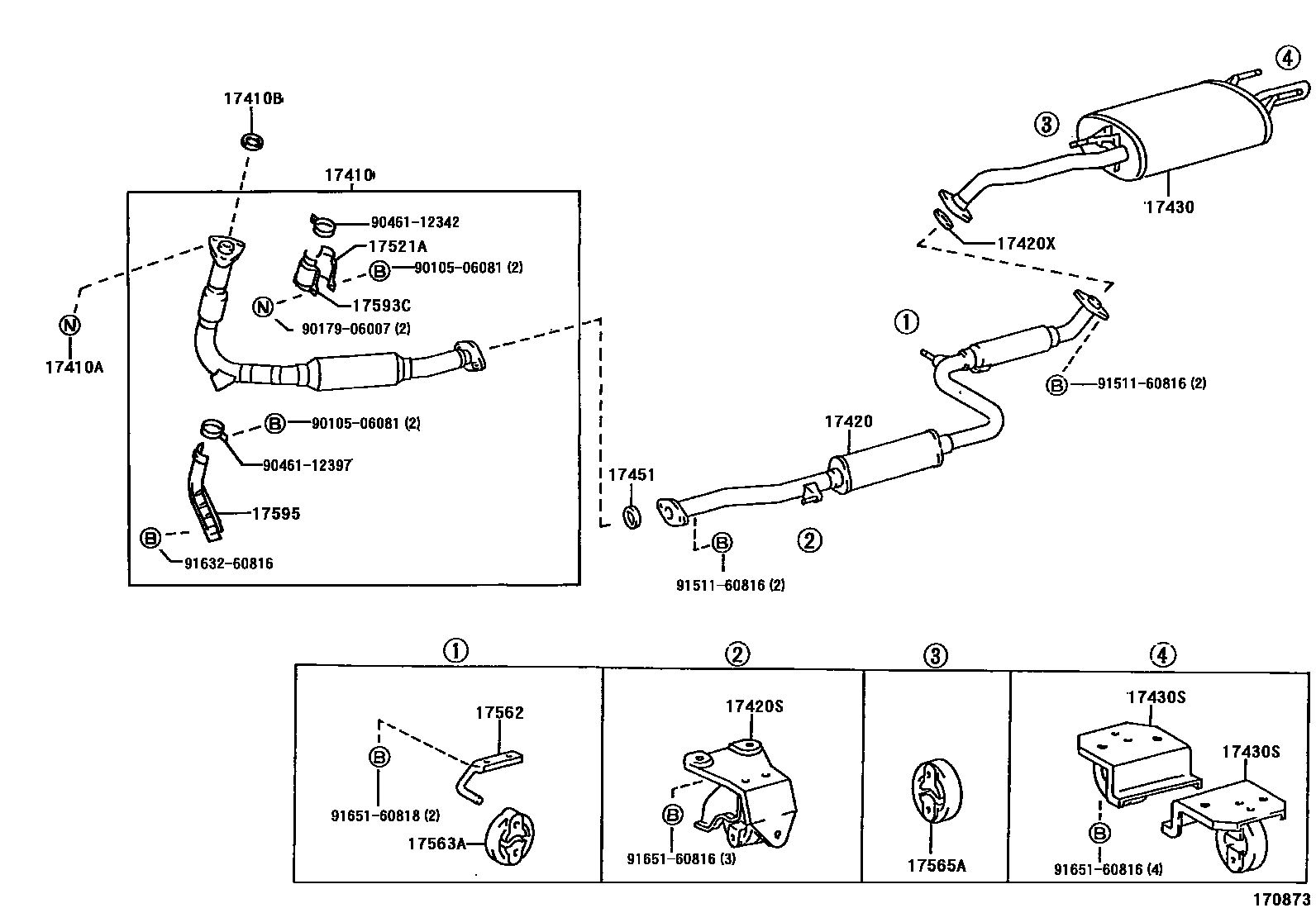

Toyota CAMRY Exhaust Pipe EPC diagram — 170873 — Exhaust Pipe — 170873 (199406 – 999999)

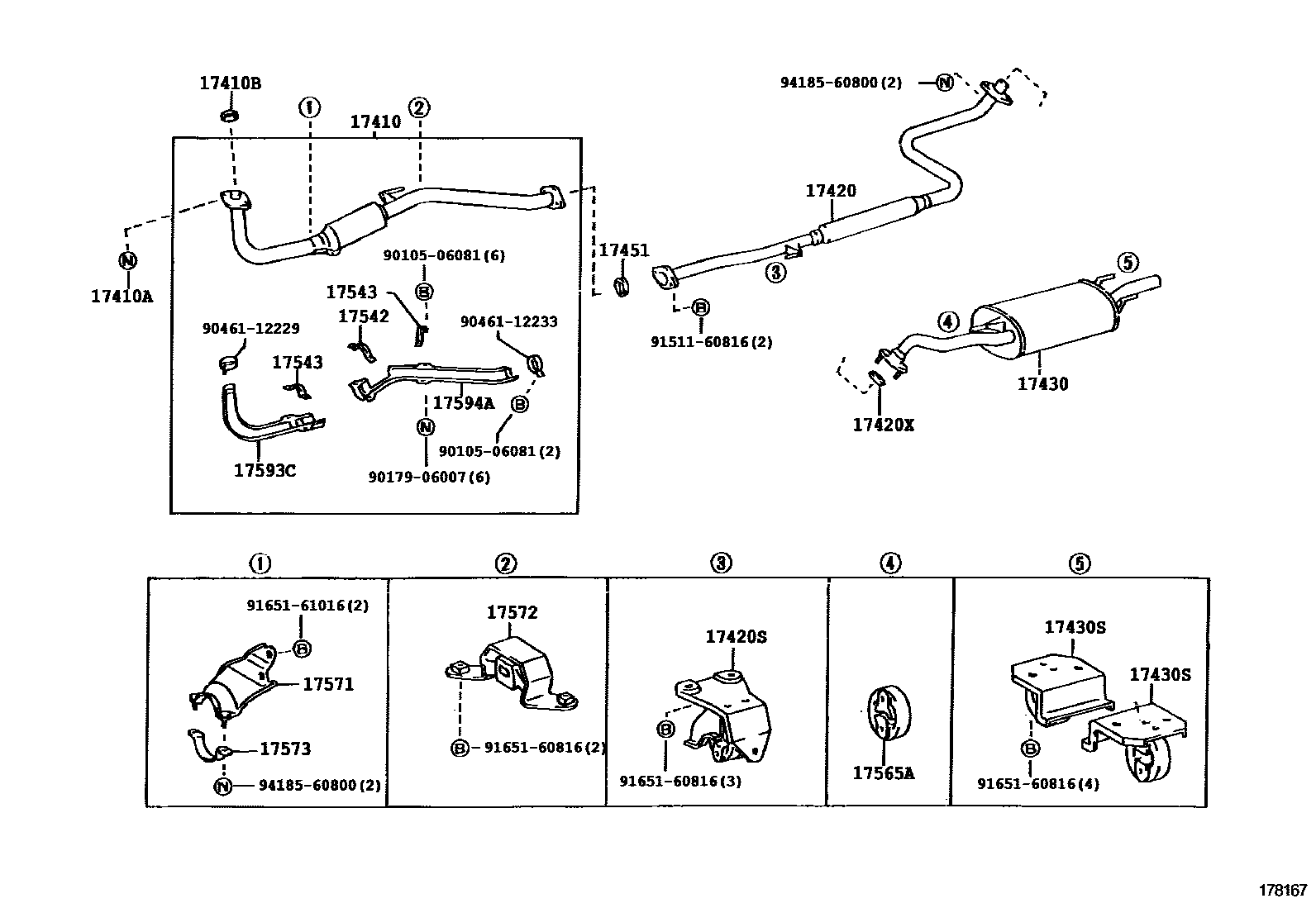

Toyota CAMRY Exhaust Pipe EPC diagram — 178167 — Exhaust Pipe — 178167 (199406 – 999999)

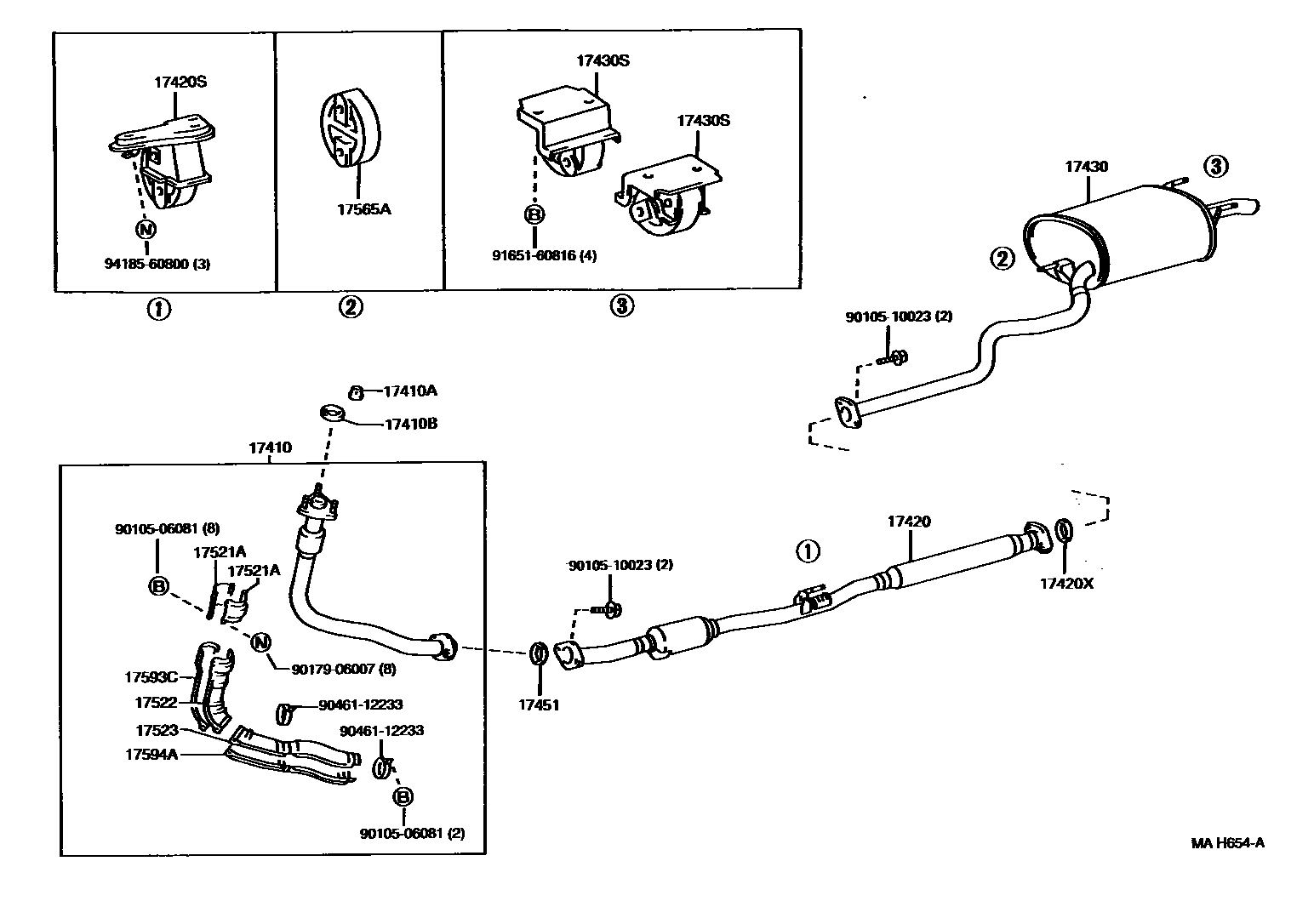

Toyota CAMRY Exhaust Pipe EPC diagram — MAH654A — Exhaust Pipe — MAH654A (199501 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17400	Three-way catalytic converter assembly with catalyst	18450-16730 · 18450-74530 · 18450-74550
17410	Front exhaust pipe assembly	17410-64640 · 17410-64660 · 17410-74780 · 17410-74810 · 17410-7A390
17410A	Exhaust pipe fixing studs and nuts	90179-10070
17410B	Exhaust pipe gasket	90917-06039 · 90917-06042 · 90917-06045
17410V	Front exhaust pipe bracket (for rear)	17503-62030
17420	Central exhaust pipe assembly	17420-64240 · 17420-64260 · 17420-74840 · 17420-74850 · 17420-74860 · 17420-74861
17420S	Center exhaust pipe rear bracket	17507-64070 · 17507-74050 · 17507-74070
17420X	Center exhaust pipe liner	90917-06039 · 90917-06045
17430	Exhaust tailpipe assembly	17430-6A050 · 17430-6A070 · 17430-7A540 · 17430-7A550 · 17430-7A560
17430S	Exhaust tailpipe bracket (for rear)	17509-74100
17448	Exhaust pipe tail throat	17408-74040
17451	Exhaust pipe gasket	90917-06039 · 90917-06043 · 90917-06045 · 90917-06054
17521A	No. 1 upper exhaust pipe protection device	17521-64080 · 17521-64130
17522	No. 2 upper exhaust pipe protection device	17522-64080
17523	No. 3 upper exhaust pipe protection device	17523-64040 · 17523-74050
17542	No. 2 exhaust pipe protection device stay	17542-11020 · 17542-74030
17543	No. 3 exhaust pipe protection device stay	17543-63010 · 17544-14010
17562	No. 2 exhaust pipe lifting lug	17562-64210
17563A	No. 3 exhaust pipe lifting lug	17565-11100
17565A	No. 4 exhaust pipe lifting lug	17565-46010
17571	No. 1 exhaust pipe bracket	17571-74280 · 17571-74420 · 17571-74460
17572	No. 1 exhaust pipe bracket	17572-74080
17573	No. 1 lower exhaust pipe bracket	17573-74180 · 90917-04041
17584	Exhaust tail pipe block	17584-74200
17593C	No. 1 lower exhaust pipe protection device	17593-64070 · 17593-64120 · 17593-74410 · 17593-74660
17594A	No. 2 lower exhaust pipe protection device	17594-64030 · 17594-74370 · 17594-74380
17595	No. 3 lower exhaust pipe protection device	17595-64040 · 17595-74270
18491	Thermal sensor air inlet flange	18491-28010
