Toyota CAMRY Manifold — Figure 1701

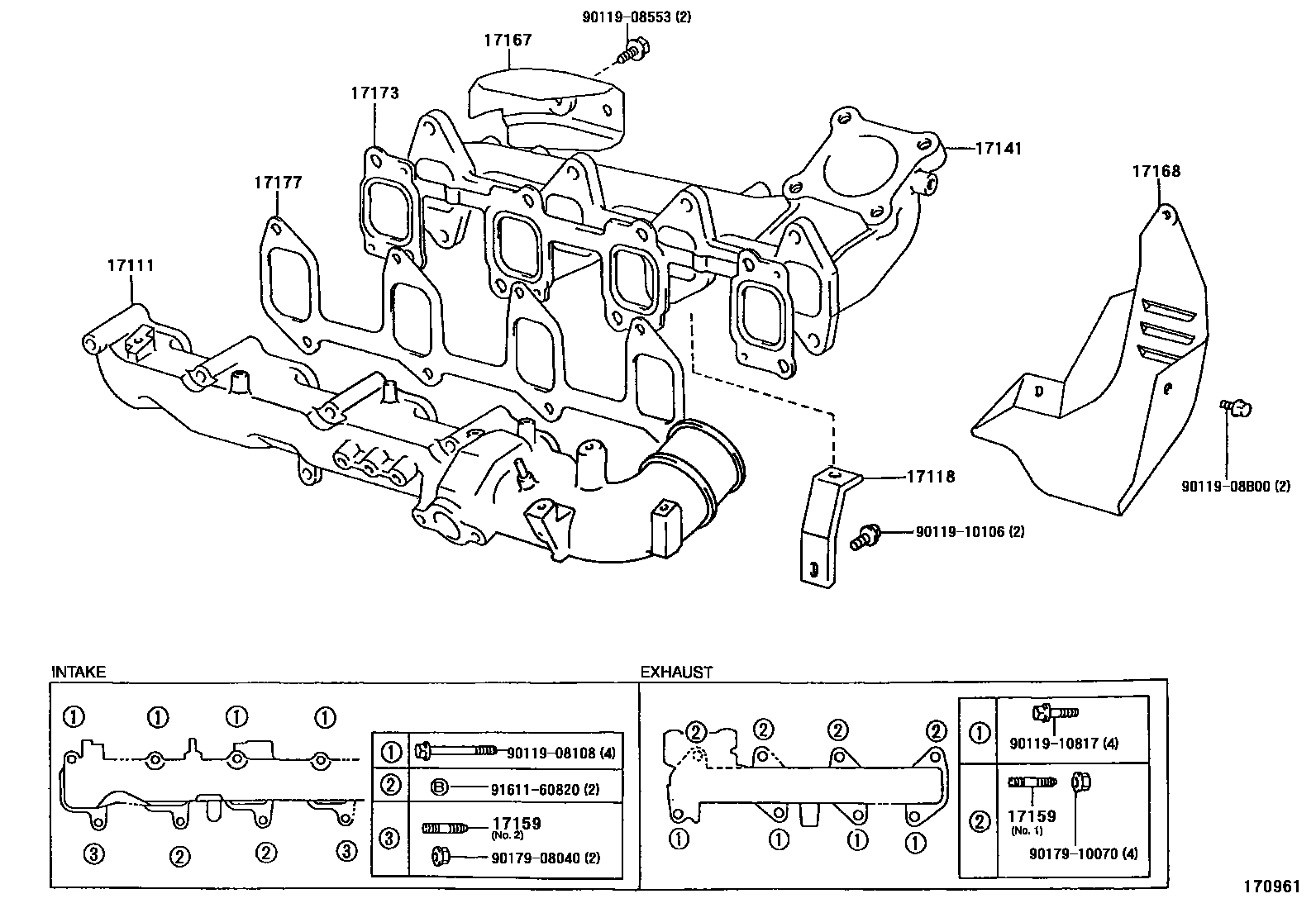

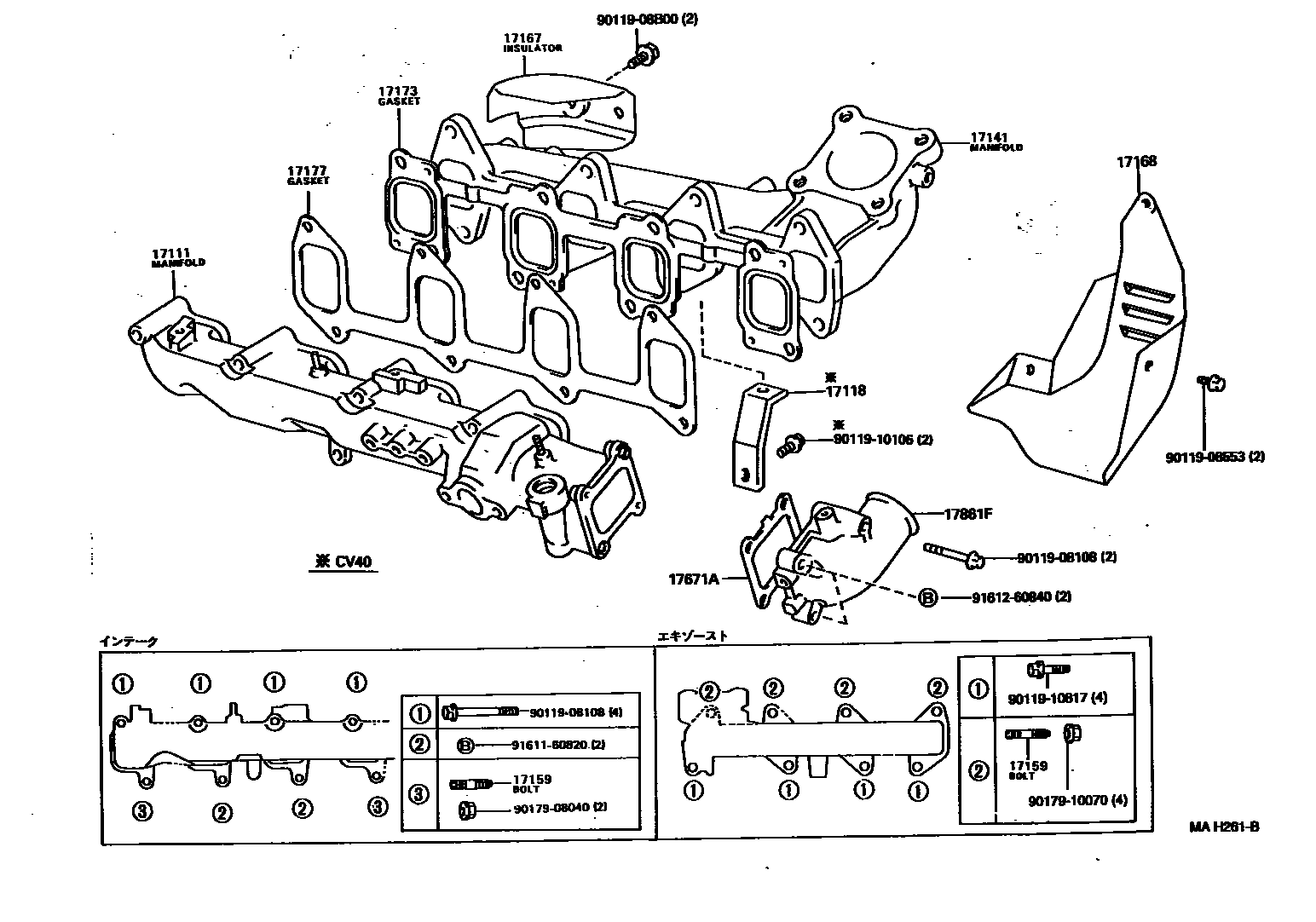

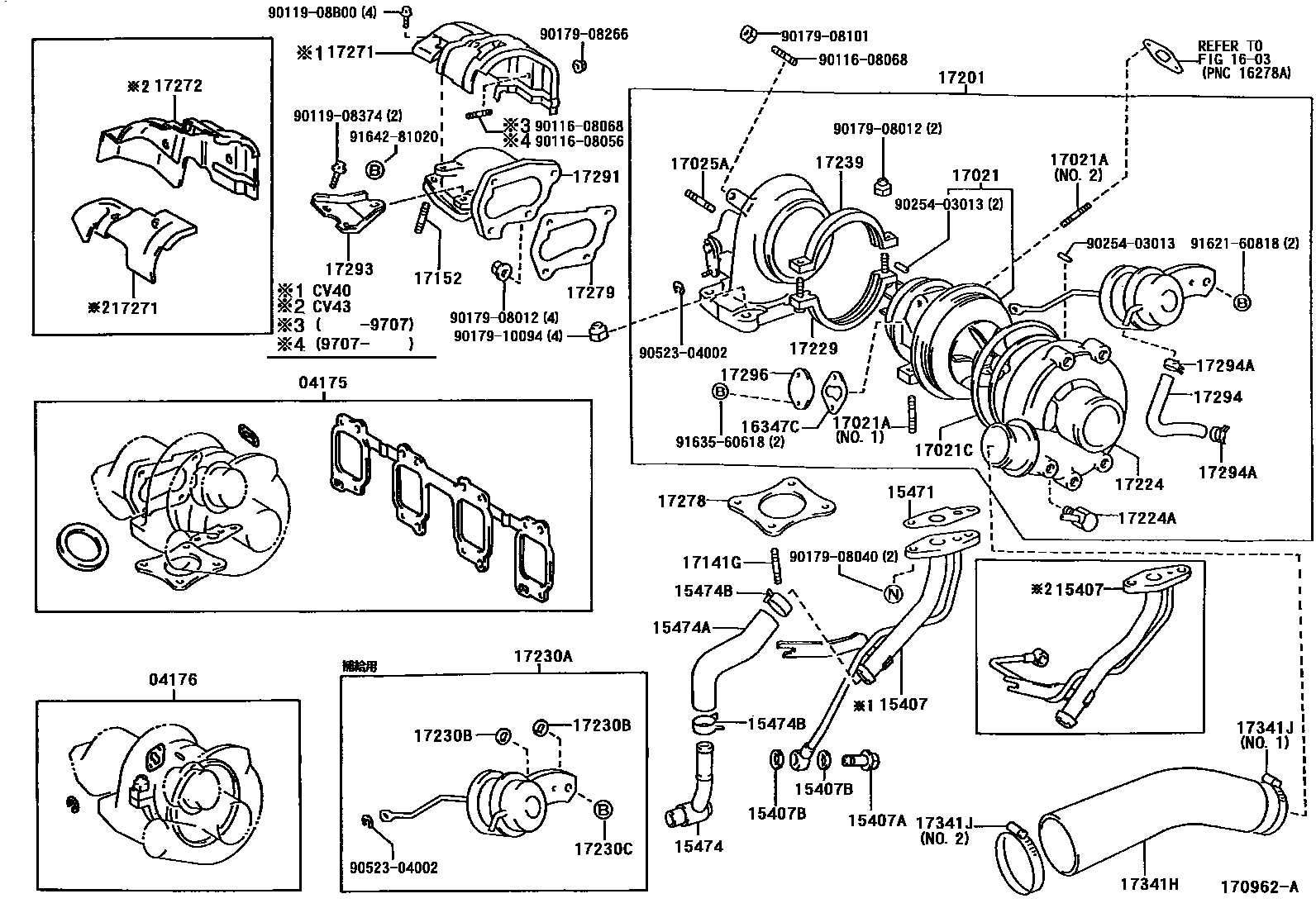

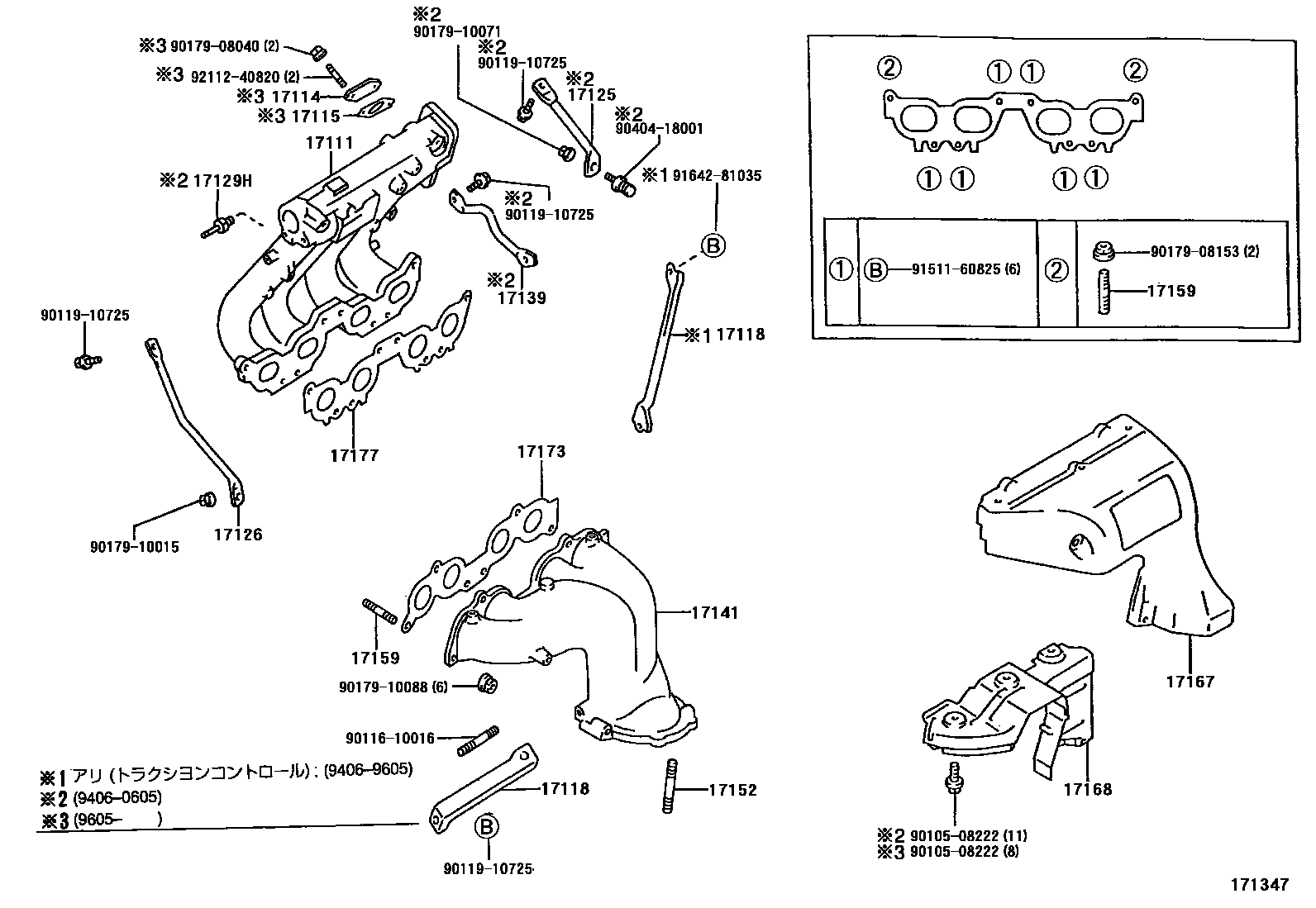

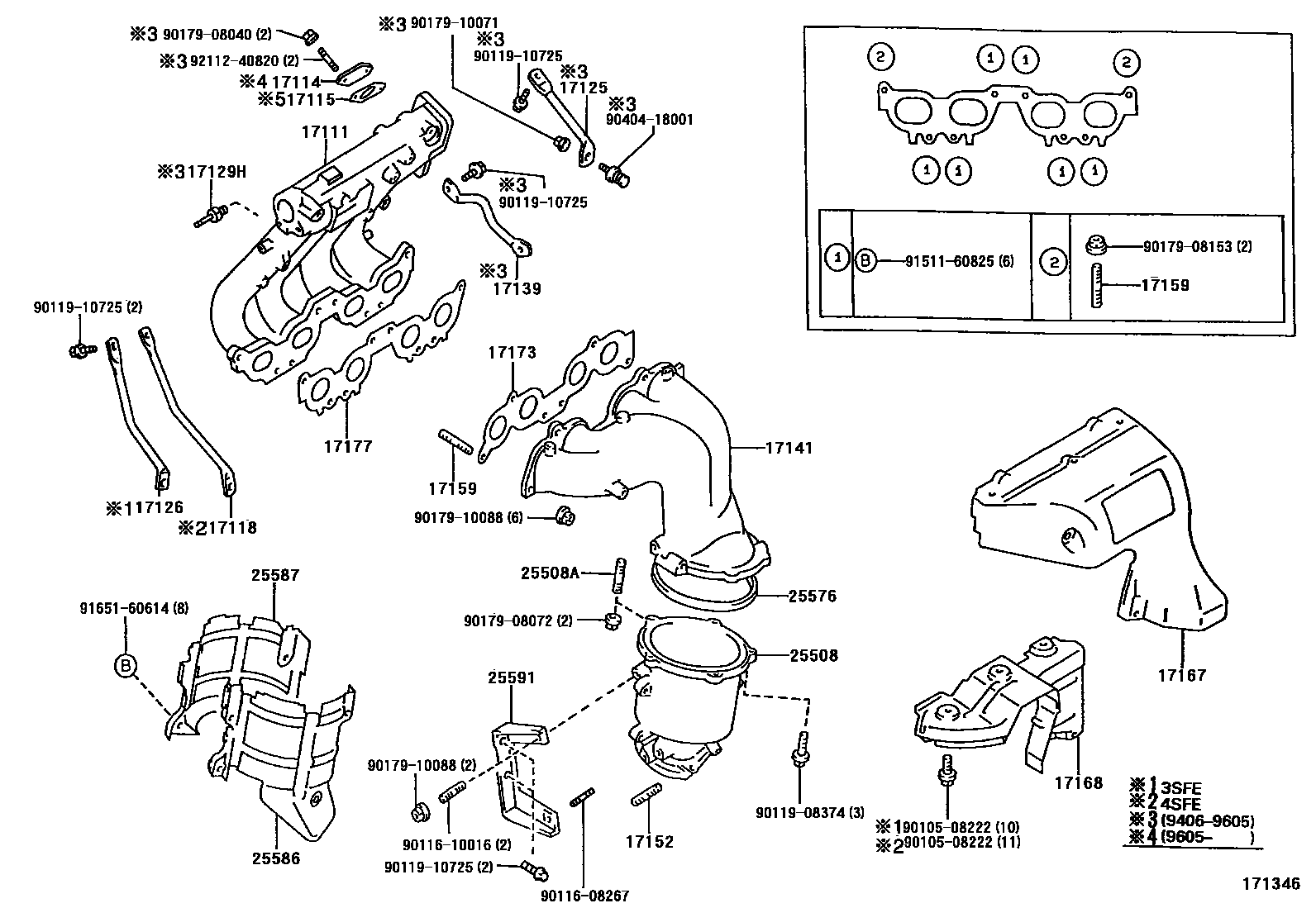

Toyota CAMRY EPC diagram 1701, Manifold, with 5 images and 57 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04175 | Turbocharger gasket assembly | 04175-64030 · 04175-64031 · 04175-64032 |
| 04176 | Turbocharger seal assembly | 04176-70011 |
| 15407 | Turbine oil inlet pipe sub-assembly | 15407-64060 · 15407-64061 · 15407-64070 |
| 15407A | Connector bolt (for turbine oil inlet pipe) | 90401-10006 |
| 15407B | Gasket (for turbine oil inlet pipe) | 90430-10027 |
| 15471 | Turbine oil inlet pipe gasket | 15471-58010 · 15471-64010 |
| 15474 | Turbine oil outlet pipe | 15476-64010 |
| 15474A | Turbine oil outlet hose | 15491-64020 |
| 15474B | Clamp or clip (for turbine oil outlet hose) | 90467-23003 |
| 16347C | Liners (for turbine water pipes) | 16347-42020 |
| 17021 | Bearing shell sub-assembly | 17021-11010 |
| 17021A | Stud bolts (for bearing housing) | 90116-06048 · 90116-08158 |
| 17021C | Hole snap ring (for bearing housing) | 90521-99035 |
| 17025A | Stud bolts (for turbine housing) | 90116-08200 · 90116-08384 |
| 17111 | Intake Manifold | 17101-64120 · 17101-64140 · 17101-74240 · 17101-74310 |
| 17114 | Intake manifold hole cover | 25617-74020 |
| 17115 | Intake manifold hole cover gasket | 25627-74011 |
| 17118 | Manifold stays | 17118-64040 · 17118-74040 · 17118-74330 · 17118-74350 |
| 17125 | No. 1 pressure tank stay | 17125-74100 |
| 17126 | No. 2 pressure tank stay | 17126-74030 · 17126-74040 · 17126-74080 |
| 17129H | Connector No. 4 | 90404-51026 |
| 17139 | No. 2 manifold stay | 17139-74151 |
| 17141 | exhaust manifold | 17141-64160 · 17141-64161 · 17141-64240 · 17141-74031 · 17141-74120 |
| 17141G | Stud bolts (for turbocharger) | 90116-10148 |
| 17152 | Studs (for manifold to exhaust) | 90116-10058 · 90116-10146 |
| 17159 | Studs (for manifold to cylinder head) | 90116-10063 · 90116-10095 · 90126-10017 · 92122-60820 · 92122-60822 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-64031 · 17167-74141 · 17167-74171 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-64080 · 17168-64090 · 17168-64091 · 17168-74020 · 17168-74060 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-64050 · 17173-64051 · 17173-74040 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-64020 · 17177-74070 |
| 17201 | Turbocharger sub-assembly | 17201-64100 · 17201-64101 |
| 17224 | compressor casing | 17224-64031 |
| 17224A | Connector (for compressor housing) | 90404-51040 |
| 17229 | V-Belt | 17229-70010 |
| 17230A | Compensation actuator assembly with bracket | 17230-69035 · 17230-69036 |
| 17230B | Flat Washer (for compensating actuator assembly) | 90201-08081 · 90201-08082 · 90201-08086 · 90201-08087 |
| 17230C | Bolt with washer (for compensating actuator assembly) | 91621-60822 |
| 17239 | No. 2 V-shaped clamp | 17239-70010 |
| 17271 | No. 1 turbine vibration isolation pad | 17271-64060 · 17271-64070 · 17271-64071 |
| 17272 | No. 2 turbine vibration isolation pad | 17272-64040 · 17272-64041 |
| 17278 | Gasket (turbo to exhaust manifold) | 17278-64030 |
| 17279 | Turbine outlet elbow gasket | 17279-55011 · 17279-64020 |
| 17291 | Turbine oil outlet elbow | 17291-64070 · 17291-64080 |
| 17293 | Turbocharger stay | 17293-64050 · 17293-64060 |
| 17294 | Actuator hose | 17294-28010 |
| 17294A | Clamp (for actuator hose) | 96132-41100 |
| 17296 | Bearing shell side plate | 17296-28010 |
| 17341H | air hose | 17341-64070 · 17341-64100 |
| 17341J | hose clamp | 90460-50002 · 90460-65004 · 90467-53002 |
| 17671A | Intake connecting pipe gasket | 17671-64010 |
| 17861F | Intake connecting pipe | 17861-64060 |
| 25508 | Manifold three-way catalytic converter sub-assembly | 25508-74170 · 25508-74180 · 25508-74260 · 25508-74270 · 25508-74280 |
| 25508A | Stud bolts (for manifold three-way catalytic converter) | 90116-08171 |
| 25576 | Manifold three-way catalytic converter gasket | 25576-74030 |
| 25586 | No. 1 manifold three-way catalytic converter vibration isolation pad | 25586-74011 · 25586-74060 |
| 25587 | No. 2 manifold three-way catalytic converter vibration isolation pad | 25587-74011 · 25587-74060 |
| 25591 | Manifold bracket | 25591-74011 |
