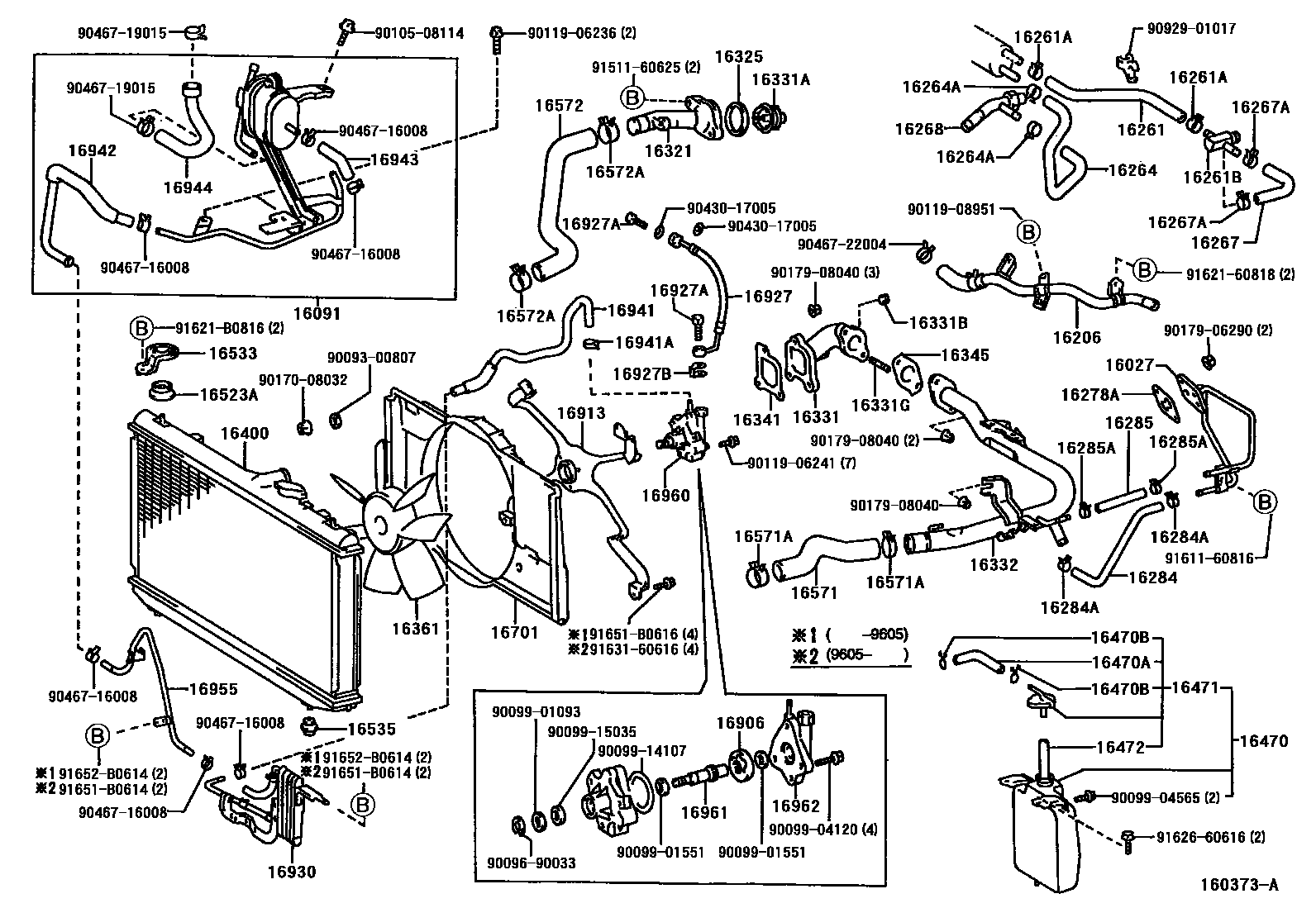

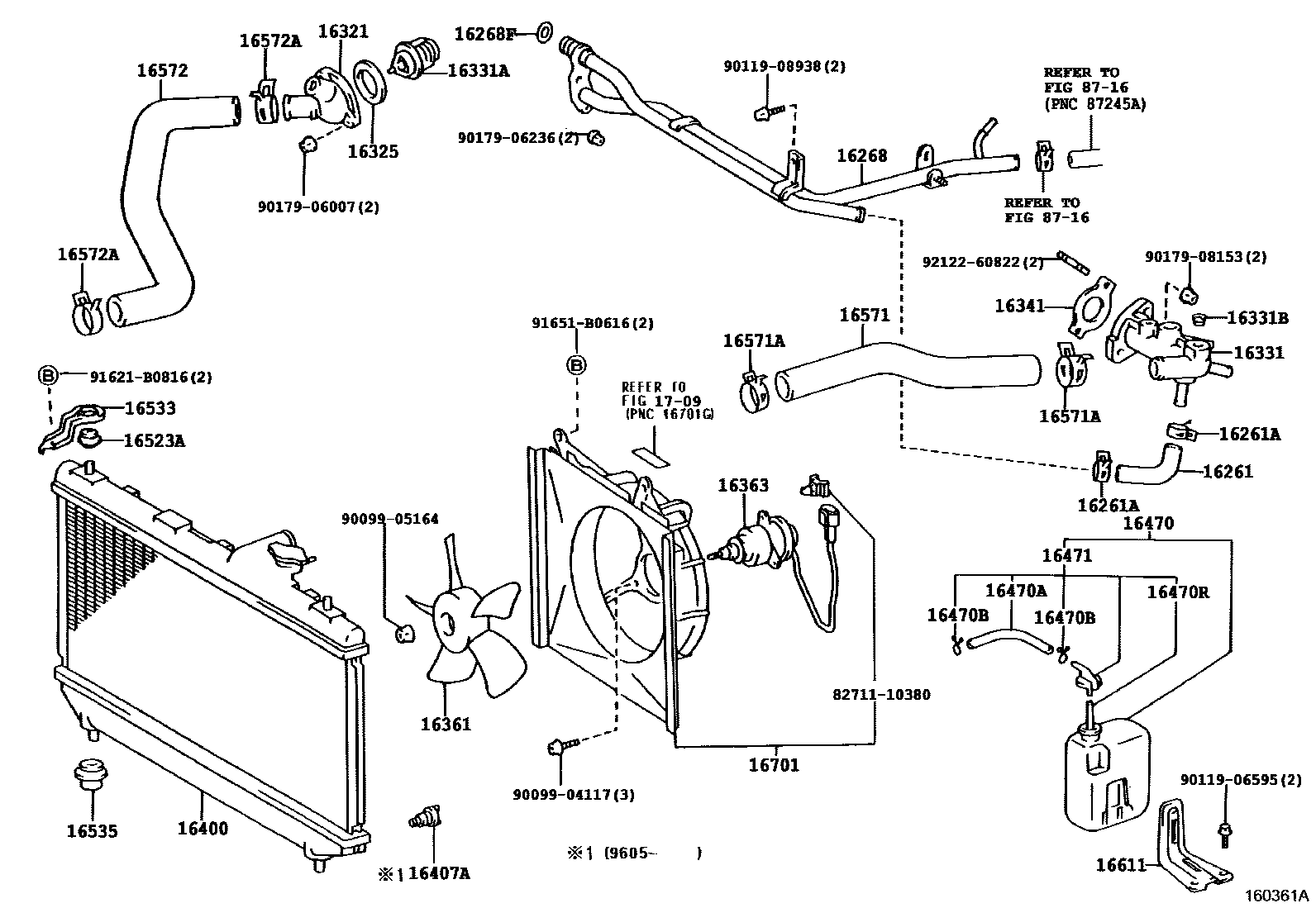

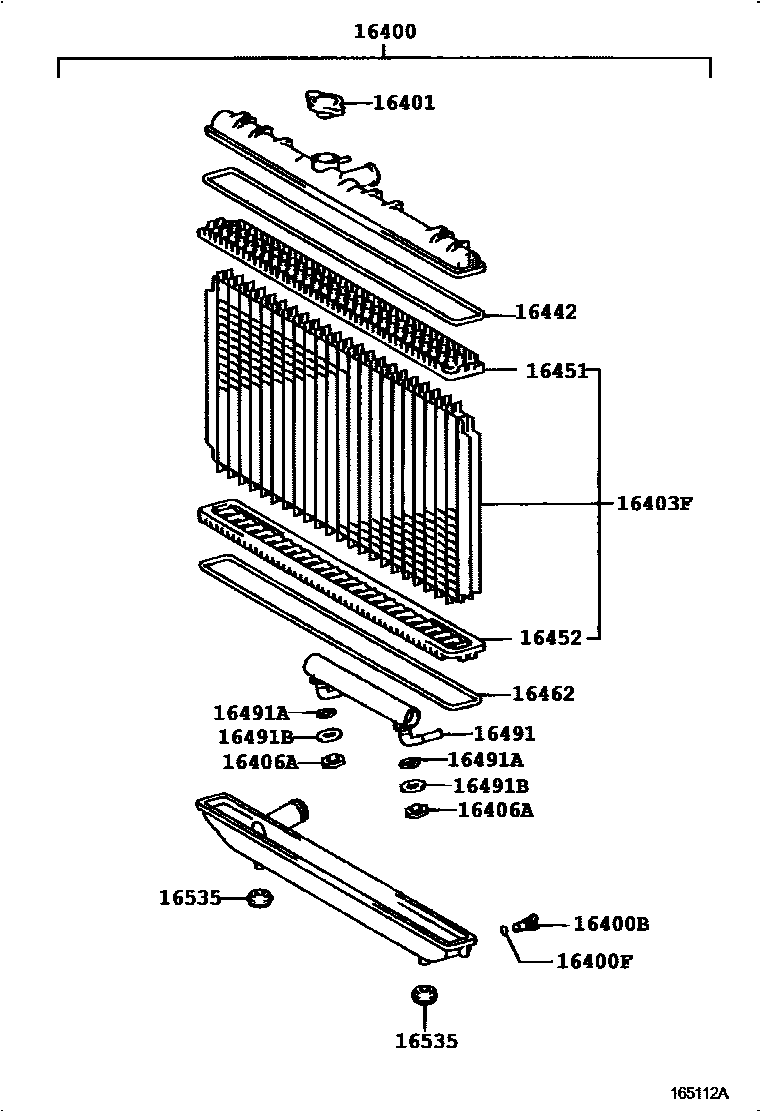

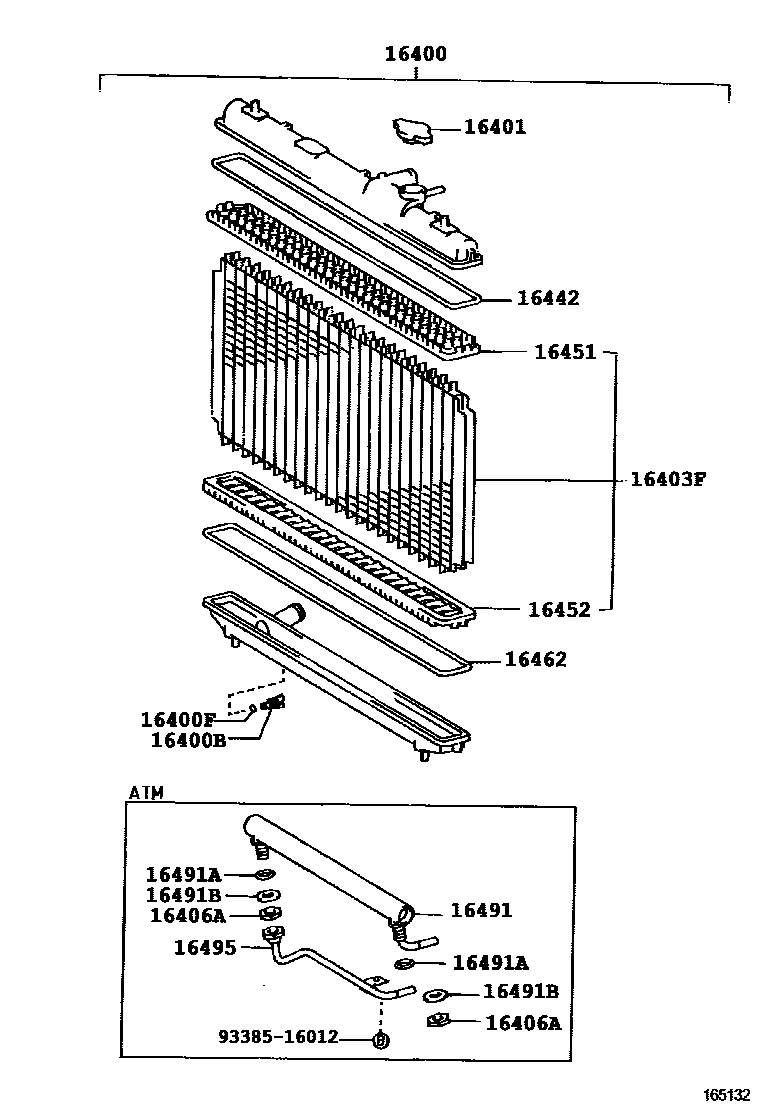

Toyota CAMRY RADIATOR & WATER OUTLET — Figure 1603
Toyota CAMRY EPC diagram 1603, RADIATOR & WATER OUTLET, with 4 images and 71 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16027 | No. 1 turbine water pipe sub-assembly | 16027-64060 |
| 16091 | Hydraulic motor oil filter sub-assembly | 16091-64020 |
| 16206 | PIPE SUB-ASSY, WATER BY-PASS | 16206-64040 |
| 16261 | HOSE, WATER BY-PASS | 16261-64060 · 16261-64110 · 16261-74010 · 16261-74100 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-15022 · 90467-22003 |
| 16261B | Connector (for water bypass hose) | 90404-53050 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-64090 · 16264-64110 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-15022 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-64010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-11009 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-64061 · 16268-74152 · 16268-74153 · 16268-74190 |
| 16268F | O-ring (for water bypass pipe) | 96761-24017 |
| 16278A | water bypass liner | 16347-42020 |
| 16284 | Turbine Water Hose No. 1 | 99556-10300 |
| 16284A | Clamp (for No. 1 turbine water hose) | 90467-13128 |
| 16285 | Turbine Water Hose No. 2 | 99556-10200 |
| 16285A | Clamp (for No. 2 turbine water hose) | 90467-13128 |
| 16321 | water inlet | 16321-64020 · 16321-64050 · 16321-74030 · 16321-74050 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-63011 |
| 16331 | Water outlet | 16331-64030 · 16331-74170 · 16331-74210 · 16331-74220 · 16331-74260 |
| 16331A | thermostat | 90916-03046 · 90916-03090 |
| 16331B | Screw plug (for water outlet) | 90345-53007 · 90345-53009 · 90345-53030 |
| 16331G | Stud bolts (for water inlet) | 92122-60816 |
| 16332 | No. 1 outlet pipe | 16306-64041 · 16306-64042 · 16306-64050 |
| 16341 | GASKET, WATER OUTLET | 16341-64021 · 16341-74020 |
| 16345 | Outlet pipe gasket | 16345-64041 |
| 16361 | Fan | 16361-74050 · 16361-74060 · 16361-74100 · 16361-74110 · 16911-64010 |
| 16363 | cooling fan motor | 16363-11010 · 16363-11020 · 16363-11030 |
| 16400 | Radiator assembly | 16400-64770 · 16400-6A040 · 16400-6A050 · 16400-6A090 · 16400-6A100 · 16400-6A110 · 16400-7A130 · 16400-7A140 · 16400-7A150 · 16400-7A160 · 16400-7A170 |
| 16400B | Radiator drain switch screw plug | 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-72090 |
| 16403F | Radiator core sub-assembly | 16403-62080 · 16403-74670 · 16403-74680 · 16403-74690 · 16403-74700 |
| 16406A | Bracket (for transmission oil cooler) | 16406-62060 · 16406-74520 |
| 16407A | Radiator drain switch sub-assembly | 16407-7A130 |
| 16442 | O-ring (for radiator tank) | 16442-74670 · 16462-74670 |
| 16451 | Radiator core upper plate | 16451-74670 · 16452-74680 |
| 16452 | Radiator core lower plate | 16452-74670 · 16452-74680 |
| 16462 | O-ring (for radiator lower tank) | 16462-74670 |
| 16470 | Radiator reservoir assembly | 16470-64210 · 16470-74290 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16477-64210 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-64100 · 16405-74280 |
| 16491 | Oil cooler (for ATM) | 16491-16380 · 16491-62060 · 16491-64770 · 16491-74680 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-62060 |
| 16491B | Flat Washer (for automatic transmission oil cooler) | 16493-62060 · 16493-74520 |
| 16495 | Oil line nut (for automatic transmission oil cooler) | 16495-7A150 · 16495-7A170 |
| 16523A | Radiator bracket cushion | 16523-74010 |
| 16533 | Radiator upper bracket | 16533-74280 |
| 16535 | Radiator lower support | 16535-64070 · 16535-74200 |
| 16571 | Radiator water inlet hose | 16571-64240 · 16571-74320 · 16571-74380 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-34003 |
| 16572 | Radiator outlet hose | 16572-64260 · 16572-74260 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-34003 · 90467-37002 |
| 16611 | Radiator reservoir bracket | 16611-74150 |
| 16701 | Fan cover sub-assembly | 16711-74550 · 16711-74560 · 16711-74570 · 16912-64030 |
| 16906 | Hydraulic gear set | 16906-50010 · 16906-50020 · 16906-50030 |
| 16913 | Hydraulic motor fan cover stay | 16913-64010 · 16913-64011 |
| 16927 | hydraulic motor pressure hose | 16927-64020 |
| 16927A | Connector bolt (for pressure hose) | 90401-16015 · 90401-17003 |
| 16927B | Gasket (for pressure hose) | 44327-12010 |
| 16930 | Hydraulic motor oil cooler assembly | 16930-64010 |
| 16941 | No. 1 hydraulic motor oil return hose | 16941-64030 |
| 16941A | Clamp (for No. 1 oil return hose) | 90467-16008 |
| 16942 | No. 2 hydraulic motor oil return hose | 16942-64020 |
| 16943 | No. 3 hydraulic motor oil return hose | 44412-32080 |
| 16944 | No. 4 hydraulic motor oil return hose | 16944-64010 |
| 16955 | Hydraulic motor return pipe | 16955-64010 · 16955-64020 |
| 16960 | Hydraulic gear motor assembly | 16960-62010 |
| 16961 | Hydraulic gear motor shaft | 16961-50010 |
| 16962 | Hydraulic gear motor cover | 16962-62010 |
