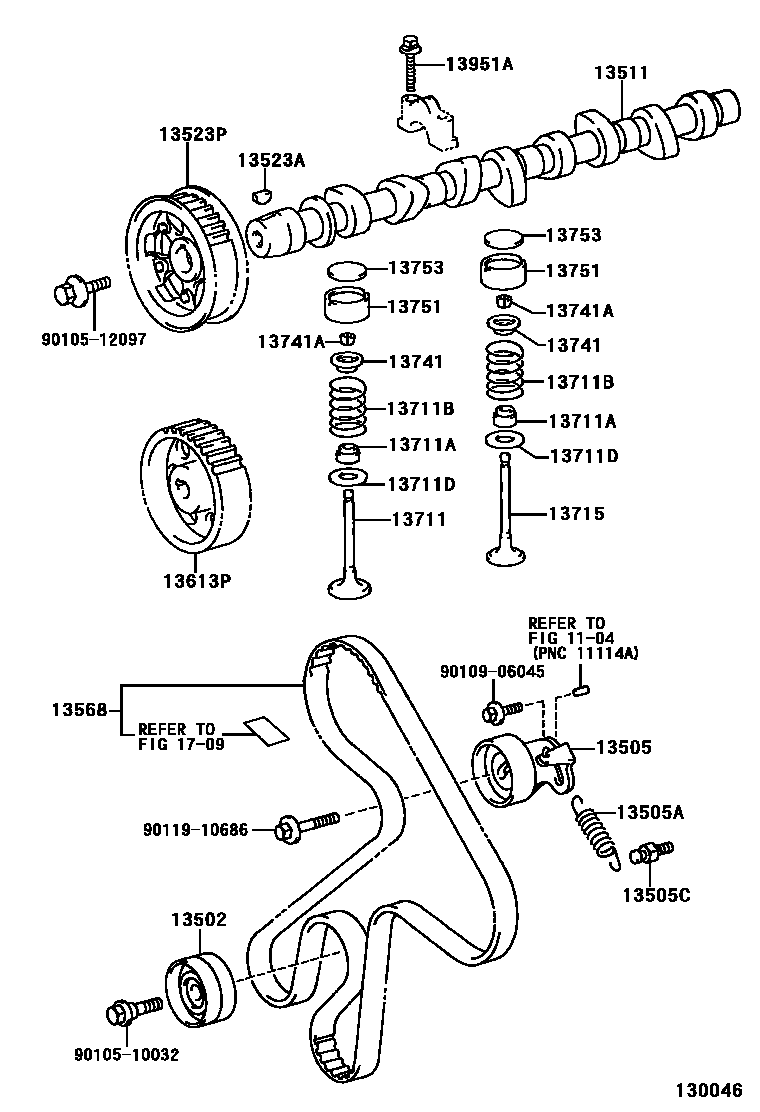

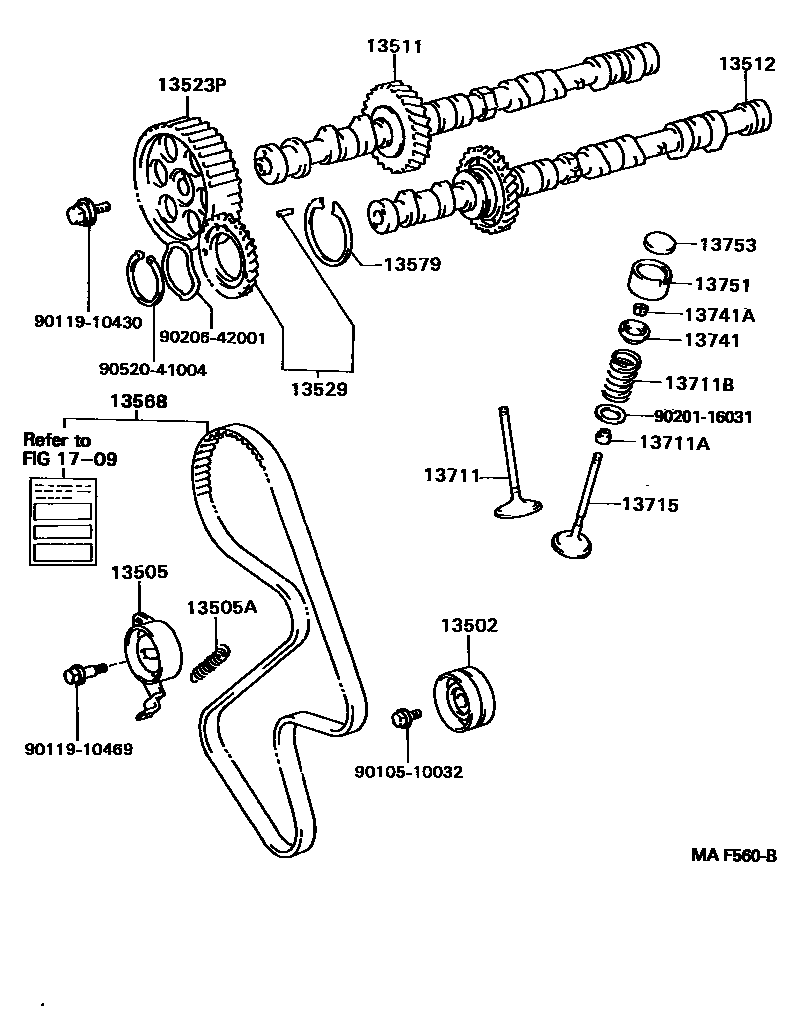

Toyota CAMRY Camshaft & Valve — Figure 1302
Toyota CAMRY EPC diagram 1302, Camshaft & Valve, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13502 | No. 2 timing belt idler pulley sub-assembly | 13503-63011 · 13503-64020 |
| 13505 | No. 1 timing belt idler pulley sub-assembly | 13505-64011 · 13505-74011 |
| 13505A | Tension spring (for idler pulley) | 90507-17003 · 90507-18006 · 90507-18030 |
| 13505C | Pin (for idler tension spring) | 13575-64010 |
| 13511 | camshaft | 13501-74050 · 13511-64090 |
| 13512 | Camshaft No. 2 | 13502-74030 |
| 13523A | Half-moon pin (for timing gear) | 90280-05004 |
| 13523P | Camshaft timing pulley | 13051-64012 · 13523-74020 · 13523-74040 · 13523-74050 |
| 13529 | Camshaft counter gear | 13529-74900 |
| 13568 | timing belt | 13568-69066 · 13568-79095 · 13568-79225 |
| 13579 | Camshaft timing gear bolt washer | 13579-74010 |
| 13613P | Fuel injection pump drive pulley | 13613-64011 |
| 13711 | intake valve | 13711-64020 · 13711-64030 · 13711-74080 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02066 · 90913-02088 · 90913-02090 · 90913-02094 · 90913-02099 · 90913-02109 · 90913-02110 · 90913-02116 |
| 13711B | Compression spring (for inner side) | 90501-43003 · 90504-37002 |
| 13711D | Flat washer (for valve spring seat) | 90201-16010 · 90201-22010 |
| 13715 | exhaust valve | 13715-64040 · 13715-74080 |
| 13741 | Valve spring seat ring | 13741-43010 · 13741-50020 |
| 13741A | Valve spring seat lock plate | 90913-03014 · 90913-03021 |
| 13751 | valve lifter | 13751-64011 · 13751-74020 |
| 13753 | valve adjustment gasket | 13753-64010 · 13753-64030 · 13753-64050 · 13753-64070 · 13753-64090 · 13753-64110 · 13753-64130 · 13753-64150 · 13753-64170 · 13753-64190 · 13753-64210 · 13753-64230 · 13753-64250 · 13753-64270 · 13753-64290 · 13753-64310 · 13753-64330 · 13753-64350 · 13753-64370 · 13753-64390 · 13753-64410 · 13753-64430 · 13753-64450 · 13753-64470 · 13753-64490 · 13753-74010 · 13753-74030 · 13753-74050 · 13753-74070 · 13753-74090 · 13753-74110 · 13753-74130 · 13753-74150 · 13753-74170 · 13753-74190 · 13753-74210 · 13753-74230 · 13753-74250 · 13753-74270 · 13753-74290 · 13753-74310 · 13753-74330 |
| 13951A | Bolts (for rocker arm bracket assembly) | 91621-60840 |
