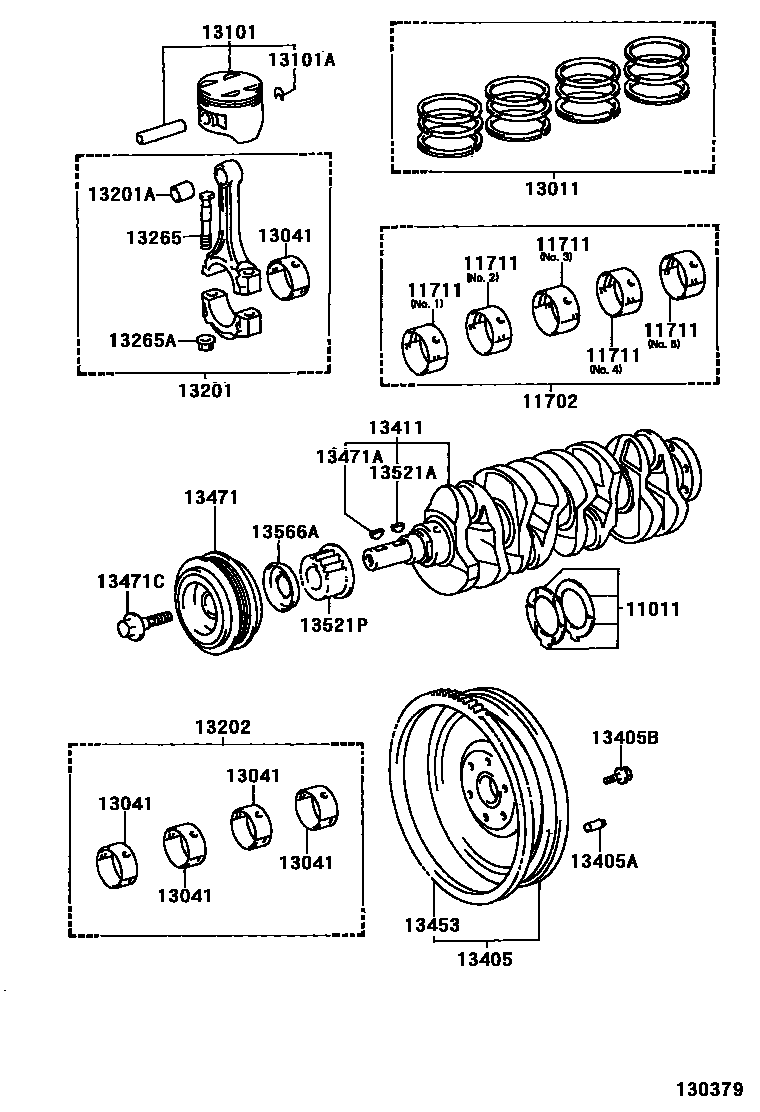

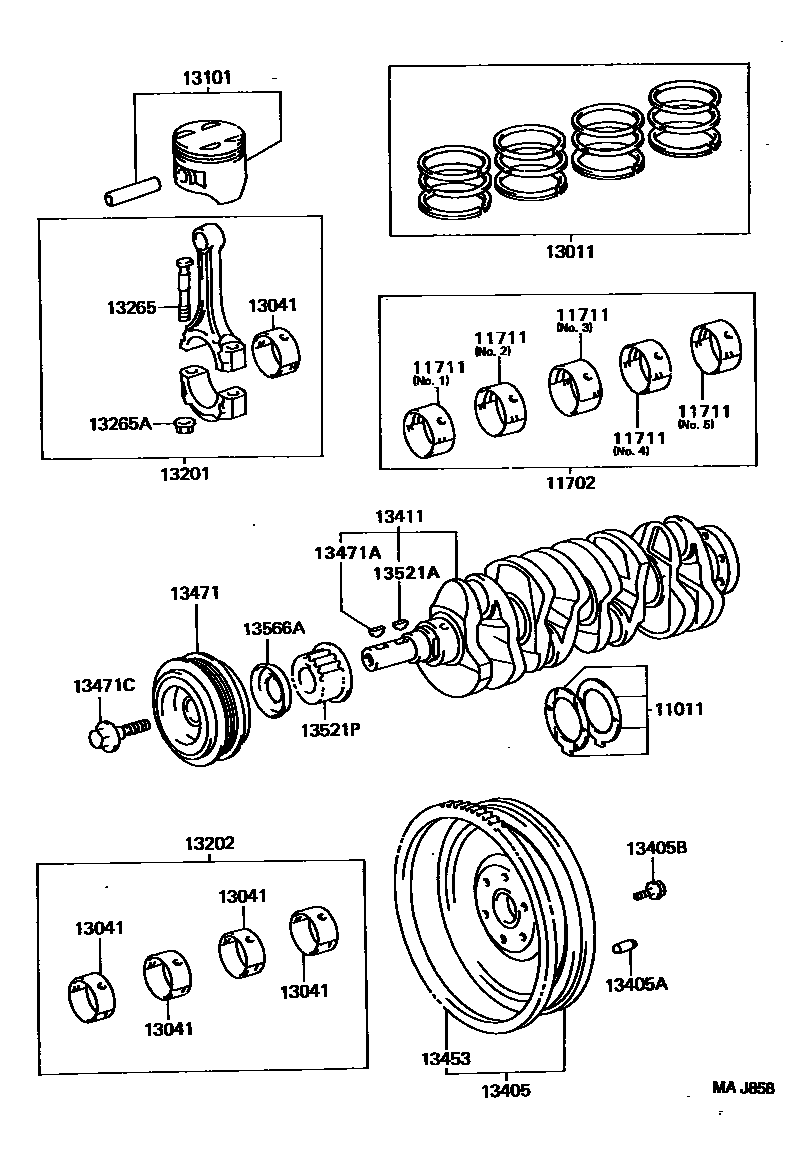

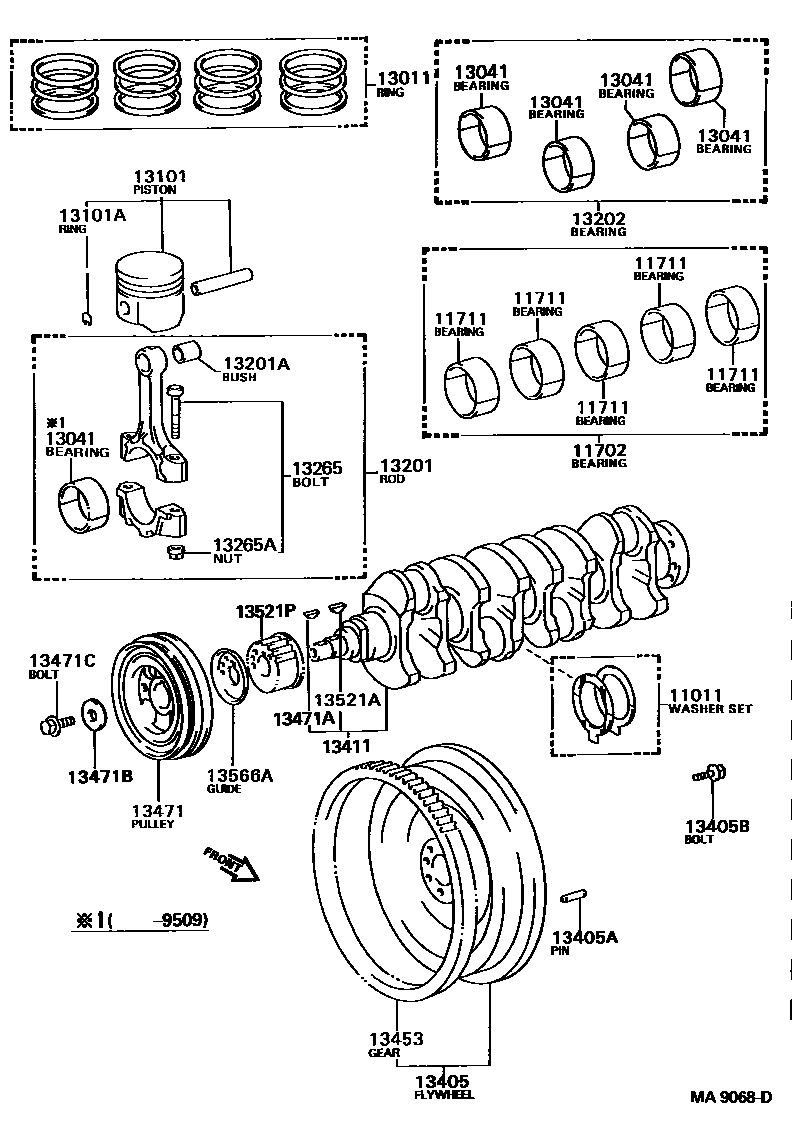

Toyota CAMRY Crankshaft & Piston — Figure 1301
Toyota CAMRY EPC diagram 1301, Crankshaft & Piston, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-64010 · 11011-74020 · 11012-64010 · 11013-64010 |
| 11702 | crankshaft bearing assembly | 11704-63021 · 11704-64040 · 11704-64070 · 11704-64071 |
| 13011 | Piston ring assembly | 13011-64212 · 13011-74072 · 13011-74121 · 13011-74360 · 13011-74361 · 13013-64212 · 13013-74072 · 13013-74121 · 13013-74360 · 13013-74361 · 13014-74121 |
| 13101 | Piston sub-assembly with pin | 13103-64160 · 13103-64170 · 13103-74100 · 13103-74160 · 13103-74191 · 13104-74160 |
| 13101A | Bore snap ring (for piston pin) | 90521-25004 · 90521-29003 |
| 13201 | Connecting rod sub-assembly | 13201-64031 · 13201-64032 · 13201-69076 · 13201-79146 · 13201-79215 · 13201-79305 · 13201-79306 · 13201-79405 |
| 13201A | Bushing (for connecting rod small end) | 90999-73102 · 90999-73112 · 90999-73138 |
| 13202 | Connecting rod bearing assembly | 13204-64041 · 13204-64070 · 13204-64071 · 13204-64072 · 13204-74030 · 13204-74040 |
| 13265 | Connecting rod bolts | 13265-49015 · 13265-49045 · 13265-62030 |
| 13265A | Hexagonal nut (for connecting rod bolts) | 90179-08118 · 90179-10042 |
| 13405 | Flywheel sub-assembly | 13405-64060 · 13405-74051 · 13405-74120 |
| 13405A | Direct sales (for flywheel) | 90250-08054 |
| 13405B | Flywheel fixing bolt | 90105-10071 |
| 13411 | crankshaft | 13411-64903 · 13411-64905 · 13411-64907 · 13411-74908 |
| 13453 | flywheel ring gear | 13453-64011 · 13453-74011 |
| 13471 | crankshaft pulley | 13408-64120 · 13408-74041 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-05005 · 95161-30516 |
| 13471B | Flat Washer (for crankshaft pulley assembly) | 90201-14030 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90105-14089 · 90119-14015 |
| 13521A | Key (for crankshaft timing gear) | 90280-05005 · 95161-30622 |
| 13521P | crankshaft timing pulley | 13521-64011 · 13521-74020 · 13521-74040 |
| 13566A | timing belt guide | 13566-64011 · 13567-74010 |
