Toyota CAMRY Ventilation Hose — Figure 1201

Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 3 images and 8 PNC and OE references.

Toyota CAMRY Ventilation Hose EPC diagram — MAD936
Ventilation Hose — MAD936 (199406 – 999999)

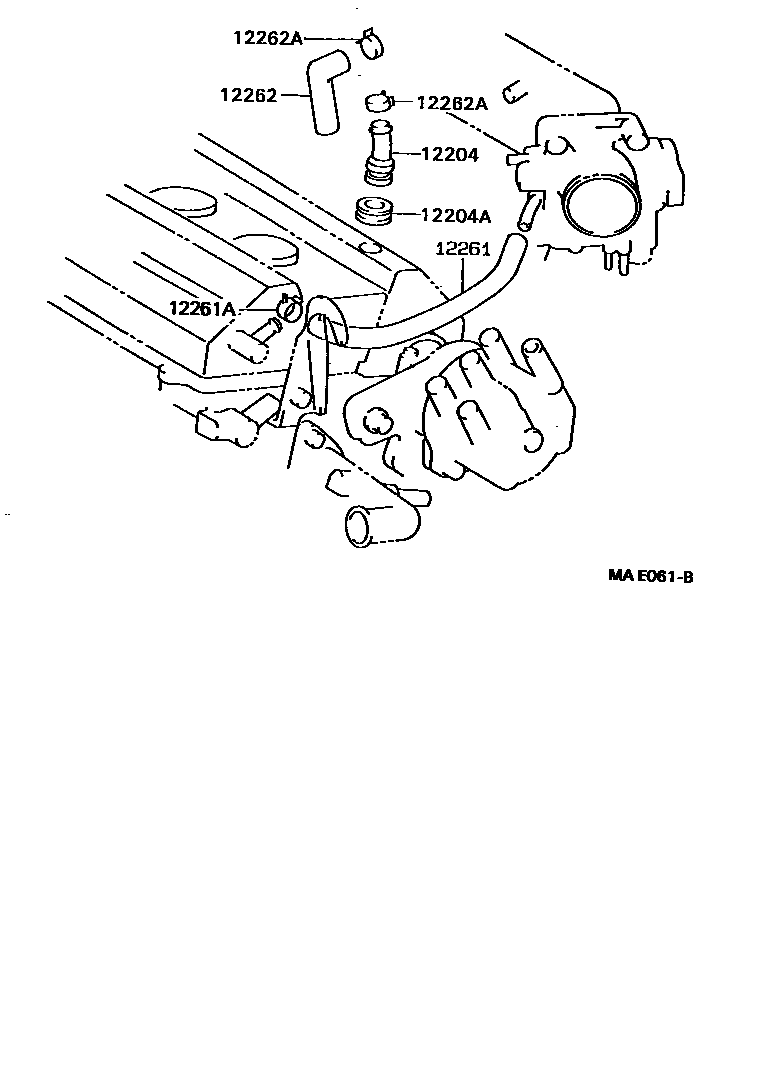

Toyota CAMRY Ventilation Hose EPC diagram — MAE061B
Ventilation Hose — MAE061B (199406 – 199605)
Toyota CAMRY Ventilation Hose EPC diagram — MAJ857
Ventilation Hose — MAJ857 (199605 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-74020 · 12204-74030
12204AGasket (for ventilation system)90480-18001
12221Ventilation duct No. 190407-14026
12222BClip (for ventilation duct)90467-20002
12261Ventilation Hose12261-64170 · 12261-64220 · 12261-74020 · 12261-74090 · 12261-74120
12261AClip or clip (for vent hose)90467-14043 · 90467-15016 · 90467-15022 · 90467-18003
12262Ventilation hose No. 212262-74050 · 12262-74100
12262AClamp (for vent hose No. 2)90467-13103 · 90467-14043 · 90467-15016 · 90467-15022
