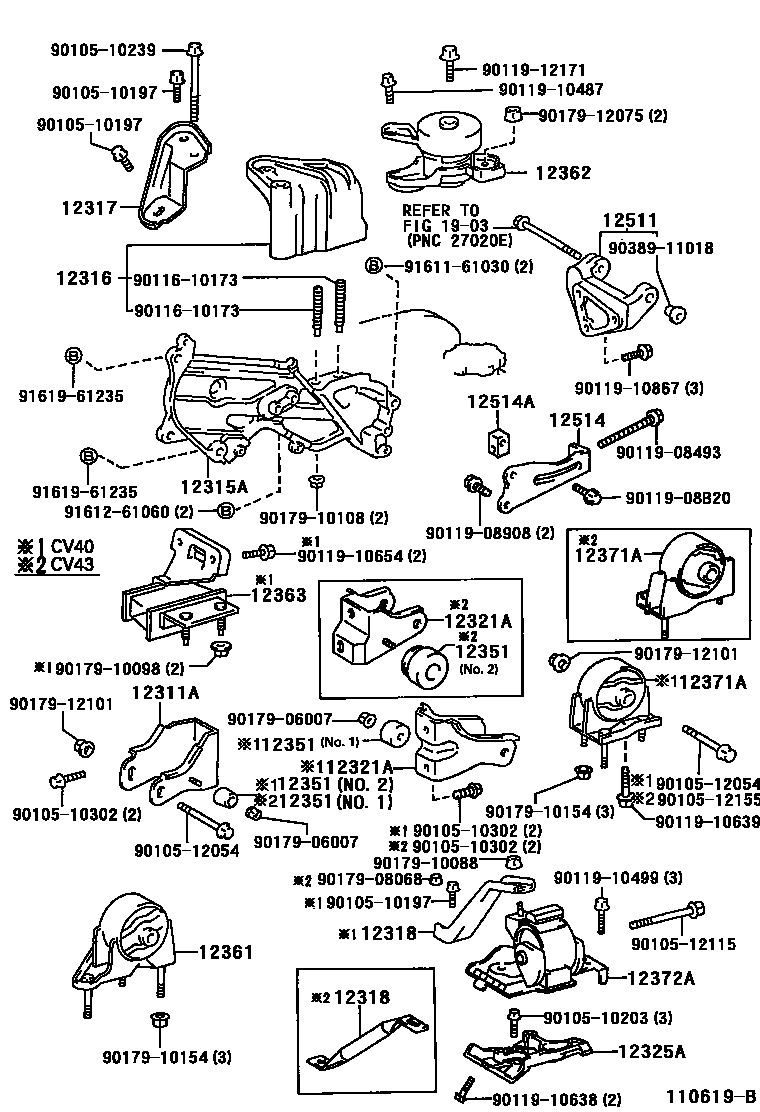

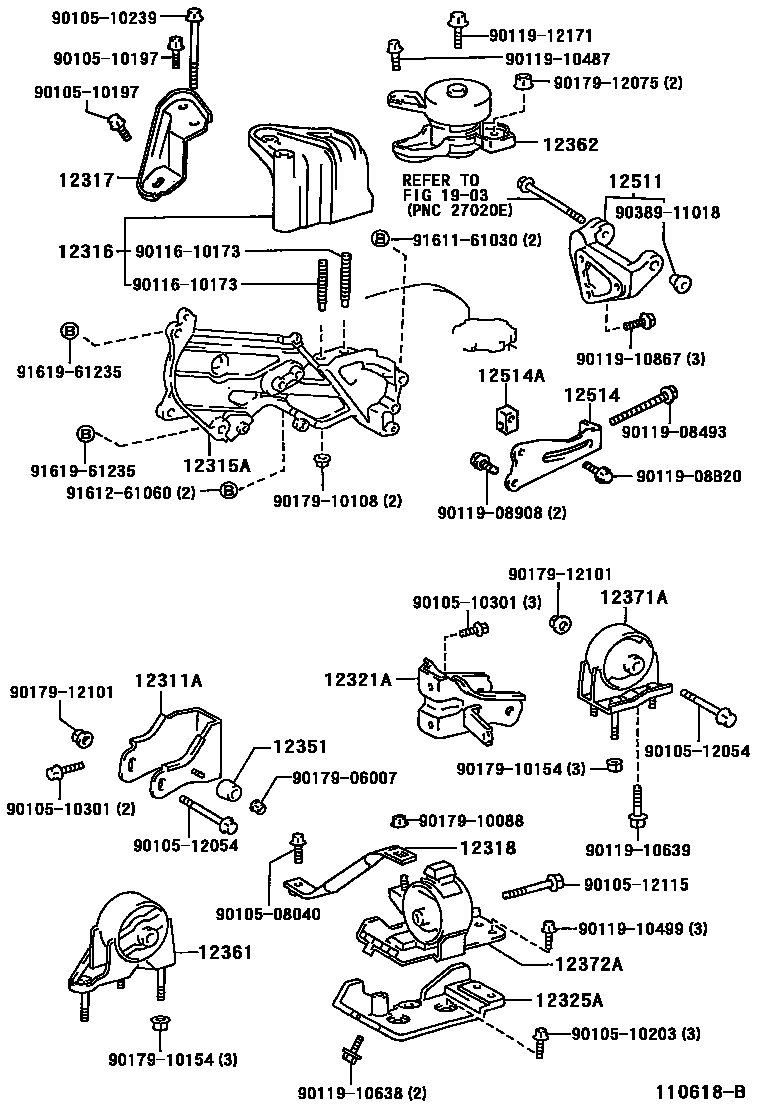

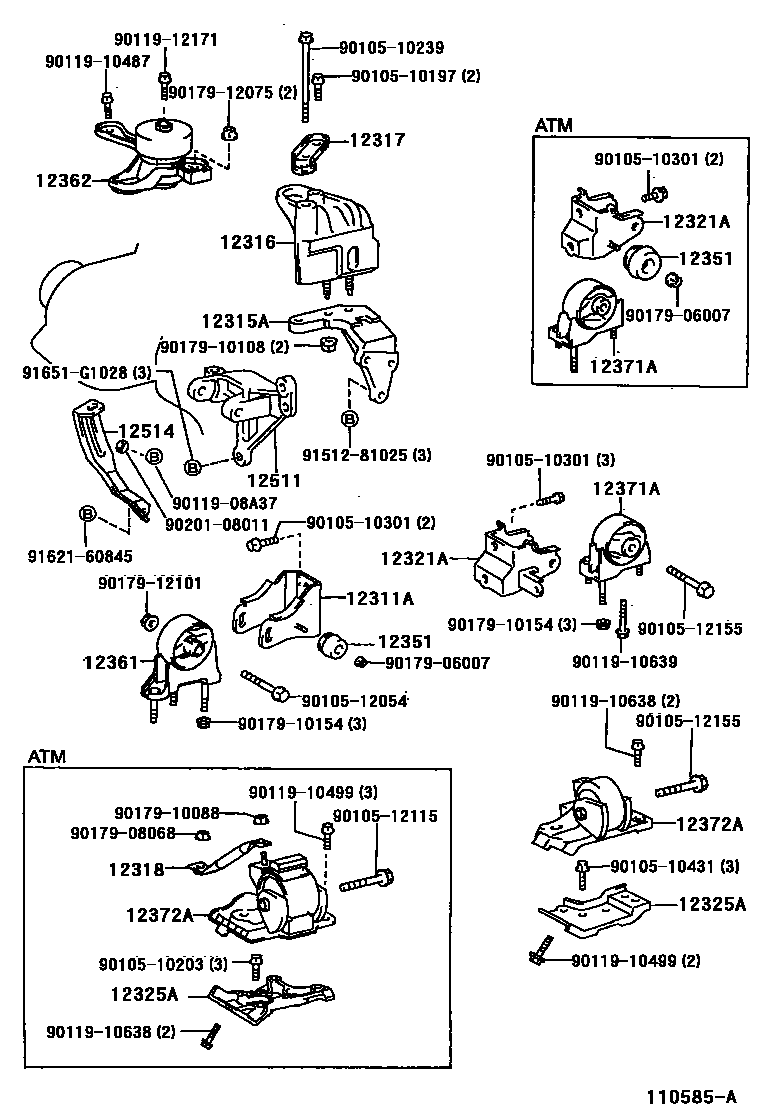

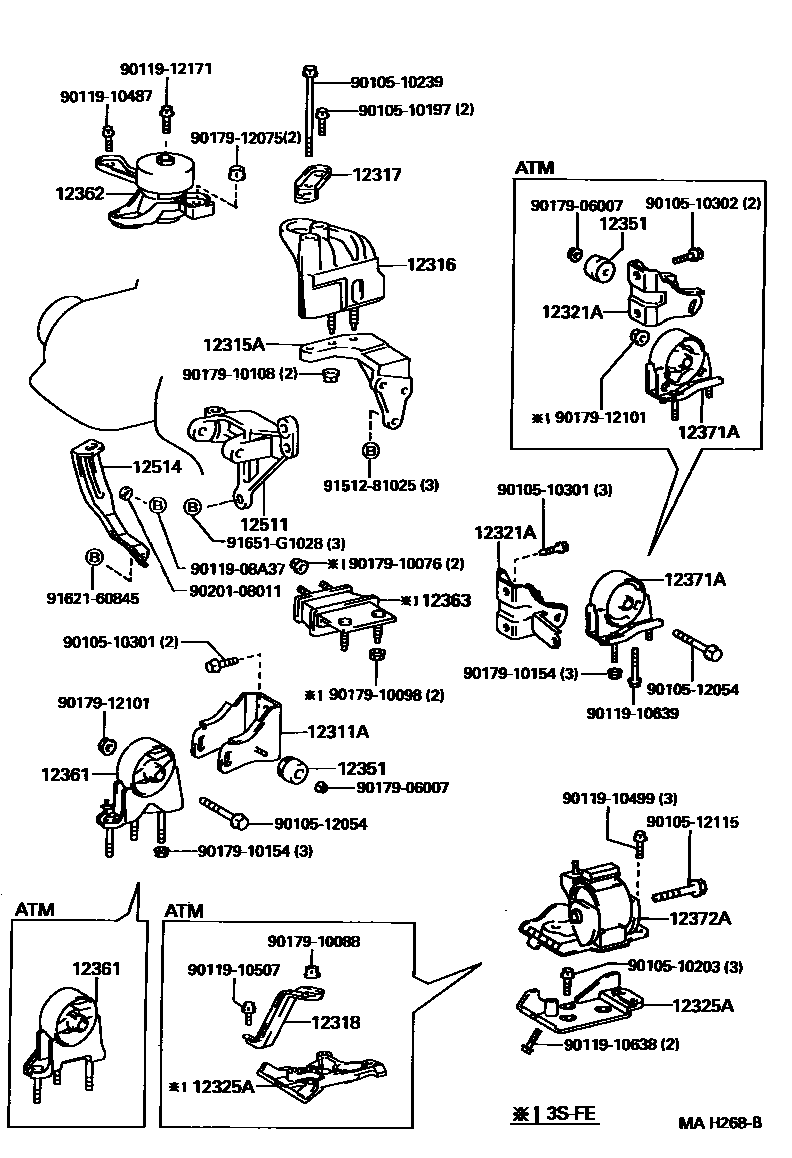

Toyota CAMRY Engine Mounting — Figure 1107
Toyota CAMRY EPC diagram 1107, Engine Mounting, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-64170 · 12311-64190 · 12311-74030 · 12311-74110 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-64050 · 12315-74060 · 12315-74061 · 12315-74090 · 12315-74091 |
| 12316 | Engine No. 2 right side suspension bracket | 12316-64010 · 12316-64070 · 12316-74020 |
| 12317 | Engine right mounting bracket | 12317-64060 · 12317-74060 · 12317-74120 |
| 12318 | Engine left mounting bracket | 12318-64090 · 12318-74060 · 12318-74070 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-74210 · 12321-74220 · 12321-74230 · 12321-74240 · 12321-74360 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-74140 · 12325-74160 · 12325-74220 · 12325-74280 · 12325-74290 |
| 12351 | engine mount shock absorber | 12351-63010 · 12351-64020 · 12351-74020 |
| 12361 | Engine front mounting vibration isolation pad | 12361-62060 · 12361-74200 · 12361-74210 · 12361-74220 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-64210 · 12362-74260 · 12362-74261 · 12362-74270 · 12362-74271 · 12362-74272 |
| 12363 | Engine center mount vibration isolation pad | 12363-64040 · 12363-74100 |
| 12371A | Engine rear mount vibration isolation pad | 12371-62030 · 12371-64190 · 12371-74280 · 12371-74291 · 12371-74480 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-74300 · 12372-74320 · 12372-74420 · 12372-74530 · 12372-74540 |
| 12511 | No. 1 generator bracket | 12511-64060 · 12511-74051 |
| 12514 | Generator belt adjustment lever | 12514-74011 · 12514-74050 · 12514-74051 · 16381-64080 |
| 12514A | Fan belt adjustment slider | 16385-64011 |
