Toyota CAMRY Cylinder Block — Figure 1105

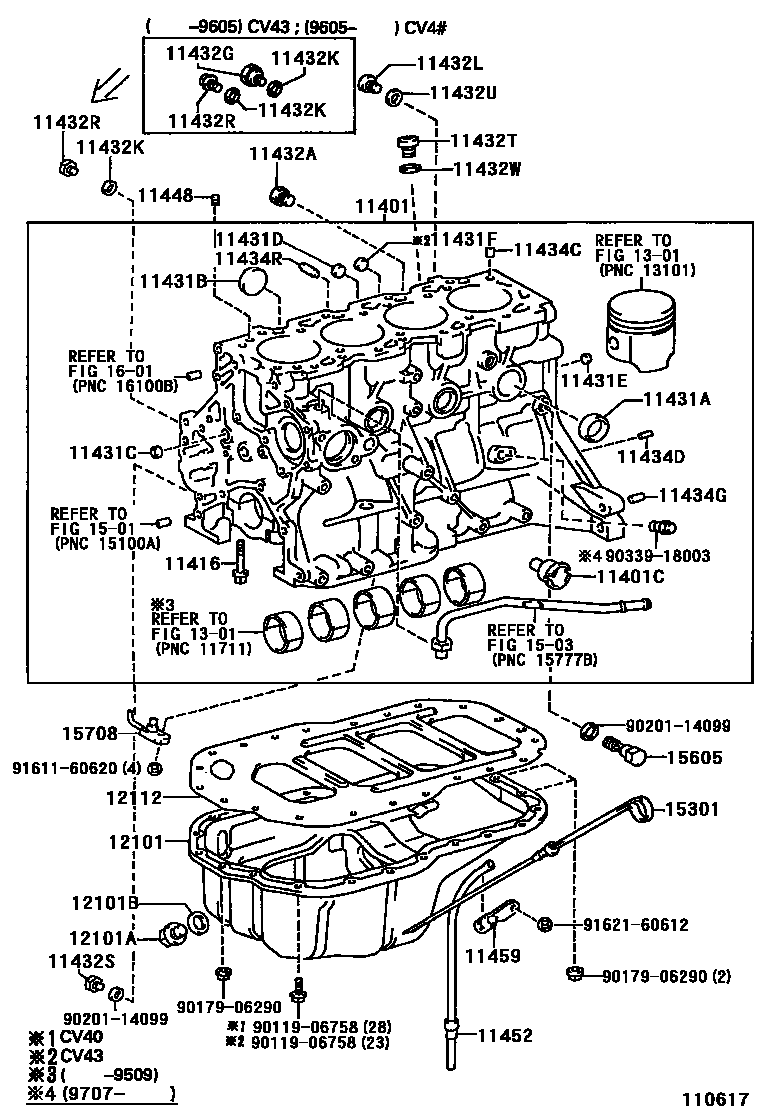

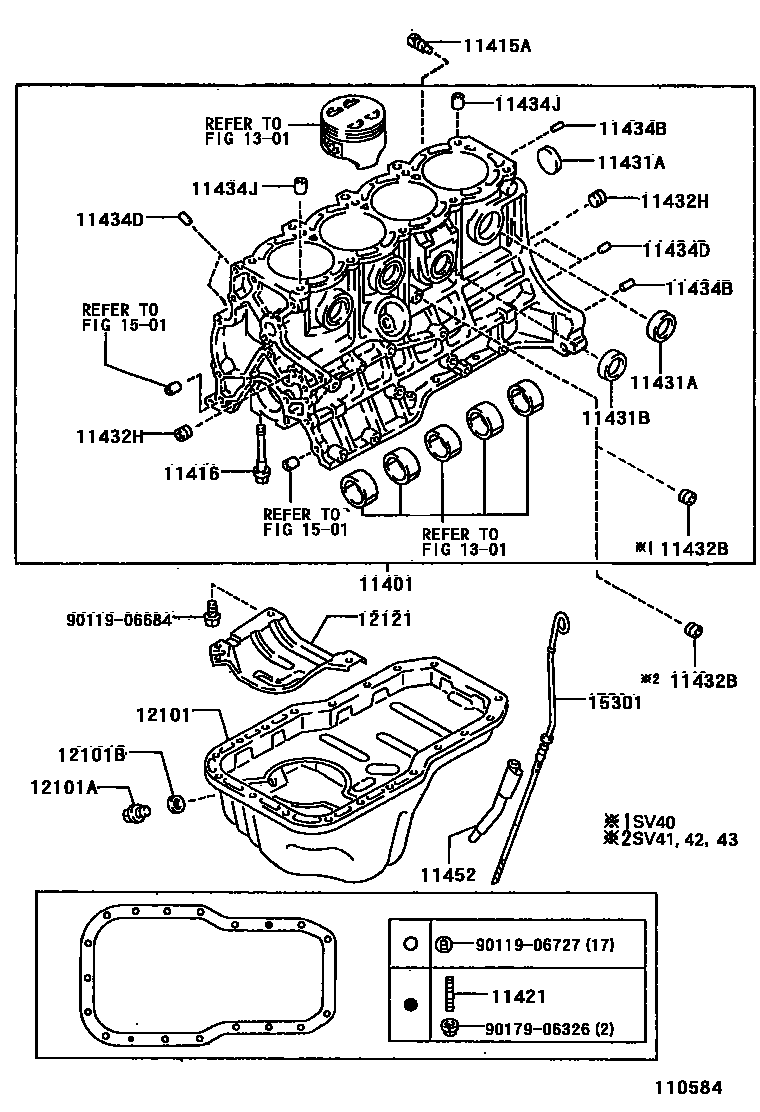

Toyota CAMRY EPC diagram 1105, Cylinder Block, with 2 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11401 | Cylinder block sub-assembly | 11401-69586 · 11401-69595 · 11401-69655 · 11401-69656 · 11401-69657 · 11401-69665 · 11401-69666 · 11401-69667 · 11401-79515 · 11401-79516 · 11401-79517 · 11401-79525 · 11401-79526 · 11401-79595 · 11401-79795 · 11401-79805 · 11401-80015 |
| 11401C | Flange (for water bypass pipe) | 16353-64011 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90345-52001 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90105-10028 · 90910-02061 |
| 11421 | Stud bolts (for oil pan) | 90116-06022 · 92122-60610 |
| 11431A | No. 1 sealing plug (for cylinder block) | 96411-43500 · 96411-63500 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-43000 · 96411-44000 · 96411-63000 |
| 11431C | No. 3 sealing plug (for cylinder block) | 96411-41800 |
| 11431D | No. 4 sealing plug (for cylinder block) | 96411-41800 |
| 11431E | No. 5 sealing plug (for cylinder block) | 96411-41800 |
| 11431F | No. 6 sealing plug (for cylinder block) | 96411-42000 |
| 11432A | No. 1 headed tapered thread plug | 90345-52003 |
| 11432B | No. 2 headed tapered thread plug | 90344-52003 · 90345-52001 |
| 11432G | No. 5 headed straight thread plug | 90404-10030 |
| 11432H | No. 5 headed tapered thread plug | 90344-53006 |
| 11432K | Headed straight thread plug liner | 90430-10027 |
| 11432L | No. 4 headed straight thread plug (for cylinder block) | 90341-18006 |
| 11432R | No. 1 headed straight thread plug (for cylinder block) | 90341-10002 |
| 11432S | No. 2 headed straight thread plug (for cylinder block) | 90341-14032 |
| 11432T | No. 3 headed straight thread plug (for cylinder block) | 90341-22001 |
| 11432U | No. 1 straight thread plug gasket (for cylinder block) | 90430-18001 |
| 11432W | No. 3 straight thread plug gasket (for cylinder block) | 90430-22003 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90253-14002 · 90253-14004 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06003 · 90250-06068 |
| 11434G | Direct sales (for end plates) | 90250-10113 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13017 |
| 11434R | Direct selling (for drive shaft bearing bracket) | 90250-06003 |
| 11448 | Cylinder block oil orifice | 11448-64020 |
| 11452 | Engine oil level gauge guide | 11452-64030 · 11452-74031 |
| 11459 | Oil level gauge guide bracket | 90929-01049 |
| 12101 | Oil pan sub-assembly | 12101-64101 · 12101-64131 · 12101-64140 · 12101-64141 · 12101-74050 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12026 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12112 | No. 2 oil pan | 12112-64040 · 12112-64060 |
| 12121 | No. 1 oil pan baffle | 12123-74040 |
| 15301 | Engine oil level scoring assembly | 15301-64042 · 15301-64090 · 15301-74010 |
| 15605 | Oil check valve sub-assembly | 15605-64020 |
| 15708 | No. 1 oil nozzle sub-assembly | 15790-64021 |
