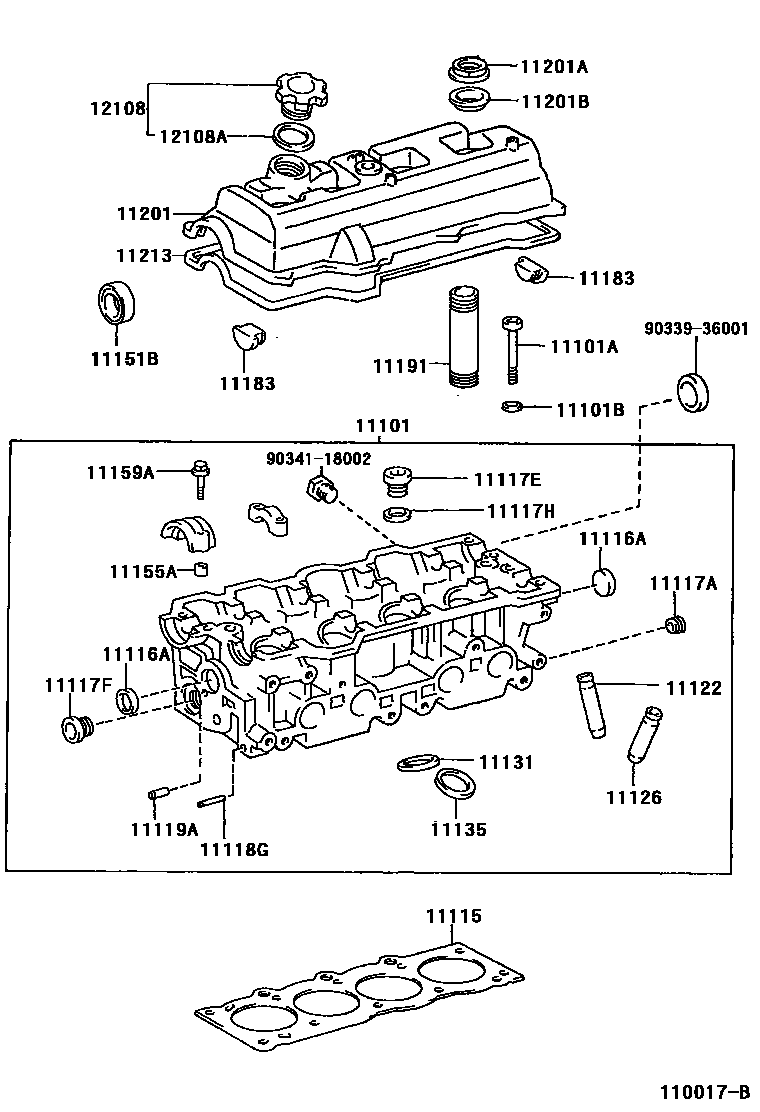

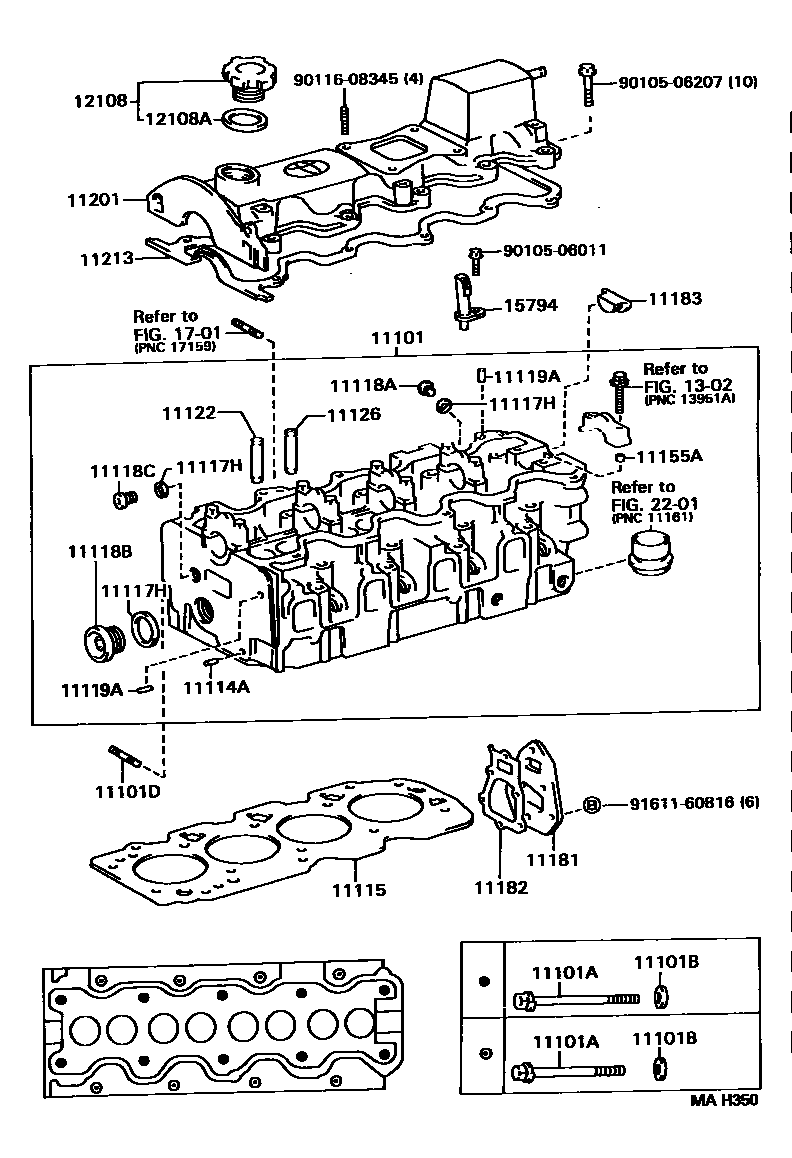

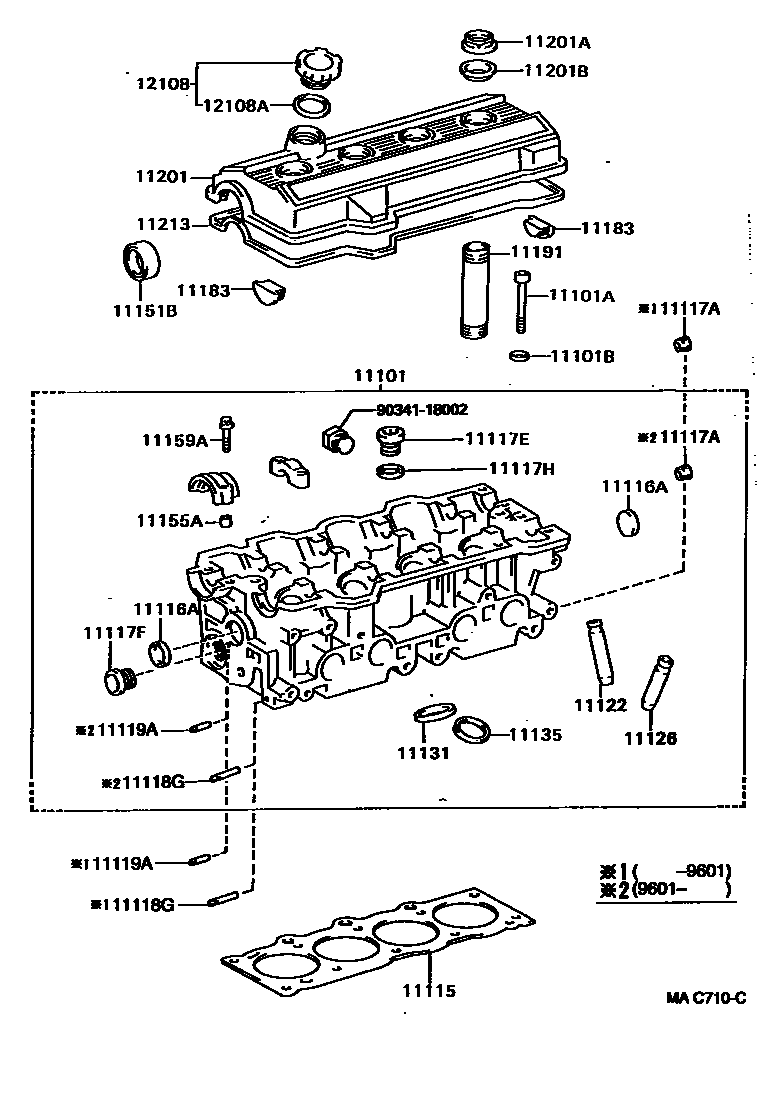

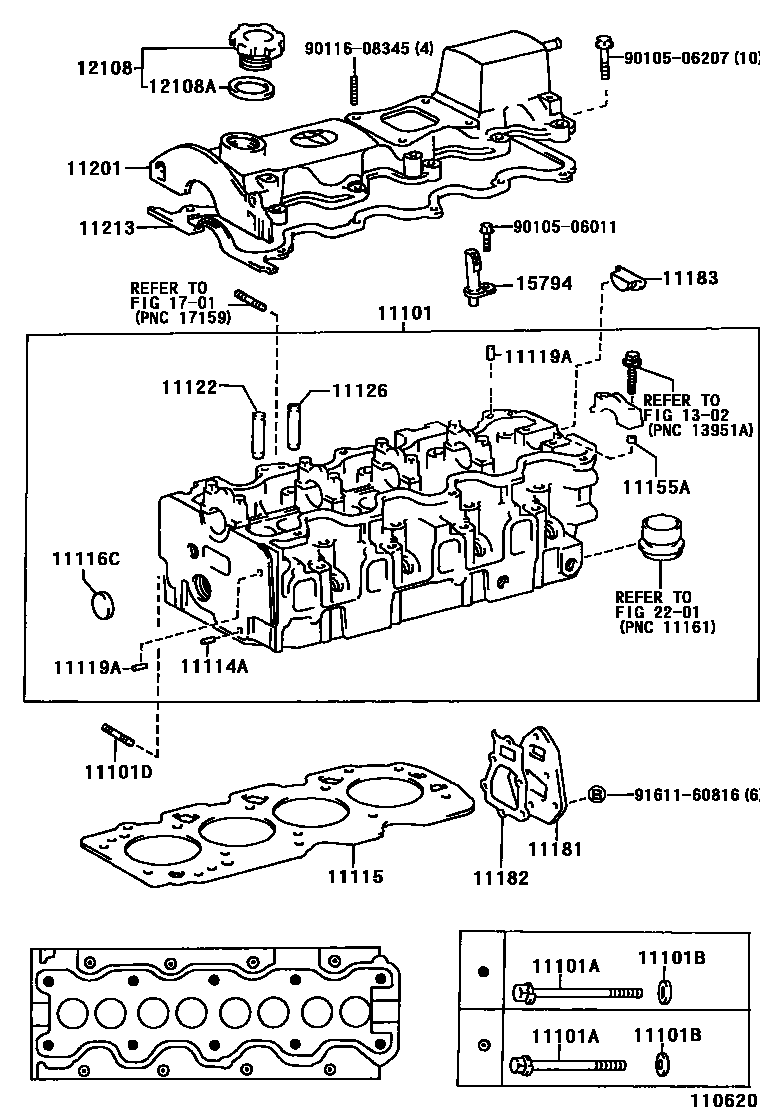

Toyota CAMRY Cylinder Head — Figure 1104
Toyota CAMRY EPC diagram 1104, Cylinder Head, with 4 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-64211 · 11101-64230 · 11101-64261 · 11101-64262 · 11101-64263 · 11101-74900 · 11101-79156 · 11101-79165 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90109-10132 · 90910-02097 · 90910-02099 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-11026 · 90201-12222 |
| 11101D | Stud bolts (for water outlet) | 92122-60820 |
| 11114A | direct selling | 90250-06068 |
| 11115 | GASKET, CYLINDER HEAD | 11115-64130 · 11115-74060 · 11115-74070 · 11115-74110 |
| 11116A | No. 1 sealing plug | 96411-42800 |
| 11116C | No. 3 sealing plug | 96411-63000 |
| 11117A | No. 1 headed tapered thread plug | 90344-53011 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-24090 |
| 11117F | No. 2 headed straight thread plug | 90341-32031 |
| 11117H | Gasket (for coolant hole) | 90430-10204 · 90430-12010 · 90430-24246 · 90430-33133 |
| 11118A | No. 1 straight screw plug | 90341-10005 |
| 11118B | No. 2 straight screw plug | 90341-32070 |
| 11118C | No. 3 straight screw plug | 90341-12013 |
| 11118G | Slotted Spring Pin No. 1 | 90249-06084 |
| 11119A | No. 1 direct sales | 90250-06003 · 90250-06013 · 90250-06068 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-64010 · 11122-74030 · 11123-64010 · 11123-74030 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-16010 · 11123-16010 · 11126-64010 · 11126-64030 · 11127-64010 · 11127-64030 |
| 11131 | intake valve seat | 11131-74020 · 11132-74020 |
| 11135 | Exhaust valve seat | 11135-74030 · 11136-74030 |
| 11151B | OIL SEAL (FOR CAMSHAFT SETTING) | 90311-38046 · 90311-38060 · 90311-38067 |
| 11155A | PIN, RING W/HEAD | 90253-10004 · 90253-11021 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90119-07009 |
| 11181 | cylinder head rear plate | 11181-64010 |
| 11182 | Rear cylinder head gasket | 11182-64020 · 11182-64021 |
| 11183 | PLUG, SEMICIRCULAR | 11183-64010 · 11183-74010 |
| 11191 | spark plug sleeve | 11191-74030 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-64110 · 11201-64111 · 11201-64141 · 11201-74050 · 11201-74070 |
| 11201A | Cap nut (for cylinder head cover) | 90179-28004 |
| 11201B | Gasket (for cylinder head cover) | 90480-30025 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-64060 · 11213-64061 · 11213-74020 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-55010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-37140 |
| 15794 | Cylinder head oil nozzle | 15794-64011 |
