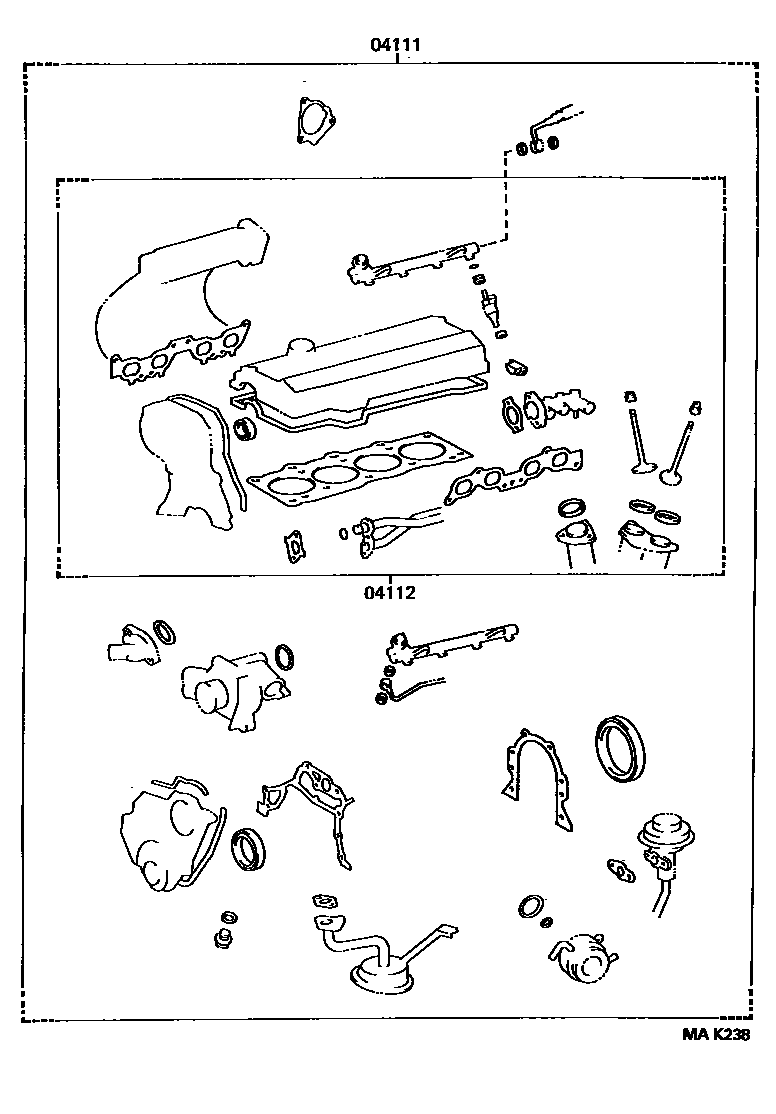

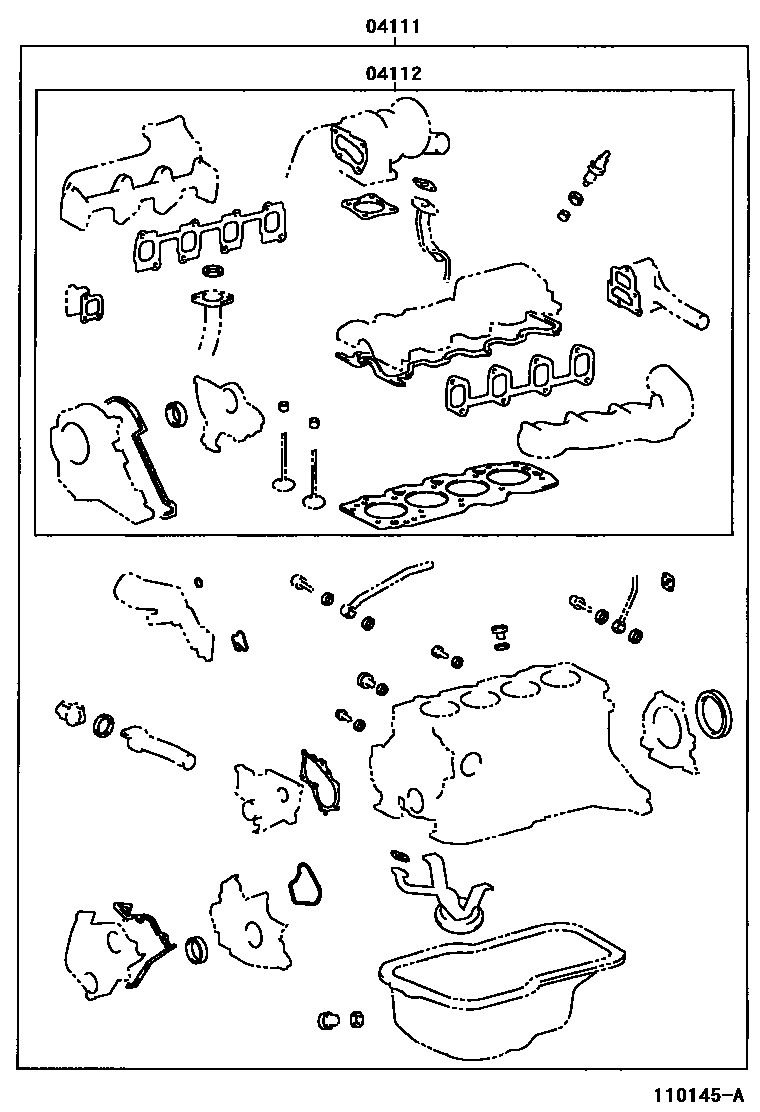

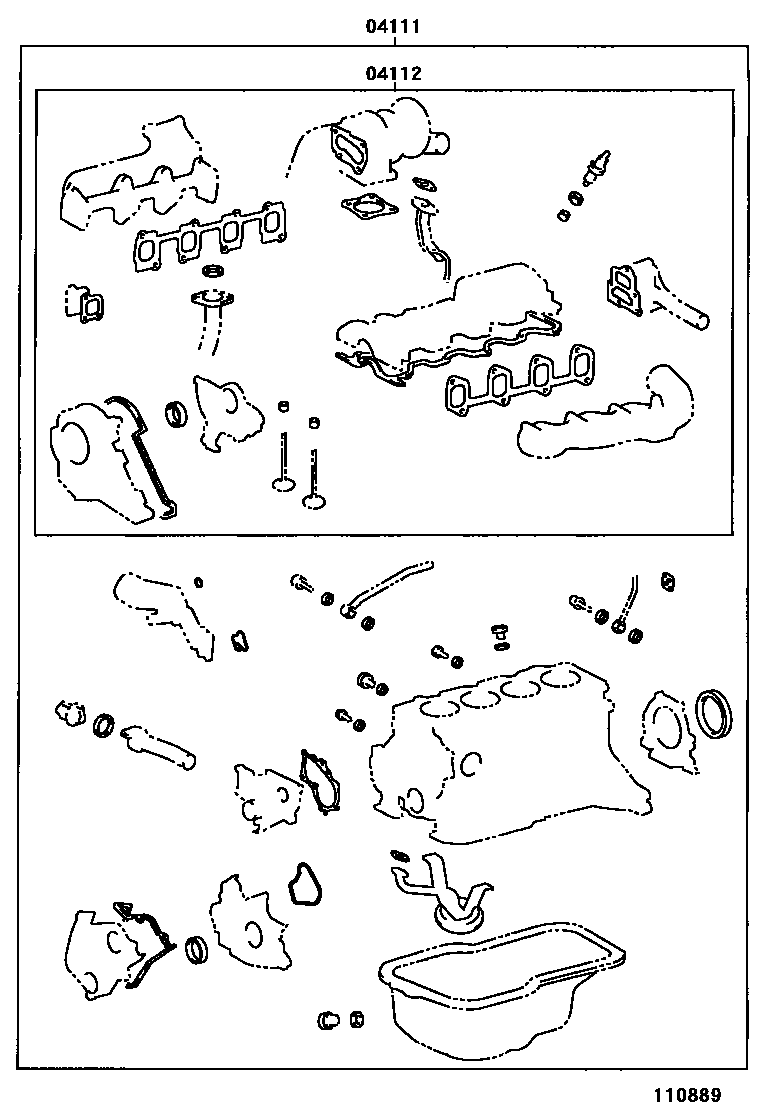

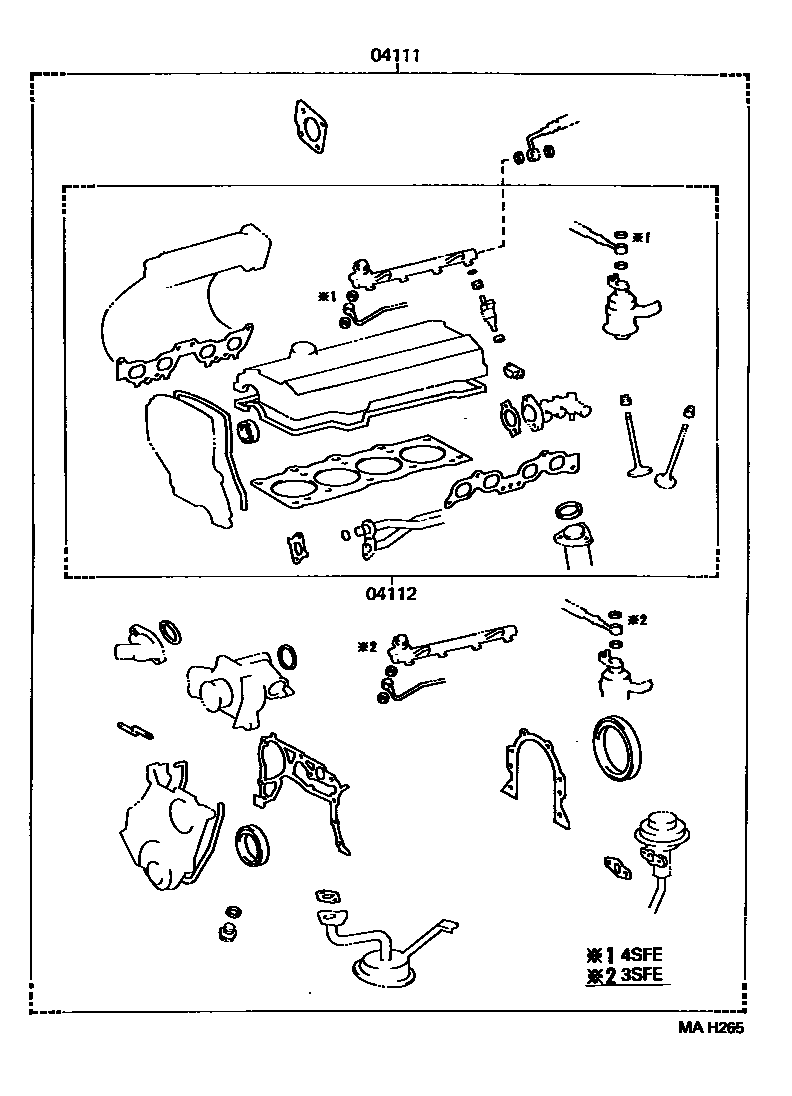

Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103
Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-64250 · 04111-64251 · 04111-64252 · 04111-64300 · 04111-64301 · 04111-74270 · 04111-74271 · 04111-74272 · 04111-74460 · 04111-74461 · 04111-74591 · 04111-74592 · 04111-74600 |
| 04112 | Engine valve grinding pad assembly | 04112-64190 · 04112-64191 · 04112-64192 · 04112-64230 · 04112-64231 · 04112-74270 · 04112-74271 · 04112-74460 · 04112-74561 · 04112-74562 · 04112-74570 |
