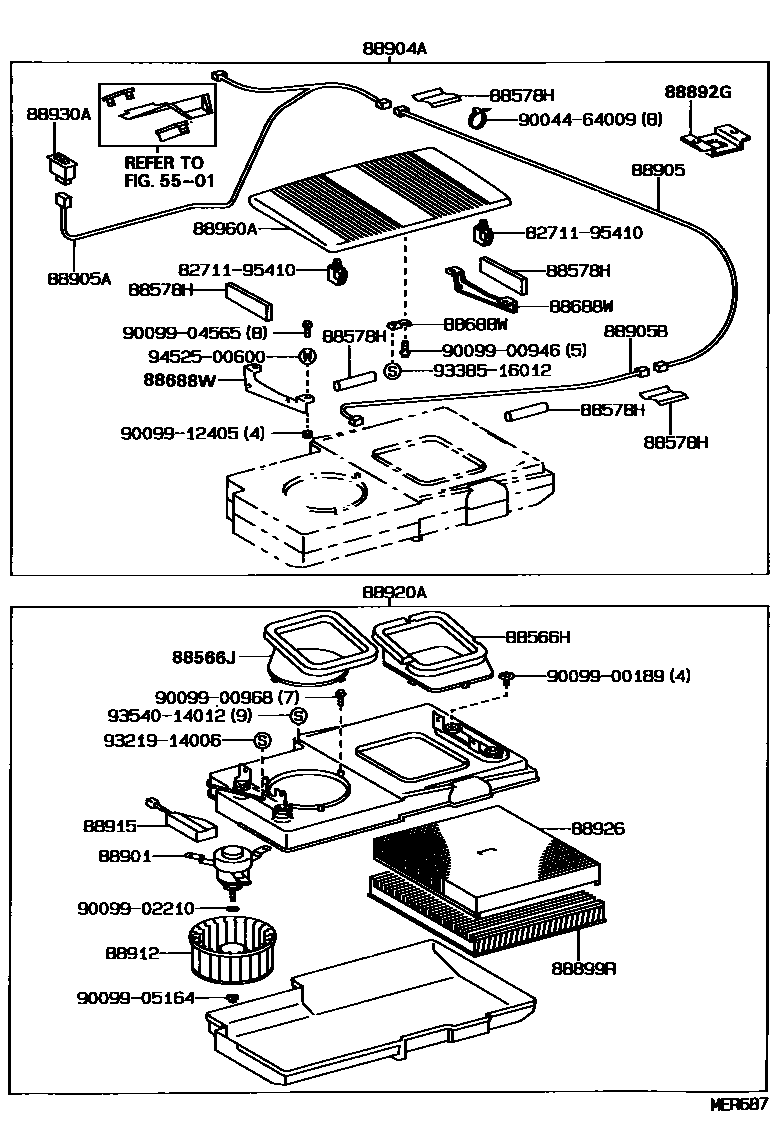

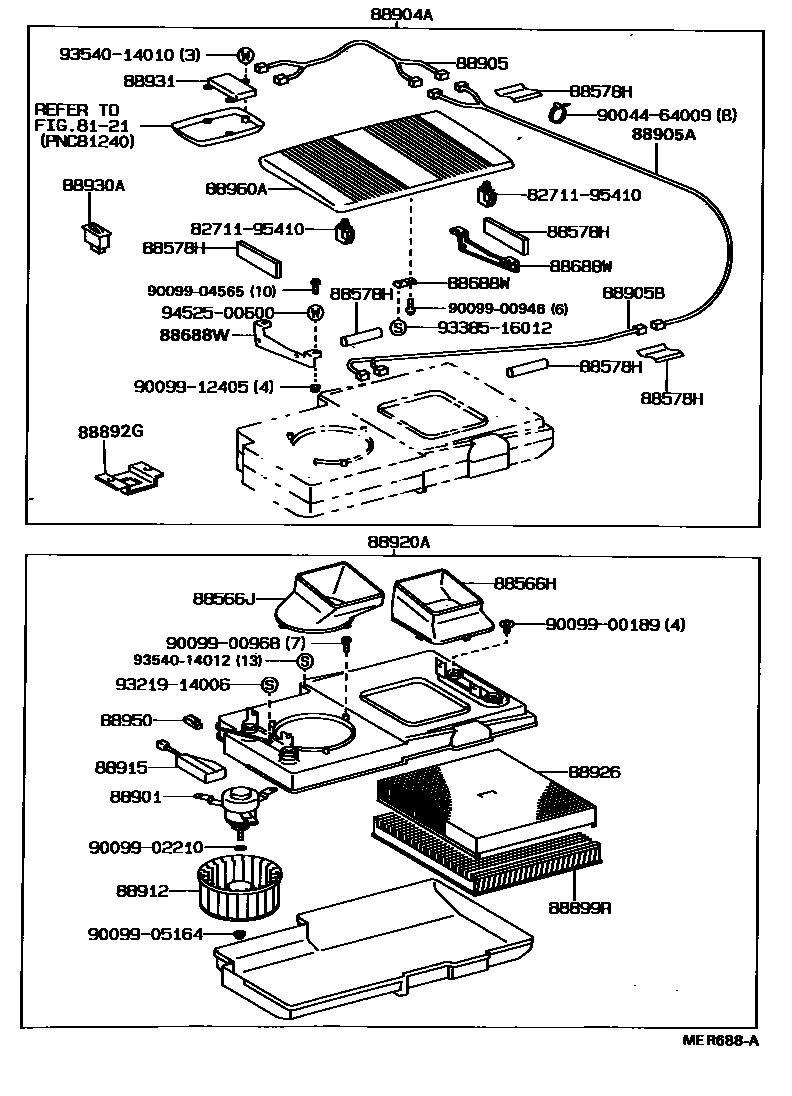

Toyota CAMRY 空气净化器或离子发生器 — Figure 8724
Toyota CAMRY EPC diagram 8724, 空气净化器或离子发生器, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88566H | No. 1 air duct | 88566-32070 · 88566-32090 |
| 88566J | Duct No. 2 | 88566-32080 · 88566-32100 |
| 88578H | No. 2 air purifier seal | 88578-30370 · 88578-32030 |
| 88688W | Air purifier bracket No. 1 | 88688-32340 · 88688-32350 · 88688-32360 |
| 88892G | Board sub-assembly | 88892-32110 |
| 88899R | air purifier frame | 88899-32020 |
| 88901 | Air purifier motor sub-assembly | 88901-32020 |
| 88905 | Air purifier No. 1 wiring harness sub-assembly | 88905-32130 · 88905-32140 · 88905-32150 |
| 88905A | Air purifier No. 2 wiring harness sub-assembly | 88905-32160 · 88905-32170 · 88905-32210 |
| 88905B | Air purifier No. 3 wiring harness sub-assembly | 88905-32180 · 88905-32200 |
| 88912 | air purifier fan | 88912-32140 |
| 88915 | air purifier resistor | 88915-20010 |
| 88920A | Air purifier assembly | 88920-32130 · 88920-32140 · 88920-32150 · 88920-32180 · 88920-32190 |
| 88926 | air purifier filter | 88926-32030 |
| 88930A | Air purifier switch assembly | 88930-22041 · 88930-32030 · 88930-32070 |
| 88931 | smoke sensor | 88931-32020 · 88931-33010 |
| 88950 | Air purifier amplifier assembly | 88950-12010 · 88950-20010 |
| 88960A | Air purifier grille assembly | 88960-32140 · 88960-32180 · 88960-32190 · 88960-32210 |
