Toyota CAMRY Heating & Air Conditioning - Compressor — Figure 8719
Toyota CAMRY EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

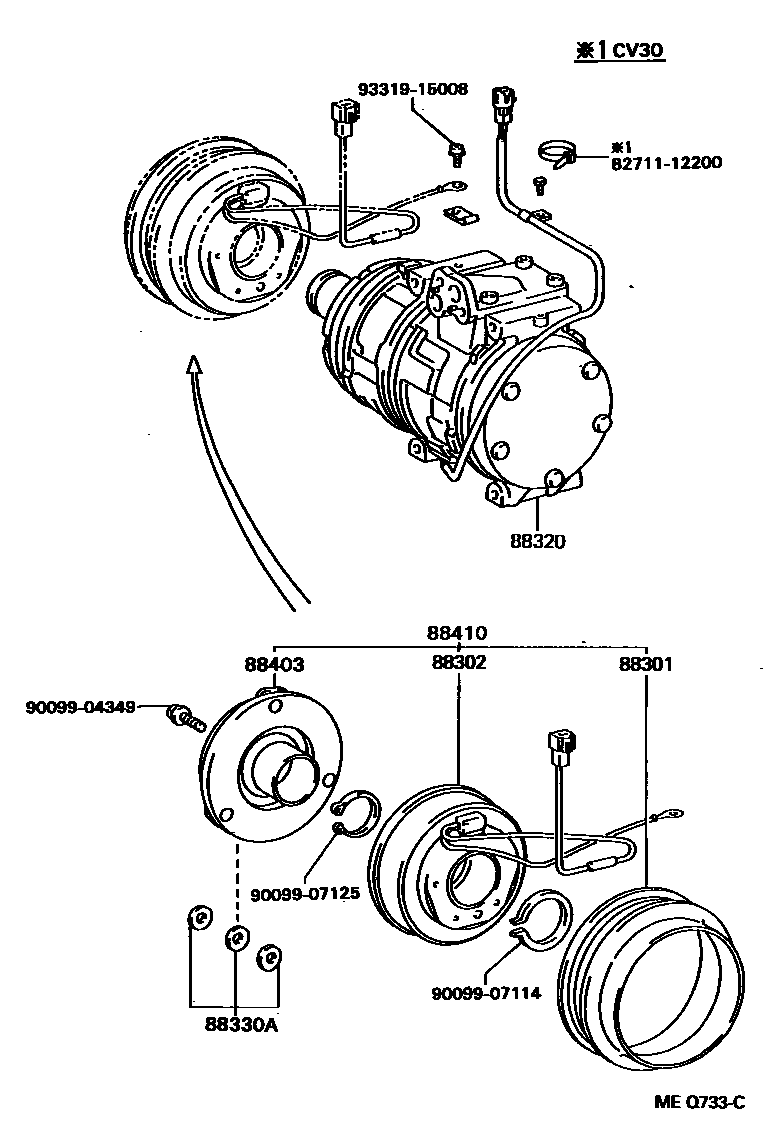

| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-20090 · 88412-2B030 · 88412-32040 · 88412-32050 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-2B010 · 88411-2B020 · 88411-32070 · 88411-32080 |
| 88320 | Cooler Compressor Assembly | 88320-32121 · 88320-32131 · 88320-32141 · 88320-32150 · 88320-32160 · 88320-32170 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 · 90099-01553 · 90099-01554 · 90099-01555 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-16011 · 88403-30290 |
| 88410 | Magnetic Clutch Assembly | 88410-20600 · 88410-32070 · 88410-32080 · 88410-32100 · 88410-32110 · 88410-32120 |

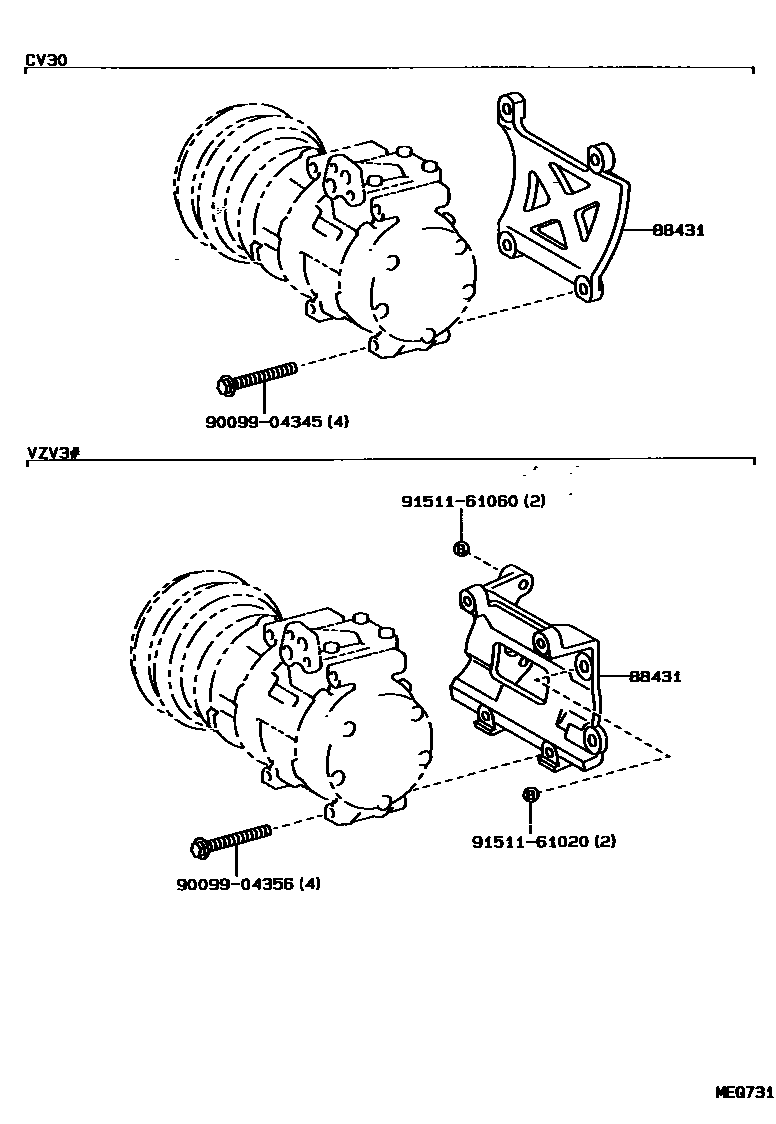

| 88431 | Compressor No. 1 mounting bracket | 88431-12460 · 88431-32020 |

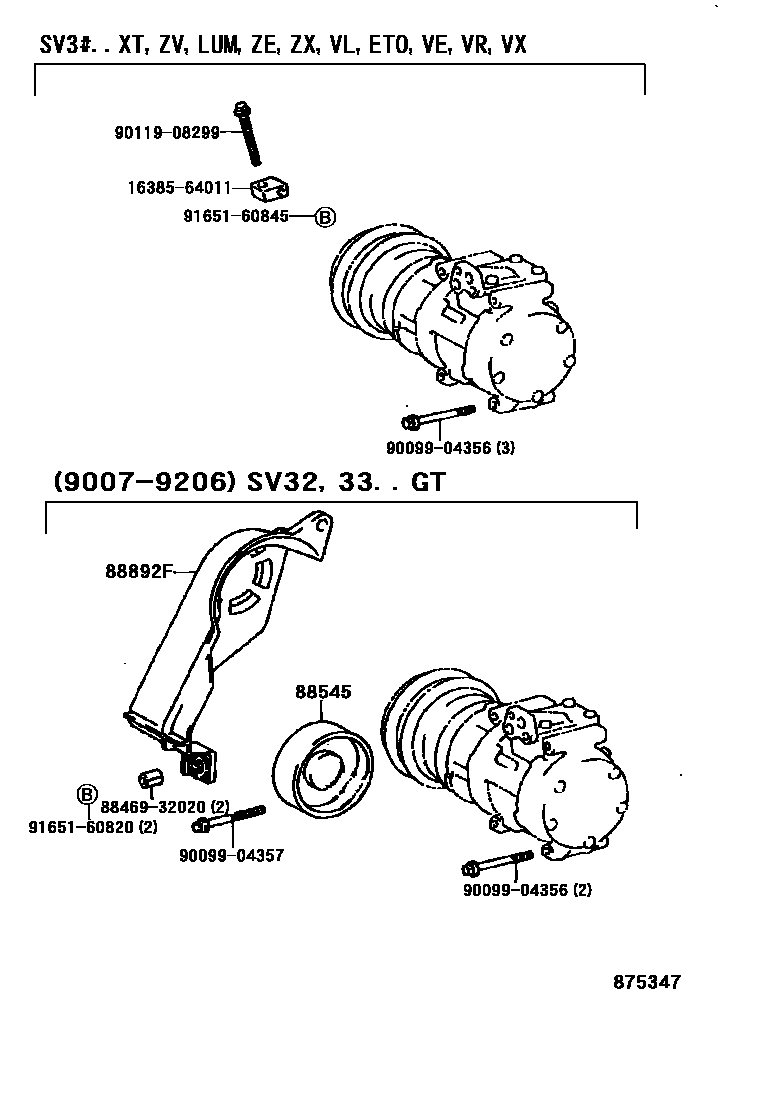

| 88545 | Idler gear assembly | 88440-20110 |
| 88892F | Cooler compressor cover | 88892-32100 |
