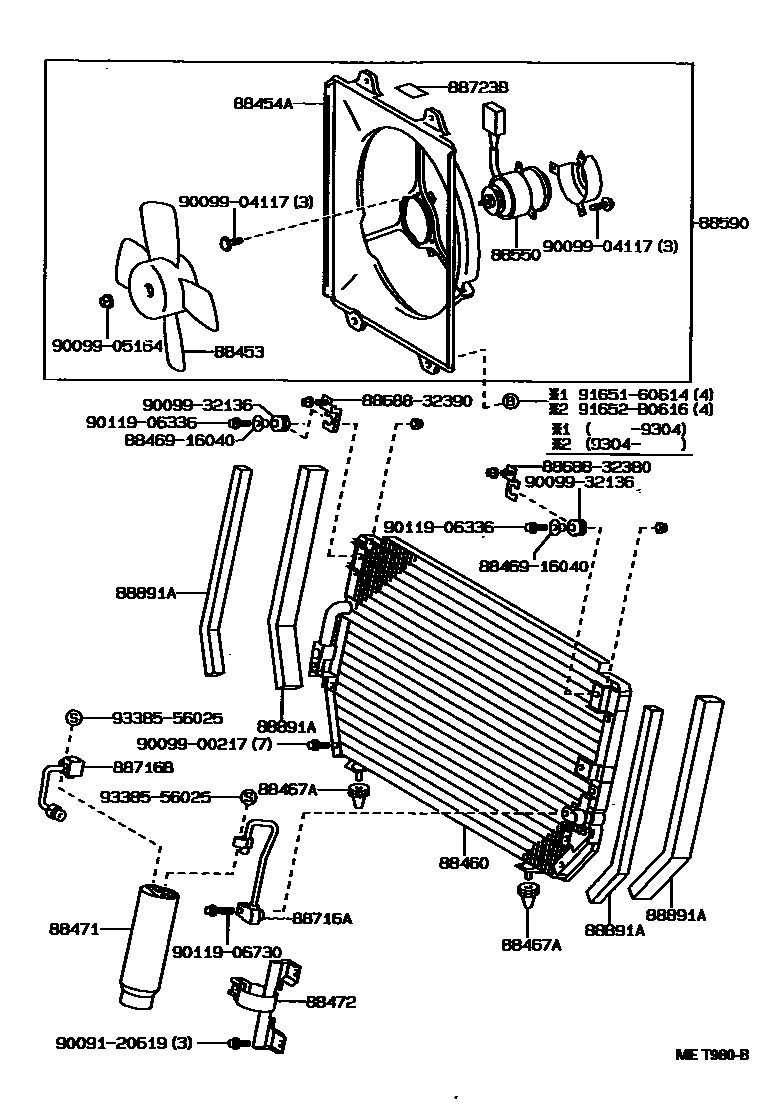

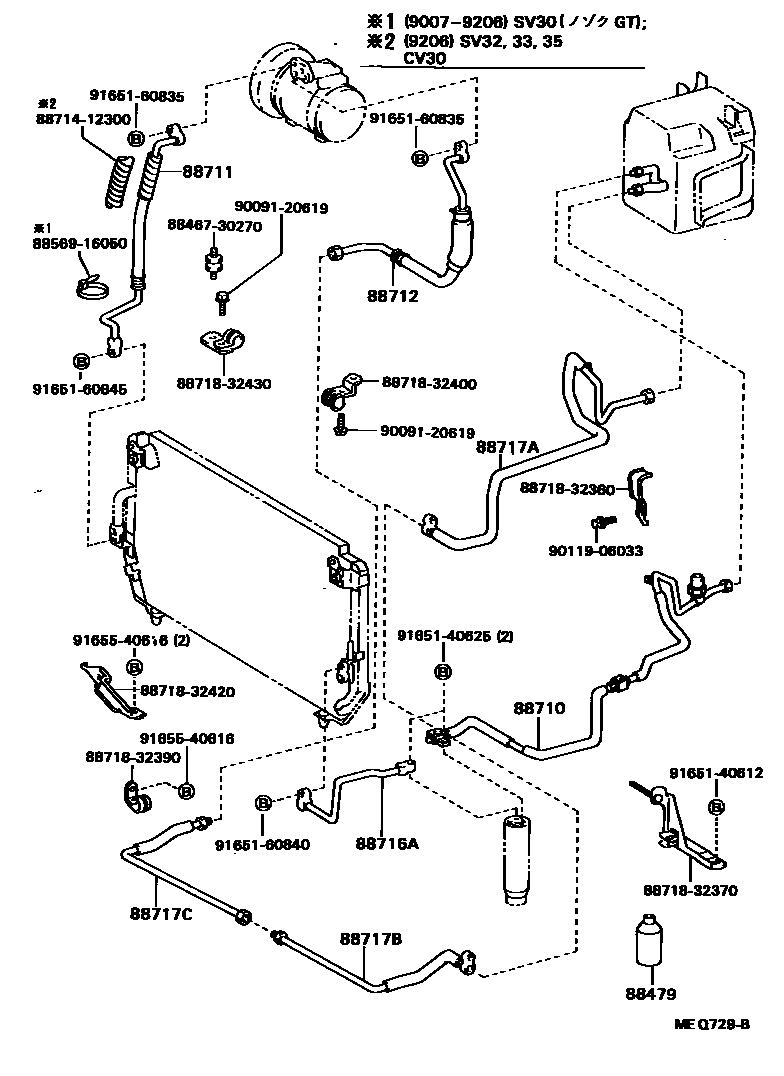

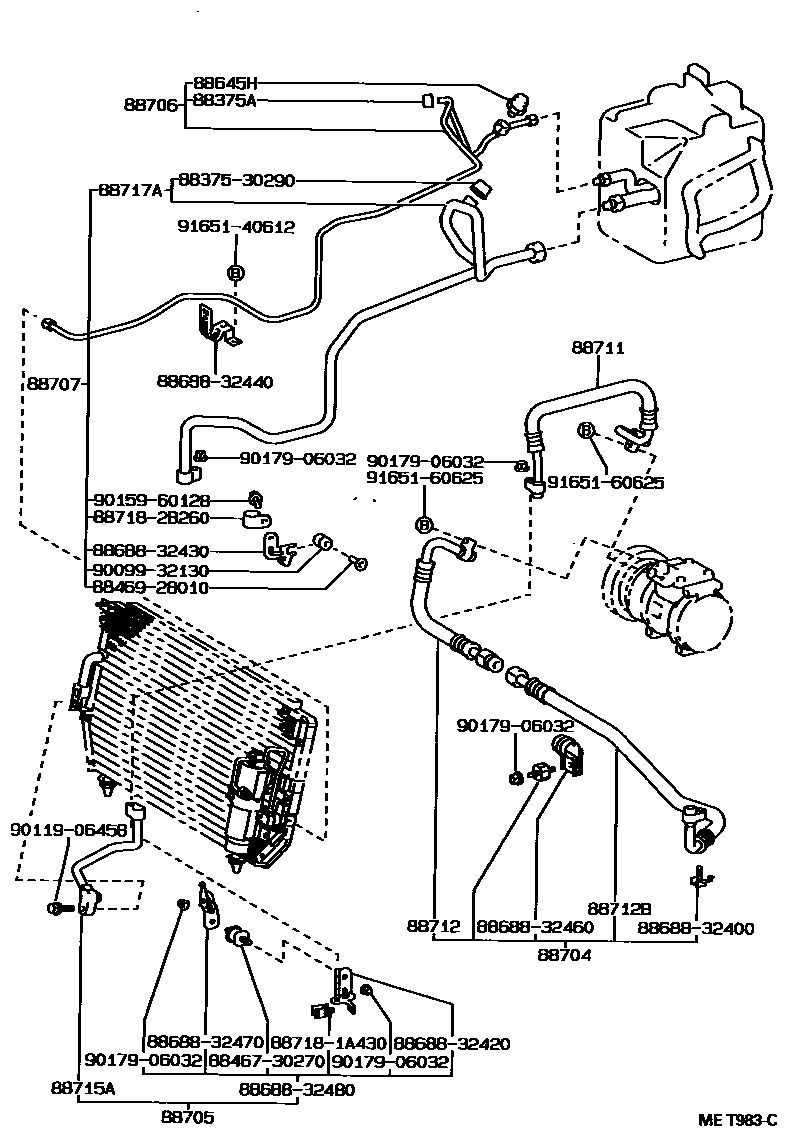

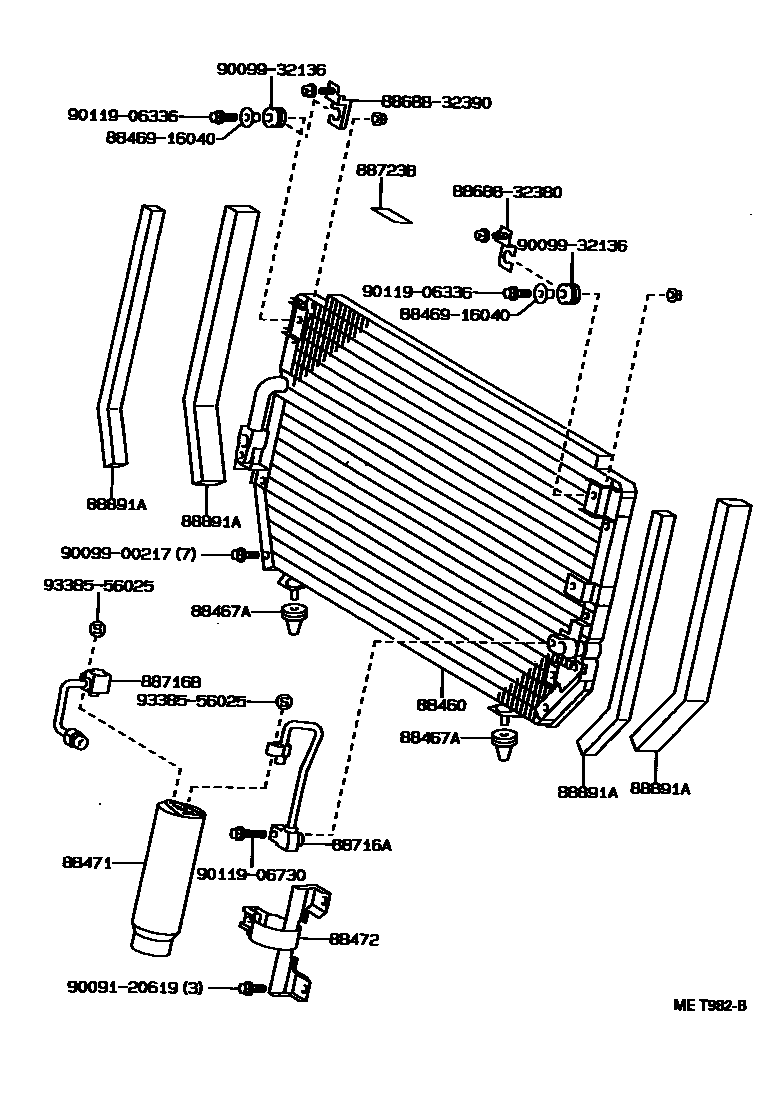

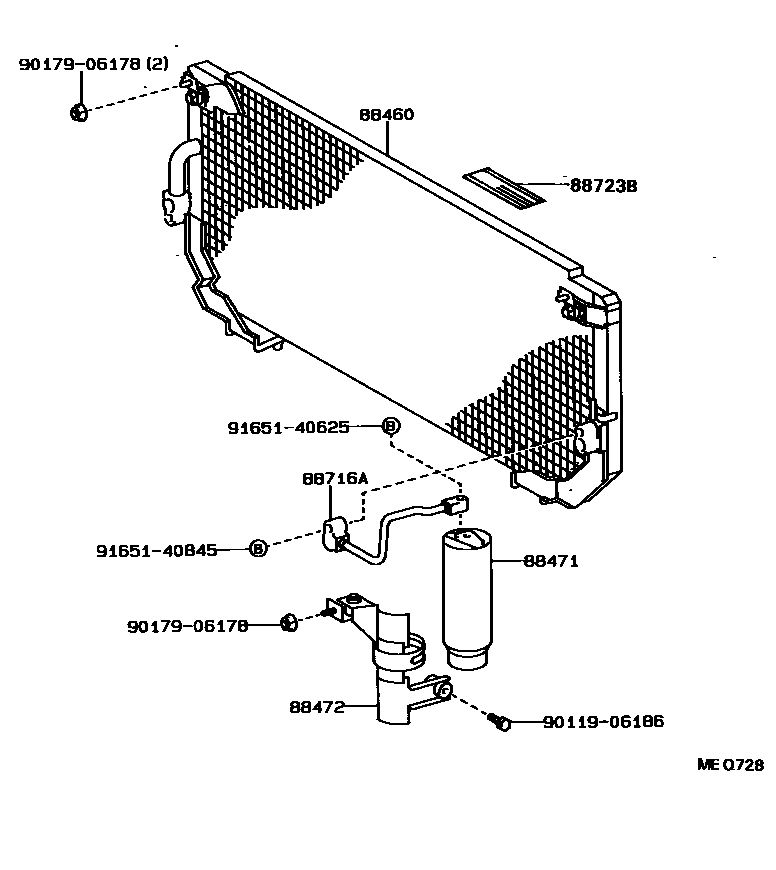

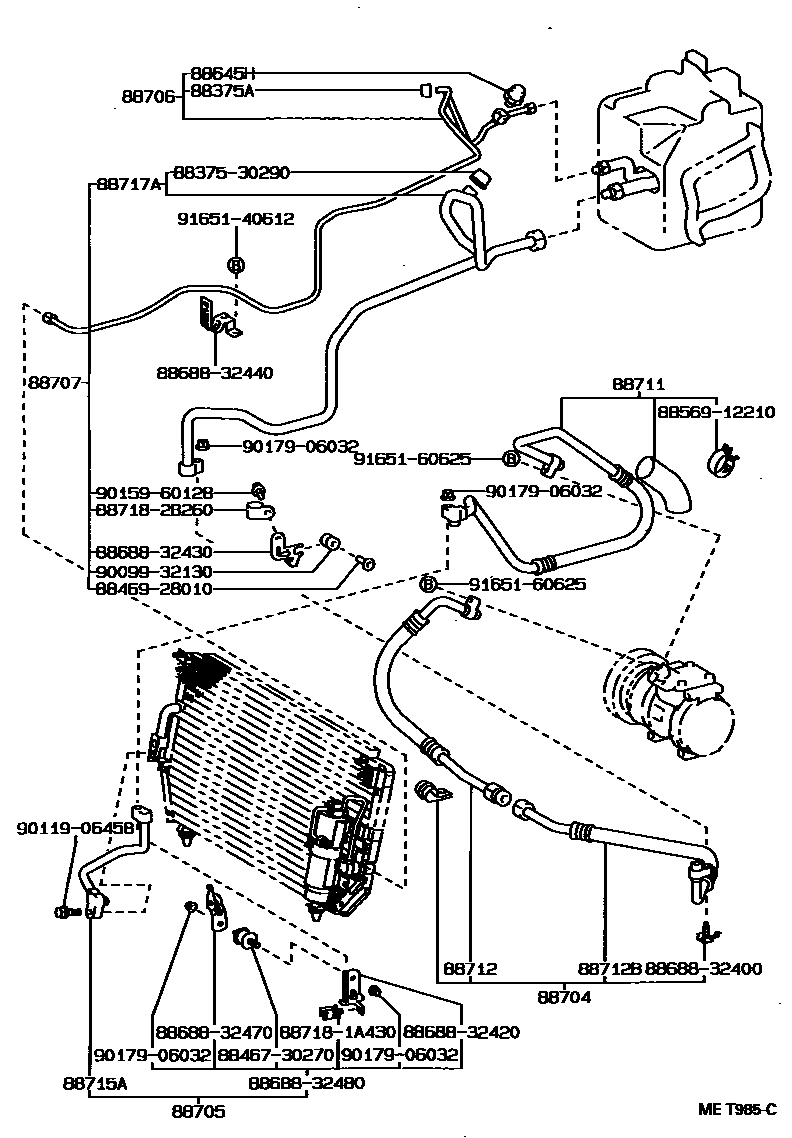

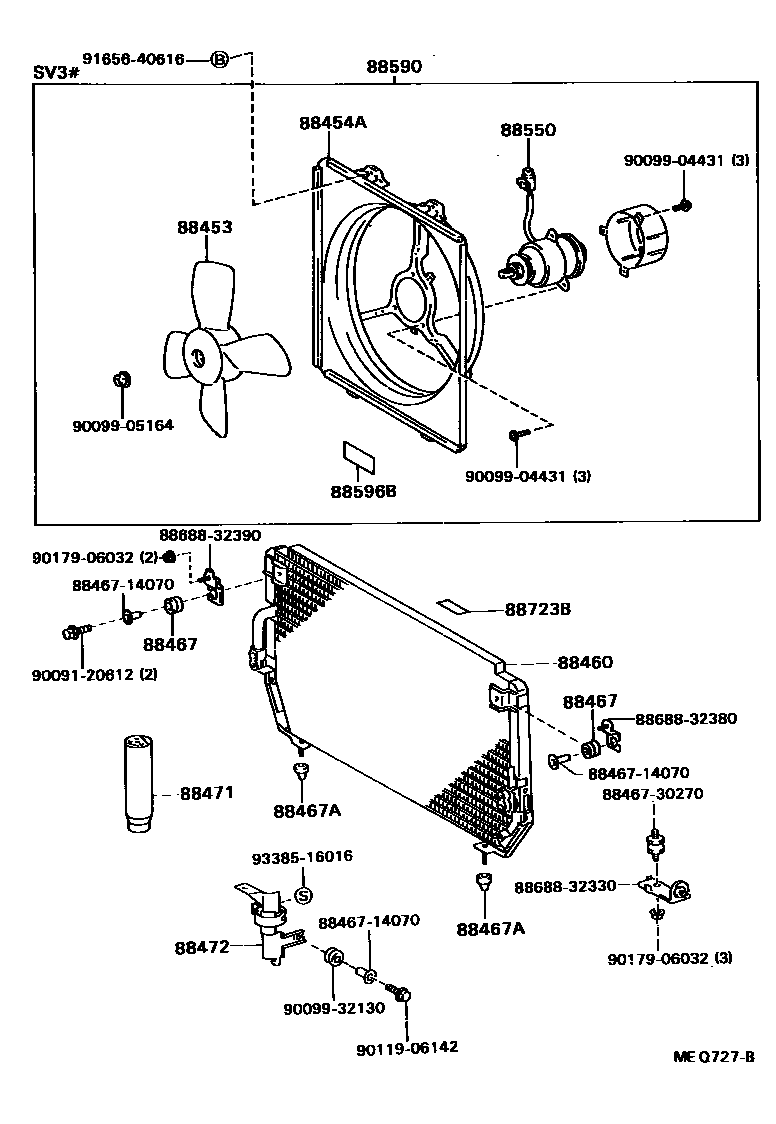

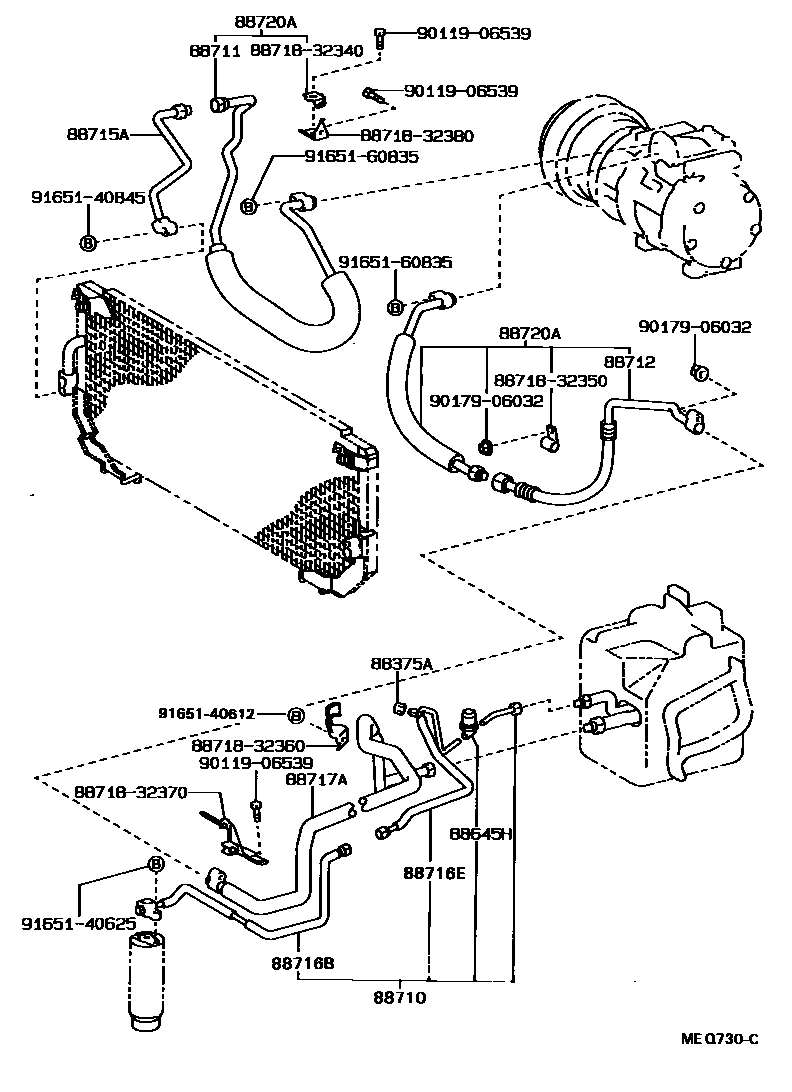

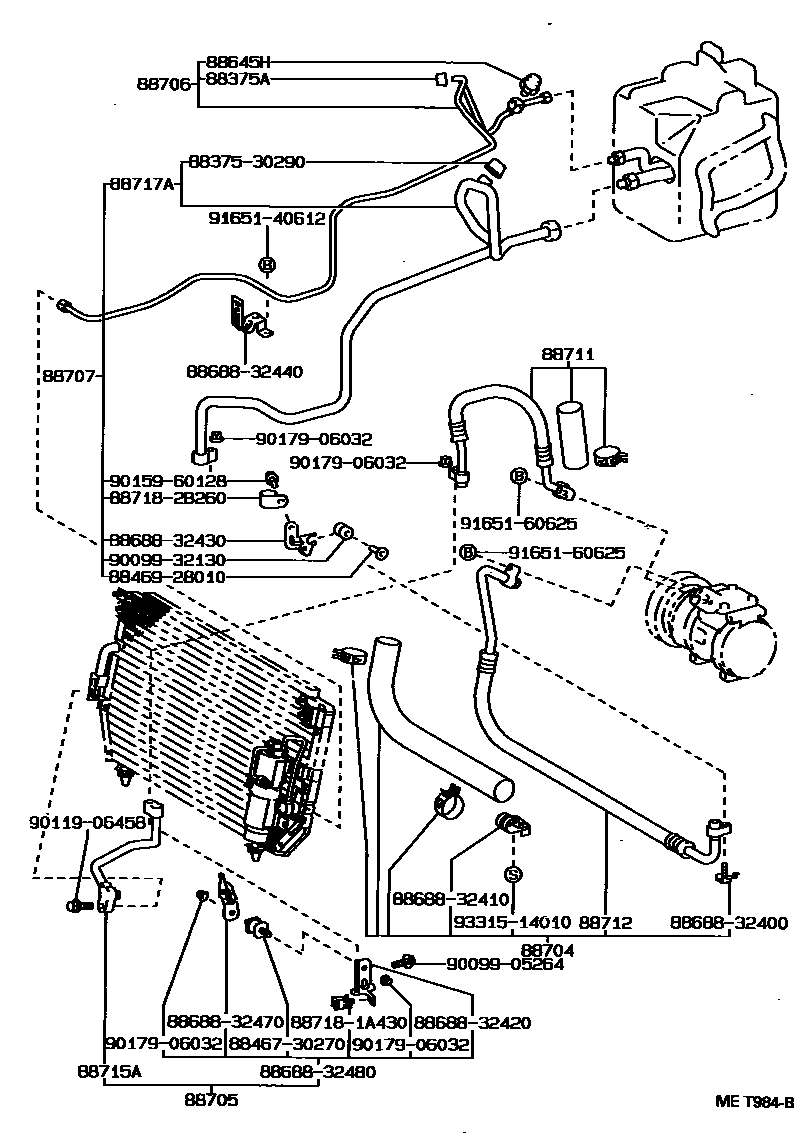

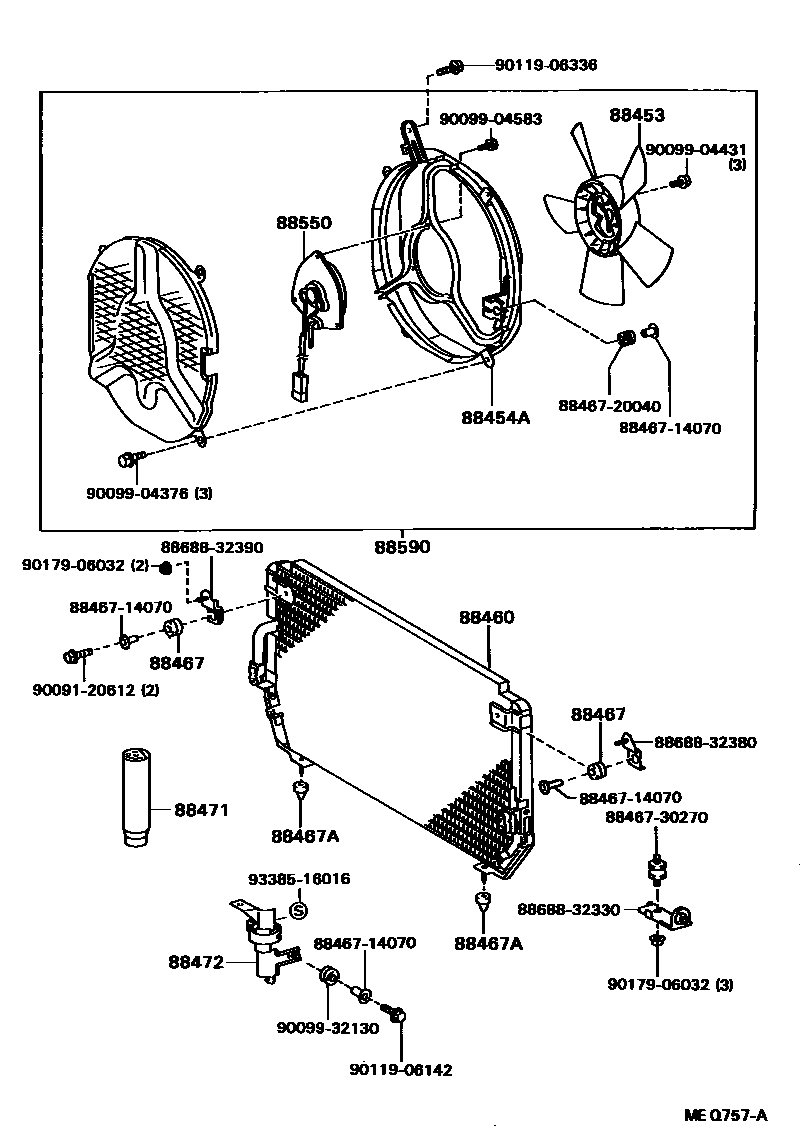

Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 11 images and 31 PNC and OE references.
PNC and OE references

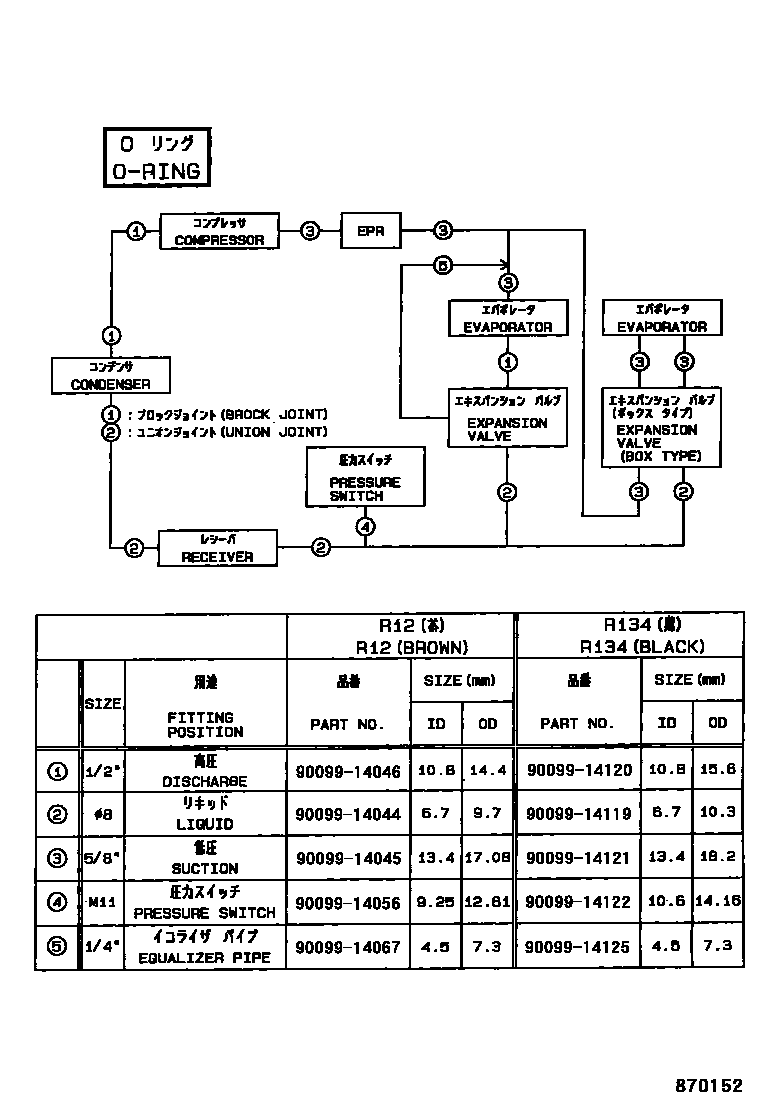

| PNC | Part name | OE numbers |
|---|---|---|
| 88375A | Repair valve cover (for cooler tube) | 88375-20010 · 88375-30280 |
| 88453 | Cooling fan (for condenser) | 88453-10020 · 88453-32050 |
| 88454A | fan cover | 88454-32060 · 88454-32070 |
| 88460 | Air conditioning condenser assembly | 88460-32140 · 88460-32150 · 88460-32160 · 88460-32170 · 88460-32190 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-32050 |
| 88467A | No. 2 air conditioning condenser buffer pad | 88467-32060 |
| 88471 | Air conditioning fluid storage tank | 88471-20050 · 88471-34010 · 88471-50010 |
| 88472 | No. 1 liquid storage tank bracket | 88473-32040 · 88473-32050 · 88473-32060 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02004 · 90986-02007 · 90986-02008 |
| 88550 | Blower motor assembly (for condenser) | 88550-32090 · 88550-32100 · 88550-32110 |
| 88590 | Blower assembly with hood | 88590-32140 · 88590-32150 · 88590-32160 |
| 88596B | No. 1 warning nameplate | 88596-24010 · 88723-20030 |
| 88645H | No. 1 pressure switch | 88645-20040 · 88645-20050 |
| 88704 | Oil suction hose sub-assembly | 88704-32050 · 88704-32060 · 88704-32070 · 88704-32090 |
| 88705 | Discharge pipe sub-assembly | 88705-32010 |
| 88706 | Liquid pipe sub-assembly | 88706-32010 |
| 88707 | Suction pipe sub-assembly | 88707-32010 |
| 88710 | Air conditioning pipe assembly | 88710-32090 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-32090 · 88711-32100 · 88711-32110 · 88711-32120 · 88711-32130 · 88711-32140 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-32230 · 88712-32240 · 88712-32250 · 88712-32260 · 88712-32280 |
| 88712B | Cooler refrigerant suction hose | 88712-32250 · 88712-32270 · 88712-32280 |
| 88715A | Cooler refrigerant discharge pipe A | 88715-32010 · 88715-32020 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-32380 · 88716-32470 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-32450 · 88716-32480 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-32390 |
| 88717A | Cooler refrigerant suction pipe A | 88717-32350 · 88717-32380 |
| 88717B | Cooler refrigerant suction pipe B | 88717-32360 |
| 88717C | Cooler refrigerant suction pipe C | 88717-32370 |
| 88720A | Air conditioning hoses and accessories | 88720-32120 · 88720-32130 |
| 88723B | Cooler maintenance warning label | 88723-20030 · 88723-22040 |
| 88891A | Seal A (for cooler) | 53291-12090 · 88578-32040 · 88578-32050 |
